IPC Series

PICMG 1.3 Single Host Board

GSPI-Q3700-LLVA

User’s Manual

CONTEC CO., LTD.

ii GSPI-Q3700-LLVA User’s Manual

Check Your Package

Thank you for purchasing the CONTEC product.

The product consists of the items listed below.

Check, with the following list, that your package is complete. If you discover damaged or missing items,

contact your retailer or the general CONTEC information.

◆Product Configuration List

GSPI-Q3700-LLVA

Name

Pcs.

PICMG1.3 Q370 long card

Installation Notice

Driver CD

DVI-D + VGA Y cable

SATA III cable

Dual-head COM port cable with bracket

*The user's manual for this product is available as a PDF file through CONTEC’s Web site.

The user's manual provides such information as hardware settings, functions for each component, and BIOS settings.

Refer to it as necessary.

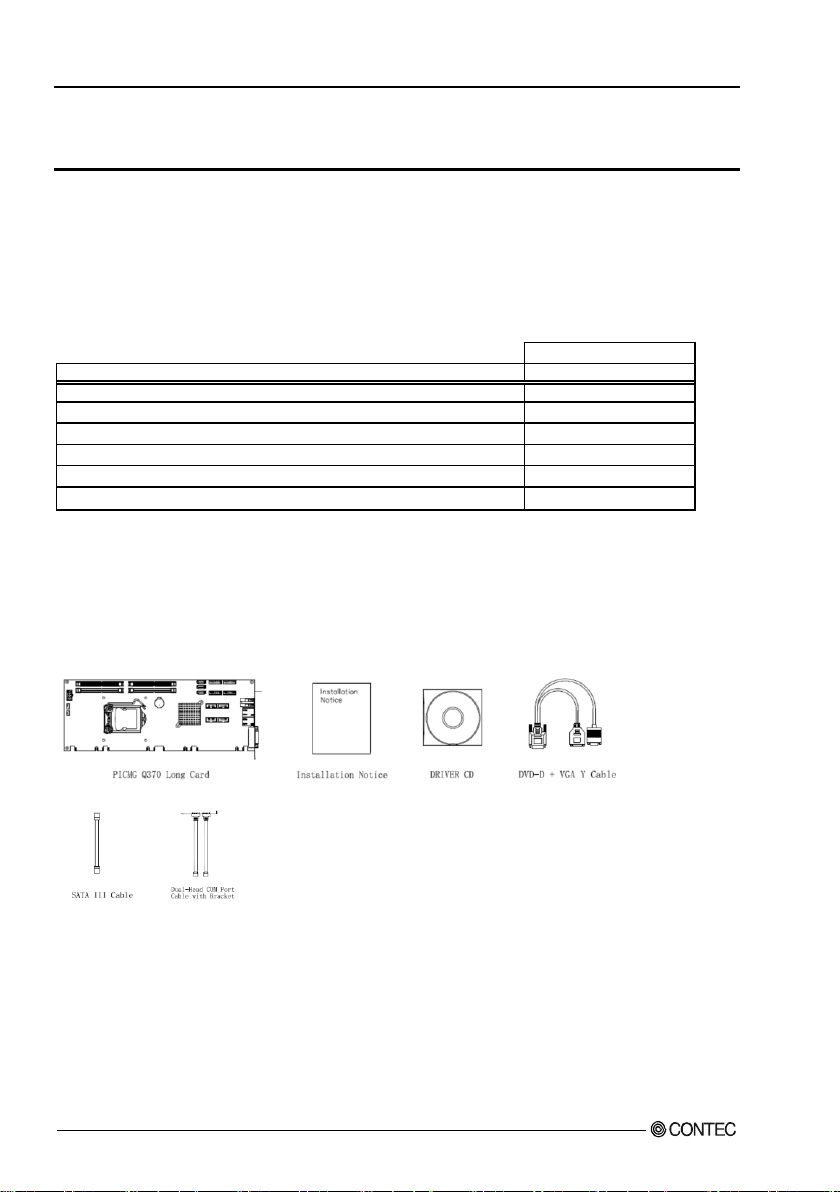

◆Product Configuration Image

* See the Product Configuration List to check if all the components are included for the specified number

of units.

GSPI-Q3700-LLVA User’s Manual iii

No part of this document may be copied or reproduced in any form by any means without prior written

consent of CONTEC CO., LTD.

CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this

document.

The information in this document is subject to change without notice.

All relevant issues have been considered in the preparation of this document. Should you notice an omission

or any questionable item in this document, please feel free to notify CONTEC Co., Ltd.

Regardless of the foregoing statement, CONTEC assumes no responsibility for any errors that may appear in

this document or for results obtained by the user as a result of using this product.

Trademarks

Intel, Intel Atom, Intel Core, Celeron, and Pentium are registered trademarks of Intel Corporation. MS,

Microsoft and Windows are trademarks of Microsoft Corporation. Other brand and product names are

trademarks of their respective holder.

Certification

Contec is certified to ISO 9001:2015 standard.

Technical Support

Contec technicians and engineers are committed to providing the best possible technical support for our

customers so that our products can be easily used and implemented.

We request that you first visit our website at http://www.contec.com. For the latest documentation, utilities and

drivers, which have been made available to assist you. If you still require assistance after visiting our website

then contact our technical support department by email at sa[email protected]c.com for further assistance. Thank

you!




iv GSPI-Q3700-LLVA User’s Manual
Table of Contents
Check Your Package............................................................................................................................ii
◆Product Configuration List........................................................................................................ii
◆Product Configuration Image....................................................................................................ii
Copyright............................................................................................................................................iii
Trademarks.........................................................................................................................................iii
Certification........................................................................................................................................iii
Technical Support...............................................................................................................................iii
Table of Contents................................................................................................................................iv
1. INTRODUCTION 6
About the Product................................................................................................................................ 6
◆Features.....................................................................................................................................6
◆Supported OS............................................................................................................................6
Customer support................................................................................................................................. 7
◆Web Site ...................................................................................................................................7
Limited One-Year Warranty................................................................................................................7
How to Obtain Service......................................................................................................................... 7
Liability............................................................................................................................................... 8
Safety precaution................................................................................................................................. 8
◆Safety information ....................................................................................................................8
◆Caution on the GSPI-Q3700-LLVA..........................................................................................8
2．SYSTEM REFERENCE 10
Specification......................................................................................................................................10
Supported Operation System .............................................................................................................10
Mechanical Dimensions..................................................................................................................... 10
Block Diagram...................................................................................................................................12
3．HARDWARE SETUP 13
Jumpers and Connectors.................................................................................................................... 13
Jumpers Setting..................................................................................................................................14
Connector Settings............................................................................................................................. 15
4．SIGNAL DESCRIPTION 23
Watch-Dog Signal ............................................................................................................................. 23
GPIO Signal.......................................................................................................................................24



GSPI-Q3700-LLVA User’s Manual v
5．SYSTEM RESOURCES 26
Intel Coffee lake-S PCH.................................................................................................................... 26
Main Memory.................................................................................................................................... 26
Installing the Single Board Computer................................................................................................ 26
◆Chipset Component Driver..................................................................................................... 26
◆Intel® HD Graphics 630......................................................................................................... 27
◆Intel LAN I210AT/I219LM Gigabit Ethernet Controller........................................................ 27
6．BIOS SETUP 28
Introduction....................................................................................................................................... 28
BIOS Setup........................................................................................................................................ 28
◆Main ....................................................................................................................................... 28
◆Configuration.......................................................................................................................... 29
◆Security................................................................................................................................... 52
◆Boot........................................................................................................................................ 53
◆Save and Exit.......................................................................................................................... 55
7．TROUBLESHOOTING 56
◆Hardware Quick Installation................................................................................................... 56
◆BIOS Setting........................................................................................................................... 57

6GSPI-Q3700-LLVA User’s Manual

1. Introduction

About the Product

GSPI-Q3700-LLVA, a PICMG 1.3 Single Host Board (SHB), with Intel®8th/ 9th generation Processor which

supported from Core i7/i5/i3 to Celeron and Pentium. GSPI-Q3700-LLVA implements flexible PCI Express

Gen 3 expansion with dedicated processor SKU.

GSPI-Q3700-LLVA adopts Intel Q370 PCH, providing up to 128GB DDR4-2133 SO-DIMM system memory

supported. GSPI-Q3700-LLVA with the 8th/ 9th generation Intel®processor family features and integrated,

enhanced graphics engine which provides significant 3D performance, up to DirectX®12. Besides, triple

display function via DVI-I (VGA and DVI-D) and HDMI up to 4Kx2K. Moreover, rich I/O functions are also

provided by GSPI-Q3700-LLVA single host board, includes 2x USB 3.1, 8x USB 3.0, 5x SATA III port (dual

ports via backplane), 2x RS232 port, 2x COM port (RS232/422/485 selectable from BIOS), and dual Intel GbE

LAN ports. Nevertheless, it also supports on board TPM 2.0 to secure your applications.

◆Features

-Flexible PCI Express Gen 3 expansion

Expansion slots with dedicated processor SKUs could support one PCI Express x16, OR two PCI Express x8,

OR one PCI Express x8 and two PCI Express x4, which could fulfill various applications such as industrial

automation, digital signage, and medical demands.

-Supports Triple Displays

Full HD video can be smoothly played.

It also supports full HD output of the three-screen with VGA, DVI-D, and HDMI.

-Extend peripherals freely. Rich interface

This product is equipped with a variety of expansion interfaces such as VGA, DVI-D, 2*1000BASE-T, 2*USB

3.1, 8*USB3.0, 2*RS232/422/485 serial, 2*RS232, HDMI, and audio. You can assist our use in various

scenes.

◆Supported OS

Windows10 IoT 2019-LTSC 64bit

GSPI-Q3700-LLVA User’s Manual 7

Customer support

CONTEC provides the following support services for you to use CONTEC products more efficiently and

comfortably.

◆Web Site

http://www.contec.com/

■Latest product information

CONTEC provides up-to-date information on products.

CONTEC also provides product manuals and various technical documents in the PDF.

■Free download

You can download updated driver software and differential files as well as sample programs available in

several languages.

■Note! For product information

Contact your retailer if you have any technical question about a CONTEC product or need its price, delivery

time, or estimate information.

Limited One-Year Warranty

CONTEC products are warranted by CONTEC CO., LTD. to be free from defects in material and

workmanship for up to one year from the date of purchase by the original purchaser.

Repair will be free of charge only when this device is returned freight prepaid with a copy of the original

invoice and a Return Merchandise Authorization to the distributor or the CONTEC group office, from which it

was purchased.

This warranty is not applicable for scratches or normal wear, but only for the electronic circuitry and original

products. The warranty is not applicable if the device has been tampered with or damaged through abuse,

mistreatment, neglect, or unreasonable use, or if the original invoice is not included, in which case repairs will

be considered beyond the warranty policy.

How to Obtain Service

For replacement or repair, return the device freight prepaid, with a copy of the original invoice. Please obtain a

Return Merchandise Authorization number (RMA) from the CONTEC group office where you purchased

before returning any product.

* No product will be accepted by CONTEC group without the RMA number.

8GSPI-Q3700-LLVA User’s Manual

Liability

The obligation of the warrantor is solely to repair or replace the product. In no event will the warrantor be

liable for any incidental or consequential damages due to such defect or consequences that arise from

inexperienced usage, misuse, or malfunction of this device.

Safety precaution

Understand the following definitions and precautions to use the product safely.

◆Safety information

This document provides safety information using the following symbols to prevent accidents resulting in

injury or death and the destruction of equipment and resources. Understand the meanings of these labels to

operate the equipment safely.

DANGER indicates an imminently hazardous situation which, if not avoided,

will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided,

may result in minor or moderate injury or in property damage.

◆Caution on the GSPI-Q3700-LLVA

Handling Precautions

WARNING

-Always check that the power supply is turned off before connecting or disconnecting power cables.

-Do not modify the product.

-Always turn off the power before inserting or removing circuit boards or cables.

-This product is not intended for use in aerospace, space, nuclear power, medical equipment, or other

applications that require a very high level of reliability. Do not use the product in such applications.

-If using this product in applications where safety is critical such as in railways, automotive, or disaster

prevention or security systems, please contact your retailer.

-Do not attempt to replace the battery as inappropriate battery replacement poses a risk of explosion.

-For battery replacement, contact your retailer as it must be performed as a process of repair.

-When disposing of a used battery, follow the disposal procedures stipulated under the relevant laws and

municipal ordinances. For details on replacing the battery, refer to the appendix.

-This product is connected to a socket-outlet with earthing connection by means of a power cord.

-This product is not suitable for use in locations where children are likely to be present.

GSPI-Q3700-LLVA User’s Manual 9

CAUTION

-Do not use or store this product in a location exposed to high or low temperature that exceeds range of

specification or susceptible to rapid temperaturechanges.

Example: - Exposure to direct sun / - In the vicinity of a heat source

-Do not use this product in extremely humid or dusty locations. It is extremely dangerous to use this product

with its interior penetrated by water or any other fluid or conductive dust. If this product must be used in

such an environment, install it on a dust-proof control panel, for example.

-Avoid using or storing this product in locations subject to shock or vibration that exceeds range of

specification.

-Do not use this product in the vicinity of devices that generate strong magnetic force or noise. Such

products will cause this product tomalfunction.

-Do not use or store this product in the presence ofchemicals.

-To clean this product, wipe it gently with a soft cloth dampened with either water or mild detergent.

Do not use chemicals or a volatile solvent, such as benzene or thinner, to prevent pealing or discoloration

of the paint.

-This product’s case may become hot. To avoid being burned, do not touch that section while this product is

in operation or immediately after turning off the power. Avoid installation in a location where people may

come into contact with thatsection.

-CONTEC does not provide any guarantee for the integrity of data onCFast.

-Always remove the power cable from the power outlet before mounting or removing an expansion board

and before connecting or disconnecting aconnector.

-To prevent corruption of files, always shutdown the OS before turning off this product.

-CONTEC reserves the right to refuse to service a product modified by the user.

-In the event of failure or abnormality (foul smells or excessive heat generation), unplug the power cord

immediately and contact yourretailer.

-To connect with peripherals, use a grounded, shieldedcable.

-The CFast card connector, 2.5-inch HDD and SSD slot do not support hot plugging. CFast cards, 2.5-inch

HDDs and SSD cannot be removed or inserted while the power is on. Do not remove or install CFast cards

or 2.5-inch HDD or SSD, or connect to CFast cards or 2.5-inch HDD or SSD while the unit is turned on.

This product may malfunction or cause a failure.

-If you use any other CFast than our CFast, we cannot guarantee this product’s specification. When you

newly select CFast for this product, you should read “Chapter 7” at first. If you select unpreferable CFast,

the system may work out oforder.

-Component Life:

(1) Battery---The internal calendar clock and CMOS RAM are backed by a Lithium primary battery. The

backup time at a temperature of 25°C with the power disconnected is 10 years or more.

*Replacement of expendables is handled as a repair (there will be acharge).

*The service life for consumable parts are reference values and are not guaranteed values.

*This product's specifications allow the device to be rebooted from the BIOS screen during startup. This

has no effect on operation after the OSboots

10 GSPI-Q3700-LLVA User’s Manual

2．System Reference

Specification

Table 2.1. Functional specification

Model

GSPI-Q3700-LLVA

Board

CPU

8th/ 9th Gen Intel® Core™/Celeron/ Pentium 35~65W processors

Chipset

Intel®Q370 PCH

System BIOS

AMI UEFI BIOS

System memory

Up to 128 GB non-ECC DDR4 on four so-DIMM sockets. Supports dual

channel DDR4 2133 MHz SDRAM

Graphics

Controller: Intel® Gfx Gen 9, HD graphics

Display interface

VGA port: Resolution up to 1920 x 1200 @ 60Hz

DVI-I: Resolution up to 1920 x 1200 @ 60Hz

(VGA+DVI-D on bracket by DVI-I port)

HDMI port: Resolution up to 4096 x 2160 @ 24Hz

Storage Slot

5 x SATA 3.0 (6.0Gb/s), dual ports via backplane (RAID 0,1,5,10 support)

1 x M.2 Type M 2280 (on bottom side)

Ethernet

Dual 100/1000 Mbps Ethernet port via PCI Express x1 interface

Intel WGI219LM and WGI210AT controllers

Dual RJ45 connectors on bracket

Expansion Slot

1 x PCIe Gen3 x16 slot OR

2 x PCIe Gen3 x8 slot OR

1 x PCIe Gen3 x8 + 2 x PCIe Gen3 x4 by jumper setting

Interface

4 x Serial port:

- 2 x RS-232/422/485 selectable by BIOS

- 2 x RS-232

10 x USB Port:

- 2 x USB 3.1 on bracket

- 8 x USB 3.0 on board header

GPIO connector: 8-bit general purpose Input/ Output

Audio Interface: Mic-In, Line-In and Line-Out (on-board header)

TPM

On-board TPM 2.0 support (TPM IC: Infineon SLB9665TT2.0)

Dimension

Board size: 338.5mm x 126.39 mm (13.33" x 4.98")

Environmental

Specifications

Operating Temperature

0°C to 60°C *1

Storage Temperature

-20°C to 80°C

Operation Humidity

10% to 90% RH (non-condensing)

Storage Humidity

5% to 90% RH (non-condensing)

*1. USB 3.1 Gen2 operation temperature is 40°C/ 50% RH, while USB3.1 Gen1 can run under 65°C/ 90% RH

Supported Operation System

Windows10 IoT 2019-LTSC 64bit

Andere Handbücher für IPC SERIES

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Contec PCI-Karte Handbücher

Contec

Contec DIO-32DM2-PE Bedienungsanleitung

Contec

Contec DIO-1616T-LPE Bedienungsanleitung

Contec

Contec AD12-64(PCI) Bedienungsanleitung

Contec

Contec AD12-64(PCI) Bedienungsanleitung

Contec

Contec AO-1616L-LPE Bedienungsanleitung

Contec

Contec COM-2PD-LPE Bedienungsanleitung

Contec

Contec CNT24-4(PCI) Bedienungsanleitung

Contec

Contec AIO-160802LI-PE Bedienungsanleitung

Contec

Contec DIO-48D-LPE Bedienungsanleitung

Contec

Contec COM-2(PCI)H Bedienungsanleitung

Contec

Contec DIO-3232LX-USB Bedienungsanleitung

Contec

Contec CNT-3208M-PE Bedienungsanleitung

Contec

Contec PIO-16/16RL(PCI)H Bedienungsanleitung

Contec

Contec DIO-96D-LPE Bedienungsanleitung

Contec

Contec ADA16-32/2(PCI)F Bedienungsanleitung

Contec

Contec PI-64L Series Bedienungsanleitung

Contec

Contec COM-1(LPCI)H Bedienungsanleitung

Contec

Contec FX-DS540-MPCI6 Bedienungsanleitung

Contec

Contec CFast CFS-32GBM-A Bedienungsanleitung

Contec

Contec COM-4(PCI)H Bedienungsanleitung

Contec

Contec AD16-64(LPCI)LA Bedienungsanleitung

Contec

Contec DIO-1616B-LPE Bedienungsanleitung

Contec

Contec DS540-MPCI4WAP Bedienungsanleitung

Contec

Contec GPIB-F-LPE Bedienungsanleitung

Beliebte PCI-Karte Handbücher anderer Marken

ERMA

ERMA SSI 1417 Bedienungsanleitung

SIIG

SIIG CyberSerial Dual PCI Montageanleitung

Moxa Technologies

Moxa Technologies CP-102E Bedienungsanleitung

I-Bus

I-Bus IBC2602 Bedienungsanleitung

Exsys

Exsys EX-60102 Bedienungsanleitung

Chelsio Communications

Chelsio Communications T5 Series Bedienungsanleitung

Conrad Electronic

Conrad Electronic 97 46 71 Bedienungsanleitung

Micro Innovations

Micro Innovations USB650A Bedienungsanleitung

KTI Networks

KTI Networks KF-310 Bedienungsanleitung

Asus

Asus SpaceLink WL230 Bedienungsanleitung

SIIG

SIIG SC2475 Bedienungsanleitung

TRENDnet

TRENDnet TEW-703PI Bedienungsanleitung

Belkin

Belkin F5D7000F Bedienungsanleitung

Pericom

Pericom PI7C7100 Bedienungsanleitung

ADLINK Technology

ADLINK Technology cPCI-3548 Bedienungsanleitung

Digium

Digium TE200 Series Bedienungsanleitung

Allo.com

Allo.com 2nd Gen E1/T1/J1 Bedienungsanleitung

Western Digital

Western Digital FireWire PCI Adapter Bedienungsanleitung
