Overview

The IP-HDVR HDTV Tuner-DVR is an integrator-friendly HD tuner and Digital Video Recorder (DVR),

controllable from Ethernet, RS-232, IR, and onboard Web pages. A universal tuner, the IP-HDVR can receive

both ATSC and NTSC broadcasts from twin off-air antenna and cable RF inputs, decode clear-cable digital

QAM channels, as well as control an external analog cable box for subscription-based programming. When

integrating the IP-HDVR via Ethernet, a control system can also communicate with a video display or

projector through the HD tuner’s RS-232 control port.

Featuring a 120 GB hard drive, the IP-HDVR is also a powerful HD DVR, able to schedule recording from its

TV Guide On Screen™ program guide (no monthly fees) or VCR Plus+ codes. The unit can also record and

display digital video from IEEE-1394 ports or upscaled analog video from two AV inputs. In addition, users

can pause and review live programs at their leisure.

The tuner displays HD, SD, and analog broadcasts through Component, RGB, DVI, or composite video/S-

Video outputs. View up to 2-megapixel quality video in 1080i, 720p, 480p, and 480i modes, in a variety of

aspect ratios. Dolby 5.1 surround sound is available from an optical output, and variable- and fixed-level

stereo audio ports.

•Receives ATSC HD, SD and NTSC off-air, as well as analog, HD, and unscrambled QAM cable

channels simultaneously from TV and Cable RF inputs

•Records tuner and external AV to internal 120 GB hard drive

•Pauses live video programming for delayed playback and review

•Features subscription-free TV Guide On-Screen™ EPG for TV/Cable channel access and recording

•Accepts VCR Plus+ commands for digital recording

•Outputs HD,SD, and upscaled analog video to Component, DVI, RGB, or dual Video/S-Video ports

•Switches and upscales cable box and other external AV sources from two analog inputs

•Controls IR-format cable box for subscription-based programming

•Shares digital video with specific IEEE-1394 FireWire devices (Page 6)

•Links RS-232 control system communication to external video display when tuner is integrated via

Ethernet

•Integrates easily over Ethernet, RS-232, discrete IR and wired IR ports, and included HDV-RC IR

remote

•Offers Dolby 5.1 surround sound from optical digital output and two analog variable and fixed-level

stereo outputs

•Sets up using front-panel control, easy on-screen menus, and control ports

•Displays closed-captioning text and on-screen channel names

•Mounts in 19" rack with optional RKHD kit

•Includes HDV-RC IR remote and cables for component, DVI, RCA stereo audio, and antenna

Contemporary Research 4 IP-HDVR HD Tuner-DVR

Specifications

Physical

Size (WHD): 17.0" [430 mm] x 3.0" [76.7 mm] x 12.8" [326 mm]

Weight: 10.2 lbs [4.6 kg]

Enclosure: Steel and aluminum with durable silver and black powder coat paint

Mounting: Shelf or rack-mount with optional RKHD Rack Kit)

Hard Drive: Internal 120 GB, approx. 12 hours HD, 24-119 hours SD quality video

Tuning Tools: Gemstar TV Guide On-Screen™ electronic program guide for tuning and recording,

and VCR Plus+ command

Front Panel

Display: Blue LCD, 2 lines of 20 characters each

IR: IR sensor, 57 kHz

Control: Buttons for Setup, Menu, Select, Exit, and Left, Right, Up, and Down operation

Rear Panel

TV In: 'F', female, 75 ohm

Cable In: ‘F', female, 75 ohm

Cable IR: 1/8” stereo jack for cable box control

AV 1 In: 3 RCA female jacks, Video, Left, Right - AV source or cable tuner

AV 2 In: 3 RCA female jacks, Video, Left, Right - AV source

S-Video Out: Mini DIN 4-pin, Y - 1V p-p at 75 ohms, C - 0.286 V p-p at 75 ohms

On-screen menu displayed when digital set to 480i

AV 1 Out: 3 RCA female jacks, Video, Variable Left, Right audio

AV 2 Out: 3 RCA female jacks, Video, Fixed Left, Right audio

YPbPr Out: 3 RCA Pr, Pb, Y outputs (1080i/720p/480p/480i)

Digital Audio: TOSlink optical output, Dolby Digital AC3

Service Port: DB-9 female RS-232 for factory service and firmware updates

RGB Out: RGB DB-15 female (1080i/720p/480p)

DVI Out: DVI-D with HDCP (1080i/720p/480p), HDMI video with optional adapter

IEEE-1394: 2 4-pin data ports, i-Link/1394

Ethernet Control: 10/100baseT RJ-45 jack

Ethernet LEDs: Right yellow LED indicates 100 baseT speed/10 baseT when off

Left green LED indicates link, blinks with data activity

RS-232 Control: DB-9 male, RS-232 data link to control system, PC, or RS-232 controlled display

300 to 115,200 baud (9600 default), 8 data bits, no parity, 1 stop bit

IR In: 3.5 mm stereo input for external IR sensor or wired IR

Discrete codes available

Power In: AC power cord, 120 VAC, 60 Hz, 35W (not shown above)

Contemporary Research 5 IP-HDVR HD Tuner-DVR

Contemporary Research 6 IP-HDVR HD Tuner-DVR

Specifications

Video

Frequency Range: NTSC, NTSC and Clear QAM (cable) television 55.25 to 801.25 MHz

TV System: NTSC, ATSC DTV (1080i/720p/480p/480i)

Tuning: Off-air 2-69 and CATV 1-135

Aspect Ratio: Adjustable, variety of modes for widescreen 16:9 and normal 4:3 broadcasts

Captioning: DTV, set by program or customized for size, font and display attributes

Analog CC1-CC4, TT1-TT4, On/On with Mute/Off modes

Lock: Parental option for channels and/or rating

IEEE-1394 Devices

Compatible only with makes and models below:

Victor HM-DH30000

Panasonic NV-DH1, NV-DH2

Hitachi DT-DR20000, DT-DRX100

Toshiba A-HD2000

JVC HM-DH30000U

Mitsubishi HV-HD1000

Sony IP-7, IP-55, IP-220

Includes

RF loop cable

RCA composite video audio cable

Stereo RCA cable

Component YPbPr cable

HDV-RC IR Tuner Remote, 2 batteries (AA)

Options

RKHDV Kit for mounting single unit in 19" rack (2RU)

CC-232 RS-232 Cable

AV and Control Connection

TV Antenna F connector for off-air MATV signals

Cable F connector for CATV input

The IP can receive both at the same time, when the TV Guide is set to receive Cable;

the tuner will first search for analog cable channels, then digital off-air broadcasts, and

then goes back to cable to search for digital cable broadcasts.

AV Sources

AV IN 1 RCA composite video, and stereo audio inputs – upscaled to HD output settings, also

used for Cable Box AV input

AV IN 2 Composite, S-Video, and stereo audio inputs – upscaled to HD output settings

Cable Box IR Out 1/8” mini jack connects G-Link cable for controlling cable box.

AV Outputs

AV 1 S-Video and RCA composite video and fixed-level analog audio outputs. Video is

switched with HD output, audio is always present

AV 2 RCA composite video and variable-level analog audio outputs. Video is switched with

HD output, audio is always present

Digital Outputs

YPbPr

3 RCA Pr, Pb, Y outputs (1080i/720p/480p/480i)

Optical Audio TOSlink optical output, Dolby 5.1 or PCM digital audio

RGB

RGB DB-15 female (1080i/720p/480p)

DVI

DVI-D with HDCP (1080i/720p/480p), HDMI video with optional adapter

IEEE-1394 2 4-pin data ports, i-Link/1394

Control

Service RS-232 port for factory upgrades only

RS-232 DB-9 male acts as programming and control system port, also acts as pass-through

control port to video display, when control system integrated via Ethernet

Ethernet RJ-45 connection offers bi-directional IP Telnet control and access to Web page

IR In Input accepts wired IR from control system, external IR-RXC sensor, or ChannelPlus,

Audioplex, SpeakerCraft, or Xantech remote IR sensors

Contemporary Research 7 IP-HDVR HD Tuner-DVR

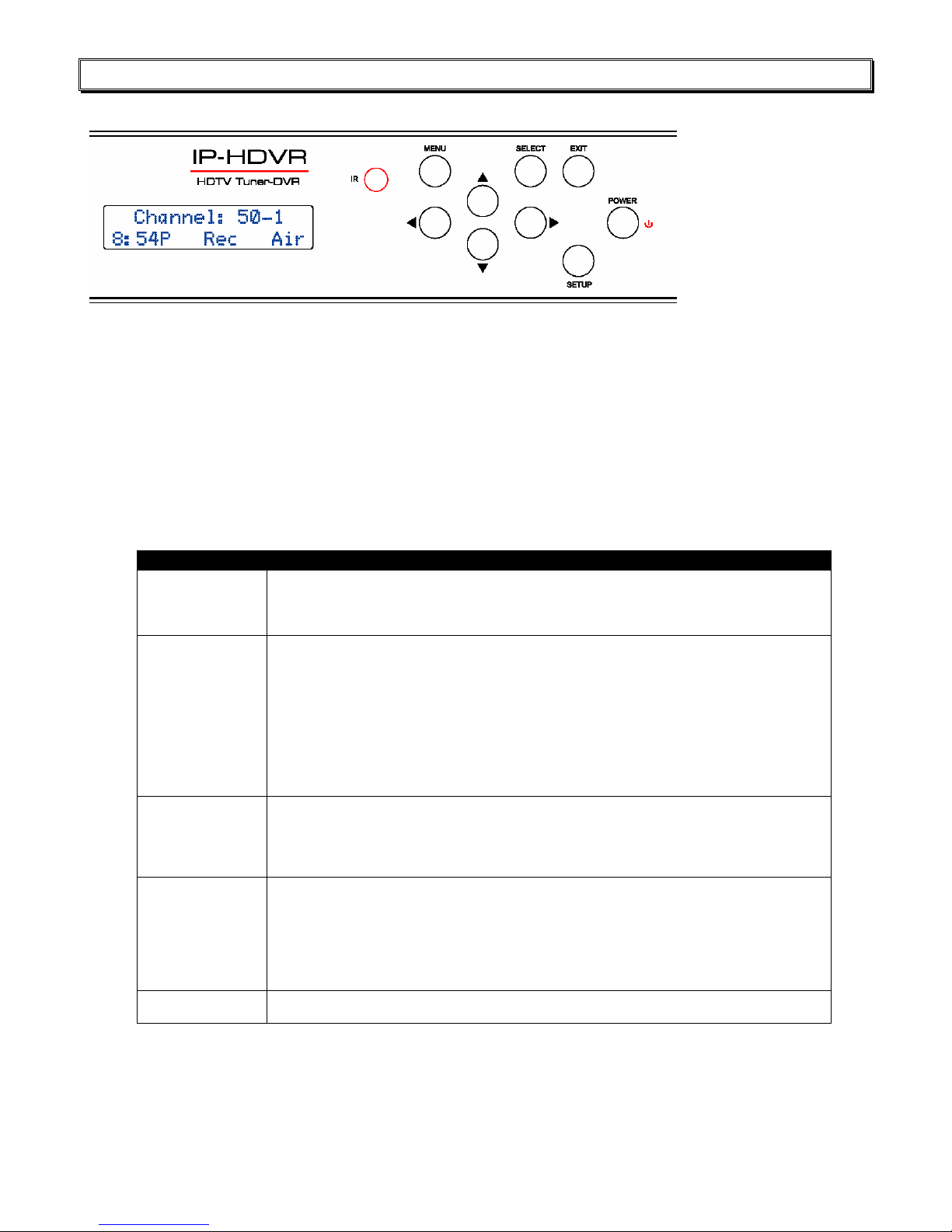

Front Panel Setup

There are a number of parameters that can be set by front-panel Setup commands. In normal operation the

Up/Down arrows select channels, and the Left/Right arrows adjust volume.

•Pressing Setup enters the setup menus, shows last menu accessed

(The Menu button accesses on-screen menus)

•Pressing Up and Down arrow keys steps through the IP-HDVR options

(Tip: Press Up to access output, Down to jump to IP menus)

•Pressing Left and Right keys steps through options for each front-panel menu

•Press Select to save desired option

•Pressing Exit or Setup exits the front-panel setup mode

Front Panel Menus

Menu Parameters

Output RGB

DVI

Component

Video

Format 1080i

720p

480p

480i (Component output only)

Variable 1

Variable 2

Variable 3

Native

See chart on next page for more information

Baud 300 9600 (default)

600 19.2K

1200 38.4K

2400 57.6K

4800 115.2K

Com 8,N,1 (default) 8,M,1

8,0,1 8,S,1

8,E,1 7,M,1

8,N,2 7,S,1

7,0,1

7,E,1

7,N,2

RS-232 CRTL 0=Disable

1=Enable (default)

Contemporary Research 8 IP-HDVR HD Tuner-DVR

Contemporary Research 9 IP-HDVR HD Tuner-DVR

Front Panel Setup

Menu Parameters

Unit 1-9

Panel Lockout None (Default)

Ch+Menu

Vol+Menu

Ch+Vol+Menu

Pwr

Setup

All

Setup+Menu

Pwr+Set+Menu

Cursor buttons active for Setup or Menu modes, Exit returns buttons to current

locked or unlocked status

IR Receive 0 - No IR reception

10 - Normal (Default)

Display Line 2 Normal – Time, Air/Cable input, Control Function

Lights – represents status LEDs (LA:RX:TX:IR  )

Link/Act status, RS-232 RX and TX, and IR In

IP Port IP port for Telnet communication - Left/Right steps through number positions

(blinking cursor position), Up/Down enters number 0-9, Select saves, Exit leaves

edits, stays at current menu

Gateway Quad address – Left/Right steps through number positions (blinking cursor

position), Up/Down enters number 0-9, Select saves, Exit leaves edits, stays at

current menu

Subnet Mask Quad address - Left/Right steps through number positions (blinking cursor

position), Up/Down enters number 0-9, Select saves, Exit leaves edits, stays at

current menu

IP Address Quad address – Left/Right steps through number positions (blinking cursor

position), Up/Down enters number 0-9, Select saves, Exit leaves edits, stays at

current menu (192.168.001.231=default, 0.0.0.0 = DHCP)

IP Mode Selects Static (default) or DHCP IP modes

Firmware Shows version

IP-HDVR V1.5

MAC Add Shows network MAC address

Ex: 0014C8 00 0001 (last 2 bytes is the serial number)

Display Formats

The Display Format setting direct how the IP-HDVR will output the signal in response to different formats in

broadcast programming.

Code Display Format Broadcast Format Output As

0 1080i All 1080i

1 720p All 720p

2 480p All 480p

3 480i All 480i

4 Variable 1 1080i 1080i

720p 720p

480p/480i 480p

5 Variable 2 1080i/720p 1080i

480p/480i 480p

6 Variable 3 1080i/720p 720p

480p/480i 480p

7 Native 1080i 1080i

720p 720p

480p 480p

480i 480i (YPbPr), 480p (RGB, DVI)

Getting Started

Here’s a brief overview of the steps needed to integrate the IP-HDVR.

Front Panel Setup

Use Front Panel Setup to select output, format, RS-232

parameters, and/or Ethernet settings.

RF Input

•Connect TV Antenna and/or Cable RF feeds.

•TV Guide Setup will determine if tuner will

search for off-air only or cable analog/digital and

off-air digital channels.

•After TV Guide Setup (p10), use Channel Menus

to search, screen, and test broadcast channel

operation.

•Use TV Guide Channel Setup (p19) to filter

channels displayed in the Program Guide.

Cable Box/AV Input Integration

•Connect Cable Box AV output to:

oAV IN 1 inputs

oCable input for AV on channel 2, 3, or 4

•Connect G-Link IR cable to Cable Tuner IR Out

•Attach IR emitter to underside of cable box, IR

emitter below the box’s IR sensor

•TV Guide Setup will link tuner to input and IR

codes for cable box control

•If you are not connecting a cable box, both AV

inputs can be switched through the tuner

AV Outputs

•Connect high-definition display to Component,

RGB, or DVI outputs (Use optional adapter to

connect an HDMI source to the DVI output)

•Connect video display to AV 1 or AV 2 outputs

•The IP-HDVR can switch between HD and video

outputs (no video is present when an HD video

output is selected)

•Connect audio equipment to Optical and/or

analog outputs – AV 1 is fixed, AV 2 is variable

•Audio is always present for all outputs

Control

•Connect Ethernet or RS-232 control cable to

control system

•Use front-panel menus to set IP address or RS-

232 parameters

•The IP-HDVR can also provide pass-through

bidirectional control of a display through the RS-

232 control port when the tuner is integrated via

the Ethernet port

•For IR control, connect external IR sensor or

wired IR system control port to IR IN, discrete IR

codes are available in AMX, Crestron, and Pronto

format

Contemporary Research 10 IP-HDVR HD Tuner-DVR

Andere Handbücher für IP-HDVR

Inhaltsverzeichnis

Andere Contemporary Research DVR Handbücher

Contemporary Research

Contemporary Research IP-HDVR Leitfaden

Beliebte DVR Handbücher anderer Marken

FLIR

FLIR M3100E Series Bedienungsanleitung

VTRACKPRO

VTRACKPRO FPRO300 Bedienungsanleitung

Swann

Swann NVR-7085 models Bedienungsanleitung

XtendLan

XtendLan DVR-1670C Bedienungsanleitung

urmet domus

urmet domus 1093/004AHD Bedienungsanleitung

Holux

Holux M1 Bedienungsanleitung

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Bedienungsanleitung

Whistler

Whistler D16VRS Bedienungsanleitung

Defender Security

Defender Security 82-20235 Bedienungsanleitung

MISUMI

MISUMI MP-WF100M Bedienungsanleitung

Speco

Speco D8HU Bedienungsanleitung

UST

UST DDR-E04AA Gebrauchsanweisung

Consolidated

Consolidated Digital Video Recorder Bedienungsanleitung

Mace

Mace DVR0404RW Kurzanleitung

RCA

RCA RTD315W Bedienungsanleitung

FSM

FSM Colibri Grande PRO Bedienungsanleitung

Hauppauge

Hauppauge HD PVR 2 Bedienungsanleitung

Identivision

Identivision ICR-PH161i PIONEER Bedienungsanleitung
