Cortex FT10 Bedienungsanleitung

FT-10 Cable

Crossover Station

USER MANUAL

Product may vary slightly from the item pictured due to model upgrades.

Read all instructions carefully before using this product.

Retain this owner’s manual for future reference.

NOTE:

This manual should not be used to guide your purchasing decision. Your product, and the contents inside its carton, may vary

from what is listed in this manual. This manual may also be subject to updates or changes. Updated manuals are available

through our website at www.lifespanfitness.com.au

TABLE OF

CONTENTS

I. Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04

II. Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05

III. Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06

IV. Exercise Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

V. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

| TABLE OF CONTENTS

3IMPORTANT SAFETY INSTRUCTIONS |

I. IMPORTANT SAFETY

INSTRUCTIONS

WARNING: Read all instructions before using this machine.

Please keep this manual with you at all times.

•Install the product on a flat level surface.

•Place your unit on a solid, level surface when in use.

•Never allow children on or near the machine.

•Keep hands away from all moving parts.

•Never drop or insert any object into any openings.

•Care must be taken when lifting or moving the equipment so as not to injure your back. Always

use proper lifting techniques and/or seek assistance if necessary.

•Keep children and pets away from the machine at all times. DO NOT leave children unattended in

the same room with the machine.

•Only 1 person at a time should use the machine.

•If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP the

workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

•Do not use the machine near water or outdoors.

•Keep hands away from all moving parts.

•Always wear appropriate workout clothing when exercising. DO NOT wear robes or other clothing that

could become caught in the machine. Running or aerobic shoes are also required when using the

machine.

•Use the machine only for its intended use as described in this manual. DO NOT use attachments not

recommended by the manufacturer.

•Do not place any sharp objects around the machine.

•Disabled person should not use the machine without a qualified person or physician in attendance.

•Never operate the machine if the machine is not functioning properly.

•A spotter is recommended during exercise.

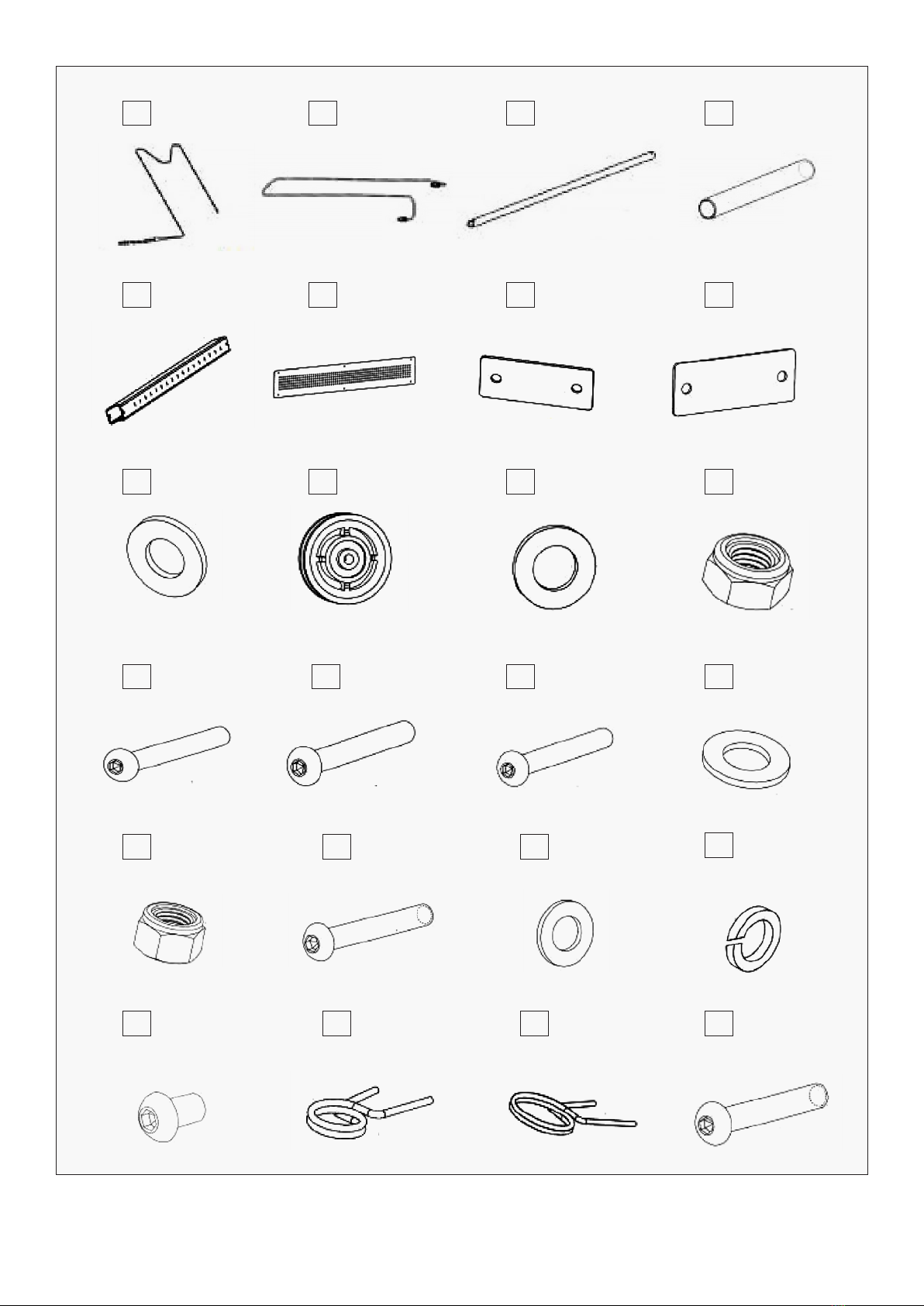

II. PARTS LIST

x 1pc.

x 2pcs.

x 1pc.

x 2pcs.

x 1pc.

| PARTS LIST

x 1pc.

x 2pcs.

x 4pcs.

x 14pcs.

x 2pcs.

x 6pcs.

x 1pc.

x 2pcs.

x 4pcs.

x 2pcs.

x 1pc.

x 54pcs.

M10 Washer

M10x85 Bolt

M12 Nut

M6x10 Bolt Spring Wings Φ25 Spring Wings Φ50 Screw M10x75

M1x100 Bolt M6 Washer M6 Spring Washer

M10x80 Bolt M10x65Bolt M12 Washer

M10 Nut

x 4pcs.

x 6pcs.

x 2pcs.

x 1pc.

x 29pcs.

x 4pcs.

x 6pcs.

x 3pcs.

PARTS LIST |

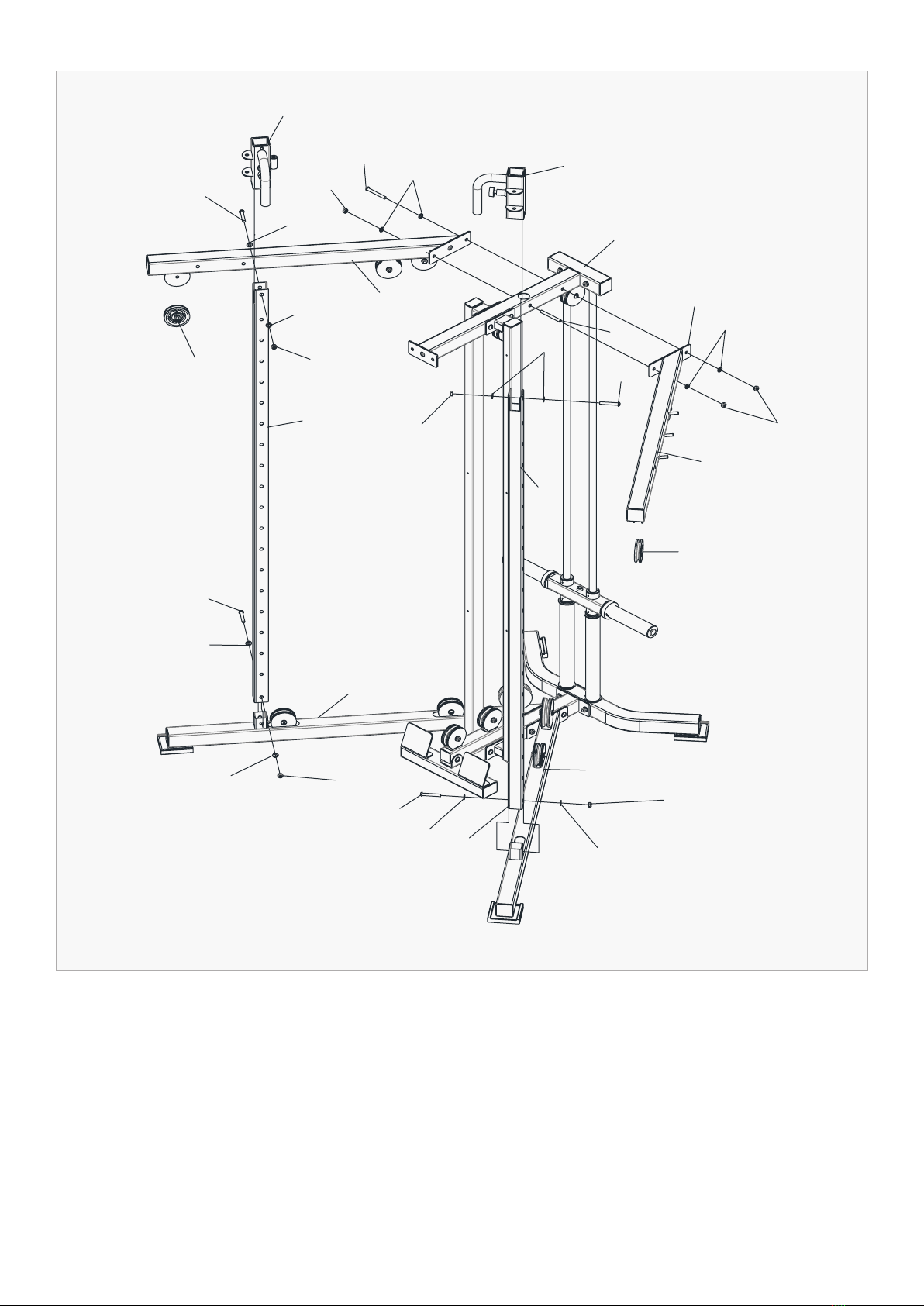

III. ASSEMBLY INSTRUCTIONS

Assembly the outer frame as pictured then place the lifting board pieces on top.

1. Attach the connection frame (2) to right bottom framework and right bottom connection

frame (4) and left bottom connection frame (5), using screw rod (28), screw M10X85 (37),

flat washer Ф10 (35) and lock nut M10 (36).

2. Attach the connection frame (2) to the foot rack (3), using screw M10X75 (48), flat washer Ф10 (35)

and lock nut M10 (36).

| ASSEMBLY INSTRUCTIONS

STEP 1

36 35

7ASSEMBLY INSTRUCTIONS |

1. Attach rear bottom frame (1) to the pipe run (27) and the connection frame (2), using the

reinforcing plate (32), screw M10X85 (37), flat washer Ф10 (35) and lock nut M10 (36).

2. Attach the pipe run (27) to top connection frame (6), support frame (9) and the sliding plane (16),

using rubber (33), screw M10X75 (48), flat washer Ф10 (35) and lock nut M10 (36).

3. Attach long connection frame (13) to top connection frame (6) and the connection frame (2), using

screw M10X85 (37), flat washer Ф10 (35) and lock nut M10 (36). The same as long connection frame

(19).

STEP 2

8| ASSEMBLY INSTRUCTIONS

1. Attach top connection frame (6) to the right beam frame (7) and the left beam frame (8), using

screw rod (28), screw M10X85 (37), flat washer Ф10 (35) andlock nut M10 (36).

2. Attach the tube (29) to the right beam frame (7) and right bottom connection frame (4), using the

right to adjust (11), the pulley Ф89 (34), screw M10X65 (39), flat washer Ф10 (35), lock nut M10 (36). The

same as the left beam frame (8) and left bottom connection frame (5).

STEP 3

37 35

9ASSEMBLY INSTRUCTIONS |

1. Attach cross connection frame (10) to the right beam frame (7) and top connection frame (6), using the

reinforcing plate (31), screw M10X85 (37), screw M10X80 (38), flat washer Ф10 (35) and lock nut M10 (36).

2. Attach the right hand (15) to cross connection frame (10), using screw M10X85 (37), flat washer Ф10

(35) and lock nut M10 (36). The same as the left hand (14) and cross connection frame (10).

3. Attach the cover plate (30) to the long connection frame (13) and long connection frame (19), using

screw M6X10 (45), flat washer Ф6 (43) and spring washer Ф6 (44).

4. Attach double pulley bracket (21) to the right to adjust (11), using screw M12X100 (42), flat washer Ф12

(40) and lock nut M12 (41). The same as the left to adjust (12) and double pulley bracket (21).

STEP 4

735

36 43

10 | ASSEMBLY INSTRUCTIONS

1. Follow above drawing to assembly cable.

STEP 5

25 25

24 24

12 21
