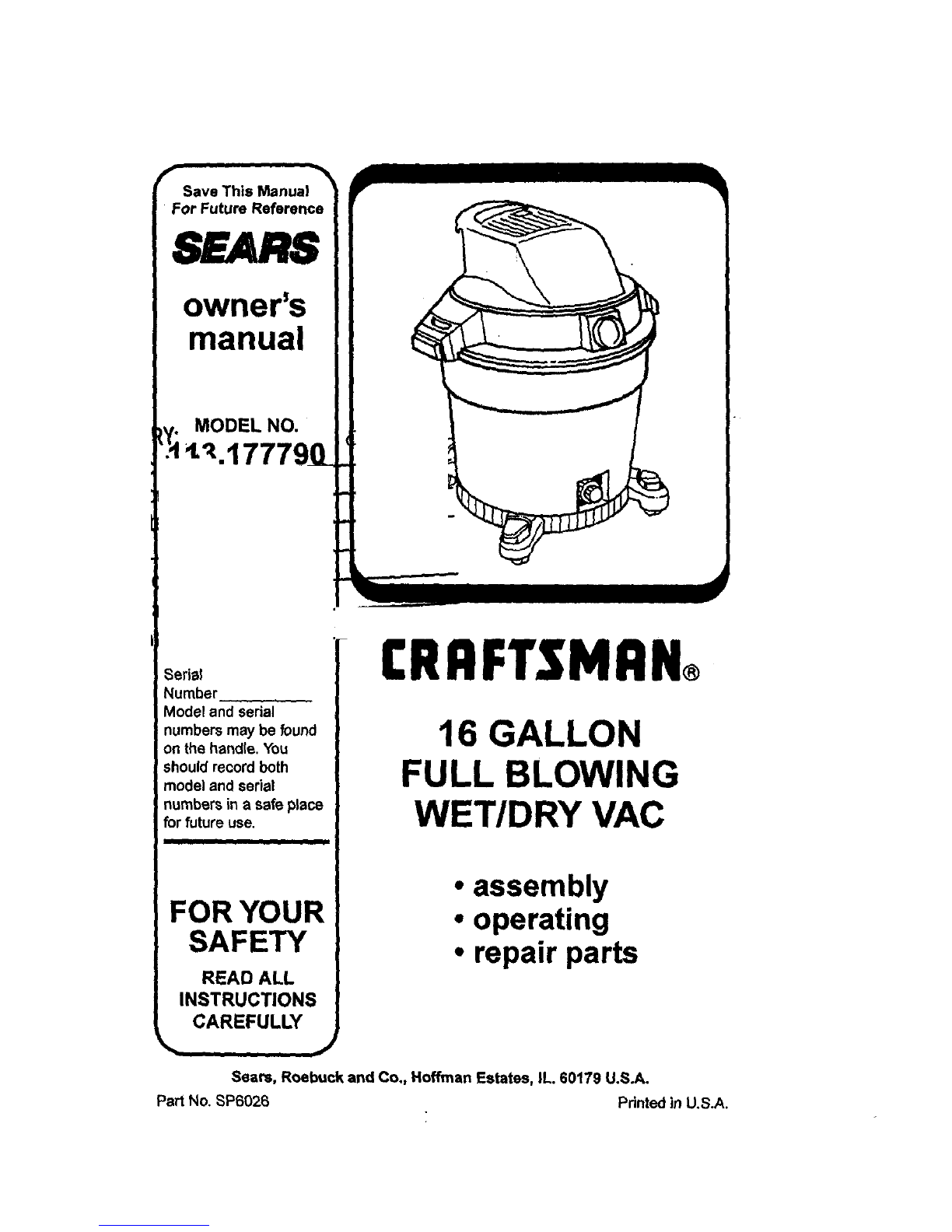

Craftsman 113.177790 Bedienungsanleitung

Save This Manual

For Future Reference

SEARS

owner's

manual

MODEL NO.

Serial

Number

Model and serial'

numbers may be found

on the handle. You

should recordboth

model and serial

numbers in a safe place

for future use.

FORYOUR

SAFETY

READ ALL

INSTRUCTIONS

CAREFULLY

_._ ,

CRRFTSMRN

16 GALLON

FULL BLOWING

WET/DRY VAC

• assembly

•operating

° repair parts

Sears, Roebuck and Co., Hoffmart Estates, IL. 60179 U.S.A.

Part No. SP6026 Printed in U.S.A.

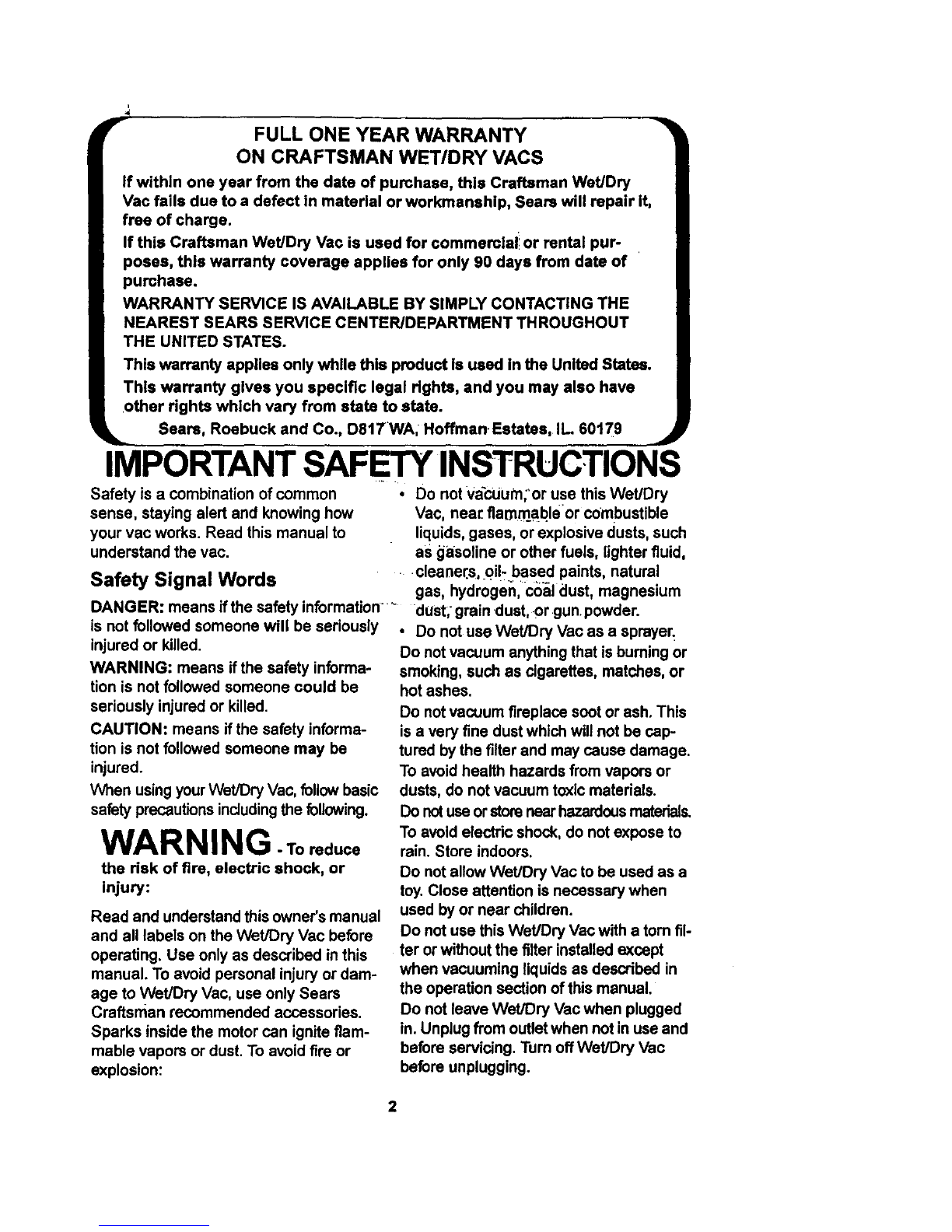

FULL ONE YEAR WARRANTY

ON CRAFTSMAN WETIDRY VACS

If within one year from the date of purchase, this Craftsman Wet/Dry

Vac fails due to a defect in material or workmanship, Sears will repair It,

free of charge.

If this Craftsman Wet/Dry Vac is used for commerclali or rental pur-

poses, this warranty coverage applies for only 90 days from date of

purchase.

WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE

NEAREST SEARS SERVICE CENTER/DEPARTMENT THROUGHOUT

THE UNITED STATES.

This warranty applies only while this product is used in the United States.

This warranty gives you specific legal dghte, and you may also have

.other rights which vary from state to state.

i_. Sears, Roebuck and Co., D817WA; Hoffman-Eetatas, II- 60179

IMPORTANTSAFETY INSTRUCTIONS

Safety is a combination of common Do not _ia'Cuum, or use this Wet/Dry

sense, staying alert and knowing how Vac, near. flammableor combustible

your vac works. Read this manual to liquids, gases, or explosive dusts, such

understand the vac. as gasoline or other fuels, lighter fluid,

• cleaner.s, oil- based paints, natural

Safety Signal Words gas, hydrogen, coal dust, magnesium

DANGER: means ifthe safety information ..... dt_st; grain dust, -or gun. powder.

is not followed someone will be seriously •Do not use Wet/Dry Vac as a sprayer..

injured or killed. Do not vacuum anything that is burning or

WARNING: means if the safety informa- smoking, such as cigarettes, matches, or

tion is not followed someone could be hot ashes.

seriously injured or killed. Do not vacuum fireplace soot or ash. This

CAUTION: means if the safety informa- is a very fine dust which will not be cap-

tion is not followed someone may be tured by the filter and may cause damage.

injured. To avoid health hazards from vapors or

When using your Wet/Dry Vac, follow basic dusts, do not vacuum toxic materials.

safety precautions including the following. Do not use or store near hazardous materials.

To avoid electric shock, do not expose to

WARNING -Toreducsrain.storeindoors.

the dsk of fire, electric shock, or Do not allow Wet/Dry Vac to be used as a

Injury: toy. Close attention is necessary when

Read and understand this owner's manual used by or near children.

and all labels on the Wet/Dry Vac before Do not use this Wet/Dry Vac with a tom ill-

operating. Use only as described in this ter or without the filter installed except

manual. To avoid personal injury or dam- when vacuuming liquids as described in

age to Wet/Dry Vac, use only Sears the operation section of this manual.

Craftsmen recommended accessories. Do not leave Wet/Dry Vac when plugged

Sparks inside the motor can ignite fiam- in. Unplug from outlet when not in use and

mable vapors or dust. To avoid fire or before servicing. Turn off Wet/Dry Vac

explosion: before unplugging.

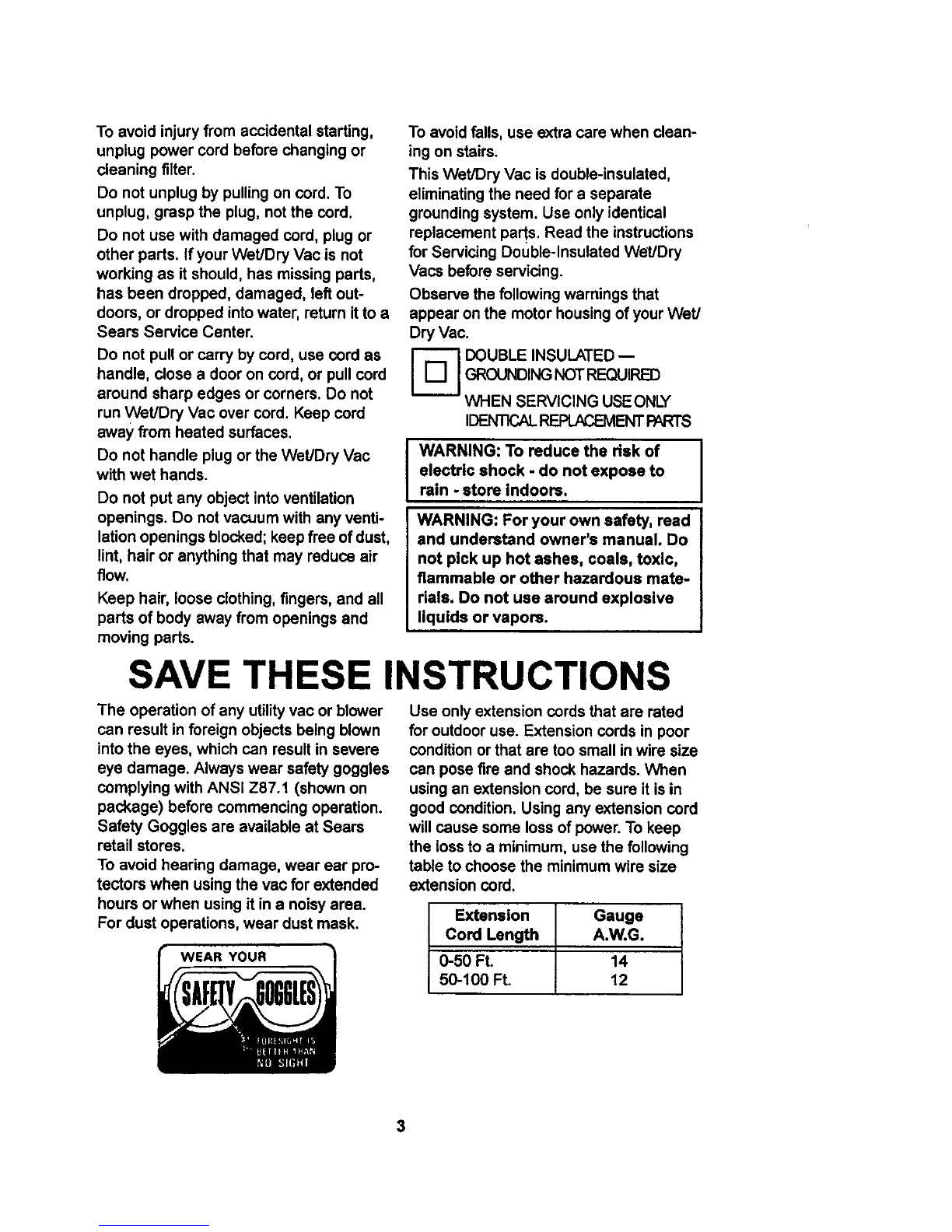

To avoid injury from accidental starting,

unplug power cord before changing or

cleaning tilter.

Do not unplug by pulling on cord. To

unplug, grasp the plug, not the cord.

Do not use with damaged cord, plug or

other pads. If your Wet/Dry Vac is not

working as it should, has missing parts,

has been dropped, damaged, left out-

doors, or dropped into water, return it to a

Sears Service Center.

Do not pullor carry by cord, use cord as

handle, close a dooron cord, or pullcord

around sharp edges or corners. Do not

runWet/Dry Vac over cord. Keep cord

away from heated surfaces.

Do not handle plugor the Wet/Dry Vac

with wet hands.

Do not put any object intoventilation

openings. Do not vacuum with any venti-

lation openings blocked;keep free ofdust,

lint, hair or anythingthat may reduce air

flow,

Keep hair, loose clothing, fingers,and all

parts of body away from openingsand

moving pads.

To avoid falls, use extra care when clean-

ing on stairs.

This Wet/Dry Vac is double-insulated,

eliminating the need for a separate

grounding system. Use only identical

replacement par_s. Read the instructions

for Servicing Double-Insulated Wet/Dry

Vacs before servicing.

Observe the following warnings that

appear on the motor housing of your Wet/

Dry Vac.

_7 OUBLE INSULATED --

GROUNDING NOT REQUIRED

WHEN SERVICING USE ONLY

IDENTICAL REPLACEMENT PARTS

WARNING: To reduce the dsk of

electric shock -do not expose to

rain - store Indoors.

WARNING: For your own safety, read

and underetand owner's manual. Do

not pick up hot ashes, coals, toxic,

flammable or other hazardous mate-

dais. Do not use around explosive

liquids or vapom.

SAVE THESE INSTRUCTIONS

The operation of any utilityvac or blower

can result in foreign objects being blown

intothe eyes, which can result in severe

eye damage. Always wear safety goggles

complying with ANSI Z87.1 (shown on

package) before commencing operation.

Safety Goggles are available at Sears

retail stores.

To avoid hearing damage, wear ear pro-

tectors when usingthe vac for extended

hours orwhen using itin a noisyarea.

For dust operations, wear dust mask.

Use only extensioncords that are rated

for outdoor use. Extension cordsin poor

conditionor that are toosmall in wire size

can pose fire and shock hazards. When

using an extension cord, be sure it isin

good condition.Using any extensioncord

will cause some loss of power. To keep

the lossto a minimum, usethe following

table to choose the minimumwire size

extension cord.

Extension Gauge

Cord Length A.W.G.

0-50 Ft. 14

50-100 Ft. 12

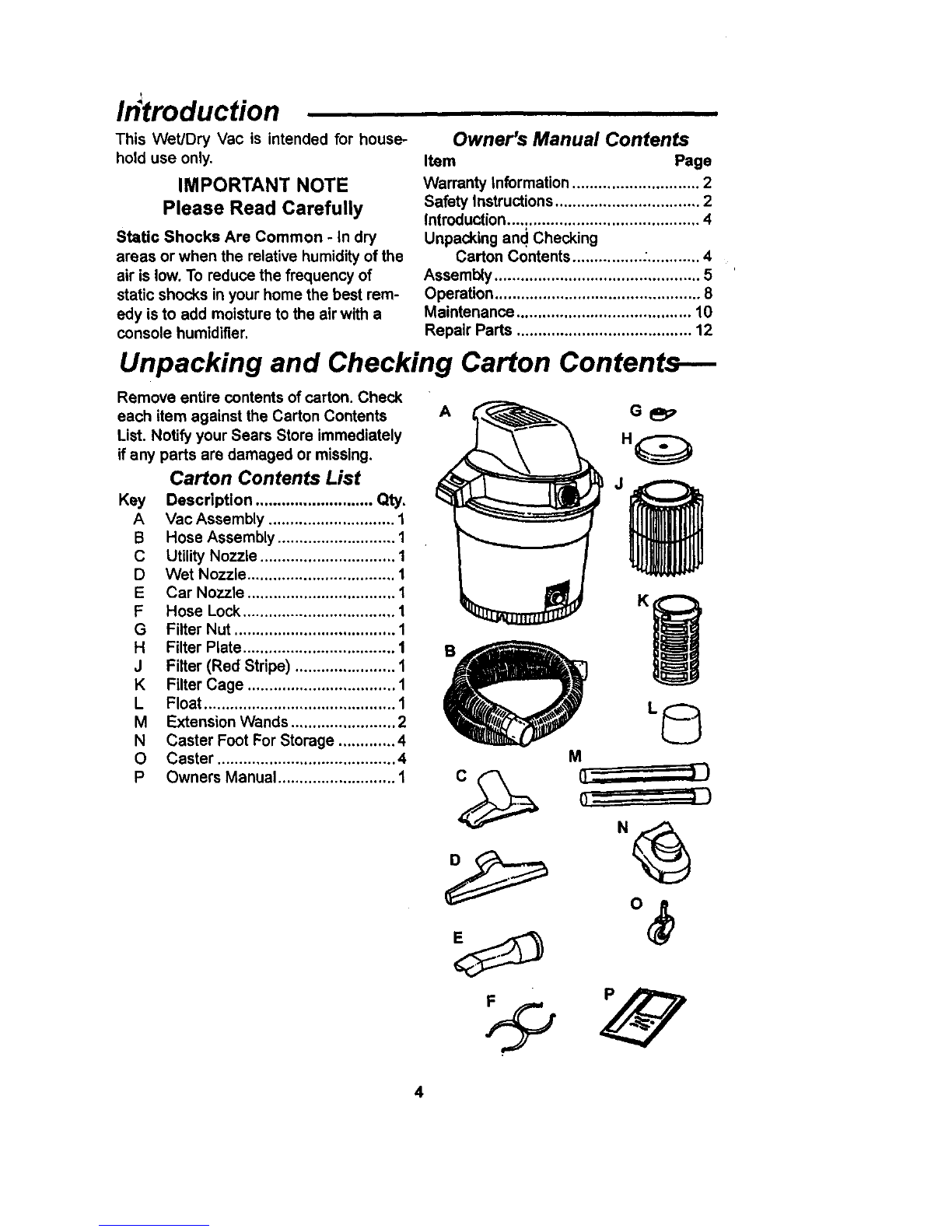

Irftroduction

This WeUDry Vac is intended for house-

hold use only.

IMPORTANT NOTE

Please Read Carefully

Static Shocks Are Common - in dry

areas or when the relative humidity of the

air is low. To reduce the frequency of

static shocks in your home the best rem-

edy is to add moisture to the air with a

console humidifier.

Owner's Manual Contents

Item Page

Warranty Information............................. 2

Safety Instructions................................. 2

Introduction............................................ 4

Unpacking and'Checking

Carton Contents................ :............ 4

Assembly............................................... 5

Operation............................................... 8

Maintenance ........................................ 10

Repair Parts ........................................ 12

Unpacking and Checking Carton Contents---

Remove entire contents ofcarton. Check

each item against the Carton Contents

List. Notifyyour Sears Store immediately

ifany parts are damaged or missing.

Carton Contents List

Key Description ........................... Qty.

A Vac Assembly ............................. 1

B Hose Assembly ........................... 1

C Utility Nozzle ............................... 1

DWet Nozzle .................................. 1

E Car Nozzle .................................. 1

F Hose Lock ................................... 1

G Filter Nut ..................................... 1

H Filter Plate ................................... 1

J Filter (Red Stripe) ....................... 1

K Filter Cage .................................. 1

L Float ............................................ 1

M Extension Wands ........................ 2

N Caster Foot For Storage ............. 4

O Caster ......................................... 4

P Owners Manual ........................... 1

0_- --'J )

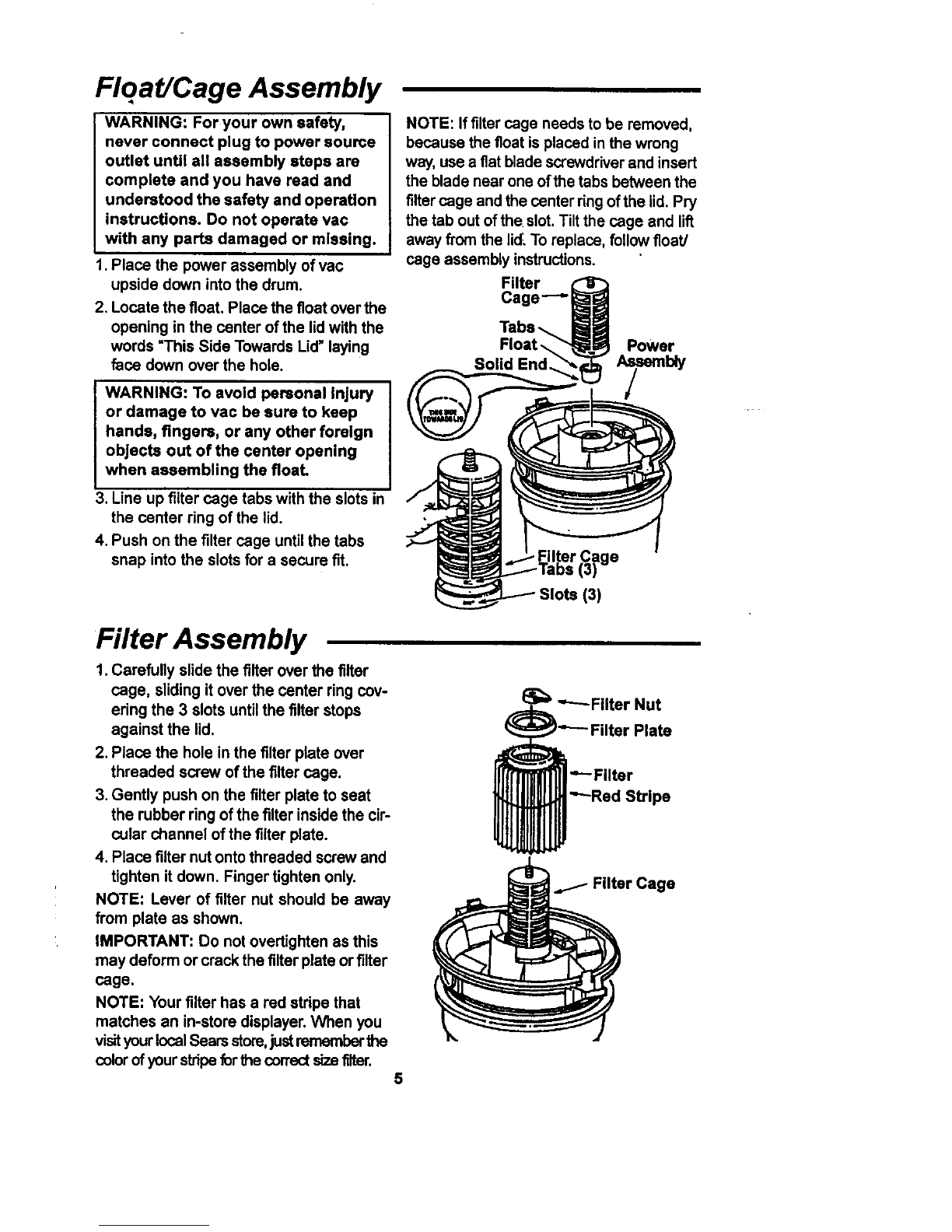

Flqat/Cage Assembly

WARNING: For your own safety,

never connect plug to power source

outlet until all assembly steps are

complete and you have read and

understood the safety and operation

instructions. Do not operate vac

with any parts damaged or missing.

1. Place the power assembly of vac

upside down into the drum.

2. Locate the float. Place the float over the

opening in the center of the lid with the

words =This Side Towards Lid" laying

face down over the hole.

WARNING: To avoid personal Injury

or damage to vac be sure to keep

hands, fingers, or any other forsign

objects out of the center opening

when assembling the float.

3. Line up filter cage tabs with the slots in

the center ring of the lid.

4. Push on the filter cage until the tabs

snap into the slots for a secure fit.

NOTE: If filter cage needs to be removed,

because the float is placed in the wrong

way, use a fiat blade screwdriver and insert

the blade near one of the tabs between the

filter cage and the center ring of the lid. Pry

the tab out of the slot. Tilt the cage and lift

away from the lid';To replace, follow float/

cage assembly instructions.

Filter

Cage --"

Solid Power

AssemUy

Slots(3)

Filter Assembly

1. Carefully slide the filter over the filter

cage, sliding it over the canter ring cov-

ering the 3 slots untilthe filter stops

against the lid.

2. Place the hole in the filter plate over

threaded screw of the filtercage.

3. Gently push on the filter plate to seat

the rubber ring of the filter insidethe cir-

cular channel of the filter plate.

4. Place filter nutontothreaded screwand

tighten itdown. Finger tightenonly.

NOTE: Lever of filter nut should be away

from plate as shown.

IMPORTANT: Do not overtightenas this

may deform or crack the filterplate orfilter

cage.

NOTE: Your filter has a red stripe that

matches an in-store displayer.When you

visityourlocalSearsstore,justrememberthe

colorofyourstripeforthe con'ectsizefilter. 5

"----Filter Nut

ter Plate

Filter Cage

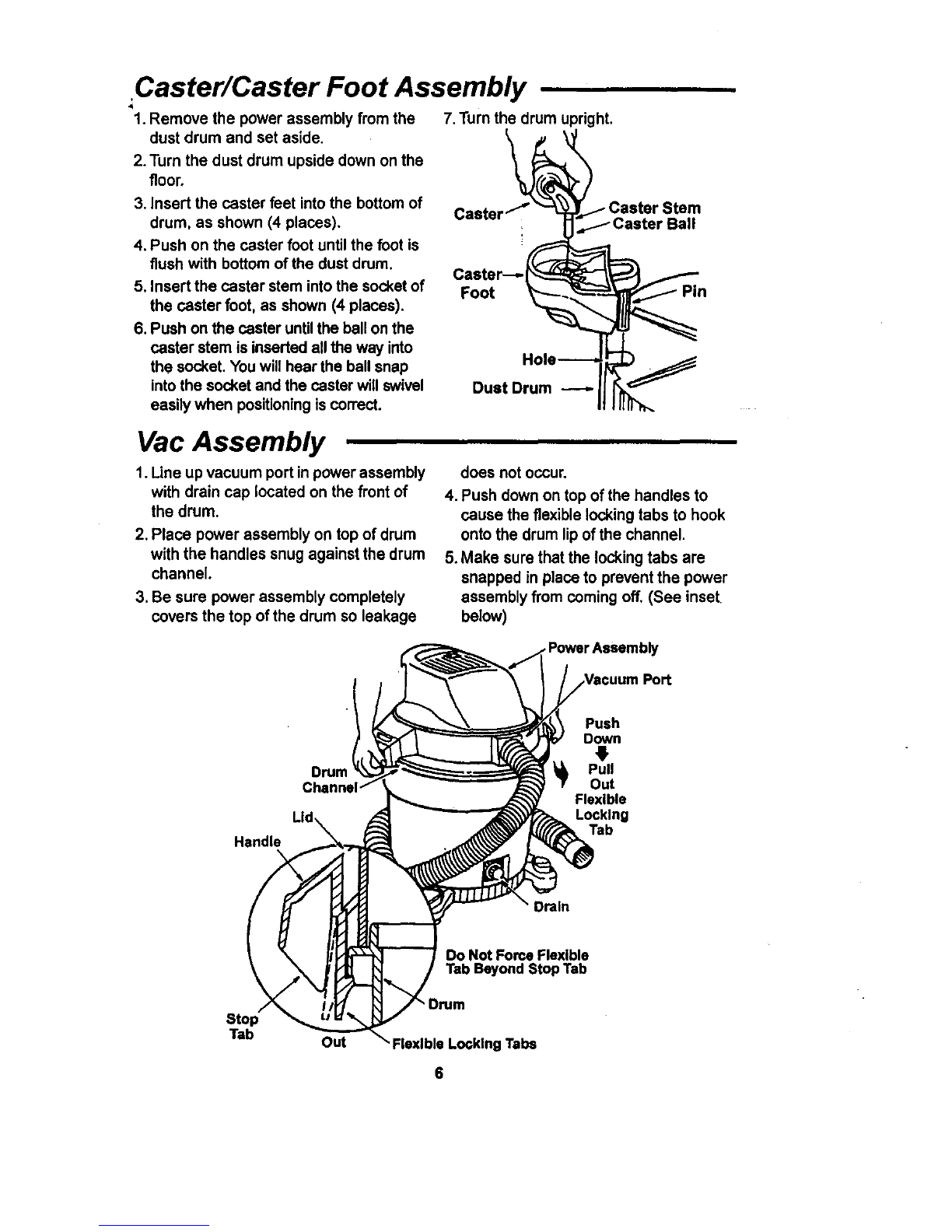

Caster/Caster Foot Assembly

41. Remove the power assembly fromthe 7. Turnthe drum upright.

dust drum and set aside.

2. Turn the dust drum upside down on the

floor.

3. Insert the caster feet into the bottom of

drum, as shown (4 places).

4. Push on the caster foot until the foot is

flush with bottom of the dust drum.

5. Insert the caster stem into the socket of

the caster foot, as shown (4 places).

6. Push on the caster until the ball on the

caster stem is inserted all the way into

the socket. You will hear the ball snap

into the socket and the caster will swivel

easily when positioning is correct.

Caster ._" Ball

Caster---

Foot Pin

Vac Assembly

1. Line up vacuum port inpower assembly

with drain cap located on the front of

the drum.

2. Place power assembly on top of drum

with the handles snug against the drum

channel.

3. Be sure power assembly completely

coversthe top of the drum so leakage

does not occur.

4. Push downon top of the handles to

cause the flexiblelockingtabs to hook

onto the drum lipof the channel.

5. Make sure that the lockingtabs are

snapped in place to prevent the power

assembly from comingoff. (See inset

below)

Port

Handle

Drum

Push

Down

Pull

Out

Flexible

Locking

Tab

Drain

Do Not Force Flexible

Tab Beyond Stop Tab

Stop

Tab Out Flexible Locking Tabe

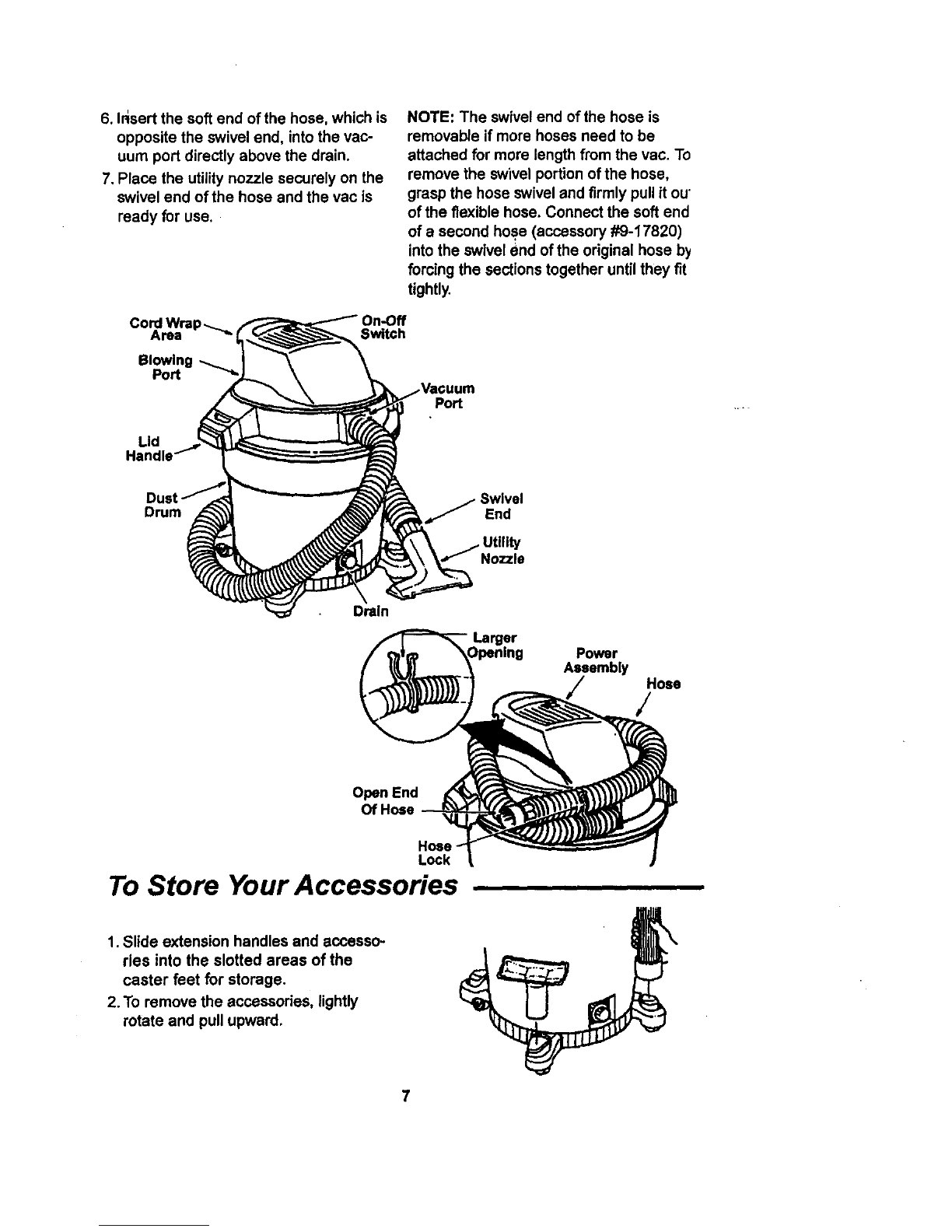

6.Ir_sertthesoftendofthehose,whichis

oppositetheswivelend,intothevac-

uumportdirectlyabovethedrain.

7.Placetheutilitynozzlesecurelyonthe

swivel end of the hose and the vac ls

ready for use.

NOTE: The swivel end of the hose is

removable if more hoses need to be

attached for more length from the vac. To

remove the swivel portion of the hose,

grasp the hose swivel and firmly pull it ou"

of the flexible hose. Connect the soft end

of a second hose (accessory #9-17820)

into the swivel end of the original hose by

forcing the sections together until they fit

tightly.

Cord Wrap

Area -- Switch

Blowing

Port

Lid

Drum Swivel

JEnd

juu,ty

Nozzle

Drain

Larger Power

Assembly

/Hose

Open End

Of Hose

Lock

To Store Your Accessories

1. Slide extension handles and accesso-

ries into the slotted areas of the

caster feet for storage.

2. To remove the accessories, lightly

rotate and pull upward.

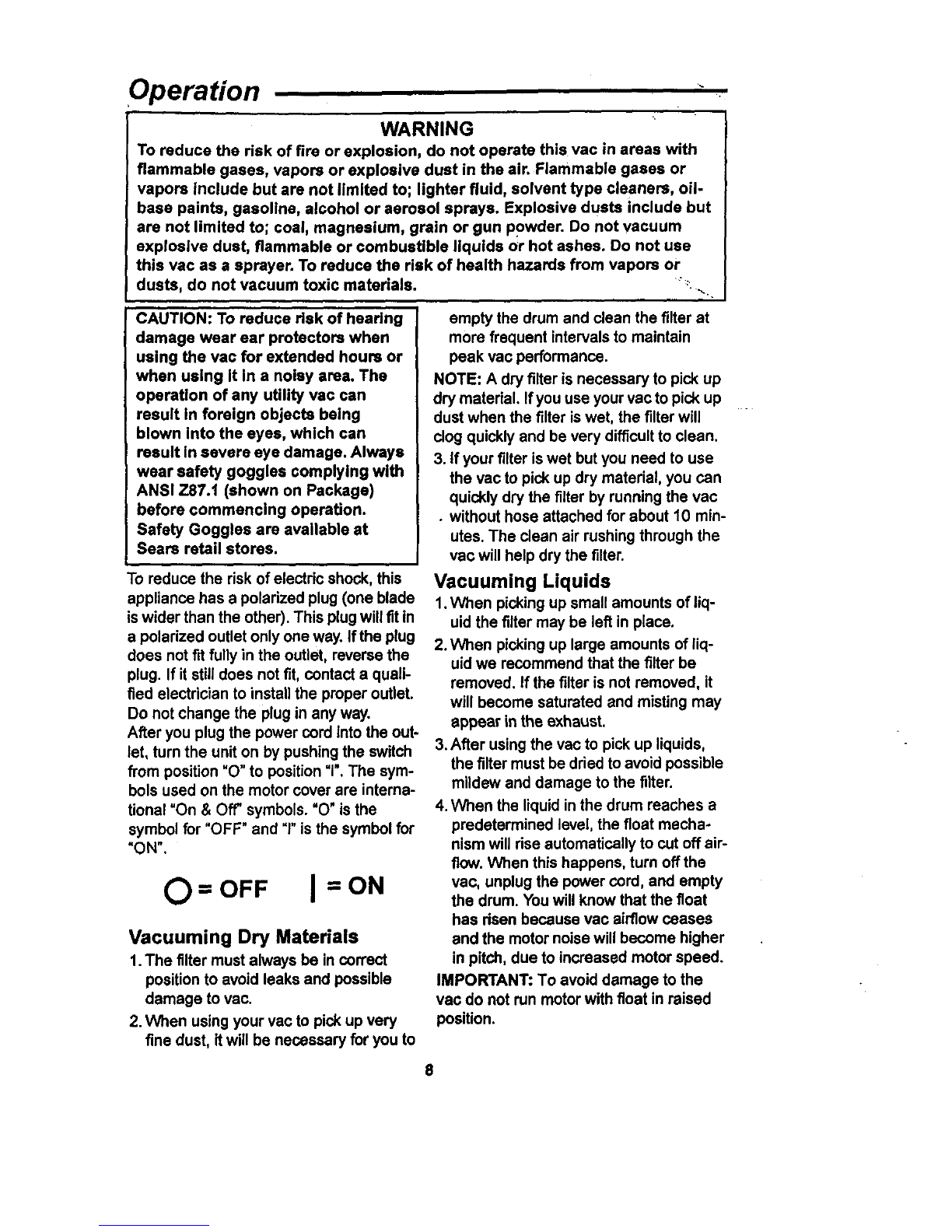

Operation

WARNING

To reduce the risk of fire or explosion, do not operate this vac in areas with

flammable gases, vapors or explosive dust in the air. Flammable gases or

vapors include but are not limited to; lighter fluid, solvent type cleaners, oil-

base paints, gasoline, alcohol or aerosol sprays. Explosive dusts include but

are not limited to; coal, magnesium, grain or gun powder. Do not vacuum

explosive dust, flammable or combustible liquids or hot ashes. Do not use

this vac as a sprayer. To reduce the risk of health hazards from vapors or

dusts, do not vacuum toxic materials. __

CAUTION: To reduce dsk of hearing

damage wear ear protectors when

using the vac for extended hours or

when using it in a noisy area. The

operation of any utility vac can

result In foreign objects being

blown into the eyes, which can

result in severe eye damage. Always

wear safety goggles complying with

ANSI Z87.t (shown on Package)

before commencing operation.

Safety Goggles are available at

Sears retail stores.

To reduce the riskof electric shock, this

appliance has a polarized plug (one blade

iswider than the other).This plug willfit in

a polarized outletonly one way. If the plug

does not f_ fully in the outlet, reversethe

plug. If itstilldoes not fit, contact a quali-

fied electrician to install the proper outlet•

Do not change the plugin anyway.

After you plugthe power cord Intothe out-

let, turn the unit on by pushingthe switch

from position"O" to position"1".The sym-

bols used on the motor coverare interna-

tional =On& Off"symbols."O"isthe

symbol for"OFF" and "1"isthe symbol for

"ON".

C) = OFF I = ON

Vacuuming Dry Materials

1. The filter must always be in correct

position to avoid leaks and possible

damage to vac.

2. When using your vac to pick up very

fine dust, it will be necessary for you to

empty the drum and clean the filter at

more frequent intervals to maintain

peak vac performance.

NOTE: A dry filter is necessary to pick up

dry material. Ifyou use your vac to pick up

dust when the filter is wet, the filter will

clog quickly and be very difficult to clean.

3. if your filter is wet but you need to use

the vac to pick up dry material, you can

quickly dry the filter by running the vac

•without hose attached for about 10 min-

utes. The clean air rushing through the

vac will help dry the filter.

Vacuuming Liquids

1. When picking up small amounts of liq-

uid the filter may be left in place.

2. When picking up large amounts of liq-

uid we recommend that the filter be

removed. If the filter is not removed, it

will become saturated and misting may

appear in the exhaust.

3.After using the vac to pick up liquids,

the filter must be dried to avoid possible

mildew and damage to the filter.

4. When the liquid in the drum reaches a

predetermined level, the float mecha-

nism will rise automatically to cut off air-

flow. When this happens, turn off the

vac, unplug the power cord, and empty

the drum. You will know that the float

has risen because vac airflow ceases

and the motor noise will become higher

in pitch, due to increased motor speed.

IMPORTANT: To avoid damage to the

vac do not run motor with float in raised

position.

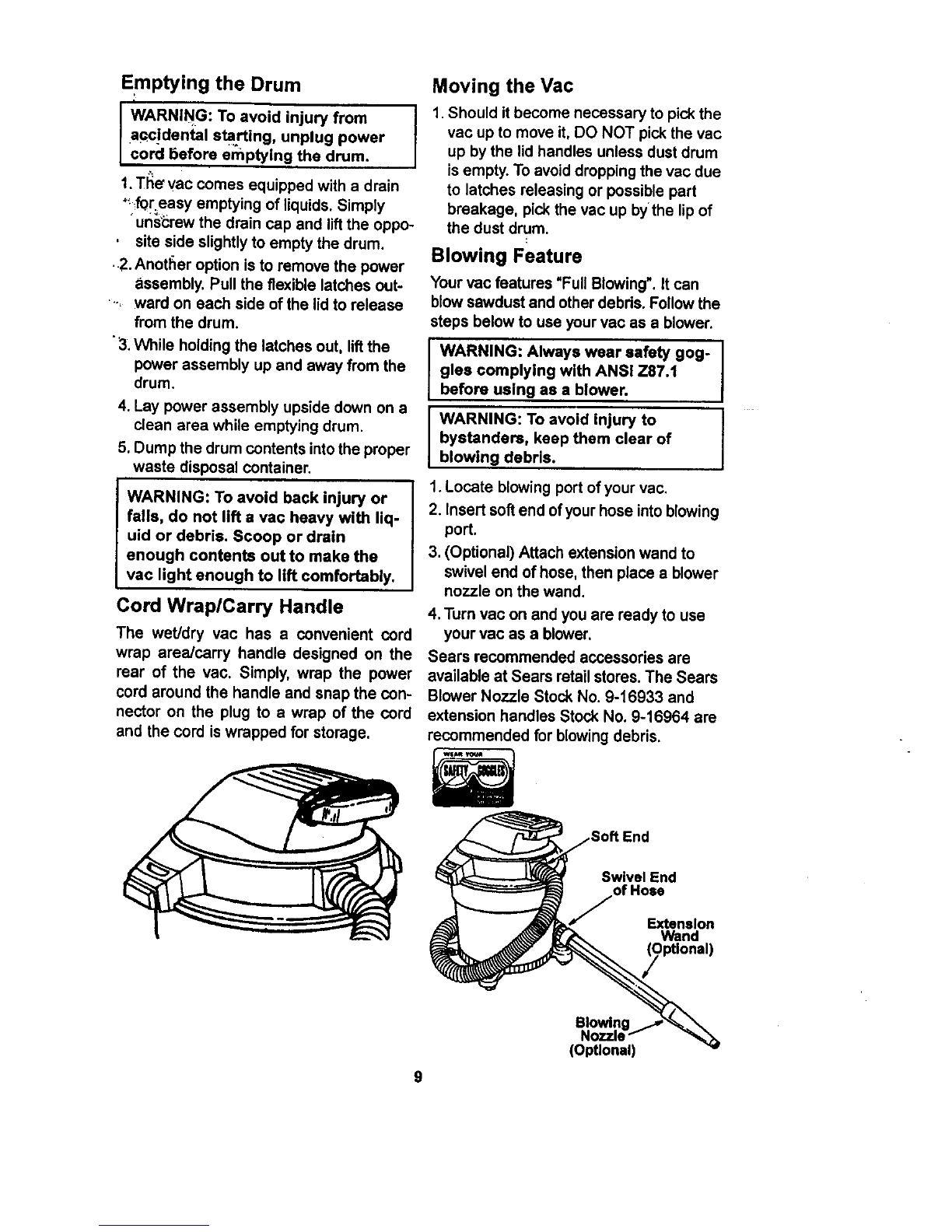

Emptying the Drum

IARNING: To avoid injury from

acc.lden_ start ng unp ug power

cord before emptying the drum.

1.Tl_e"vac comes equipped with a drain

*_for easy emptying of liquids. Simply

"uns_rew the drain cap and lift the oppo-

site side slightly to empty the drum.

•2. Anotl_er option is to remove the power

assembly. Pull the flexible latches out-

.._ ward on each side of the lid to release

from the drum.

"3. While holding the latches out, lift the

power assembly up and away from the

drum.

4. Lay power assembly upside down on a

clean area while emptying drum.

5. Dump the drum contents into the proper

waste disposal container.

WARNING: To avoid back injury or

falls, do not lift a vac heavy with liq-

uid or debris. Scoop or drain

enough contents out to make the

vac light enough to lift comfortably.

Cord WraplCarry Handle

The wet/dry vac has a convenient cord

wrap area/carry handle designed on the

rear of the vac. Simply, wrap the power

cord around the handle and snap the con-

nector on the plug to a wrap of the cord

and the cord iswrapped for storage.

Moving the Vac

1. Should It become necessary to pick the

vac up to move it, DO NOT pick the vac

up by the lid handles unless dust drum

is empty. To avoid dropping the vac due

to latches releasing or possible part

breakage, pick the vac up bythe lip of

the dust drum.

Blowing Feature

Your vac features "Full Blowing'. Itcan

blow sawdust and otherdebds. Followthe

steps below to use yourvac as a blower.

WARNING: Always wear safety gog-

gles complying with ANSI Z87.1

before using as a blower.

WARNING: To avoid injury to

bystanders, keep them clear of

blowing debris.

1. Locate blowingport ofyour vac.

2. Insert softend ofyourhose intoblowing

port.

3. (Optional) Attach extensionwand to

swivelend of hose, then place a blower

nozzle on the wand.

4. Turn vac on and you are ready to use

your vac as a blower.

Sears recommended accessories are

available at Sears retail stores.The Sears

Blower Nozzle Stock No.9-16933 and

extension handles Stock No. 9-16964 are

recommended for blowingdebris.

Swivel End

of Hose

Extension

Wand

(Optional)

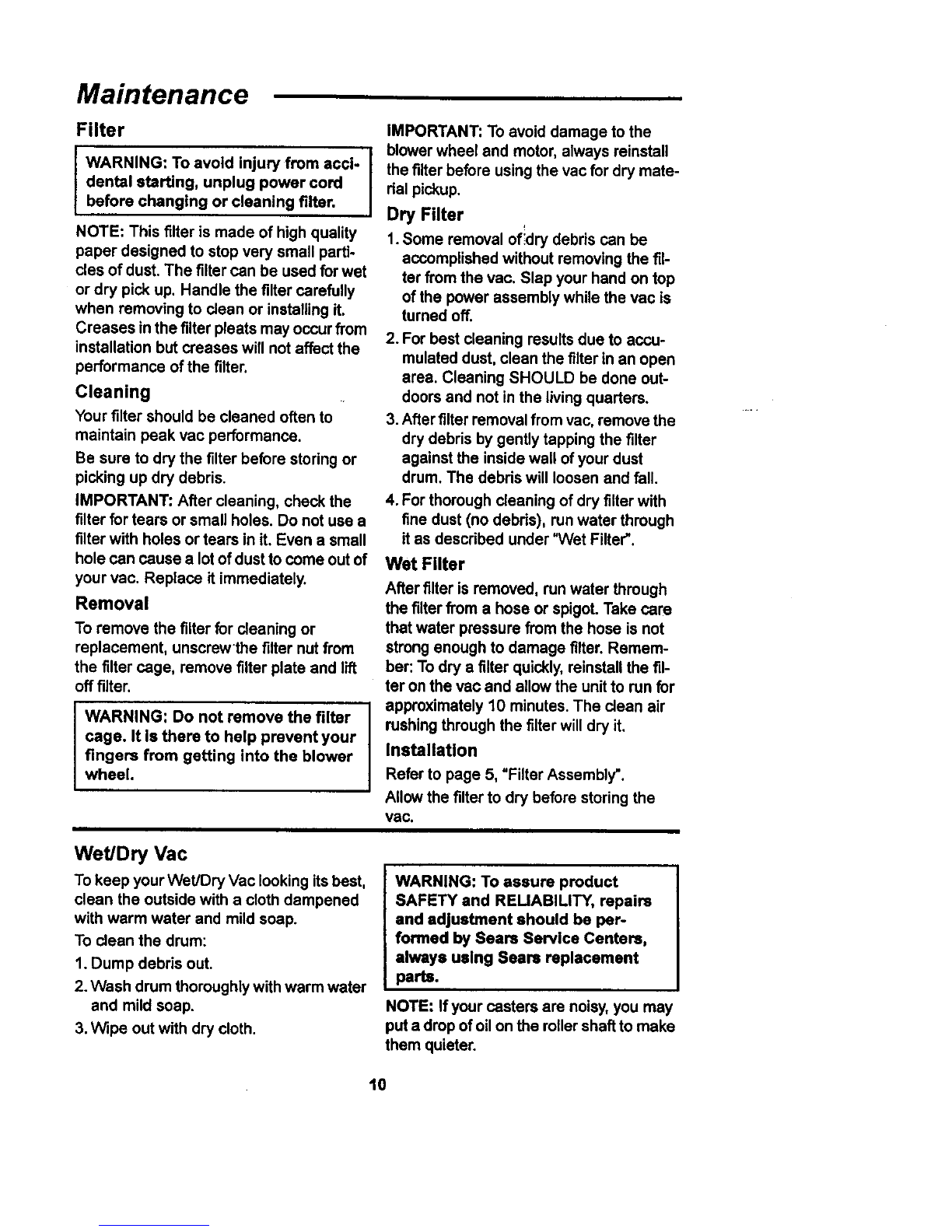

Maintenance

Filter

J ARNING: To avoid injury from acci- J

dental starting, unplug power cord

before changing or cleaning filter.

NOTE: This filter is made of high quality

paper designed to stop very small parti-

cles of dust. The filter can be used for wet

or dry pick up. Handle the filter carefully

when removing to clean or installing it.

Creases in the filter pleats may occur from

installation but creases will not affect the

performance of the filter.

Cleaning

Yourfilter should be cleaned often to

maintain peak vac performance.

Be sure to dry the filter before storing or

picking up dry debris.

IMPORTANT: After cleaning, check the

filterfor tears or small holes. Do not use a

filterwith holes or tears in it. Even a small

hole can cause a lot of dustto come out of

your vac. Replace itimmediately.

Removal

To remove the filter forcleaning or

replacement, unscrewthe filter nut from

the tilter cage, remove filter plate and lift

off filter.

J WARNING: Do not remove the filter

cage. It Is there to help prevent your

fingers from getting into the blower

wheel.

IMPORTANT: Toavoid damage to the

blowerwheel and motor, always reinstall

the filterbefore usingthe vac for dry mate-

dal pickup.

Dry Filter J

1. Some removal of;dry debris can be

accomplished without removing the fil-

ter from the vac, Slap your hand on top

of the power assembly while the vac is

turned off,

2. For best cleaning results due to accu-

mulated dust, clean the filter in an open

area. Cleaning SHOULD be done out-

doors and not in the living quarters.

3. After filter removal from vac, remove the

dry debris by gently tapping the filter

against the inside wall of your dust

drum. The debds will loosen and fall.

4. For thorough cleaning of dry filterwith

fine dust(no debds), runwater through

it as descdbed under "Wet Filter'.

Wet Filter

After filter isremoved, runwater through

the filterfrom a hose or spigot. Take cam

thatwater pressurefrom the hose is not

strongenough to damage filter. Remem-

ber: To dry a filter quickly,reinstallthe fil-

ter on the vac and allow the unitto runfor

approximately 10 minutes.The dean air

rushingthroughthe filter willdry it.

Installation

Refer to page 5, "Filter Assembly'.

Allow the filter to dry before storing the

vac,

Wet/Dry Vac

To keep your Wet/Dry Vac looking its best,

clean the outside with a cloth dampened

with warm water and mild soap.

To clean the drum:

1. Dump debris out.

2. Wash drum thoroughly with warm water

and mild soap.

3. Wipe out with dry cloth.

WARNING: To assure product

SAFETY and REUABILITY, repairs

and adjustment should be per-

formed by Sears Service Centers,

always using Sears replacement

parts.

NOTE: If your casters are noisy, you may

put a drop of oil on the miler shaft to make

them quieter.

Inhaltsverzeichnis

Andere Craftsman Staubsauger Handbücher

Craftsman

Craftsman 113.170160 Bedienungsanleitung

Craftsman

Craftsman SEARS 113.170370 Bedienungsanleitung

Craftsman

Craftsman CMXEVBCV430L Bedienungsanleitung

Craftsman

Craftsman 125.16819 Bedienungsanleitung

Craftsman

Craftsman 17776 - Clean N Carry 4 Gal. Wet-Dry VAC Bedienungsanleitung

Craftsman

Craftsman CMCV002 Bedienungsanleitung

Craftsman

Craftsman CMXEVXA18115 Bedienungsanleitung

Craftsman

Craftsman CMXEVBE175850 Bedienungsanleitung

Craftsman

Craftsman CMXEVBE176060 Bedienungsanleitung

Craftsman

Craftsman CMXEVCVVJC809 Bedienungsanleitung

Craftsman

Craftsman 113.177311 Bedienungsanleitung

Craftsman

Craftsman 315.175980 Bedienungsanleitung

Craftsman

Craftsman 17789 - Wet/Dry Vac Advanced Cleaning... Bedienungsanleitung

Craftsman

Craftsman CMXEVBE179250 Bedienungsanleitung

Craftsman

Craftsman evolv 113.175550 Bedienungsanleitung

Craftsman

Craftsman 315.114460 Bedienungsanleitung

Craftsman

Craftsman 486.24707 Bedienungsanleitung

Craftsman

Craftsman 315.177520 Bedienungsanleitung

Craftsman

Craftsman 338.179370 Bedienungsanleitung

Craftsman

Craftsman 113.177370 Bedienungsanleitung

Craftsman

Craftsman 315.177500 Bedienungsanleitung

Craftsman

Craftsman CMCVS001D1 Bedienungsanleitung

Craftsman

Craftsman 125.12009 Bedienungsanleitung

Craftsman

Craftsman 17965 - 6 Gal. Wet/Dry Vac Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
