INSTRUCTION MANUAL

MODEL 2015-58T Upconverter

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

1.3 Monitor & Control Interface 5

1.4 Environmental Use Information 7

2.0 Installation 8

2.1 Mechanical 8

2.2 Rear Inputs & Outputs 9

2.3 Front Panel Controls & Indicators 9

2.4 Operation 10

2.5 Menu Settings 11

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s

obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option,

replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be

liable for any special, indirect, or consequential damages. This warranty does not cover parts

or equipment which have been subject to misuse, negligence, or accident by the customer

during use. All shipping costs for warranty repairs will be prepaid by the customer. There are

not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

2015-58T Manual_Rev. D Page 2 11/29/12

MODEL 2015-58T Upconverter

1.0 General

1.1 Equipment Description

The 2015-58-T Upconverter converts 70 ±18 MHz to 5.845 to 6.725 GHz in 125 kHz steps with low group

delay and flat frequency response. Synthesized local oscillators (LO) provide low phase noise and ±1.0 ppm

stability frequency selection. Push button switches select the RF frequency, gain, and other parameters. Front

panel LEDs provide indication of DC power (green), remote operation (yellow), PLL alarm (red), or the TX

carrier is muted (yellow). Variable attenuators for the IF input and RF output provide a gain range of 0 to +20

dB as adjusted by the front panel pushbutton switches. Remote operation allows selection of frequency and

gain. Parameter selection and frequency and gain settings appear on the LCD display. Connectors are BNC

female for IF input and 10MHz reference input and output, and Type N female for the RF output (other

connector configurations available). The 2015-58T is powered by a 100-240 ±10% VAC power supply; and

housed in a 1.75” X 19” X 16” rack mount chassis.

EXECUTE

MODEL 2015

CROSS TECHNOLOGIES INC.

F = 5950.000

G = +10.0

MUTE

REMOTE POWER ALARM

UPCONVERTER

IF MONITOR RF MONITOR

FRONT

GND

J4J3J18

10 MHZ REF 10 MHZ IF IN

EXT REF

OUTPUT INPUT

RF OUT

J20

J10

AND

MONITOR

CONTROL

15 234 6789

Optional

Ethernet

REAR

FIGURE 1.1 Model 2015-58T Front and Rear Panels

5.85

6.425

GHz

OUT

MHz

CONTROLLER F = 5950.0000

G = +10.0

VAR

ATT

EXT

10 MHz

INT/EXT

10 MHz

VAR

ATT

INT

10 MHz

FIGURE 1.2 Model 2015-58T Upconverter Block Diagram

2015-58T Manual_Rev. D Page 3 11/29/12

1.2 Technical Characteristics

Channel Characteristics

nthesizer Characteristics

125 kHz minimumFre

uenc

Ste

Non-invertin

Fre

uenc

Sense

0.1 de

/dB maximum for -15 dBm out

utAM/PM Conversion

1.5dB, 5.845 - 6.725 GHz; Slope 0.05 dB/MHz max.; 36 MHz BW;

±0.5 dB

36MHz BW

Fre

uenc

Res

onse

<-45 dBC for two carriers each at -5 dBm outIntermodulation

+3 dBm ± 3 dB10 MHz In/Out Level

±0.01

(

1x10E-8

)

internal ref.

(

1x10E-9

er da

External ref. in

ut availableFre

uenc

Accurac

0.015 ns/MHz2

arabolic

;

0.05 ns/MHz linear

;

1 ns ri

leGrou

Dela

maximum

<-50 dBCS

urious Res

onse +10.0 to +30.0 dB, 0.5 dB ste

s / ±0.25 dB/da

max. stabilit

Gain Ran

e / Stabilit

BNC

(

female

75Ω

works with 50 ohms10 MHz Connectors

Other

100-24 ±10% VAC

47-63 Hz

45 watts max.Power 19 inch

1RU Standard Chassis - 1.75” hi

h X 16.0” dee

Size DB9

(

female

)

- NO or NC contact closure on AlarmAlarm/Remote Connector

-20 dBC Levels

;

Connectors RF - SMA female

;

IF - 75ΩBNC female

(

front

anel

)

RF / IF Monitor Ports RF - T

e N

(

female

)

/ IF - BNC

(

female

)

RF / IF Connectors

-110-95-80-75-70 1MHz100kHz10kHz1kHz100 MHz

dBC/Hz

Phase Noise @ Fre

uenc

Controls

Indicators

RS232C, 9600 baudRemote

Direct readout LCD;

ush-button switches or remote selectionFre

uenc

/ Gain Selection Green LED

Red LED

Yellow LED

Yellow LEDPower

Alarm

Remote

Mute

TABLE 1.1 2015-58-T Upconverter Specifications*

-30 to -10 dBmIn

ut Level

20 dB typical; 25 dB maximum, +30 dB gainNoise Figure

70 ±18 MHzFre

uenc

+10 dBmOut

ut 1 dB Com

ression -20 to 0 dBmOut

ut Level

Out

ut Characteristics

5.845 to 6.725 GHzFre

uenc

50Ω/ 20 dB T

ical, 18 dB min.Im

edance / Return Loss

75Ω/ 20 dBIm

edance / Return Loss

- M 50ΩT

e N

(

)

, 50ΩBNC

(

)

Connector / Im

edance

Remote M&C Interfaces LO1 / LO2 Monitor Ports

(

Rear

)

- W12

Available O

tions

Ethernet with Web Browser & SNMP

Ethernet with Web Browser

(

)

- W18

- W8 RS485 Remote Interface-

*+0 to +50 degrees C; Specifications subject to change without notice.

2015-58T Manual_Rev. D Page 4 11/29/12

1.3 Monitor and Control Interface

A) Remote Serial Interface

Protocol - RS-485, RS-422 or RS-232C (selectable), 9600 baud rate, no parity, 8 data bits, 1 start bit, 1 stop bit.

Female DB-9

PC Com Port Male DB-9

2015/16/17 M&C Port

M&C Cable Diagram - Cross Technologies Frequency Converters

RX RX

TX TX

DTR

DSR

RTS

CTS

Connector - Rear panel, DB-9 female

Pinouts (RS-485/422/232C)

Pin Description

1 Rx-

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4Tx-

5 Ground

6 Alarm Relay - Common

7 Alarm Relay - Normally Open

8 Not Used

9 Alarm Relay - Normally Closed

2015-58T Manual_Rev. D Page 5 11/29/12

B) Commands - Table 1.2 lists the commands for the 2015-58T and briefly describes them. After a command

is sent the 2015-58T sends a return “>” indicating the command has been received and executed.

General Command Format - The general command format is {aaCND...}, where:

{ = start byte

aa = Address (RS-485 only)

C = 1 character, either C (command) or S (status)

N = 1 character command of status request

D = 1 character or more of data (depends on command)

} = stop byte

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

Table 1.2 2015-58T Comma

nds

Commands

Command Syntax Description

Set Transmitter Frequency {aaC1xxxxxxx}* where:

• xxxxxxx = 7 characters

• Range: 5845000 to 6725000 kHz, 1kHz steps

Set Input Level {aaCIxx}* where:

• xx = 2 characters

• Range: 10 to 30 (-10 dB to -30 dB, in 1 dB steps)

Set Transmit Gain {aaC3xxx}* where:

• xxx = 3 characters

• Range: 100 to 300 (10.0 dB to 30.0 dB, in 0.5 dB steps)

Enable Tx {aaCAx}* where x =:

• 0 to disable Tx signal

• 1 to enable Tx signal

Enable External 10MHz {aaCEx}* where x =:

• 0 to disable External 10MHz ref signal

• 1 to enable External 10MHz ref signal

Enable Remote # Just # sign

Disable Remote {aaCR0}* {CR and zero}

C) Status Requests - Table 1.3 lists the status requests for the 2015-58T and briefly describes them.

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

Table 1.3 2015-58T Status Reequests

Status Requests

Command Syntax Description

Command Status {aaS1}* Returns {aaS1bbbbbbbccddddMEA} where:

• bbbbbbb = Tx frequency

• ddd = Tx Gain

• cc = Input Level

• A = Alarm Status (0 = NO Alarm, 1 = Alarm)

• M = Tx RF Status (1 = Normal, 0 = Muted)

10 MHz Reference Status {aaS2}* Returns {aaS2x} where:

• X = 1 - external 10 MHz switched in

2015-58T Manual_Rev. D Page 6 11/29/12

1.4 Environmental Use Information

A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions

located in the user manual furnished by the manufacturer of your equipment rack.

B. Mechanical Loading - Mounting of equipment in a rack should be such that a hazardous condition

does not exist due to uneven weight distribution.

C.Elevated Operating Ambient Temperature - If installed in a closed or multi-unit rack assembly,

the operating ambient temperature of the rack may be greater than room ambient temperature.

Therefore, consideration should be given to Tmra.

D. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow

required for safe operation of the equipment is not compromised. Additional space between unit

may be required.

E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply

circuit and the effect that overloading of circuits could have on over current protection and supply wiring.

Appropriate consideration of equipment name plate rating should be used, when addressing this concern.

F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained.

Particular attention should be given to supply connections other than direct connection to the

Branch (use of power strips).

G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.

If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED

prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS

emission problems.

2015-58T Manual_Rev. D Page 7 11/29/12

2.0 Installation

2.1 Mechanical

The 2015-58T consists of one RF/Controller PCB which is housed in a 1 RU (1 3/4 inch high) by 16 inch deep

chassis. A switching, ± 12, +24, +5 VDC power supply provides power for the assembly. The 2015-58T can

be secured to a rack using the 4 holes on the front panel. Figure 2.1 shows how the 2015-58T is assembled.

POWER

SUPPLY

PCB

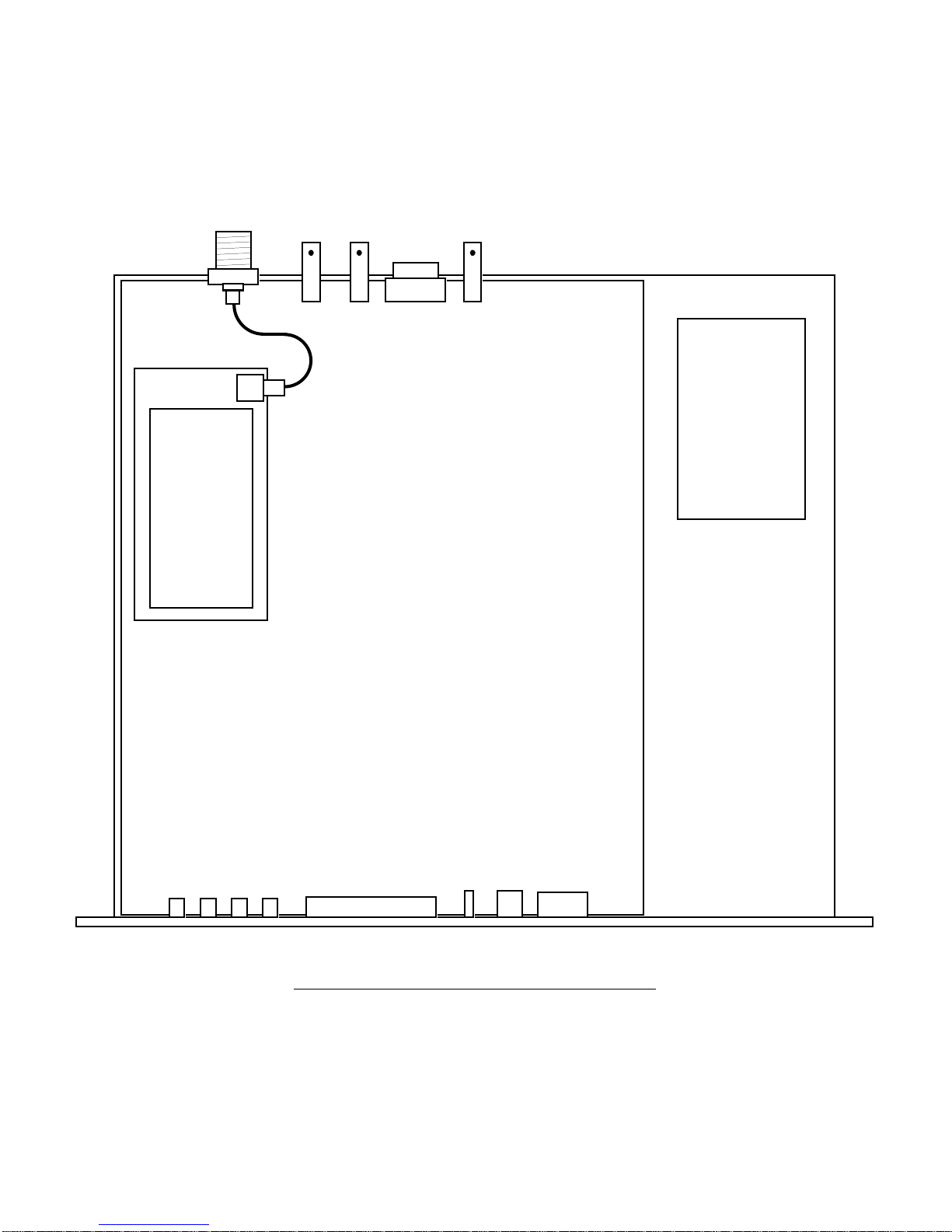

FIGURE 2.1 2015-58T Mechanical Assembly

2015-58T Manual_Rev. D Page 8 11/29/12

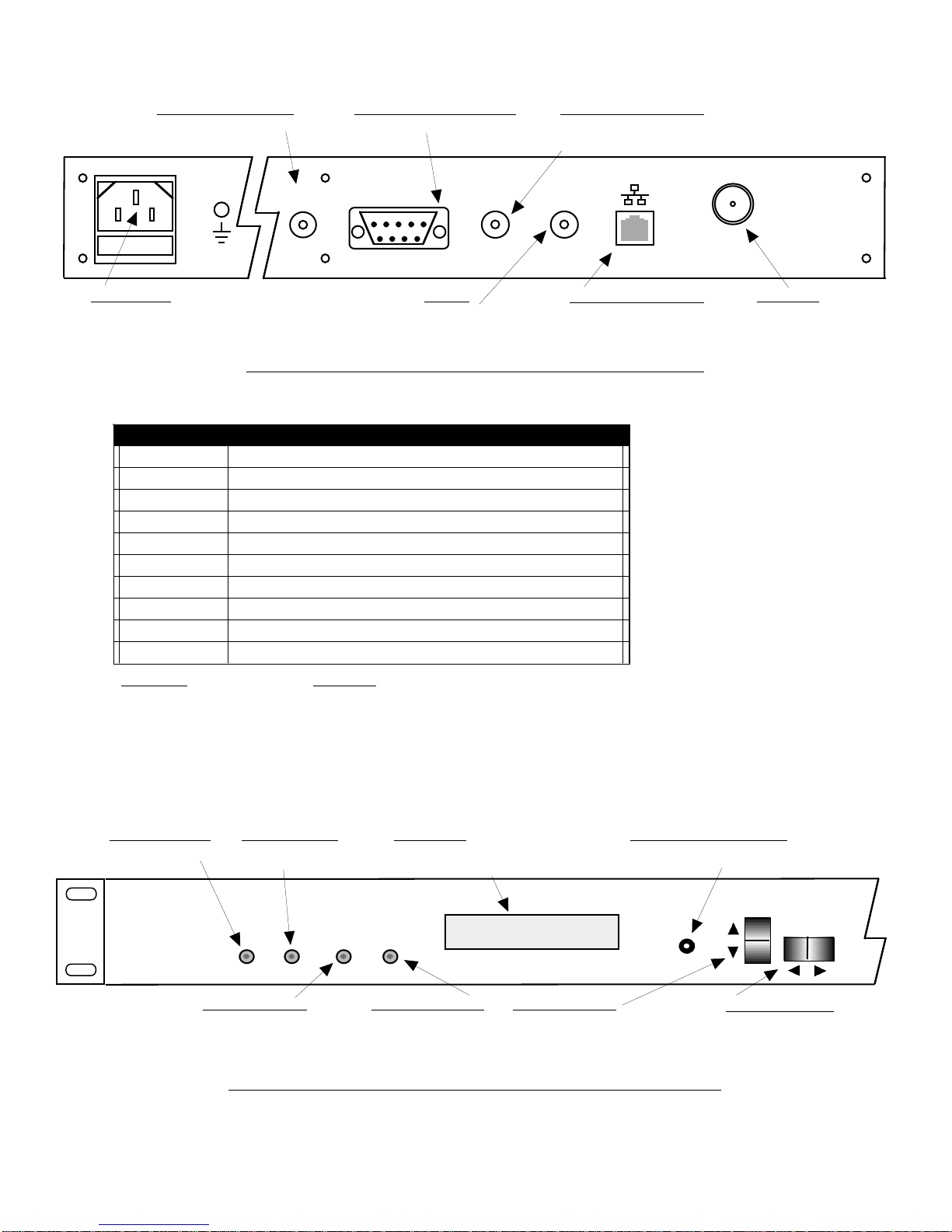

2.2 Rear Panel Input / Output Signals - Figure 2.2 shows the input and output connectors on the rear panel.

GND

J18

10 MHZ REF

OUTPUT

J10

AND

MONITOR

CONTROL

5 4 3 2 1

9 8 7 6

J10 - MONITOR AND CONTROL

DB9 female connector.

see Table 2.1.

RF OUT

10 MHZ IF IN

EXT REF

J5 - RF OUT

5845 to 6725 MHz

-20 to 0 dBm output

J4 - IF IN

70 MHz

-30 to -10 dBm input

INPUT

J3 - 10 MHz EXT REF INPUT

10 MHz external reference input,

3 ± 3 dBm, 50/75 ohms,

BNC (female) connector.

J18 - 10 MHz REF OUTPUT

10 MHz reference output,

3 ± 3 dBm, 50/75 ohms

BNC (female) connector.

AC - POWER IN

AC input for switching power supply.

100-240 VAC, 47-63 Hz.

J20 - Ethernet Connection

RJ45 Ethernet Connector

(optional)

J20

FIGURE 2.2 2015-58T Rear Panel Inputs and Outputs

Table 2.1 J10 Pinouts

Table 2.1 J10 Pinouts (RS-485/RS-422/RS-232C)*

Pin Description

1 Rx-

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4Tx-

5 Ground

6 Alarm Relay - Common

7 Alarm Relay - Normally Open

8 Not Used

9 Alarm Relay - Normally Closed

*Interface: DB-9 Female; Protocol: RS-485, RS-422, or RS-232C (selectable), 9600 baud rate, no

parity, 8 data bits, 1 start bit, 1 stop bit

2.3 Front Panel Controls and Indicators - Figure 2.3 shows the front panel controls and indicators.

EXECUTE

F = 5950.000

MUTEREMOTE POWER

LCD DISPLAY

Display shows Frequency in MHz and

Gain in dB. Is used during Program

Mode to change settings.

S1 - MENU/EXECUTE BUTTON

Press this to get into Program mode

and to execute any changes.

DS6 - POWER LED

Green LED indicates

presence of DC power.

DS1 - REMOTE LED

Yellow LED indicates

remote operation.

S2 - VERT. TOGGLE

Vertical toggle switch that controls

values in the Menu items when in

program mode. Does not function in

the normal display mode

S3 - HORIZ. TOGGLE

Horizontal toggle switch that

controls which values are being

adjusted. Does not function in the

normal display mode

ALARM

G = +10.0

DS5 - UP MUTE LED

Red LED indicates

upconverter mute.

DS2 - UP ALARM LED

Red LED indicates

upconverter alarm.

FIGURE 2.3 2015-58T Front Panel Controls and Indicators

2015-58T Manual_Rev. D Page 9 11/29/12

2.4 Installation / Operation

2.4.1 Installing and Operating the 2015-58T Upconverter

1. Connect a -30 dBm to -10 dBm, 70 MHz signal to IF IN, J4 (Figure 2.2)

2. Connect RF OUT, J5, to the external equipment.

3. Connect 100- 240 ±10% VAC, 47 - 63 Hz to AC input on the back panel.

4. Set the desired output frequency (See Section 2.5 Menu Settings).

5. Set the input level (See Section 2.5 Menu Settings).

6. Set the gain so that the output level is always within the range of -20 to 0 dBm. The firmware will

prevent setting gain and input level outside this range. (See Section 2.5 Menu Settings).

7. Be sure DS6 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.3).

8. AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot in the

drawer below the AC input as shown in Figure 2.4. There is a spare fuse in the near slot. If a fuse

continues to open, the power supply is most likely defective.

AC Fuse - 2 amp slow blow (Type T),

5 mm X 20 mm

FUSE DRAWER

SPARE FUSE

INPUT

100-240± 10%VA

47-63 Hz

2A MA

FUSE

TYPE T 2A GDC

250 VOLT

FOR 100 - 240 V~

FIGURE 2.4 Fuse Location and Spare Fuse

2015-58T Manual_Rev. D Page 10 11/29/12

Inhaltsverzeichnis

Andere Cross Technologies Medienkonverter Handbücher

Cross Technologies

Cross Technologies 2017-03A Bedienungsanleitung

Cross Technologies

Cross Technologies 2116-182193 Bedienungsanleitung

Cross Technologies

Cross Technologies 2005-02P4 Bedienungsanleitung

Cross Technologies

Cross Technologies 2017-0923 370 Series Bedienungsanleitung

Cross Technologies

Cross Technologies 2016-75-213 Bedienungsanleitung

Cross Technologies

Cross Technologies 2015-7075 Bedienungsanleitung

Cross Technologies

Cross Technologies 2015-24 Bedienungsanleitung

Cross Technologies

Cross Technologies 4115-300 Bedienungsanleitung

Cross Technologies

Cross Technologies 3016-2124 Bedienungsanleitung

Cross Technologies

Cross Technologies 2116-184 Bedienungsanleitung

Cross Technologies

Cross Technologies 1584-29 Bedienungsanleitung

Cross Technologies

Cross Technologies 2099-2424 Bedienungsanleitung

Cross Technologies

Cross Technologies 2016-26 Bedienungsanleitung

Cross Technologies

Cross Technologies 4117-14 Bedienungsanleitung

Cross Technologies

Cross Technologies 2416 02I Series Bedienungsanleitung

Cross Technologies

Cross Technologies 2016-25 Bedienungsanleitung

Cross Technologies

Cross Technologies 2005 Bedienungsanleitung

Cross Technologies

Cross Technologies 3117-3338 720 Series Bedienungsanleitung

Cross Technologies

Cross Technologies 2415-02 Series Bedienungsanleitung

Cross Technologies

Cross Technologies 2415-x02 Bedienungsanleitung

Cross Technologies

Cross Technologies 2016-12 Bedienungsanleitung

Cross Technologies

Cross Technologies 2016-1522 Bedienungsanleitung

Cross Technologies

Cross Technologies 3116-7786-2150 Bedienungsanleitung

Cross Technologies

Cross Technologies 2016-8085 Bedienungsanleitung

Beliebte Medienkonverter Handbücher anderer Marken

SoundTraxx

SoundTraxx Blunami BLU-2200 Bedienungsanleitung

SPROLINK

SPROLINK VA1 Bedienungsanleitung

Acclaim Lighting

Acclaim Lighting DDC-1-AC Bedienungsanleitung

Nikon

Nikon AF-S TC-20E III Bedienungsanleitung

Axis

Axis AXIS Q7406 Bedienungsanleitung

Omega

Omega TAC80B-J Bedienungsanleitung

Zoom

Zoom Thunderbolt TAC-2R Bedienungsanleitung

OST

OST iConverter 10/100M Bedienungsanleitung

Vertiv

Vertiv Netsure Bedienungsanleitung

birddog

birddog MINI Bedienungsanleitung

Roland

Roland GI-10 Bedienungsanleitung

Wallenstein

Wallenstein WX310 Bedienungsanleitung

Pace

Pace MSS 200-1 Bedienungsanleitung

Solar Converters

Solar Converters EQ 12/24-50 Bedienungsanleitung

CYP

CYP EL-7400V Bedienungsanleitung

TIE

TIE MIDI 1i1o Bedienungsanleitung

DCS

DCS Vivaldi Upsampler Bedienungsanleitung

Westermo

Westermo MCW-211 SERIES Bedienungsanleitung
