Cross Technologies 2099-2424 Bedienungsanleitung

Instruction Manual

Model 2099-2424

24V Source/Inserter

February 2020, Rev. C

ALARM

SSPB

DC ON

REF ON LNB

EXECUTE

ALARM

PSB

EXT REF

REMOTE

OVEN

MODEL 2099

SOURCE / INSERTER

SSPB +24.1V @ 1.800A

LNB +24.2V @ 0.27A CROSS TECHNOLOGIES

PSA

Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,

but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.

for purposes of operating the equipment. Printed in USA.

When ordering parts from Cross Technologies, Inc., be sure to include the equipment

model number, equipment serial number, and a description of the part.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB: www.crosstechnologies.com

E-MAIL: [email protected]

INSTRUCTION MANUAL

MODEL 2099-2424 24V Source/Inserter

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

1.3 Monitors and Controls 6

2.0 Installation 10

2.1 Mechanical 10

2.2 Rear Panel Outputs 11

2.3 Front Panel Indicators 12

2.4 Operation 13

2.5 Menu Settings 14

3.0 Alarm Operations 18

4.0 Option W65 Description 20

5.0 Environmental Use Information 21

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies,

Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s

option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall

not be liable for any special, indirect, or consequential damages. This warranty does not

cover parts or equipment which have been subject to misuse, negligence, or accident by the

customer during use. All shipping costs for warranty repairs will be prepaid by the

customer. There are not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB: www.crosstechnologies.com

E-MAIL: [email protected]

2099-2424 Manual, Rev. C Page 2 02/12/20

Model 2099-2424

10 MHz, 24V Source/Inserter

1.0 General

1.1 Equipment Description

The 2099-2424 10 MHz Source/Inserter is a 10 MHz, ± 0.01 ppm oven controlled crystal oscillator (OCXO)

with circuitry to insert the 10 MHz signal and DC voltage on L-band lines for an LNB and SSPB. Multi-

function switches select LNB and SSPB DC Power, internal or External 10 MHz, and insertion of 10 MHz on

the L-band lines. LEDs indicate DC power (green), Reference insertion (green), alarm (red), remote operation

(yellow), and OCXO oven warm-up (yellow). An external 10 MHz reference can be selected to be inserted

directly into the L-Band lines. Option E6 also allows the internal 10 MHz source to be locked to a high stability

external 10 MHz reference. Remote control allows remote configuration of front panel commands and

monitoring LNB and SSPB voltage and current. Parameter selection and LNB and SSPB voltage and current

appear on the LCD display. Connectors are BNC female for RF and 10 MHz input and output signals. AC

power is 100-240 ± 10% VAC, 47-63 Hz. The chassis is 1 RU, 12” deep.

ALARM

SSPB

DC ON

REF ON LNB

EXECUTE

ALARM

PSB

EXT REF

REMOTE

OVEN

MODEL 2099

SOURCE / INSERTER

SSPB +24.1V @ 1.800A

LNB +24.2V @ 0.27A CROSS TECHNOLOGIES

PSA

J7 J8

SSPB

DS2 F2

SSPB

FUSE

RF IN RF OUT

RF+DC+REF

GND

PSA

M&C

J5 J6

EXT REF

INPUT EXT REF

OUTPUT

J3 J4

LNB

DS1 F1

LNB

FUSE

LNB RF IN,

RF+DC+REF RF OUT

J1 J2

LNB SSPB

PSB

Rear Panel Shown with Option R (Redundant AC Power)

FIGURE 1.1 Model 2099-2424 Front and Rear Panels

FIGURE 1.2 Model 2099-2424 10 MHz Source/Inserter Block Diagram

2099-2424 Manual, Rev. C Page 3 02/12/20

L-BAND

RF IN

EXT 10 MHz

INT 10

MHz

OCXO

fuse

L-BAND +DC +10 M

SSPB OUT

fuse

2099-2424

Block Diagram

+24VDC

L-BAND

RF OUT L-BAND +DC +10 M

LNB IN

1.2 Technical Characteristics

TABLE 1.0 2099-2424 10 MHz Source/Inserter*

Technical Characteristics continued on page 5...

2099-2424 Manual, Rev. C Page 4 02/12/20

*10˚C to 40˚C; Specifications subject to change without notice © Cross Technologies, Inc. 2020

100 - 240 ±10% VAC

47 - 63 Hz

100 watts maximumPower

19 inch

1 RU Chassis

1.75” Hi

h X 12.0” Dee

Size DB9

(

female

)

- NO or NC Closure on AlarmAlarm/Remote Connector

BNC

(

female

)

(

Works for 50Ωor 75Ω

)

10 MHz Connectors

Yellow LED

Yellow LEDOven

External Reference

Remote

Green LED

Red LED

Green LEDPower

Alarm

Reference

Front Panel Dis

and M&CSSPB

LNB Volts and Am

FP Switch or M&C Select

;

Green

Rear Yellow LEDSSPB

LNB Insert

Chassis

Other

BNC

50Ω

(

female

)

RF Connectors

Other

FP Switch or M&C Select

;

Green LED10 MHz Insert Select FP Switch or M&C Select

;

External Yellow LEDInternal/External 10 MHz Select

Control

Indicators

149149140110

10 kHz1 kHz100 Hz10 Hz

dBC/Hz

Phase Noise @ Frequency

TABLE 1.0 2099-2424 24V Source Inserter*

± 0.5

mTunin

ust

± 0.01

mWarm U

1 Hour

± 0.1

mWarm U

4 Minutes

± 0.1

ear

± 0.001

er da

± 0.01

m max. over tem

Stabilit

Oscillator

< -30 dBC

< -40 dBC T

.Harmonics

(

Out

)

< -30 dBC

< -40 dBC T

.Harmonics

ut/Out

Characteristics

(

BNC

Connectors

)

Out

Characteristics

(

L-Band

)

+3 dBm ± 3 dB

(

tion W65 +3 dBm max.

)

Level

50Ω/ 75Ω

14 dBIm

edance

Return Loss

< -20 dBm

< -30 dBm T

.Level to non-insert end

+2 dBm ±2 dBLevel

10 MHz Reference

+24 ±2 VDC

2.5 A

max.Volta

e/Current SSPB

±1.0 dB, 950 to 2150 MHz;

±0.5 dB

36 MHz BW

Frequency Response

< 1 dB, 0.95 to 1.5 GHz

< 2 dB

1.5 to 2.15 GHz

Insertion Loss

SSPB

LNB

Power

Characteristics

> 12 dB, 0.95 to 1.5 GHz

> 10 dB

1.5 to 2.15 GHz

Return Loss

±5 %Load Re

ulation

50ΩIm

edance

ut/Out

Characteristics

+24 ±2 VDC

0.5 A

max.Volta

e/Current LNB

950 to 2150 MHz & 10 MHzFre

uenc

L-Band Insertion

1.2 Technical Characteristics continued...

2099-2424 Manual, Rev. C Page 5 02/12/20

50Ω

-T

±2.0

2500

MHz

±1.0

950-2500

MHz

±0.5

MHz

Fre

uenc

Res

onse:

with

tion

onl

W108-S

50Ω

SMA

for

and

OUT

Lock Internal 10 MHz Reference to External 10 MHz

*10˚C to 40˚C; Specifications subject to change without notice. © Cross Technologies, Inc. 2020

75Ω

F-T

75Ω

BNC

Ethernet

with

TCP/IP

Telnet®

Ethernet

with

Web

Browser

and

SNMP

Ethernet

with

Web

Browser

RS485

Remote

Interface

Connectors/Im

edance

Common Interface/Standard RS232

Options

W28

W18

Redundant AC Power

1.3 Monitor and Control Interface

A) Remote serial interface

Protocol: RS-232C/422/485, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.

Female DB-9

PC Com Port Male DB-9

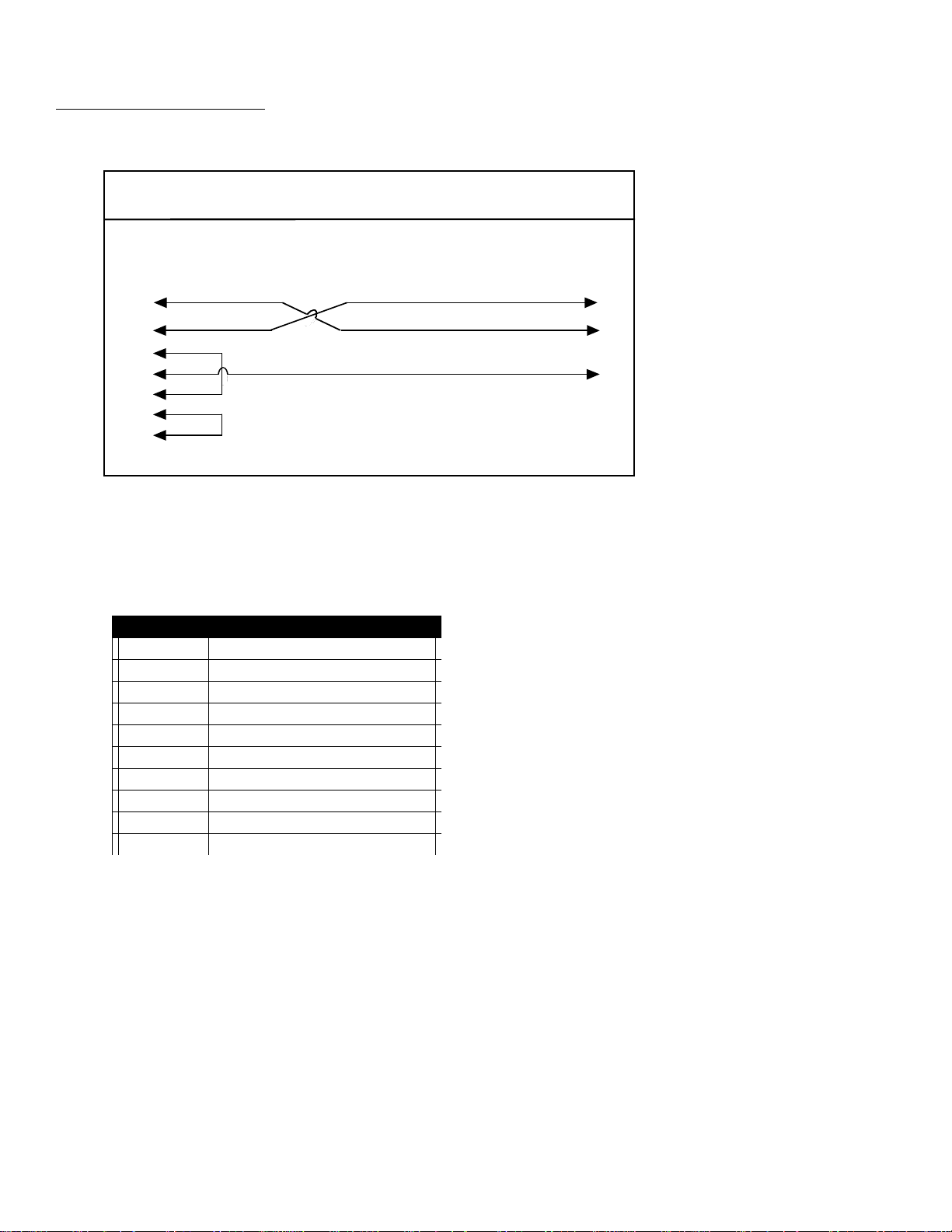

M&C Cable Diagram - Cross Technologies Frequency Converters and

Frequency Sources

Connector: Rear panel, DB-9 female

J19 Pinouts

(RS-232C/422/485)

Pinouts (RS-232C/422/485)

Pin Function

1 Rx-

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4Tx-

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Open

8 Not Used

9 Alarm Relay: Normally Closed

2099-2424 Manual, Rev. C Page 6 02/12/20

B) Status Requests

Table 1.1 lists the status requests for the 2099-2424 10 MHz Source/Inserter and briefly describes them.

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

Table 1.1 2099-2424 Status Reequests

Status Requests

Table 1.1 2099-2424 Status Requests

Command Syntax* Description

Get SSPB DC Voltage Insert State {aaSS} returns {aaSSx}

where: x = 1 if DC voltage is inserted on the SSPB loop through.

x = 0 if DC voltage is disabled on the SSPB loop through.

Get SSPB 10 MHz Ref. Insert State {aaSD} returns {aaSDx}

where: x = 1 if the 10 MHz reference is inserted on the SSPB loop through.

x = 0 if the 10 MHz reference is disabled on the SSPB loop through.

Get LNB DC Voltage Insert State {aaSL} returns {aaSLx}

where: x = 1 if DC voltage is inserted on the LNB loop through.

x = 0 if DC voltage is disabled on the LNB loop through.

Get LNB 10 MHz Reference Insert State {aaSB} returns {aaSBx}

where: x = 1 if the 10 MHz reference is inserted on the LNB loop through.

x = 0 if the 10 MHz reference is disabled on the LNB loop through.

Get SSPB Inserted Voltage and Current {aaSJ} returns {aaSJxxxxx,yyyyy}

where: xxxxx = Measured DC voltage inserted on the SSPB loop through.

where: yyyyy = Measured DC current inserted on the SSPB loop through.

Get LNB Inserted Voltage and Current {aaSK} returns {aaSKxxxxx,yyyyy}

where: xxxxx = Measured DC voltage inserted on the LNB loop through.

where: yyyyy = Measured DC current inserted on the LNB loop through.

Get 10 MHz Reference Operating Mode {aaSM} returns {aaSMx}

(option E) where: x = 1 if the mode is Internal Reference.

x = 2 if the mode is External Pass.

x = 3 if the mode is External Pass Auto.

x = 4 if the mode is External Lock. (• Option E6 only)

x = 5 if the mode is External Lock Auto. (• Option E6 only)

Get IP Address {aaSi} returns {aaSixxx.xxx.xxx.xxx}

(ethernet option)

where xxx.xxx.xxx.xxx = IP address

Get Subnet Mask {aaSs} returns {Ssxxx.xxx.xxx.xxx}

(ethernet option)

where xxx.xxx.xxx.xxx = subnet mask

Get Alarm Status {aaSA} returns {SAabc}

(ethernet option)

where a = SSPB Alarm State (0 for alarm off; 1 for alarm on)

b = LNB alarm state (0 for alarm off; 1 for alarm on)

c = Summary alarm state (0 for alarm off; 1 for alarm on)

Status Request continued on page 8...

2099-2424 Manual, Rev. C Page 7 02/12/20

Status Request continued from page 7...

Table 1.1 2099-2424 Status Reequests

Status Requests Continuued...

Table 1.1 2099-2424 Status Requests Continued...

Command Syntax* Description

Get all monitored statuses {aaSa} returns {Sabcdefghijklmn}

where:

b = DC CONV A status (0 = ok, 1 = voltage too high, 2 = voltage too low)

c = DC CONV B status (0 = ok, 1 = voltage too high, 2 = voltage too low)

d = +24V PSA status (0 = ok, 1 = voltage too high, 2 = voltage too low)

e = +24V PSB status (0 = ok, 1 = voltage too high, 2 = voltage too low)

f = SSPB V status (0 = ok, 1 = voltage too high, 2 = voltage too low)

g = SSPB I status (0 = ok, 1 = current too high)

h = LNB V status (0 = ok, 1 = voltage too high, 2 = voltage too low)

i = LNB I status (0 = ok, 1 = current too high)

j = Internal Reference Mode status(0 = ok, 1 = internal reference low and Internal

Reference Mode is selected)

k = External Reference Mode status(0 = ok, 1 = external reference low and External

Pass Reference Mode is selected)

l = External Pass Auto Reference Mode status (0 = ok, 1 = external reference low

and External Pass Auto Reference Mode is selected)

m = External Lock Reference Mode status (0 = ok, 1 = external reference low,

2 = pll cannot lock) Option E6 otherwise 0

n = External Lock Auto Reference Mode(0 = ok, 1 = external reference low,

2 = pll cannot lock) Option E6 otherwise 0

Get product/model info {aaSv} returns {Sv2099-2424y..yverZZZZ}

where 2412-x02 = product model where x is the number of channels

y..y = list of options, if any

"ver" = separates model & options from firmware version

ZZZZ = firmware version (e.g., 4.00)

Get SSPB Reference Level {aaSW} returns {aaSWxxx}

(Option W65)

where xxx = Power level of the internal 10 MHz reference that is inserted on

the SSPB loop through.

Get SSPB Reference Gain {aaSX} returns {aaSXxxx}

(Option W65)

where xxx = Power gain of the external 10 MHz reference that is inserted on

the SSPB loop through.

Get LNB Reference Level {aaSY} returns {aaSYxxx}

(Option W65)

where xxx = Power level of the internal 10 MHz reference that is inserted on

the LNB loop through.

Get LNB Reference Gain {aaSZ} returns {aaSZxxx}

(Option W65)

where xxx = Power gain of the external 10 MHz reference that is inserted on

the LNB loop through.

2099-2424 Manual, Rev. C Page 8 02/12/20

C) Commands

Table 1.2 lists the commands for the 2099-2424 10 MHz Source/Inserter and briefly describes them. After a

command is sent the 2099-2424 10 MHz Source/Inserter sends a return “>” indicating the command has been

received and executed.

General Command Format - The general command format is {aaCND...}, where:

{ = start byte

aa = address (RS-485 only option -Q)

C = 1 character, either C (command) or S (status)

N = 1-digit command or status number, 1 through 9

D = 1 character or more of data (depends on command)

} = stop byte

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (option Q) is selected.

Table 1.2 2099-2424 Commands

Command Syntax* Description

Set SSPB DC Voltage Insert {aaCSx} where: x = 1 to enable DC Voltage on the SSPB loop through.

x = 0 to disable DC Voltage on the SSPB loop through.

Set SSPB 10 MHz Reference Insert {aaCDx} where: x = 1 to enable the 10 MHz reference on the SSPB loop through.

x = 0 to disable the 10 MHz reference on the SSPB loop through.

Set LNB DC Voltage Insert {aaCLx} where: x = 1 to enable DC Voltage on the LNB loop through.

x = 0 to disable DC Voltage on the LNB loop through.

Set LNB 10 MHz Reference Insert {aaCBx} the LNB

x = 0 to disable the 10 MHz reference on the LNB loop through.

Set 10 MHz Reference Operating Mode {aaCMx} where: x = 1 to set the mode to Internal Reference.

Option E, (option E6)

x = 2 to set the mode to External Pass.

x = 3 to set the mode to External Pass Auto.

x = 4 to set the mode to External Lock. (• Option E6 only)

x = 5 to set the mode to External Lock Auto. (• Option E6 only)

Clear Fault (External Lock Auto Mode) {aaCFx} where : x = 1 to clear a FAULT condition.

Set SSPB 10 MHz Reference Insert Level {aaCWxxx} where: xxx = Power level of the internal 10 MHz reference that is inserted

(Option W65)

on the SSPB loop through. The valid range is +10 to -10 dBm.

Set SSPB 10 MHz Reference Insert Gain {aaCXxxx} where: xxx = Gain of the external 10 MHz reference that is inserted

(Option W65)

on the SSPB loop through. The valid range is +10 to -10 dB.

Set LNB 10 MHz Reference Insert Level {aaCYxxx} where: xxx = Power level of the internal 10 MHz reference that is inserted

(Option W65)

on the LNB loop through. The valid range is +10 to -10 dBm.

Set LNB 10 MHz Reference Insert Gain {aaCZxxx} where: xxx = Gain of the external 10 MHz reference that is inserted

(Option W65)

on the LNB loop through. The valid range is +10 to -10 dB.

2099-2424 Manual, Rev. C Page 9 02/12/20

2.0 Installation

2.1 Mechanical

The 2099-2424 10 MHz Source/Inserter consists of one RF PCB housed in a 1 RU (1 3/4 inch high) by

12 inch deep chassis. Redundant switching, +27 VDC power supplies provides power

for the assemblies if equipped with option R. Otherwise, a single switching +27 VDC power supply is used.

The 2099-2424 10 MHz Source/Inserter can be secured to a rack using the 4 holes on the front panel.

Figure 2.0 shows how the 2099-2424 10 MHz Source/Inserter is assembled.

AC A

AC B

FIGURE 2.0 2099-2424 10 MHz Source/Inserter Mechanical Assembly

2099-2424 Manual, Rev. C Page 10 02/12/20

Inhaltsverzeichnis

Andere Cross Technologies Medienkonverter Handbücher

Cross Technologies

Cross Technologies 3116-22-23 Bedienungsanleitung

Cross Technologies

Cross Technologies 2115-275-1845 Bedienungsanleitung

Cross Technologies

Cross Technologies 2416-x02 Bedienungsanleitung

Cross Technologies

Cross Technologies 2415-x02 Bedienungsanleitung

Cross Technologies

Cross Technologies 3016-1520-1200 Bedienungsanleitung

Cross Technologies

Cross Technologies 2015-58T Bedienungsanleitung

Cross Technologies

Cross Technologies 4116-31-2831 Bedienungsanleitung

Cross Technologies

Cross Technologies 2416 25 Series Bedienungsanleitung

Cross Technologies

Cross Technologies 2116-300-1600 Bedienungsanleitung

Cross Technologies

Cross Technologies 2016-57 Bedienungsanleitung

Cross Technologies

Cross Technologies 2116-21-1014 Bedienungsanleitung

Cross Technologies

Cross Technologies 2099-10 Bedienungsanleitung

Cross Technologies

Cross Technologies 2015-03A Bedienungsanleitung

Cross Technologies

Cross Technologies 2017-1727-140 Bedienungsanleitung

Cross Technologies

Cross Technologies 2015-26 Bedienungsanleitung

Cross Technologies

Cross Technologies 2116-140T120 Bedienungsanleitung

Cross Technologies

Cross Technologies 2015-7075 Bedienungsanleitung

Cross Technologies

Cross Technologies 4115-300 Bedienungsanleitung

Cross Technologies

Cross Technologies 2117 Bedienungsanleitung

Cross Technologies

Cross Technologies 2015-123 Bedienungsanleitung

Cross Technologies

Cross Technologies 2115-122 Bedienungsanleitung

Cross Technologies

Cross Technologies 3117-3338 720 Series Bedienungsanleitung

Cross Technologies

Cross Technologies 2016-02-1200 Bedienungsanleitung

Cross Technologies

Cross Technologies 4117-14 Bedienungsanleitung

Beliebte Medienkonverter Handbücher anderer Marken

SoundTraxx

SoundTraxx Blunami BLU-2200 Bedienungsanleitung

SPROLINK

SPROLINK VA1 Bedienungsanleitung

Acclaim Lighting

Acclaim Lighting DDC-1-AC Bedienungsanleitung

Nikon

Nikon AF-S TC-20E III Bedienungsanleitung

Axis

Axis AXIS Q7406 Bedienungsanleitung

Omega

Omega TAC80B-J Bedienungsanleitung

Zoom

Zoom Thunderbolt TAC-2R Bedienungsanleitung

OST

OST iConverter 10/100M Bedienungsanleitung

Vertiv

Vertiv Netsure Bedienungsanleitung

birddog

birddog MINI Bedienungsanleitung

Roland

Roland GI-10 Bedienungsanleitung

Wallenstein

Wallenstein WX310 Bedienungsanleitung

Pace

Pace MSS 200-1 Bedienungsanleitung

Solar Converters

Solar Converters EQ 12/24-50 Bedienungsanleitung

CYP

CYP EL-7400V Bedienungsanleitung

TIE

TIE MIDI 1i1o Bedienungsanleitung

DCS

DCS Vivaldi Upsampler Bedienungsanleitung

Westermo

Westermo MCW-211 SERIES Bedienungsanleitung
