Instruction Manual

Model 2015-123

Upconverter

November 2009 Rev A

EXECUTE

MODEL 2015

CROSS TECHNOLOGIES INC.

F=2050.000

G=+00.0 RF=A

MUTEREMOTE POWER ALARM

UPCONVERTER

Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,

but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.

for purposes of operating the equipment.

When ordering parts from Cross Technologies, Inc., be sure to include the equipment

model number, equipment serial number, and a description of the part.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

INSTRUCTION MANUAL

MODEL 2015-123 Upconverter

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

1.3 Monitor & Control Interface 5

2.0 Installation 8

2.1 Mechanical 8

2.2 Rear Inputs & Outputs 9

2.3 Front Panel Controls & Indicators 9

2.4 Operation 10

2.5 Menu Settings 11

3.0 Environmental Use Information 16

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s

obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option,

replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be

liable for any special, indirect, or consequential damages. This warranty does not cover parts

or equipment which have been subject to misuse, negligence, or accident by the customer

during use. All shipping costs for warranty repairs will be prepaid by the customer. There are

not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

2015-123 Manual, Rev.A Page 2 11/12/09

MODEL 2015-123 Upconverter

1.0 General

1.1 Equipment Description

The 2015-123 Upconverter converts 70 ± 18 MHz to 2025 to 2300 MHz in 1kHz, 10kHz, or 125kHz steps (user

selectable) with low group delay and flat frequency response. Synthesized local oscillators (LO) provide very

low phase noise and ±0.01 ppm stability frequency selection. Multi-function push button switches select the

RF frequency, gain, and other parameters. Front panel LEDs provide indication of DC power (green), PLL

alarm (red), remote operation (yellow) or the TX carrier is muted (yellow). Variable attenuators for the IF input

and output provide a gain range of -10 to +30 dB as adjusted by the front panel multi-function push-button

switches. Remote operation allows selection of frequency and gain. Parameter selection and frequency and

gain settings appear on the LCD display. Connectors are BNC female for IF Input, RF outputs and the 10MHz

external reference input and 10MHz reference output. The 10MHz reference signal (internal or external) can be

sent to the 10MHz reference output connector and/or to the RF OUT connectors. The RF signal can be

switched between two RF outputs (A and B) via an integrated, remotely controlled RF switch.. The unit is

EXECUTE

MODEL 2015

CROSS TECHNOLOGIES INC.

F=2050.000

G=+00.0 RF=A

MUTEREMOTE POWER ALARM

UPCONVERTER

FRONT

AC RF OUT A

GND

J4J3

J10

J18

10 MHZ REF 10 MHZ IF INAND

MONITOR EXT REF

CONTROL

5 4 3 2

9 8 7 6

OUTPUT INPUT

RF OUT B

J101 J102

REAR

FIGURE 1.1 Model 2015-123 Front and Rear Panels

2.025

2.300

GHz

OUT

MHz

2.0 to 2.5 GHz

CONTROLLER F=2050.0000

G=10.0 RF=A

1750 MHz

1820

MHz

3.8

4.1

GHz

VAR

ATT

10MHz

EXT

10 MHz

INT/EXT

10 MHz

VAR

ATT

INT

10 MHz

RF OUT A

RF OUT B

FIGURE 1.2 Model 2015-123 Upconverter Block Diagram

2015-123 Manual, Rev.A Page 3 11/12/09

1.2 Technical Characteristics

TABLE 1.1 2015-123 Upconverter Specifications*

Input Characteristics

Impedance/Return Loss 50 /18 dB

Frequency 70 ± 18 MHZ

Input Level -40 to -10 dBm

Output Characteristics

Impedance/Return Loss 50 /10 dB

Frequency 2025 to 2300 MHz

Output level 0 to -20 dBm

Output level/1 dB +5 dBm

Channel Characteristics

Gain range (adjustable) -10.0 to +30.0 dB (0.1 dB steps)

Spurious Response <-50 dBC

Frequency Response ±1.5 dB, 2025 to 2300 MHz; ± 0.5 dB, 36 MHz BW

Group Delay, max 3 ns, 30 MHz, 5 ns, 36 MHz BW

Frequency Sense Non-inverting

Synthesizer Characteristics

Frequency Accuracy ± 0.01 ppm max over temp internal reference; external ref. input

Frequency Step 1 kHz, 10 kHz, or 125 kHz (selectable)

-117-107-97-90-75

1MHz100kHz10kHz1kHz100 MHz

dBC/Hz

Phase Noise

Fre

10 MHz Level (In or Out) 0 dBm, ± 3 dB, 75 ohms

Controls, Indicators

Frequency Selection direct readout LCD; pushbutton switches or remote selection

Gain Selection direct readout LCD; pushbutton switches or remote selection

Power Green LED

Alarm Red LED

Mute Yellow LED

Remote Yellow LED, RS232C/RS422/RS485 (selectable), 9600 baud

Other RF Connectors BNC (female), 50 

IF Connector BNC (female), 50 

10 MHz Connectors BNC (female), 75 

Alarm/Remote Connector DB9 (female), NO or NC contact closure on Alarm

Size 19 inch, 1RU standard chassis 1.75” high X 16.0” deep

Power 100-240 ±10% VAC, 47-63 Hz, 45 W max

*+10˚C to +40˚C; Specifications subject to change without notice

2015-123 Manual, Rev.A Page 4 11/12/09

1.3 Monitor and Control Interface

A) Remote serial interface

Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.

(RS-232C, RS-422, or RS-485 - option -Q)

Female DB-9

PC Com Port Male DB-9

2015/16/17 M&C Port

M&C Cable Diagram - Cross Technologies Frequency Converters

RX RX

TX TX

DTR

DSR

RTS

CTS

Connector: Rear panel, DB-9 male

J10 Pinouts

Pinouts (RS-232C/422/485)

Pin Function

1Rx-

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4Tx-

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Open

8NotUsed

9 Alarm Relay: Normally Closed

2015-123 Manual, Rev.A Page 5 11/12/09

B) Status Requests -

Table 1.3 lists the status requests for the 2015-95 and briefly describes them.

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

Table 1.3 2015-123 Status Reequests

Requests

Command Syntax Description

Command Status {aaS1}* Returns {aaS1bbbbbbbccddddMIERA} where:

• bbbbbbb = Tx frequency

• cc = Input Level

• dddd = Tx Gain

• M = Tx RF Status (1 = Normal, 0 = Muted)

• I = Ref Insertion Status (1 = Ref On, 0 = Ref Off)

• E = External Ref Status (1 = Ext Off, 0 = Ext On)

• R = RF Output Status (0 = RF Out A, 1 = RF Out B)

• A = Alarm Status (0 = NO Alarm, 1 = Alarm)

2015-123 Manual, Rev.A Page 6 11/12/09

C) Commands - Table 1.2 lists the commands for the 2015-123 and briefly describes them. After a command

is sent the 2015-123 sends a return “>” indicating the command has been received and executed.

General Command Format - The general command format is {aaCND...}, where:

{ = start byte

aa = address (RS-485 only - option Q)

C = 1 character, either C (command) or S (status)

N = 1 character command or status request

D = 1 character or more of data (depends on command)

} = stop byte

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

Table 1.2 2015-123 Comma

nds

Commands

Command Syntax Description

Set Transmitter Frequency {aaC1xxxxxxx}* where:

• xxxxxxx = 7 characters

• Range: 2000000 to 2500000 kHz, 1kHz steps

Set Input Level {aaCIxx}* where:

• xx = 2 characters

• Range: 10 to 40 (-10 dB to -40 dB, in 1 dB steps)

Set Transmit Gain {aaC3xxxx}* where:

• xxxx = 3 or 4 characters (use 4 char for negative gain)

• Range: -100 to 300 (-10.0 dB to 30.0 dB, in 0.1 dB steps)

Enable 10MHz insertion/out {aaC6x}* where x =:

• 0 to disable reference out

• 1 to enable reference out

Set RF Output {aaC7x}* where x =:

• 0 RF Output = A

• 1 RF Output = B

Enable Tx {aaCAx}* where x =:

• 0 to disable Tx signal

• 1 to enable Tx signal

Enable External 10MHz {aaCEx}* where x =:

• 0 to disable External 10MHz ref signal

• 1 to enable External 10MHz ref signal

Enable Remote # Just # sign

Disable Remote {aaCR0}* {CR and zero}

2015-123 Manual, Rev.A Page 7 11/12/09

2.0 Installation

2.1 Mechanical - The 2015-123 consists of one RF/Controller PCB which is housed in a 1 RU (1 3/4 inch

high) by 16 inch deep chassis. A switching, ± 12, +24, +5 VDC power supply provides power for the

assembly. The 2015-123 can be secured to a rack using the 4 holes on the front panel. Figure 2.1 shows how

the 2015-123 is assembled.

POWER

SUPPLY

SYNTHESIZER

OSC

SWITCH

J12

J13

J15

PCB

FIGURE 2.1 2015-123 Mechanical Assembly

2015-123 Manual, Rev.A Page 8 11/12/09

2.2 Rear Panel Input / Output Signals - Figure 2.2 shows the input and output connectors on the rear panel.

GND

J18

10 MHZ REF

OUTPUT

J10

AND

MONITOR

CONTROL

5 4 3 2 1

9 8 7 6

J10 - MONITOR AND CONTROL

DB9 female connector. see Table

2.1.

RF OUT A

J101

10 MHZ IF IN

EXT REF

J101 - RF OUT A

2025-2300 MHz

0 to -20 dBm output

J4 - IF IN

70 MHz

-10 to -40 dBm input

INPUT

RF OUT B

J102

J102 - RF OUT B

2025-2300 MHz

0 to -20 dBm output

J3 - 10 MHz EXT REF INPUT

10 MHz external reference input,

0 ± 3 dBm, 75 ohms, BNC female

connector.

J18 - 10 MHz REF OUTPUT

10 MHz reference output,

0 ± 3 dBm, 75 ohms, BNC

female connector.

AC - POWER IN

AC input for switching power supply.

90-260 VAC, 47-60 Hz.

FIGURE 2.2 2015-123 Rear Panel Inputs and Outputs

Table 2.1 J10

Table 2.1 J10 Pinouts (RS-485/RS-422/RS-232C)*

Pin Description

1Rx-

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4Tx-

5 Ground

6 Alarm Relay - Common

7 Alarm Relay - Normally Open

8NotUsed

9 Alarm Relay - Normally Closed

*Interface: DB-9 Female; Protocol: RS-485, RS-422, or RS-232C (selectable), 9600 baud rate, no

parity, 8 data bits, 1 start bit, 1 stop bit

2.3 Front Panel Controls and Indicators -The following are the front panel controls and indicators.

EXECUTE

F=2050.000

MUTEREMOTE POWER

LCD DISPLAY

Display shows frequency in MHz, Gain in

dB, and RF output selected, and is used to

change settings in Program mode.

S1 - MENU/EXECUTE BUTTON

Press this to get into Program mode

and to execute any changes.

DS6 - POWER LED

Green LED indicates

presence of DC power.

DS1 - REMOTE LED

Yellow LED indicates

remote operation.

S2 - VERT. TOGGLE

Vertical toggle switch that controls

values in the Menu items when in

program mode. Does not function in the

normal display mode

S3 - HORIZ. TOGGLE

Horizontal toggle switch that

controls which values are being

adjusted. Does not function in the

normal display mode

ALARM

G=+00.0 RF=A

DS5 - UP MUTE LED

Red LED indicates

upconverter mute.

DS2 - UP ALARM LED

Red LED indicates

upconverter alarm.

FIGURE 2.3 2015-123 Front Panel Controls and Indicators

2015-123 Manual, Rev.A Page 9 11/12/09

2.4 Installation / Operation

2.4.1 Installing and Operating the 2015-123 Upconverter

1.) Connect a -10 dBm to -40 dBm, 70MHz signal to IF IN, J4 (Figure 2.2)

2.) Connect the RF OUT A, J101, and RF OUT B, J102, to the external equipment.

3.) Connect 90- 260 VAC, 47 - 63 Hz to AC input on the back panel.

4.) Set the desired output frequency (See Section 2.5 Menu Settings).

5.) Set the input level (See Section 2.5 Menu Settings).

6.) Set the gain for -10 to +30 dB. Make sure the output stays within -20 to 0 dBm with the gain

selected and the input level provided. The firmware will prevent setting gain and input level outside this

range. (See Section 2.5 Menu Settings).

7.) Select the RF Output (A or B) (See Section 2.5 Menu Settings).

8.) Be sure DS6 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.3).

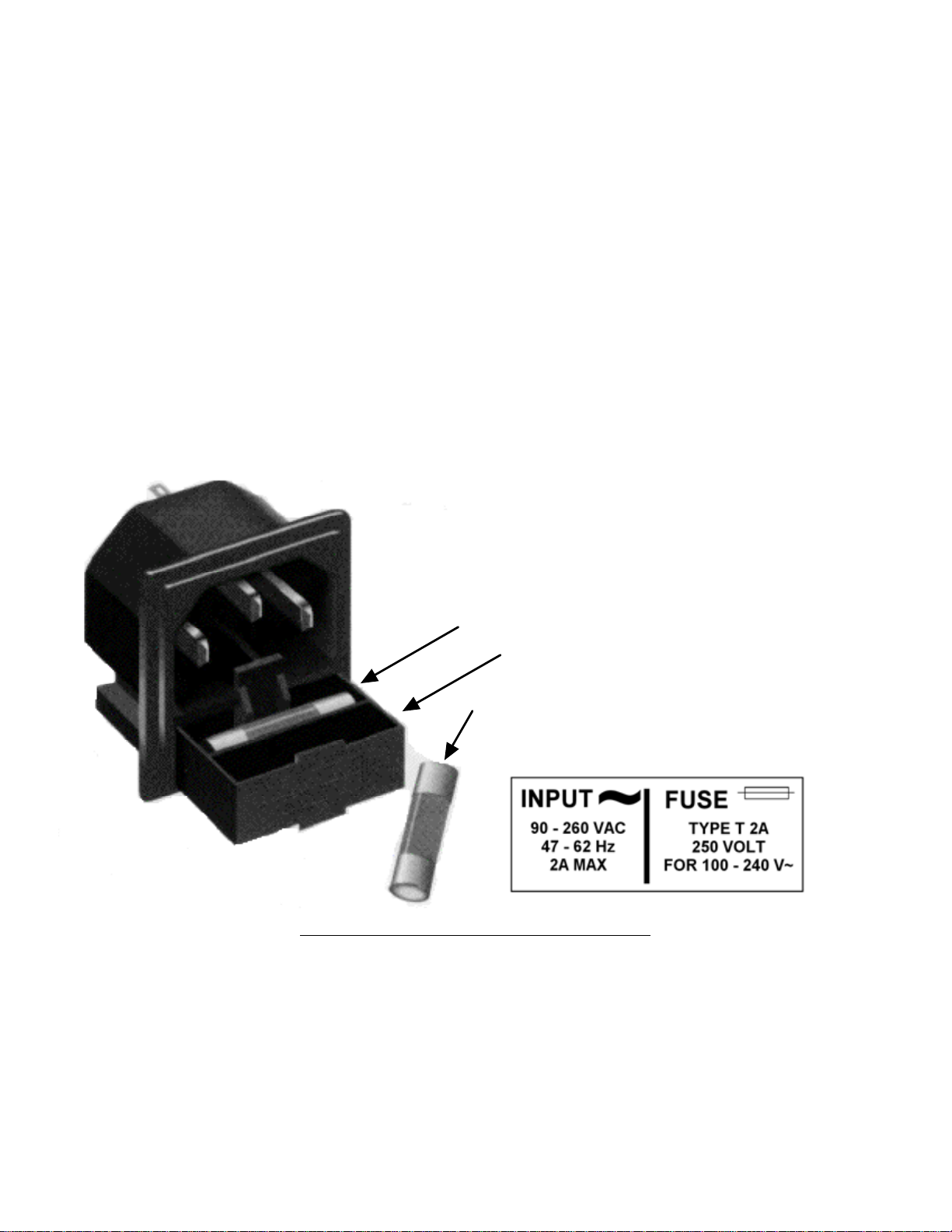

9.) AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot in

the drawer below the AC input as shown in Figure 2.4. There is a spare fuse in the near slot. If a fuse

continues to open, the power supply is most likely defective.

FUSE DRAWER

SPARE FUSE DRAWER

AC Fuse - 2 amp slow blow (Type T),

5 mm X 20 mm

FIGURE 2.4 Fuse Location and Spare Fuse

2015-123 Manual, Rev.A Page 10 11/12/09

Andere Cross Technologies Medienkonverter Handbücher

Cross Technologies

Cross Technologies 2005 Bedienungsanleitung

Cross Technologies

Cross Technologies 2099-10 Bedienungsanleitung

Cross Technologies

Cross Technologies 2016-26 Bedienungsanleitung

Cross Technologies

Cross Technologies 2016-03A Bedienungsanleitung

Cross Technologies

Cross Technologies 2016-95 Bedienungsanleitung

Cross Technologies

Cross Technologies 4116-285-2450 Bedienungsanleitung

Cross Technologies

Cross Technologies 3116-192 Bedienungsanleitung

Cross Technologies

Cross Technologies 2116-300-1600 Bedienungsanleitung

Cross Technologies

Cross Technologies 2015-7075 Bedienungsanleitung

Cross Technologies

Cross Technologies 3117-3338 720 Series Bedienungsanleitung

Cross Technologies

Cross Technologies 2117-8485 Bedienungsanleitung

Cross Technologies

Cross Technologies 3016-2124 Bedienungsanleitung

Cross Technologies

Cross Technologies 2415 0925 Series Bedienungsanleitung

Cross Technologies

Cross Technologies 3016-1520-1200 Bedienungsanleitung

Cross Technologies

Cross Technologies 4116-31-2831 Bedienungsanleitung

Cross Technologies

Cross Technologies 2415-x02 Bedienungsanleitung

Cross Technologies

Cross Technologies 2099-2424 Bedienungsanleitung

Cross Technologies

Cross Technologies 2416 02I Series Bedienungsanleitung

Cross Technologies

Cross Technologies 2016-57 Bedienungsanleitung

Cross Technologies

Cross Technologies 2016-05A Bedienungsanleitung

Cross Technologies

Cross Technologies 2415-02 Series Bedienungsanleitung

Cross Technologies

Cross Technologies 3116-22-23 Bedienungsanleitung

Cross Technologies

Cross Technologies 2016-12 Bedienungsanleitung

Cross Technologies

Cross Technologies 2017-03 Bedienungsanleitung

Beliebte Medienkonverter Handbücher anderer Marken

SoundTraxx

SoundTraxx Blunami BLU-2200 Bedienungsanleitung

SPROLINK

SPROLINK VA1 Bedienungsanleitung

Acclaim Lighting

Acclaim Lighting DDC-1-AC Bedienungsanleitung

Nikon

Nikon AF-S TC-20E III Bedienungsanleitung

Axis

Axis AXIS Q7406 Bedienungsanleitung

Omega

Omega TAC80B-J Bedienungsanleitung

Zoom

Zoom Thunderbolt TAC-2R Bedienungsanleitung

OST

OST iConverter 10/100M Bedienungsanleitung

Vertiv

Vertiv Netsure Bedienungsanleitung

birddog

birddog MINI Bedienungsanleitung

Roland

Roland GI-10 Bedienungsanleitung

Wallenstein

Wallenstein WX310 Bedienungsanleitung

Pace

Pace MSS 200-1 Bedienungsanleitung

Solar Converters

Solar Converters EQ 12/24-50 Bedienungsanleitung

CYP

CYP EL-7400V Bedienungsanleitung

TIE

TIE MIDI 1i1o Bedienungsanleitung

DCS

DCS Vivaldi Upsampler Bedienungsanleitung

Westermo

Westermo MCW-211 SERIES Bedienungsanleitung
