CYP PU-607BDWP-TX Bedienungsanleitung
PU-607BDWP-TX
HDMI over Single CAT5e/6/7 HDBaseT™ - Bi-Directional PoC
Wallplate Transmitter (Full 5Play™ & Single LAN up to 100m)
OPERATION MANUAL
3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2019 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 13/02/2014 First release
v1.01 31/03/2014 Corrected Contents List
v1.02 23/08/2019 Updated Specications
5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features..................................................7
6. Operation Controls and Functions.......8
6.1 Transmitter................................................... 8
6.2 Rear Panel..................................................... 9
6.3 IR Cable Pin Assignment ......................10
6.4. D-Sub 9-Pin Denitions........................10
7. Connection DiagramS ........................ 11
8. Specications...................................... 12
8.1 Technical Specications ........................12
8.1 Cable Specications ...............................13
9. Acronyms............................................. 14
6
1. INTRODUCTION
The PU-607BDWP-TX Wallplate Transmitter allows uncompressed HDMI
signals and IP data to be transmitted over a Single CAT5e/6/7 cable.
This solution has the added features of RS-232 and 2-way IR control
functionality over the same CAT5e/6/7 cable up to 100m/328ft at 1080p
and 70m/229ft at 4K.
This Transmitter is designed to be used with the PU-607BD-RX and PU-
607BDWP-RX Receivers only, which enables Bi-Directional Power over
Cable (PoC) functionality.
2. APPLICATIONS
Household entertainment sharing and control
Lecture room display and control
Showroom display and control
Meeting room presentation and control
Classroom display and control
3. PACKAGE CONTENTS
1×HDMI over Single CAT5e/CAT6 Transmitter
1×IR Blaster
1×IR Receiver
1×24V DC Power Adaptor
Operation Manual
4. SYSTEM REQUIREMENTS
Input HDMI source equipment such as DVD/Blu-ray player and HDMI
equipped output display (TV or monitor)with HDMI input jack.
7
5. FEATURES
HDMI 1.x and DVI 1.0 compliant
HDCP compliant
Supports HDMI 3D and 4K x 2K features
Supports HDCP repeater and CEC bypass
Supports distance up to 100m/328ft at 1080p and 70m/229ft at 4K
through CAT5e/6/7 cable
HDMI input resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz
( YUV 4:4:4, 8-bit)
Supports pass-through of audio formats including LPCM 2.0/5.1/7.1,
and Bitstream over HDMI
5Play™ convergence: HDMI, bi-directional PoC, (bi-directional IR &
RS232) & LAN
Wall-plate design and installation Friendly
Note
1. This system was tested with CAT6/23AWG and CAT5e/24AWG cable, so if
using cables of another type, results may vary.
2. For playback of 4K2K HDMI source signals, a 4K2K capable display and
High Speed HDMI cables are required.
3. Only compatible with PU-607BD-TX & PU-607BDWP-TX Receivers
8
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Transmitter
HDMI INLAN
POWER
LINK
IR 2
EXTENDER
IR 1
BLASTER
DC 24V
RS-232
IN
1 2
3 4 5 6 7 8
1IR 2 EXTENDER: Connect to the supplied IR Extender cables for IR
signal reception. Ensure that remote being used is within the direct
line-of-sight of the IR Extender.
2DC 24V: Connect the power adaptor included in the package
and then connect to AC power to activate the device.
3IR 1 BLASTER: Connect to the supplied IR Blaster cable for IR
signal transmission. Place the IR Blaster in direct line of sight of the
equipment to be controlled.
4RS-232 IN: Connect to a PC or Laptop with D-Sub 9 pin male cable for
the transmission of RS-232 commands.
5LAN: Connect to an internet or network connection.
When the Transmitter or any compatible LAN equipped Receivers are
connected to a network, this allows the network access (including
internet access if available) to be shared between the Transmitter and
all connected Receivers. Connect any Ethernet equipped device e.g.
a Smart TV or games console to the LAN port of a receiver for that
device to share the network/internet access.
9
6HDMI IN: This slot is to connect with HDMI source equipment such
as DVD/Blu-ray player with HDMI source signal.
7Power LED: This LED will illuminate when the device is connected to a
power supply.
8LINK LED: This LED will illuminate when both the input source and
output display signals are connected through the CAT cable. When it
blinks regularly it indicates the source is NOT sending a signal to the
Transmitter but the Transmitter and Receiver are linked and if it blinks
irregularly it indicates an error has occurred.
6.2 Rear Panel
1
1CAT OUT: Connect to the Receiver unit with a single CAT5e/6/7 cable
for transmission of all data signals.
10

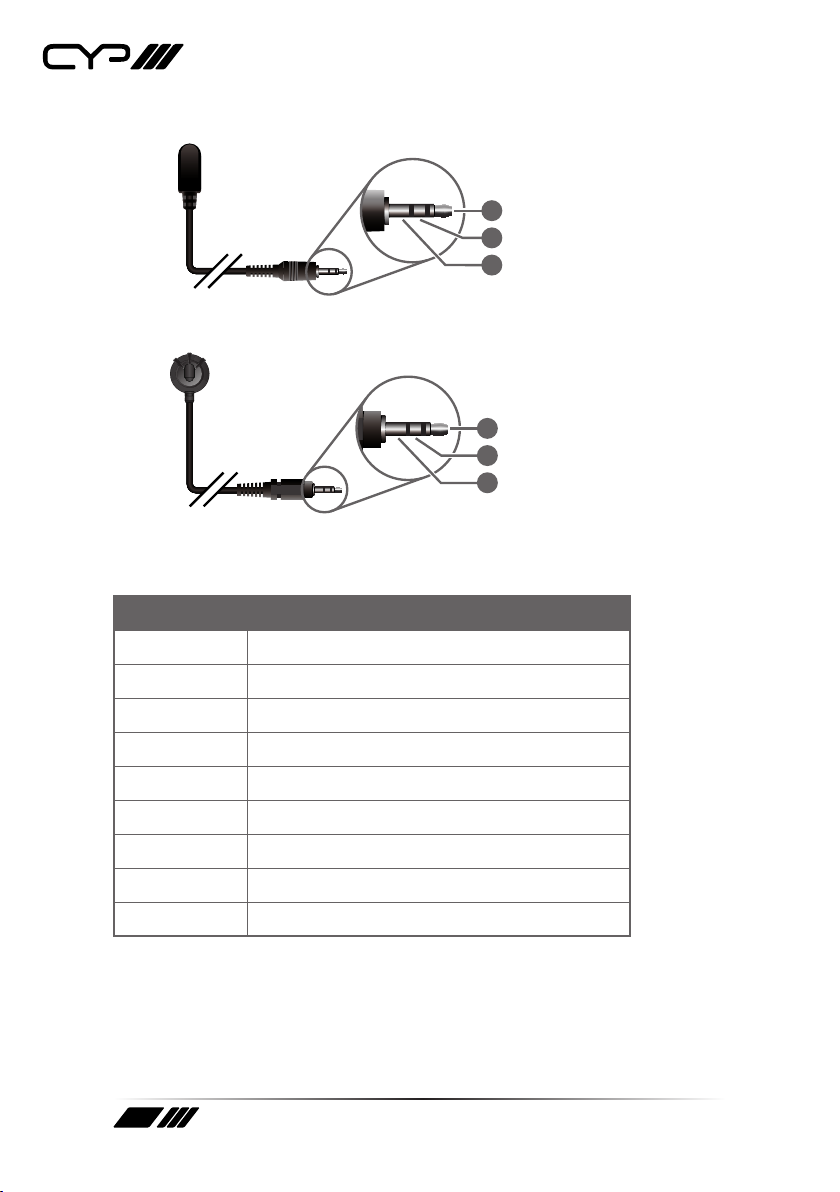

6.3 IR Cable Pin Assignment
3
1
2
3
2
1Power 3.3V
IR Blaster Signal
NC
IR Signal
Power 3.3V
Ground
IR Extender
IR Blaster
6.4. D-Sub 9-Pin Denitions
Pin Dene TX/RX
1N/C
2TxD/RxD
3RxD/TxD
4N/C
5GND
6N/C
7N/C
8N/C
9N/C
