CYP CDVI-1109TXC Bedienungsanleitung
CDVI-1109TXC & RXC
DVI over CAT5e/6/7 with LAN/PoC/IR Extender
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2014 by Cypress Technology.
All Rights Reserved.
Version 1.0 March 2014
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR01 04/06/14 Preliminary release
CONTENTS
1. Introduction..............................................1
2. Applications.............................................1
3. Package Contents .................................. 1
4. System Requirements.............................. 1
5. Features....................................................2
6. Operation Controls and Functions......... 3
6.1 Transmitter Front and Rear Panels....3
6.2 Receiver Front and Rear Panels .......4
6.3 IR Cable Pin Assignment....................5
6.4 D-Sub 9-Pin Denitions .......................5
7. Connection Diagram ............................. 6
8. Specications ..........................................7
9. Acronyms .................................................8
1
1. INTRODUCTION
This HDBaseT DVI over CAT5e/6/7 Transmitter and Receiver set can
transmit DVI video, analog audio, 2 LAN serving connections, control
(RS-232 and IR) and Power over Cable (PoC) over a single CAT5e/6/7
cable up to 100m. The Transmitter can power the Receiver, via the
PoC function, eliminating the need for a separate power supply
providing greater exibility in installations.
2. APPLICATIONS
• Household entertainment media sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
• Any Smart AV Installation system
3. PACKAGE CONTENTS
• DVI to CAT5e/6/7 with LAN/PoC/IR Transmitter
• CAT5e/6/7 to DVI with LAN/PoC/IR Receiver
• 1×IR Blaster
• 1×IR Receiver
• 24 V DC Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
• Input DVI source equipment such as PC/Laptop and output display
with DVI input.
• RS232 controlled device
• Ethernet equipped device
2
5. FEATURES
• Simultaneous transmission of uncompressed video and audio
(1080p@60Hz/-Deep Color) over a single CAT5e/6/7 cable for up to
100 m (300 ft.).
• Supports High-denition Audio up to LPCM 7.1CH, Dolby TrueHD and
DTS-HD Master Audio with HDMI to DVI adaptor
• Connect and share up to 4 LAN connections (2 at the Transmitter
end, 2 at the Receiver end) at speeds up to 100 Mbps
• Supports Bi-directional IR control and RS-232 pass-through
• Supports 5Play™ convergence: HD video, audio & Control ports (IR
and RS232)/LAN/PoC
• Installation friendly
• Single power supply powers both units, Receiver unit is powered
through the Transmitter via PoC
Note:
1. This system was tested with CAT6/23AWG cables, results may vary
with cables of a different specication.
2. The PoC function is designed for powering compatible Receiver
units only—non-PoC Receivers will need their own power supply.
Receivers of another brand may not be compatible.
3. Not supporting 4K2K resolution
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Transmitter Front and Rear Panels
LAN 2LAN 1RLDVI IN
AUDIO IN
DC 24V
POWER
IN
OUT RS232 IN CAT5e/6/7 OUT
LINK
IR 2
IR 1
1 2 3 4 5 6 7 8 9 10
Front Rear
1Power LED: This LED will illuminate when the 24 V DC Adaptor is
connected to the AC outlet.
2DC 24V: Plug the 24 V DC power supply into the unit and connect
the adaptor to an AC outlet.
3IR 1 OUT: Connect to the supplied IR Blaster cables for IR signal
transmission. Place the IR Blaster in direct line-ofsight of the
equipment to be controlled. The related IR Receiver port is IR1 IN.
4IR 2 IN : Connect to the supplied IR Receiver cables for IR signal
reception. Ensure that remote being used is within the direct line-
of-sight of the IR Extender. The related IR Transmitter port is IR2 OUT.
5RS-232 IN: Connect to a PC/Laptop with a D-Sub 9-pin male cable
for the transmission of RS-232 commands.
6Link LED: The yellow LED will illuminate when both the input source
and output display signals are connected through the CAT cable.
When it blinks regularly it states the source is NOT sending a signal
to the Transmitter but the Transmitter and Receiver are linked and
if it blink irregularly it states an error has occurred.
7CAT5e/6/7 OUT: Connect the Transmitter and Receiver via a single
CAT5e/6 type cable for all data transmission.
8DVI IN: Connect to the DVI equipped source equipment such as
PC or Laptop.
9AUDIO IN L/R: Connect from audio source equipment for audio
signal output to L/R output on the Receiver side.
10 LAN 1/2: The LAN connections can be used to connect and share
up to 4 Ethernet connections (2 at the Receiver end, 2 at the
Transmitter end), including computers, routers and media servers.
4

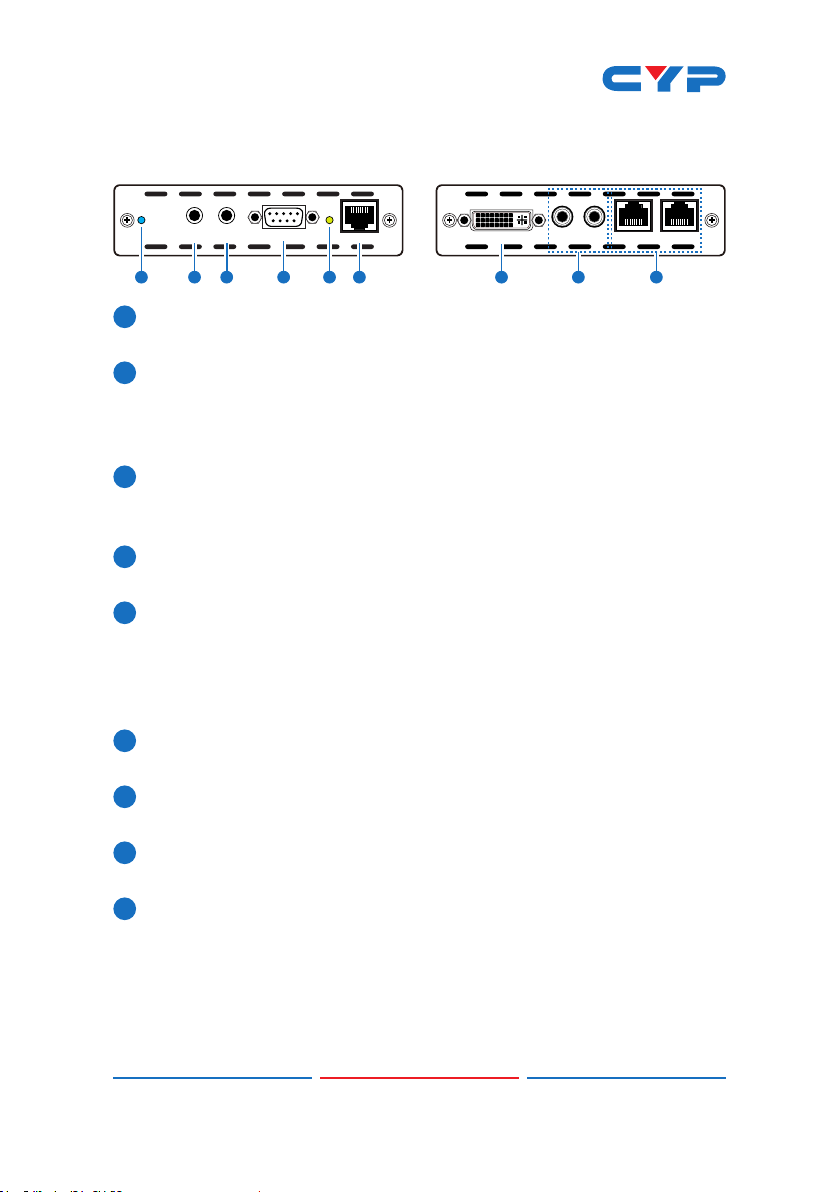

6.2 Receiver Front and Rear Panels
LAN 2LAN 1RLDVI OUT
AUDIO OUT
POWER
OUT
IN RS232 OUT CAT5e/6/7 IN
LINK
IR 2
IR 1
1 2 3 4 5 6 7 8 9
Front Rear
1Power LED: The LED will illuminate when the 24 V DC Adaptor is
connected to the AC outlet.
2IR 1 IN: Connect to supplied the IR Receiver cables for IR signal
reception. Place the IR Blaster in direct line-of-sight of the
equipment to be controlled. The related IR Transmitter port is IR1
OUT.
3IR 2 OUT: Connect to the supplied IR Blaster cables for IR signal
transmission. Ensure that remote being used is within the direct line-
of-sight of the IR Extender. The related IR Receiver port is IR2 IN.
4RS-232 OUT: Connect to a RS-232 enabled device with a D-Sub 9-pin
female cable for the transmission of RS-232 commands.
5Link LED: The yellow LED will illuminate when both the input source
and output display signals are connected through the CAT cable.
When it blinks regularly it states the source is NOT sending a signal
to the Transmitter but the Transmitter and Receiver are linked and
if it blink irregularly it states an error has occurred.
6CAT5e/6/7 IN: Connect the Transmitter and Receiver via a single
CAT5e/6 type cable for all data transmission.
7DVI OUT: Connect to a DVI equipped display or monitor to display
the DVI input source signal.
8AUDIO OUT L/R: Connect to active speakers or amplier for audio
signal output.
9LAN 1/2: The LAN connections can be used to connect and share
up to 4 Ethernet connections (2 at the Receiver end, 2 at the
Transmitter end), including computers, routers and media servers.
5
6.3 IR Cable Pin Assignment
3
1
3
1
2
2
Power
IR Blaster Signal
NC
IR Signal
Power
Grounding
IR Receiver
IR Blaster
6.4 D-Sub 9-Pin Denitions
Pin Dene TX/RX
1N/C
2TxD / RxD
3RxD / TxD
4N/C
5GND
6N/C
7N/C
8N/C
9N/C
