CYP CPLUS-V4H2HP-DT Bedienungsanleitung
CPLUS-V4H2HP-DT
UHD+4×2 HDMI Matrix with Dante Audio
Operation Manual
Operation Manual
®
registered trademarks of HDMI licensing Administrator, Inc.
DISCLAIMERS
The information in this manual has been carefully checked and is believed
to be accurate. Cypress Technology assumes no responsibility for any
infringements of patents or other rights of third parties which may result from
its use.
Cypress Technology assumes no responsibility for any inaccuracies that
may be contained in this document. Cypress also makes no commitment to
update or to keep current the information contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express written
permission and consent from Cypress Technology.
© Copyright 2018 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document are trademarks of
the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain, moisture
or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings
or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it
is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to
be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings
in the unit housing that provide ventilation and allow for sucient space
for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use to
avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
RDV1 2020/11/19 Preliminary release
CONTENTS
1. Introduction...................................................... 1
2. Applications ..................................................... 1
3. Package Contents ........................................... 1
4. System Requirements..................................... 2
5. Features............................................................ 2
6. Operation Controls and Functions ................ 3
6.1 Front Panel.................................................. 3
6.2 Rear Panel................................................... 4
6.3 RS-232 Pinout and Defaults........................ 5
6.4 WebGUI Control .......................................... 6
6.4.1 Video Switch Tab................................ 8
6.4.2 Audio Switch Tab .............................. 10
6.4.3 EDID Tab .......................................... 13
6.4.4 Network Tab ..................................... 15
6.4.5 System Tab....................................... 16
6.5 Telnet Control ............................................ 17
6.6 Serial and Telnet Commands .................... 17
7. Connection Diagram ..................................... 38
8. Specications ................................................ 39
8.1 Technical Specications ............................ 39
8.2 Video Specications .................................. 40
8.3 Audio Specications .................................. 42
8.3.1 Digital Audio ..................................... 42
8.3.2 Analog Audio .................................... 43
8.4 Cable Specications.................................. 44
9. Acronyms ....................................................... 45
1
1. INTRODUCTION
This 4 by 2 HDMI Matrix with Dante Audio is a high performance HDMI
switch which provides 4K UHD+ (18Gbps) HDMI matrix routing and
integrated Dante/AES67 network audio routing, insertion, and extraction. It
is an ideal solution for switching between multiple sources in a control room,
conference room or classroom while simultaneously providing and receiving
high quality digital stereo audio via the connected network. Video resolutions
up to 4K@60Hz with 8 channel LPCM or HD bitstream audio is supported for
local routing while 2 channel LPCM audio is supported via Dante.
Basic control of video and audio routing is provided by front panel controls,
while full control is available via WebGUI, RS-232, and Telnet. Additional
advanced Dante audio management can be provided by optional 3rd party
software, such as Dante Controller from Audinate.
2. APPLICATIONS
• Home Theaters
• Classrooms
• Lecture Halls
3. PACKAGE CONTENTS
• 1× UHD+ 4×2 HDMI Matrix with Dante Audio
• 1× 5V/2.6A DC Power Adapter
• 2× 5-pin Terminal Block
• 1× 3-pin Terminal Block
• 1× Shockproof Feet (Set of 4)
• 1× Operation Manual
2
4. SYSTEM REQUIREMENTS
• HDMI source equipment such as media players, video game consoles,
PCs, or set-top boxes.
• HDMI receiving equipment such as HDTVs, monitors or audio ampliers.
• Analog audio receiving equipment such as audio ampliers or powered
speakers.
• The use of Premium High Speed HDMI cables, and industry standard,
Cat.6, Cat.6A or Cat.7, is highly recommended.
• 3rd party control software, such as Dante Controller from Audinate, can
provide additional conguration controls, but is optional.
• An active network connection from a Gigabit network switch or router with
QoS support is highly recommended for Dante audio extension. Additional
Dante networking details can be found here:
https://www.audinate.com/support/networks-and-switches
5. FEATURES
• HDMI 2.0 and DVI 1.0 compliant (with the use of an HDMI-DVI adapter)
• HDCP 1.x and 2.2 compliant
• 4 HDMI inputs and 2 HDMI outputs
• 4×2 matrix routing with per-output analog audio extraction
• Supports up to 4K UHD+ (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input
and output
• Support pass-through of many audio formats including 8 channel LPCM,
Bitstream, and HD Bitstream
• Each output’s audio is selectable between the routed HDMI source or an
independent Dante network audio source
• Compatible with existing Dante and AES67 audio networks for
transmission and reception of uncompressed audio with near-zero latency
• Simple and easy network audio routing via WebGUI or 3rd party control
software (available for both Windows and macOS systems)
• Per-input EDID management with internal or external EDID options
• Controllable via front panel buttons, WebGUI, Telnet, and RS-232
3
6. OPERATION CONTROLS AND FUNCTIONS

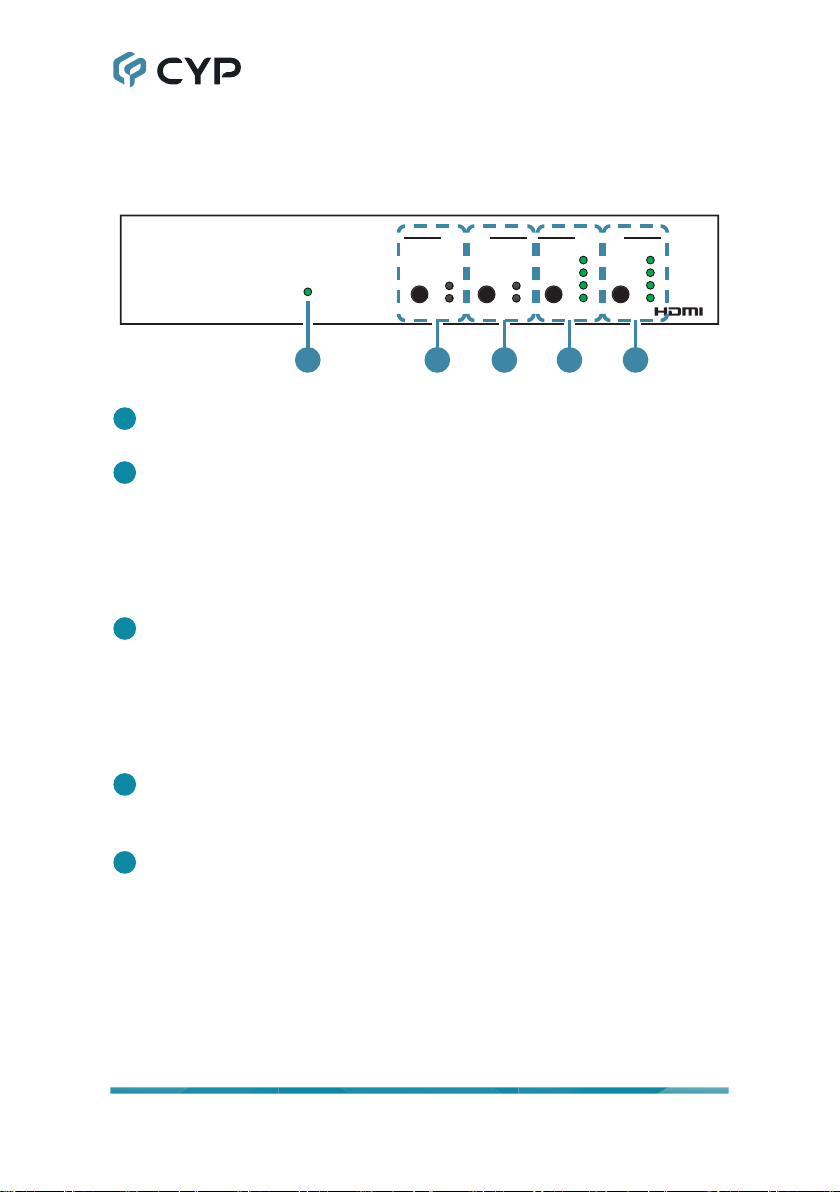

6.1 Front Panel
POWER AUDIO OUT
ABAB
DANTE DANTE
1
2
3
4
1
2
3
4
HDMI HDMI
HDMI OUT
UHD+4X2 HDMI Matrix with Dante Audio
1 2 3 4 5
1POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
2AUDIO OUT A Button & LEDs: Press this button to toggle the audio
source, for HDMI and analog audio output A, between the currently
routed HDMI video’s native audio or the currently selected Dante audio
source. The active Dante audio source can be set via the WebGUI.
Note: The active Dante audio source for this output can be set via the
WebGUI.
3AUDIO OUT B Button & LEDs: Press this button to toggle the audio
source, for HDMI and analog audio output B, between the currently
routed HDMI video’s native audio or the currently selected Dante audio
source.
Note: The active Dante audio source for this output can be set via the
WebGUI.
4HDMI OUT A Button and LEDs: Press this button to sequentially switch
through the available inputs to be routed to HDMI output A. The LED will
illuminate to indicate which source is currently selected.
5HDMI OUT B Button and LEDs: Press this button to sequentially switch
through the available inputs to be routed to HDMI output B. The LED will
illuminate to indicate which source is currently selected.
4

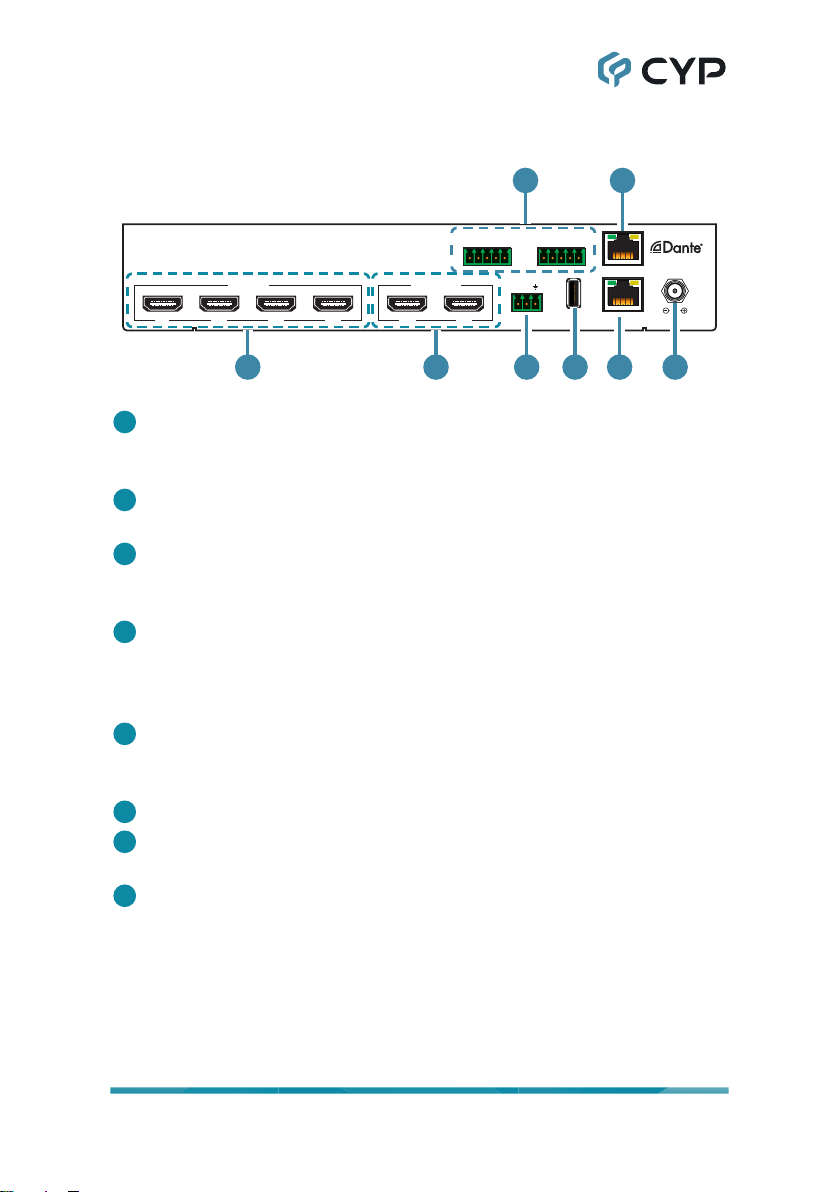

6.2 Rear Panel
TX RX
AUDIO OUT A
L+ L- GR+R-
AUDIO OUT B
L+ L- GR+R-
DC 5V
CONTROLSERVICERS-232BA4321
HDMI OUTHDMI IN
1 2 5 6
3 4
7 8
1HDMI IN 1~4 Port: Connect to HDMI source equipment such as media
players, game consoles, or set-top boxes. DVI sources are supported
with the use of an HDMI to DVI adapter.
2HDMI OUT A~B Port: Connect to HDMI TVs, monitors, or ampliers for
digital video and audio output.
3AUDIO OUT 5-pin Terminal Blocks A~B: Connect to powered speakers
or an amplier using 5-pin terminal blocks for balanced stereo analog
audio output.
4DANTE Port: Connect to a standard Ethernet network switch or router,
which is hosting Dante audio transmitters or receivers, with a single
Cat.5e/6/7 cable for transmission and routing of all available audio
streams.
5RS-232 3-pin Terminal Block: Connect directly to a PC, laptop, or
other serial control device with a 3-pin adapter cable to send RS-232
commands to control the unit.
6SERVICE Port: This port is reserved for rmware update use only.
7CONTROL Port: Connect directly, or through a network switch, to your
PC/laptop to control the unit via Telnet/WebGUI.
8DC 5V Port: Plug the 5V DC power adapter into this port and connect it
to an AC wall outlet for power.
5
6.3 RS-232 Pinout and Defaults
Serial Port Default Settings
Baud Rate 19200
Data Bits 8
Parity Bits None
Stop Bits 1
Flow Control None
1
2
3
RxD
GND
TxD
3-pin
Terminal Block
