CYP CMSDI-164 Bedienungsanleitung
CMSDI-164/124/84/44
16 by 4 / 12 by 4 / 8 by 4 / 4 by 4 3G-SDI Matrix
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VS1 23/02/12 First release
VS2 17/07/12 SDI standards updated
VR3 08/08/12 RS-232 command
CONTENTS
1. Introduction..................................................1
2. Applications.................................................1
3. Package Contents ......................................1
4. System Requirements..................................1
5. Features........................................................2
6. Operation Controls and Functions.............3
6.1 Front Panel ..............................................3
6.2 Rear Panel...............................................4
6.3 Remote Control......................................5
6.4 RS-232 Pin Assignment ...........................6
6.5 RS-232 Commands.................................6
7. Connection Diagram ..................................7
8. Specications ..............................................8
9. Acronyms .....................................................9
1
1. INTRODUCTION
The 3G-SDI Matrix series allows SD-SDI, HD-SDI and 3G-SDI signals
to be shown on SDI displays while ensuring high bit-rates of 2.970
Gbps to give you fast signal transmission without signal loss. For
professionals, this means that it is now easier to switch multiple 3G-SDI
signals and split display of them on up to four SDI-equipped displays
simultaneously. Additionally, these units can be controlled with the
supplied IR remote, the front panel keys or RS-232 control functions.
2. APPLICATIONS
• Video broadcasting switching display
• Professional video program display
• Film studios program monitoring
• Video program switching display
3. PACKAGE CONTENTS
• 16 by 4/12 by 4/8 by 4/4 by 4 3G-SDI Matrix
• Remote Control (CR-101)
• 5 V/2.6 A DC Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
Source devices with SDI (SD/HD/3G) output, display devices with SDI
Input and connected with SDI cables.
2
5. FEATURES
• 3G-SDI input sources can be selected and split or switched to
four 3G-SDI displays simultaneously
• Operation at 2.970 Gbps, 2.970/1.001 Gbps, 1.485 Gbps,
1.485/1.001 Gbps and 270 Mbps
• Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE
292M, SMPTE 259M-C
• Connect using other units to extend your signal over long distances
• Signal is equalized and re-clocked
• Supports signal input and output distances of up to 300 meters for
SD signals, 200 meters for HD signals and 100 meters for 3G signals
Note: Tested with Belden 1694A cable. Operating distances may
vary if used with another type of cable.
3
6. OPERATION CONTROLS AND FUNCTIONS

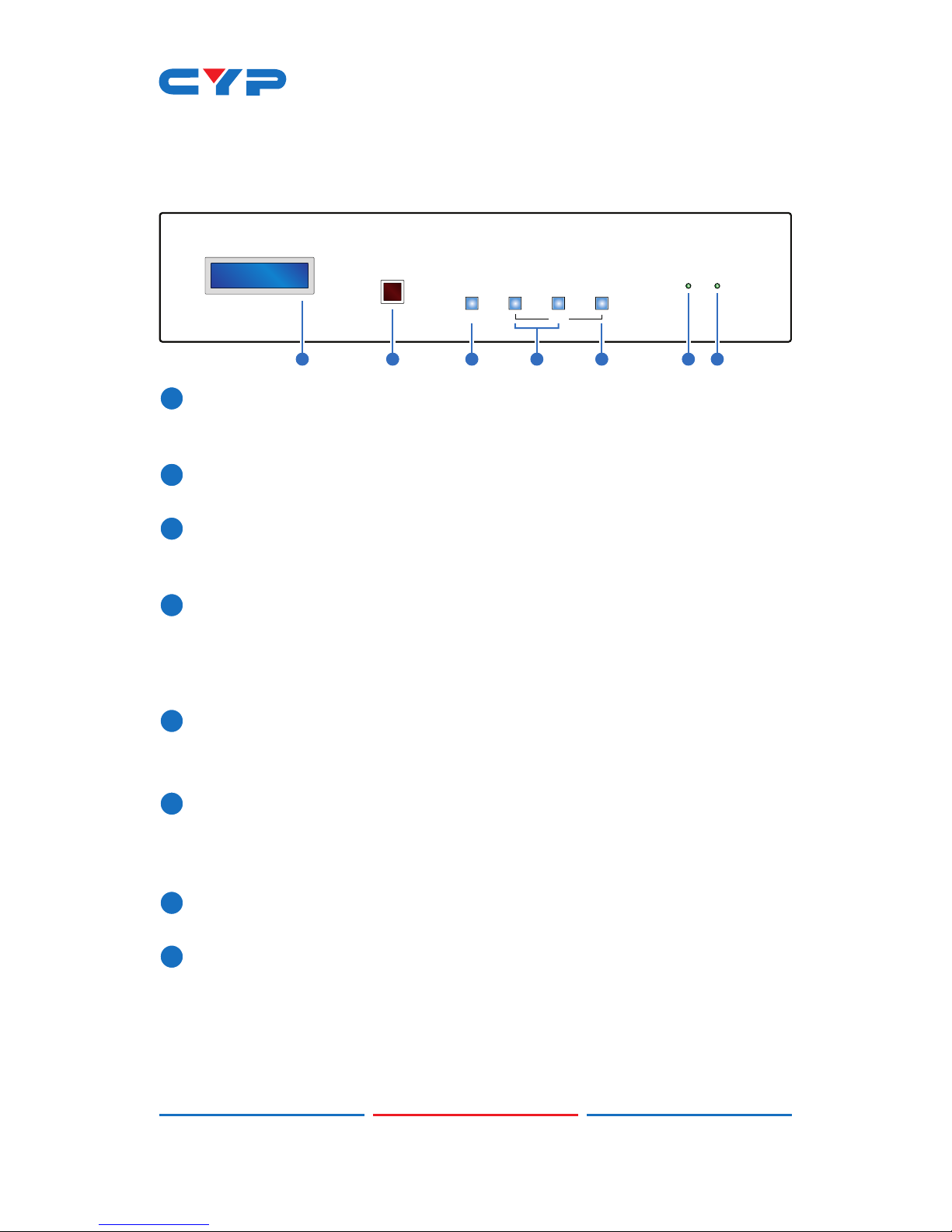

6.1 Front Panel
OUTPUT ENTER
-
INPUT
+
16X4 3G SDI Matrix CMSDI-164
LOCK POWER
LOCK
1 2
3
4 5
6
7
1
LCD Monitor: This LCD monitor displays the conguration of the
input and output selections. The upper line displays the outputs A, B,
C, & D. The lower line displays each output’s selected input.
2
IR Receiver: Receives the IR signal from the remote control
included in the package.
3
OUTPUT Button: Press this button to select the output A~D the cursor
will skip to the lower line of the LCD monitor then, select an input
for highlighted output.
4
INPUT −/+ Button: Press − or + button to select the input sources
from 1~16, press ENTER to conrm the selection.
Note: Depending on different models, the selectable input will be
displayed on the LCD monitor.
5
Lock Button: Press both the '−' and 'ENTER' buttons together to lock
all the function keys on the panel. To unlock, press both buttons
again.
6
ENTER Button: Press this button to conrm the selection. Press both
the 'ENTER' key and '–' key together to lock all the keys on panel.
To unlock, press both the 'ENTER' key and '–' key together again to
release the locking system.
7
LOCK LED: This LED will illuminate in green when the key lock is
active.
8
POWER LED: This LED will illuminate green when the device is
switched ON. When in standby mode (Press the power key on the
remote control) the LED will turn red.
4
6.2 Rear Panel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
A
B
C
D
RS-232
DC 5V
SDI INPUT SDI OUTPUT
1 2 3 4
1
DC 5V: Plug the 5V DC power supply into the unit and connect the
adaptor to AC wall outlet.
2
RS-232: Connect to a PC or laptop (with D-Sub 9 pin female cable)
to control the device via RS-232 commands..
3
SDI INPUT: Connect to the SDI source equipment such as video
camera or SDI player. The amount of input slots will depend on the
model.
MODEL INPUTS OUTPUTS
CMSDI-164 16 4
CMSDI-124 12 4
CMSDI-84 8 4
CMSDI-44 4 4
4
SDI OUTPUT: Connect to the SDI displays with an SDI cables for
displaying the output. It can also be connected to another SDI
converter/extender to extend the signal.
5
6.3 Remote Control
1
3
2
4
1POWER: Press the button to power the unit on/off.
2OUTPUT: Press an output port from A~D rst then select an input
number and press enter to conrm the selection.
3INPUT: Press the number keys to select the desired input source
from 01~16 after selecting the output then press enter to conrm
the selection.
Note: selectable inputs are dependant on the controlling device.
4ENTER: Press this button to conrm each input/output selection.
