CYP OR-HD88S Bedienungsanleitung

OR-HD88S

v1.3 HDMI 8 x 8 Matrix Switcher

OPERATION MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and is

believed to be accurate. CYP (UK) Ltd assumes no responsibility for any

infringements of patents or other rights of third parties which may result

from its use.

CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be

contained in this document. CYP (UK) Ltd also makes no commitment to

update or to keep current the information contained in this document.

CYP (UK) Ltd reserves the right to make improvements to this document

and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer le, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express

written permission and consent from CYP (UK) Ltd.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts inside

the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if

it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sucient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE SUMMARY OF CHANGE

RDV1 11/11/11 Preliminary Release

RDV2 13/12/11 Power Supply Change

RDV3 15/02/12 LAN Function

VS0 29/03/12 Updated format, diagrams, and

statements

RDV4 04/07/12 Control's Function

VS0 24/07/12 Telnet and Web GUI sections updated

CONTENTS

1. Introduction ...........................................1

2. Applications ...........................................1

3. Package Contents ..................................1

4. System Requirements ...........................1

5. Features ..................................................2

6. Operation Controls and Functions .......3

6.1 Front Panel ................................................... 3

6.2 Rear Panel ..................................................... 4

6.3 Side Panel ..................................................... 5

6.4 Remote Control .......................................... 5

6.5 RS-232 Pin Assignment............................ 6

6.6 RS-232 and Telnet Commands ............. 7

6.7 Telnet Control .............................................. 8

6.8 Web GUI Control ......................................10

7. Connection Diagram .......................... 12

8. Specications ...................................... 13

9. Acronyms ............................................. 14

1. INTRODUCTION

The OR-HD88S Matrix Switcher connects eight HDMI sources to eight

displays allowing any source to be independently displayed on any

screen. This matrix switcher can be controlled via the supplied IR Remote

Control, IP Control, RS-232, or by using the selection buttons on the front

of the unit. This device supports ‘Deep Colour’, High Denition Audio, and

3D signal compatibility.

2. APPLICATIONS

Video/TV wall display

Commercial advertising and display

Lecture room display and control

Retail Demonstration and Control.

3. PACKAGE CONTENTS

8×8 HDMI Matrix

1×24 V/6.25 A DC Adaptor

1×Remote Control

1xIR Receiver

Operation Manual

4. SYSTEM REQUIREMENTS

HDMI equipped input source devices with HDMI cables and HDMI

equipped output display.

5. FEATURES

HDMI, HDCP 1.1, DVI 1.0 compliant

HDMI 8x8 Matrix Switcher

Resolutions supported: PC - VGA to WUXGA ; HDTV - 480i to 1080p

plus 1080p24fps

High Denition audio supported: Dolby TrueHD, Dolby Digital Plus,

DTS-HD Master Audio + LPCM

The HDMI input is compensated, clock / phase adjusted, and jitter

eliminated so the output is a brand new standard HDMI signal running

up to 15m at 1080p

Supports Audio sample rate up to 192kHz 24bit

RS-232, CEC Command functionality, IR Remote Control, and IR

extender supported

Selectable EDID settings - TV (downstream) and STD (xed)

Supports Deep Colour (10 & 12 bit)

2U Rack Mount design

Supports 3D signals

Key lock function

Supports full IP control

6. OPERATION CONTROLS AND FUNCTIONS

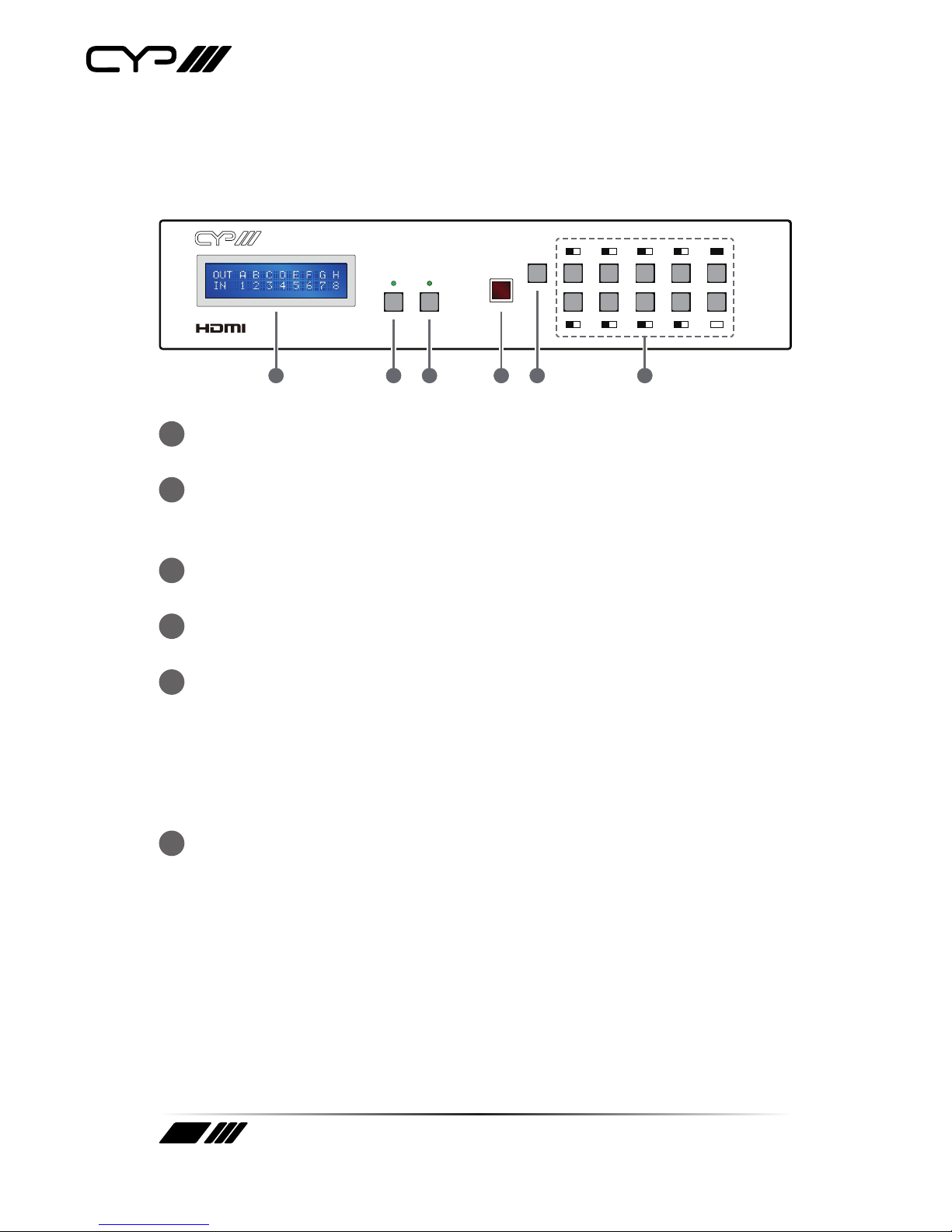

6.1 Front Panel

POWER LOCK

MENU OUTA 1B2C3D4

E5F6G7H8

2 3 4 5 61

8 x 8 HDMI Matrix

LCM: Displays the setting information of each input and output

setting.

POWER: Press this button to power the device on/o. The LED will

illuminate green when the power is on, red when it is in 'Standby'

mode.

LOCK: Press this button to lock all the buttons on the panel; press

again to unlock. The LED will illuminate green when locked.

IR: IR Receiver window (accepts the remote control signal of this

device only).

MENU: Press this button to access the LCM menu system, from here

EDID settings can be managed and IP system settings are displayed.

Note: For the 'TV' EDID setting, the unit will read and store the EDID

information of the display connected to HDMI output A. For the 'STD'

EDID setting the unit's built-in EDID setting will be used (1080p@60/12-bit

for video and LPCM 2CH for audio).

1~8/A~H and OUT/IN: Press the OUT or IN button to select the output

or input mode and then press the required number button to make

the selection accordingly.

For example, if outputs A~D need to be set to input 1 and outputs

E~H need to be set to input 2 then the following sequence of button

presses need to be performed:

Press: OUTABCDIN1MENU,

and then press: OUTEFGHIN2MENU.

Note: If the MENU button is not pressed the selection will not be changed.

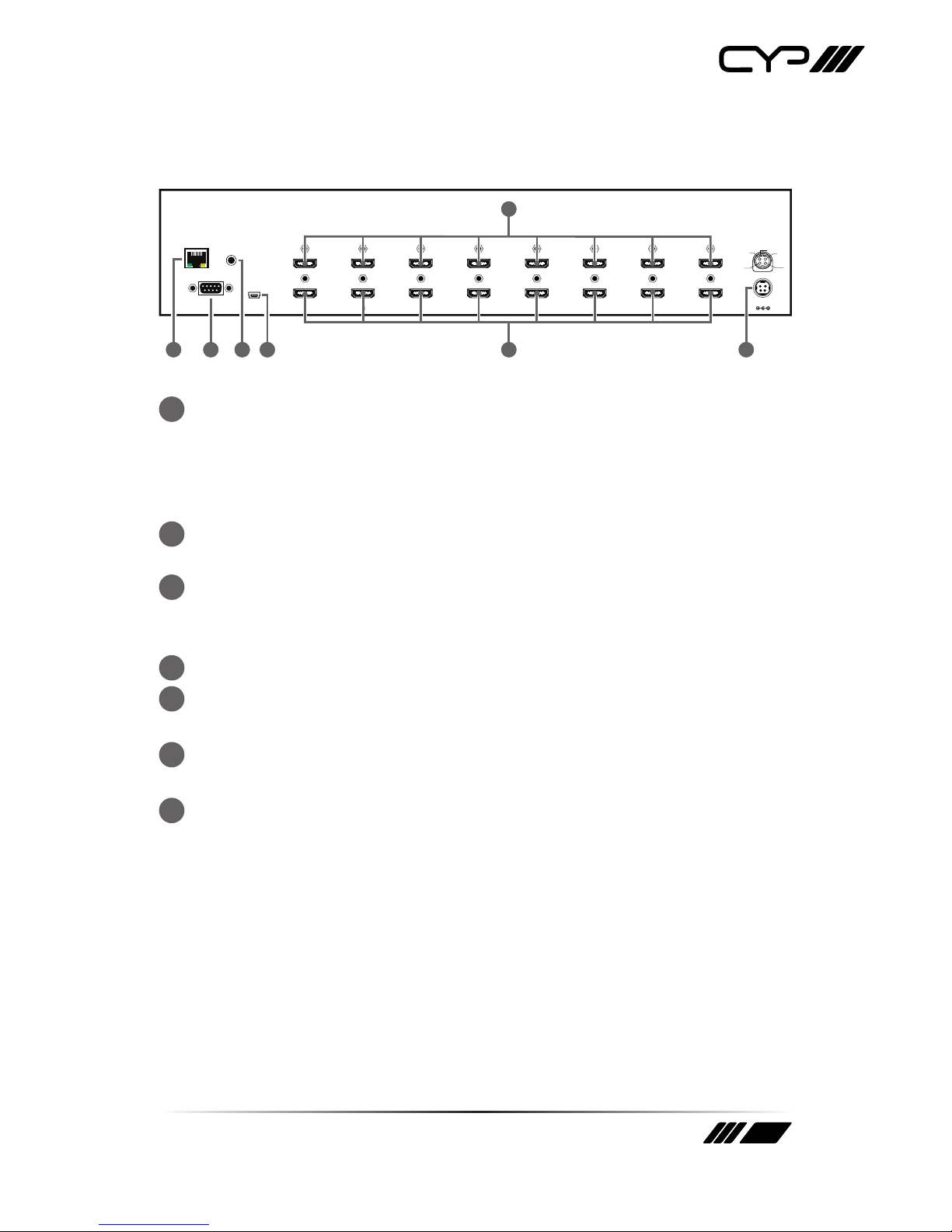

6.2 Rear Panel

CONTROL

DC 24V

IR-In

RS-232 Service

HDMI Out

HDMI In

HDMI Out

HDMI In

HDMI Out

HDMI In

HDMI Out

HDMI In

HDMI Out

HDMI In

HDMI Out

HDMI In

HDMI Out

HDMI In

HDMI Out

HDMI In

V+

GND

V+

GND

V+

2 3

4 71 6

CONTROL: This port is the link for Telnet control, connect to an active

Ethernet link with an RJ45 terminated cable (for further details, please

refer to sections 6.8 and 6.9).

Warning: Please do not connect this port directly to the PC/Laptop

as the Telnet function will not work.

RS-232: Connect to a PC or control system with D-Sub 9-pin cable for

the transmission of RS-232 commands.

IR IN: Connect to the supplied IR extenders for IR signal reception from

the remote control of the Matrix. Ensure that the remote is within the

direct line-of-sight of the IR extender when used.

SERVICE: Manufacturer use only.

HDMI OUT A~H: Connect to HDMI equipped TVs or monitors for

display of the HDMI input source signal.

HDMI IN 1~8: Connect to the HDMI input source devices such as a DVD

player or a Set-top Box with HDMI cable or DVI to HDMI cable..

DC 24V: Plug the 24 V DC power supply into the unit and connect the

adaptor to an AC outlet.

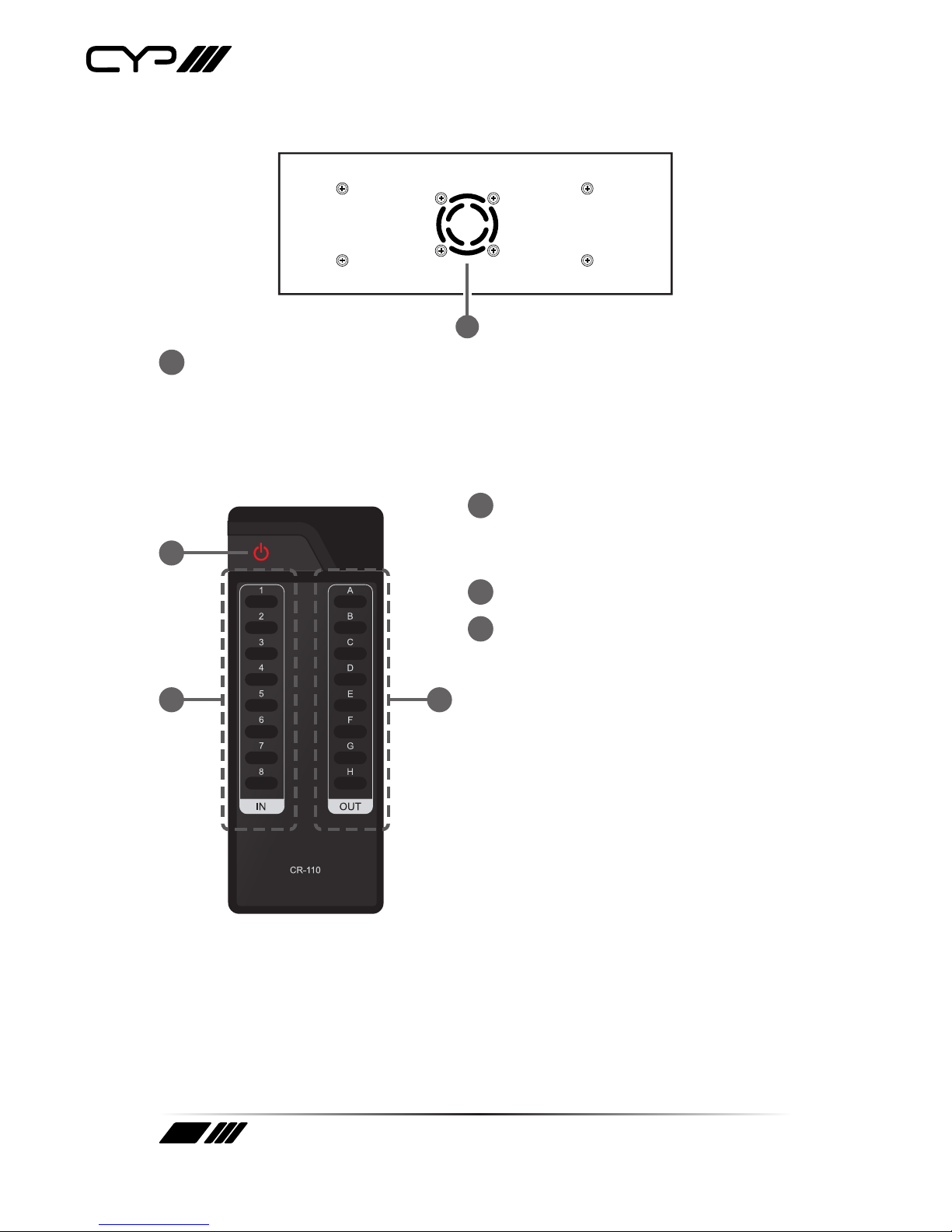

6.3 Side Panel

Fan Ventilator: These are air ventilation areas, DO NOT block these

areas or cover it with any object. Please allow adequate space around

the unit for air circulation.

6.4 Remote Control

POWER: Press this button to

switch on the device or set it to

standby mode.

IN: Input ports selection 1~8.

OUT: Output ports selection A~H.
