CYP OR-HD24S Bedienungsanleitung
OPERATION MANUAL
OR-HD24S
v1.3 HDMI 2 x 4 Matrix Switcher
Precautions
Failure to follow the precautions described below may cause damage to this v1.3
HDMI Matrix and void the warranty.
• DO NOT open the case. This will void the warranty, if you nd a problem with
this product, please return it to your retailer or seller who will assist you or
provide you with a solution.
• DO NOT use third-Party AC adaptors or power cords. This may damage the
Matrix.
• DO NOT bump, jar or drop the product because it may cause damage and void
the warranty.
• DO NOT allow liquids to come into contact with the Matrix because they may
cause damage.
Table of Contents
Finden Sie ab Seite 9.
1. Introduction 1
2. Application 1
3. Package Contents 1
4. System Requirements 2
5. Features 2
6. Operation Controls and Functions 3
6.1 Rear Panel 3
6.2 Front Panel 4
7. Remote Control 5
8. RS-232 Protocol 6
8.1 Command Sets 7
10. Connection Diagram 8
11. Specications 9
1. Introduction
Thank you for purchasing this v1.3 HDMI Matrix. As HDMI products become
increasingly popular, users often have multiple HDMI sources and displays.
This HDMI matrix provides an excellent and convenient solution for connecting
all your HDMI equipment. You can select which source to view on each of the
displays using the remote control. This matrix can also transfer deep colour
video and bitstream audio with maximum performance. It supports v.1.3 HDMI,
HDCP 1.1 and DVI 1.0.
2. Application
• High performance v1.3 HDMI Matrix with 2 inputs and 4 outputs including a
remote for Infra red control, allowing you to link all your favourite HDMI devices
and enjoy your music, movies and games.
• Each of the two HDMI sources can be simultaneously directed to any of the four
HDMI Displays independently (e.g one source to screen 2, the other to screen
4).
• As the HDMI signal progresses through the system, it is re-timed, and level-
compensated.
• The HDCP & HDMI/DVI LEDs will illuminate accordingly to dene the input
source’s format.
• Switchable EDID function, choose between built in EDID or read the external
EDID of connected display.
3. Package Contents
• OR-HD24S v1.3 HDMI Matrix.
• CR33 Remote Control (with Battery)
• IR Receiver
• Power Cord
• 5V DC power supply adaptor.
• Operation Manual.
Page 1
Page 2
4. System Requirements
HDMI source device(s) and HDMI display device(s).
5. Features
• v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant.
• Supports digital video formats in Deep Colour 12bit and new lossless digital
audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio).
• The HDMI input is compensated, clock / phase adjusted and jitter eliminated
so the output is a brand new standard HDMI signal.
• LEDs on each output to indicate which input is currently selected.
• Compatible with all HDMI sources and displays.
• Supports a wide range of PC and HDTV resolutions from VGA to UXGA
• and 480i to 1080p including 1080p24fps.
• Supports RS-232 control.
• Supports IR remote control and IR extender (via 3.5mm jack IR input).
• Dolby Digital, DTS digital audio transmission (32-192 kHz Fs sample rate).
• Supports LPCM7.1 channel audio from each independent HDMI output.
• At 1080p/8bit resolution, source to input cable length can be up to 10m,
output to display cable length can be up to 10m.
• At 1080p/12bit, the source to input cable length can be up 10m, Output to
display cable can run up to 6 metres.
Page 3
6. Operation Controls and Functions
1. EDID Control Switch: EDID Control Switch setting is either: STD(internal) or
TV(external)*
2. RS-232 communication port: Connect to the COM (serial) port of your PC or
control device for control over settings via RS-232. Commands and settings
can be found in section 9 of this manual.
3. HDMI outputs: Connect these to your HDMI displays.
4. HDMI inputs: Connect to the HDMI or DVI (via adaptor- not included) output
of your source equipment such as a DVD player or set-top-box.
5. Power: Plug the 5V DC power supply into the unit and connect the adaptor
to AC wall outlet.
6. IR extender input- connect the supplied IR extender to this input.
*Please Leave the EDID switch on the default factory setting of ‘TV’ if the displays are working
correctly, the unit will read the EDID data from the rst connected HDMI display and store it. If
the rst device is connected via DVI adaptor, the matrix will move on to the second output to
check for a HDMI connection. The detection priority of the matrix is v1.3 HDMI, v1.2 HDMI, DVI.
*If you experience any display problems with the EDID switch in the TV position, you can set the
EDID switch to STD, the unit will then use it’s built in EDID- which supports 1080p 12bit(max)
video and pcm 2 channel audio.
Please note that If you change the EDID switch’s setting on the Matrix then you have to reboot
(power off, unplug and turn on again) for your selection to take effect.

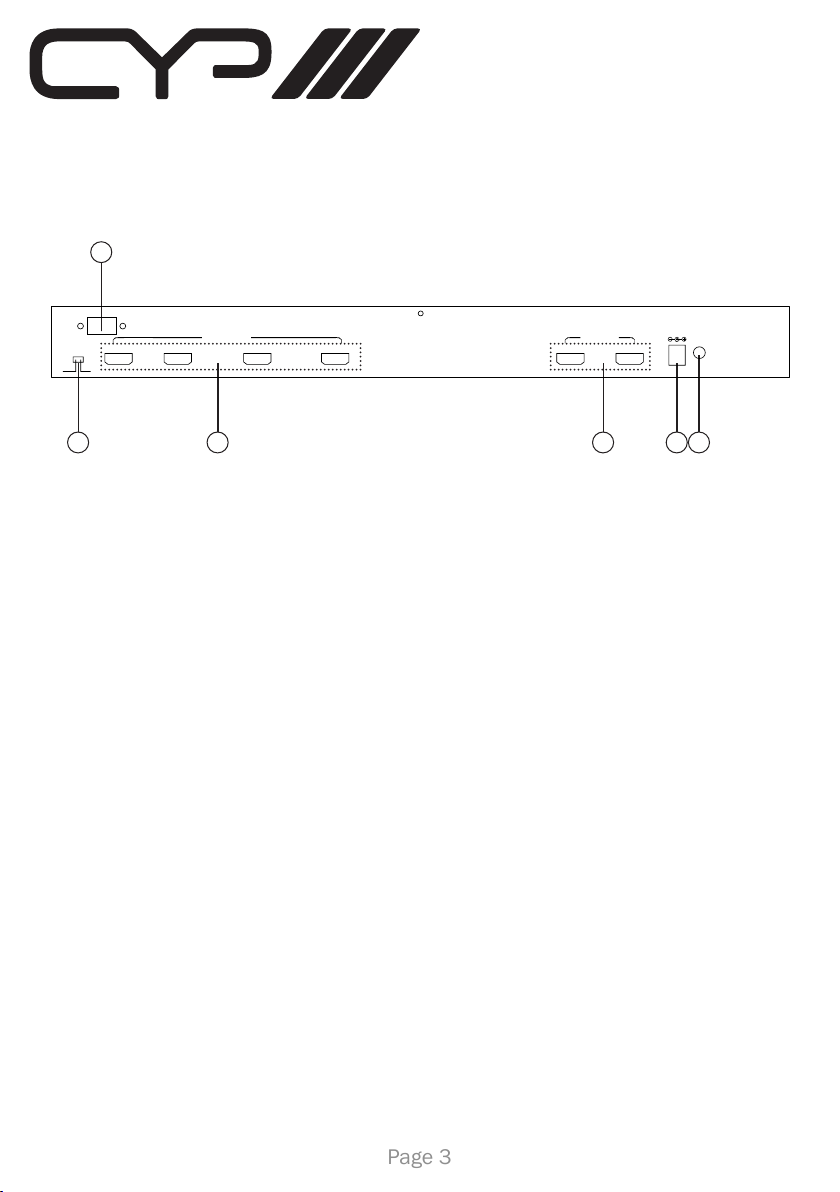

6.1 Rear Panel
1
2
3 4 5 6
HDMI OUTPUT HDMI INPUT
STD TV
EDID
RS-232
D C B A 2 1
DC 5V
IR
Page 4

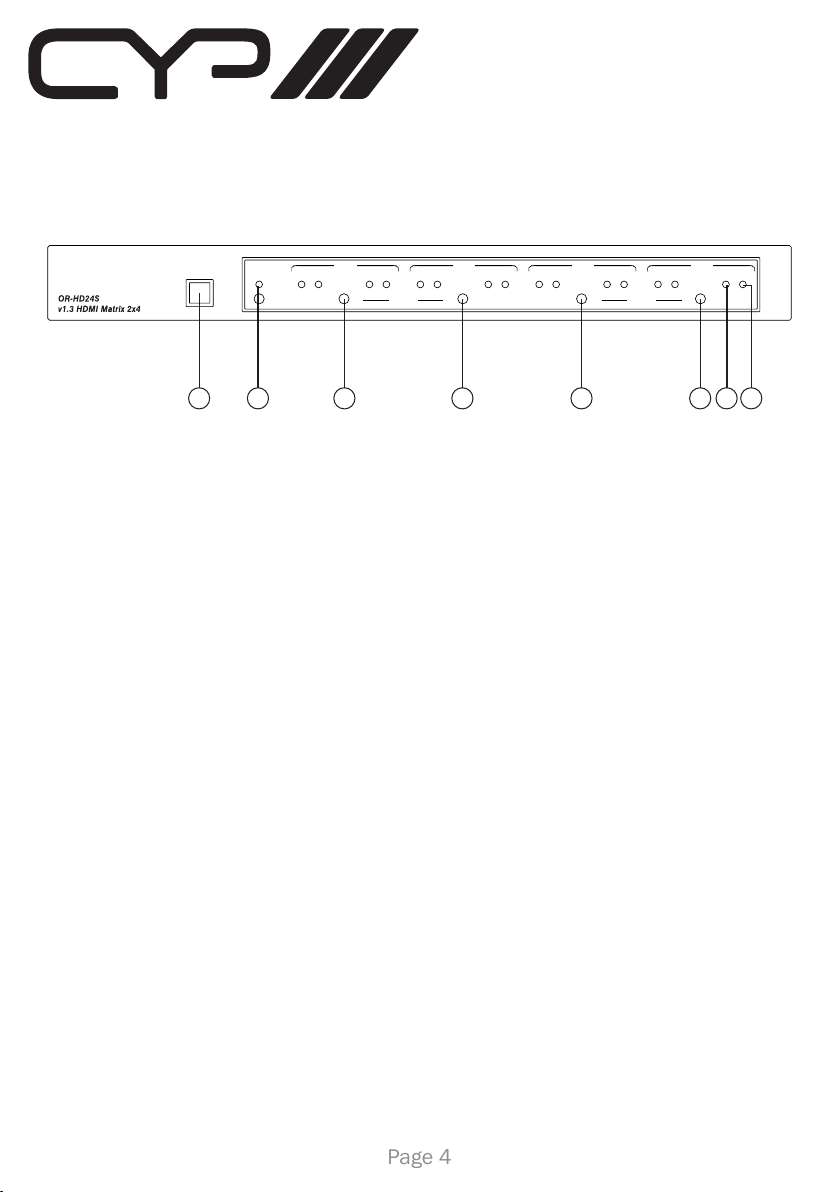

6.2 Front Panel
1. Remote control sensor
2. Power switch & LED indicator: Press the button to turn the unit on/off, the
LED lights green when power is on and red when the power is off.
3. Input select ‘A’ button/indicators: Press this button repeatedly to cycle
through your inputs and select which source to route to the HDMI A output.
The indicator lights will illuminate accordingly (see points 7 and 8).
4. Input select ‘B’ button/indicators : Press this button repeatedly to cycle
through your inputs and select which source to route to the HDMI B output.
The indicator lights will illuminate accordingly (see points 7 and 8).
5. Input select ‘C’ button /indicators : Press this button repeatedly to cycle
through your inputs and select which source to route to the HDMI C output.
The indicator lights will illuminate accordingly (see points 7 and 8).
6. Input select ‘D’ button/indicators : Press this button repeatedly to cycle
through your inputs and select which source to route to the HDMI D output.
The indicator lights will illuminate accordingly (see points 7 and 8).
7. HDCP source light: When the input source has HDCP implemented this light
will illuminate.
8. 8. HDMI/DVI indicator light: When the source is connected via HDMI the
HDMI/DVI LED will illuminate. If the source is connected via a DVI adaptor
then the light will remain off.
1 2 3 4 5 6 7 8
POWER
INPUT
1 2
HDCP HDMI/DVI
INPUT
1 2
HDCP HDMI/DVI
INPUT
1 2
HDCP HDMI/DVI
INPUT
1 2
HDCP HDMI/DVI
A BHDMI OUT C DHDMI OUT
Page 5

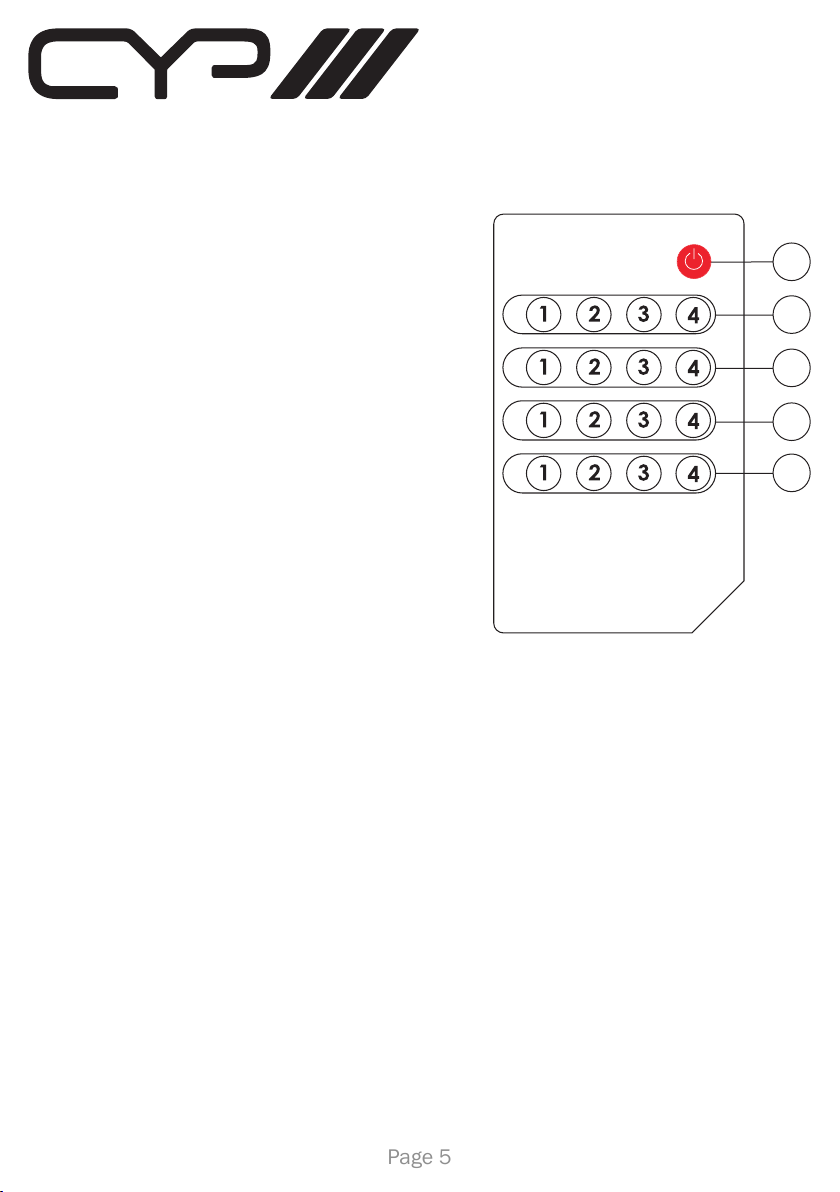

7. Remote Control
1. Power: Press to turn the unit on/off.
2. Input Select for HDMI OUT ‘A’: Press 1, or
2, to select the desired input source for
HDMI OUT A.
3. Input Select for HDMI OUT ‘B’: Press 1, or
2 to select the desired input source for
HDMI OUT B.
4. Input Select for HDMI OUT ‘C’: Press 1, or
2 to select the desired input source for
HDMI OUT C.
5. Input Select for HDMI OUT ‘D’: Press 1,
or 2 to select the desired input source for
HDMI OUT D.
*N.B: The buttons labeled 3&4 on the remote
do not have any effect on this model of Matrix.
1
2
3
4
5
A
D
C
B
OUTPUT
OUTPUT
OUTPUT
OUTPUT
POWER
CR-33
Page 6
OR-HD24S Remote Control Console
PIN Denition
→
←
PIN Denition
1 NC 1 NC
2 Tx 2 Rx
3 Rx 3 Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
8. RS-232 Protocol
Baud Rate: 9600bps
Data bit: 8bits
Parity: None
Stop bit: 1bit
Flow Control: None
Page 7
8.1 Command Sets
COMMAND ACTION
POWER 00 Power Off (standby)
POWER 01 Power On
PORT 11 Output A select Input 1
PORT 12 Output A select Input 2
PORT 13 (No Function) Output A select Input 3
PORT 14 (No Function) Output A select Input 4
PORT 21 Output B select Input 1
PORT 22 Output B select Input 2
PORT 23 (No Function) Output B select Input 3
PORT 24 (No Function) Output B select Input 4
PORT 31 Output C select Input 1
PORT 32 Output C select Input 2
PORT 33 (No Function) Output C select Input 3
PORT 34 (No Function) Output C select Input 4
PORT 41 Output D select Input 1
PORT 42 Output D select Input 2
PORT 43 (No Function) Output D select Input 3
PORT 44 (No Function) Output D select Input 4
