CYP OR-YUV44S Bedienungsanleitung
OPERATION MANUAL
OR-YUV44S
Component 4 x 4 Matrix
Switcher with Digital Audio
Table of Contents
1. Introduction 1
2. Features 1
3. Package Contents 1
4. Operation Controls and Functions 2
4.1 Front Panel Diagram 2
4.2 Rear Panel Diagram 3
4.3 Remote Control 4
5. Connection Diagram 5
6. Specications 5-6
Page 1
1. Introduction
OR-YUV44S is a high performance Component of Digital/Analog Audio with Video
Matrix. It oers you maximum convenience in HDTV audio/video signal distribution
when you have multiple sources to display. Each of the four HDTV audio/video
sources can be directed to any one of the four outputs and or all four displays can
show one identical output sources at the same time. It provides a variety of choices
on where to play your image with remote controller.
2. Features
• Provides 4 x 4 matrix input/output of Component (YPbPr/YCbCr) video and L/R
stereo & Coaxial digital audio signal.
• Component 4 x 4 Matrix Switcher with Digital Audio
• Supports high resolution input/output: HDTV: 480i, 576i, 480p, 576p, 1080i, and
1080p.
• Analogue stereo audio & Coaxial digital audio supporting PCM stereo, Dolby
Digital & DTS.
• Buered video and audio output.
• IR remote control plus RS-232 control.
• Input source LED indicators on each output select.
3. Package Contents
• OR-YUV44S Component Matrix
• 12VDC Power Supply Adaptor
• Remote Controller
• Operation Manual
Page 2
4. Operation Controls and Functions
4.1 Front Panel
1. Remote control sensor.
2. Power Switch & LED Indicator: The LED will illuminate when the power is turned
on.
3. 3 Input Select/Indicators for Output A: Press the “OUT A” button repeatedly to
switch to your desired source. One of the four LEDs will illuminate to indicate
which input source is being selected, and routed to the display.
4. Input Select/Indicators for Output B: Press the “OUT B” button repeatedly to
switch to your desired source. One of the four LEDs will illuminate to indicate
which input source is being selected, and routed to the display.
5. Input Select/Indicators for Output C: Press the “OUT C” button repeatedly to
switch to your desired source. One of the four LEDs will illuminate to indicate
which input source is being selected, and routed to the display.
6. Input Select/Indicators for Output D: Press the “OUT D” button repeatedly to
switch to your desired source. One of the four LEDs will illuminate to indicate
which input source is being selected, and routed to the display.
12 3 4 5 6
POWER
OUT A OUT B OUT C OUT D
1 2 43
INPUT-SELECT
1 2 43
INPUT-SELECT
1 2 43
INPUT-SELECT
1 2 43
INPUT-SELECT
OR-YUV44S
HD 4x4
Page 3
4.1 Rear Panel
1. RS-232 Communication Port: Connect to the COM port of your PC for the
distant control over RS-232 Channel.
2. 2 Component with Digital (Coaxial) & L/R Audio OUTPUT Ports A, B, C and D:
Connect each set of Component (3 RCA) and Audio (2 RCA/Coaxial) to the
input of your HDTV displays.
3. Component with Digital (Coaxial) & L/R Audio INPUT Ports 1, 2, 3 and 4:
Connect each set of Component (3 RCA) and Audio (2 RCA/Coaxial) to the
output of your source equipments such as DVD player or set-top-box.
4. Power: Plug the 12VDC power supply into the unit and connect the adaptor to
AC wall outlet.
RS-232
R L
R L
Pr/Cr Pb/Cb Y
C
D
Pr/Cr Pb/Cb Y
R L
R L
Pr/Cr Pb/Cb Y
A
B
Pr/Cr Pb/Cb Y
R L
R L
Pr/Cr Pb/Cb Y
3
4
Pr/Cr Pb/Cb
INPUTOUTPUT
Y
RCoaxial
Coaxial
Coaxial
Coaxial
Coaxial
Coaxial
Coaxial
Coaxial
L
R L
Pr/Cr Pb/Cb
DC 12V
Y
1
2
Pr/Cr Pb/Cb Y
1 2 3 4
Page 4

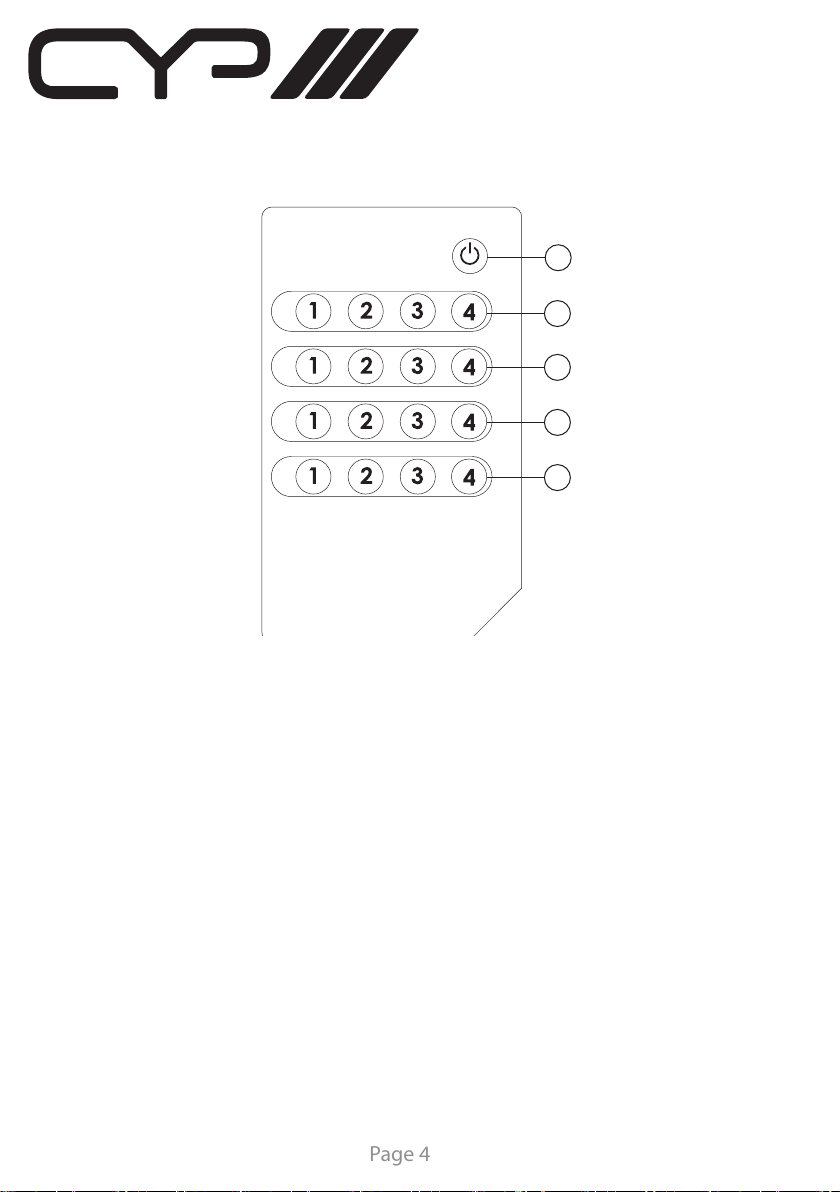

4.3 Remote Control
1. Power: Press the button to turn on/o the unit.
2. Input Select for Component/Audio OUT A: Press 1, 2, 3 or 4 to select the desired
input source for Component/Audio OUT A.
3. Input Select for Component/Audio OUT B: Press 1, 2, 3 or 4 to select the desired
input source for Component/Audio OUT B.
4. Input Select for Component/Audio OUT C: Press 1, 2, 3 or 4 to select the desired
input source for Component/Audio OUT C.
5. Input Select for Component/Audio OUT D:
6. Press 1, 2, 3 or 4 to select the desired input source for Component/Audio OUT
D.
1
2
3
4
5
OUTPUT
A
OUTPUT
D
OUTPUT
C
OUTPUT
B
POWER
CR-33
Page 5
OR-YUV44S Remote Control Console
PIN Denition PIN Denition
1 NC 1 NC
2 Tx 2 Rx
3Rx3Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 9600bps
Data bit: 8bits
Parity: None
Stop bit: 1bit
8.1 Command Sets
8. RS-232 Protocol
COMMAND ACTION
P0 Power O (standby)
P1 Power On *
ST System Status *
VR Firmware Version
A1 Output A select Input 1
A2 Output A select Input 2
A3 Output B select Input 3
Page 6
A4 Output B select Input 4
B1 Output B select Input 1
B2 Output B select Input 2
B3 Output C select Input 3
B4 Output C select Input 4
C1 Output C select Input 1
C2 Output C select Input 2
C3 Output D select Input 3
C4 Output D select Input 4
D1 Output D select Input 1
D2 Output D select Input 2
D3 Output B select Input 3
D4 Output B select Input 4
*: Command “P1” and “ST” response: P? A? B? C? D?

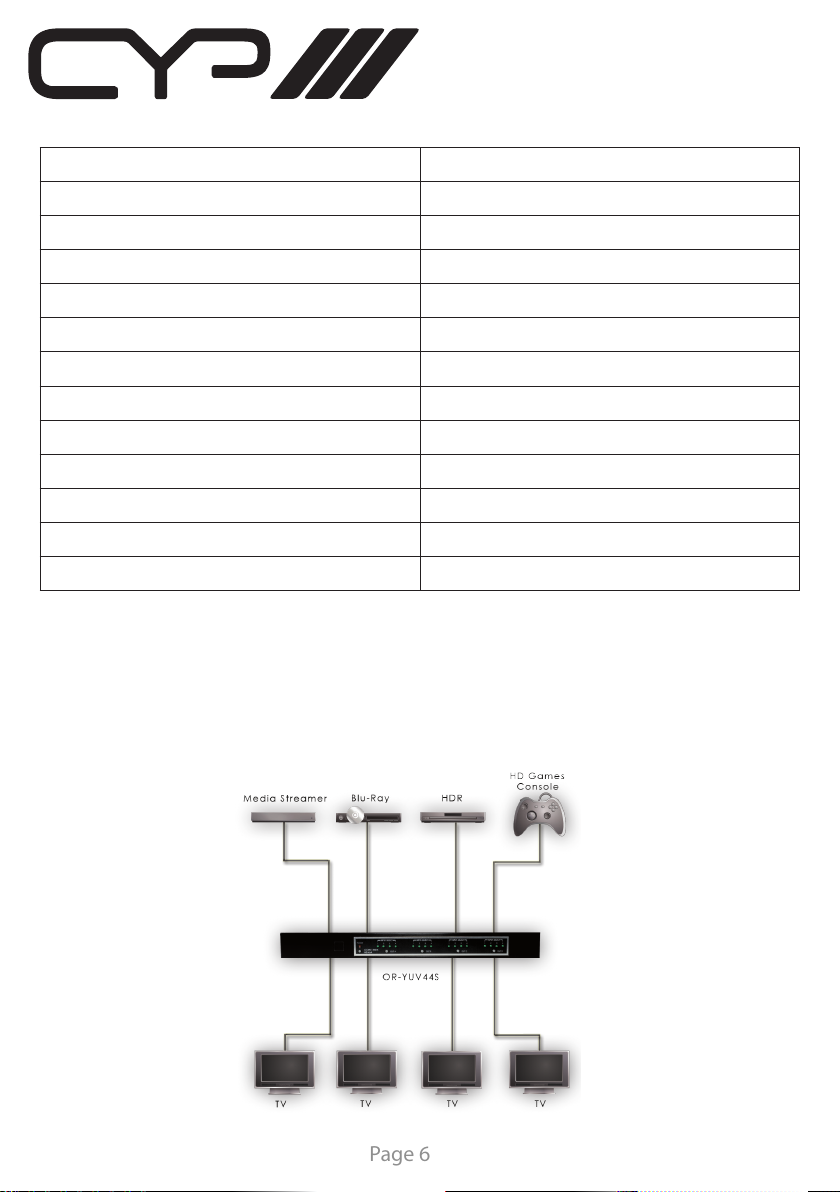

5. Connection Diagram
Page 7
6. Specications
Frequency bandwidth 2.25Gbps (single link)
Input ports 4 x independent IR Blasters; 1 x total IR blaster control
Output ports 4 x independent IR Receiver; 1 x total IR receiver control
EDID Standard, TV/Moving Port 1
HDMI Audio output PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+, D-True-
HD, DTS-HD
HDMI Cable in 1080p 8bit (10M), 1080p 12bit (10M)
HDMI Cable out 1080p 8bit (10M), 1080p 12bit (6M)
Colour Space RGB_24/36,YCbCr 4:4:4_24/36, YCbCr 4:2:2,xvycc
IR Yes
Deep Colour 1080p 12bit
HDMI Resolution 480I~1080p 50/60, 1080p 24, VGA~UXGA
DVI Resolution 480I~1080p 50/60, 1080p 24, VGA~UXGA
Power Supply 5V 1Amp (US/EU standards, CE/FCC/UL certied)
Dimensions (mm) 180(W) x 120(D) x 25(H)
Weight (g) 840
Chassis Material Aluminum
Silk Skin Color Black
Operating Temperature Operating from 0°C ~ 40°C
Power Consumption 0.86W
Notes:
