CYP PU-8H8HBTE Bedienungsanleitung
38++%7(38++%7(
[[+'0,+'%DVH70DWUL[
3OD\LQFOXGLQ /$1VHUYLQ
23(5$7,210$18$/
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
electrical shock and injury to persons.
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
Do not attach the power supply cabling to building surfaces.
Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 11/06/11 Preliminary Release
RDV2 13/06/11 Add CMSI-4H8CVE
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 2
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................4
6.3 Side Panel .........................................5
6.4 Remote Control................................6
6.5 IR Cable Pin Assignment..................6
6.6 RS-232 Protocols ...............................7
6.7 RS-232 & Telnet Commands............8
6.8 Telnet Control ...................................9
6.9 Web GUI Control ............................11
7. Connection Diagram .......................... 13
...................................... 15
9. Acronyms ............................................. 16
1
1. INTRODUCTION
outputs. It supports digital audio formats such as LPCM 7.1CH, Dolby
TrueHD, Dolby Digital Plus and DTS-HD Master Audio. Also, 3D content
allows the connection of source equipment to output displays, over
distances of up to 100 meters along with IR and RS-232(includes telnet)
control and PoE features. Further, it allows all outputs with access of
ethernetfunction through the single LAN port's active connection on
the device.
2. APPLICATIONS
HDMI System control
Video/TV wall display and control
Security surveillance and control
Commercial advertising, displaying and control
Lecture room display and control
Hyper market demonstration and control
3. PACKAGE CONTENTS
HDMI over CAT5e/6/7 Receiver (Optional)
2×IR Blaster
2×24 V/6.25 A DC Power Adaptor (1 for PoE)
1×IR Remote Control
Operation Manual
2
4. SYSTEM REQUIREMENTS
HDMI equipped input source devices with HDMI cables
HDMI equipped output displays (TVs or monitors) or HDMI equipped
AV receivers with HDMI cables
Industry CAT5e/6/7 cables
5. FEATURES
HDMI, HDCP1.1 and DVI compliant
Supports HDMI 3D features
Supports resolutions VGA~WUXGA and 480i~1080p dependent upon
the output display’s EDID settings
Supports distances up to 100 meters through CAT5e/6/7 cables
Supports 3D signal display dependent upon the output display EDID
settings
Supports PoE (Power over Ethernet) on compatible receivers only
Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters
at 12-bit resolution
Supports IR in/out from input and output locations
Supports RS-232(include Telnet), remote control and on-panel
control
Supports IP function through the single LAN port
Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission
Note: 1.The PoE function is designed for powering compatible
receiver units onlynon-PoE receivers will need their own
power supply.Receivers of another brand may not be
compatible.
2.LAN/CONTROL port must not miss connected with CAT
outputs, doing so will destroy the device.
3
6. OPERATION CONTROLS AND FUNCTIONS

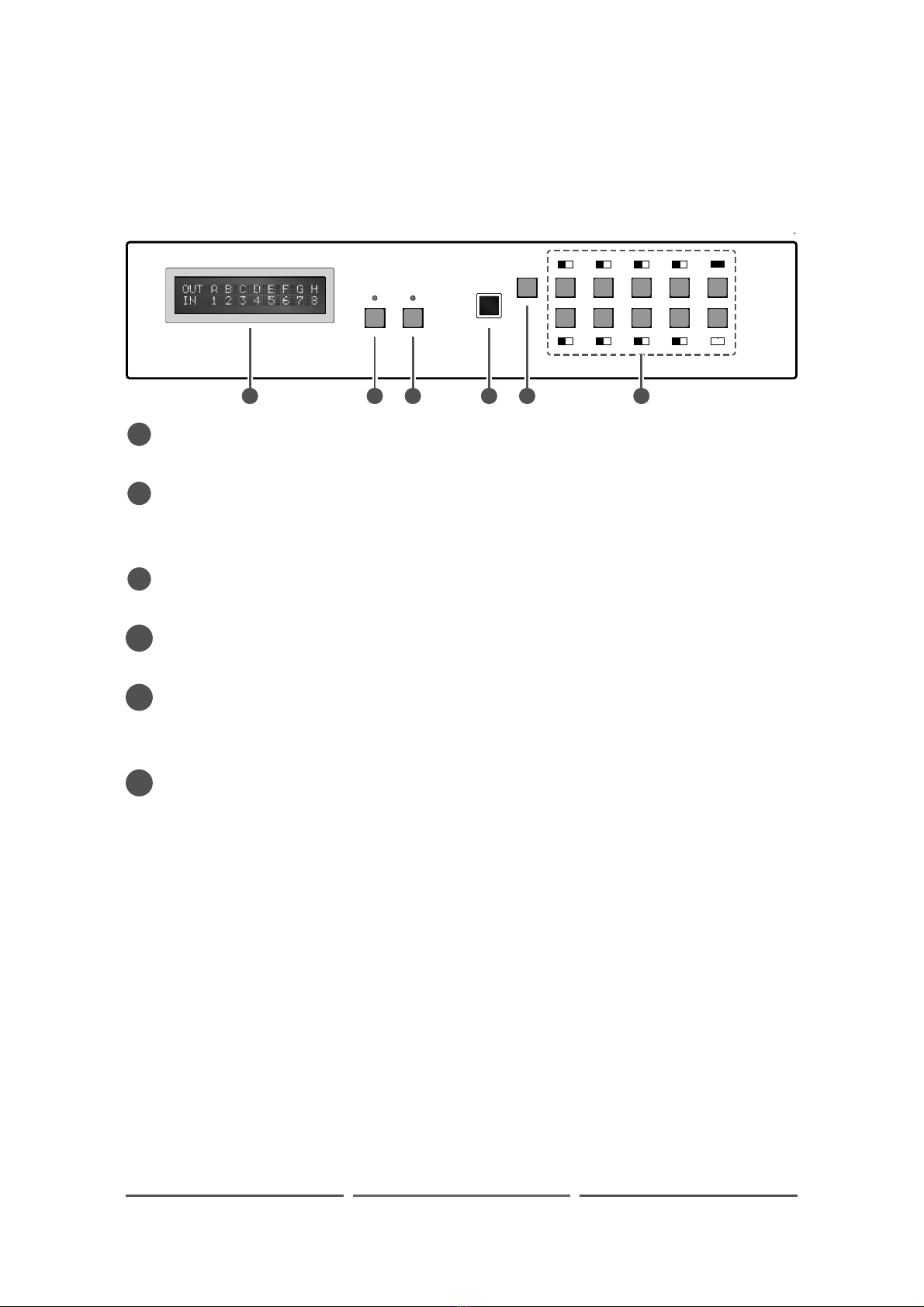

6.1 Front Panel
POWER LOCK
MENU OUTA 1B2C3D4
IN
E5F6G7H8
8X8 HDMI MATRIX over CAT5e/6 CMSI-8H8CVE
2 3 4 5 61
1LCM : Displays the setting information of each input and output
setting.
2POWER: Press this button to power the device on/off. The LED will
illuminate green when the power is on, red when it is in 'Standby'
mode.
3LOCK: Press this button to lock all the buttons on the panel; press
again to unlock. The LED will illuminate green when locked.
4IR: IR Receiver window (accepts the remote control signal of this
device only).
5MENU: Press this button to change the EDID setting from STD
selection.
61~8/A~H and In/Out: Press the Out or In button to select the output
or input mode and then press the required number button to make
the selection accordingly.
E~H need to be set to input 2, then the following sequence of
button presses need to be performed:
Note: If the menu button is not pressed the selection will not be
changed.
4
6.2 Rear Panel
LAN
RS232
SERVICE
IR OUT
IR IN
IR OUT
IR IN
IR OUT
IR IN
ALL A B C D E F G H
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUTCAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
MAIN 24V
POE 24V
1
HDMI IN
2
HDMI IN
3
HDMI IN
4
HDMI IN
5
HDMI IN
6
HDMI IN
7
HDMI IN
8
HDMI IN
1
2
3
4
V+
GND
GND GND
V+
2 4
3
510 111
6
8
7
9
1LAN: Connect an active Ethernet port for network signal sharing
with receivers with LAN function for a data transmission rate of
100Mbps or when anyone of the receivers connected to this
device is connect with an active Ethernet port all receivers with
LAN function and this device will also access the Ethernet function.
This port is also the link for Telnet system and web GUI controls,
further details please referes to section 6.8 & 6.9.
2RS-232: Connect to a PC or laptop with D-Sub 9-pin cable for the
transmission of RS-232 commands.
3ALL IR OUT: Connect to the IR blaster (included in the package) for IR
signal transmission of the source or display equipment. Place the IR
blaster in direct line-of-sight of the equipment to be controlled.
4ALL IR IN:
IR signal reception of the remote control of this device or the source
and display equipment. Ensure that remote being used is within the
5SERVICE: Manufacturer use only.
6IR OUT 1~8: Connect the supplied IR blasters (included in the
package) for IR signal transmission. Place the IR blaster in direct line-
of-sight of the equipment to be controlled.
7IR IN 1~8:
package) for IR signal reception. Ensure that remote being used is
5
8CAT5e/6/7 OUT 1~8: Connect to the CAT input port of receiver units
with a single CAT5e/6/7 cable for HDMI Audio/Video and IR/RS-232
control signal sending.
Warning: Please do not miss connect CAT5e/6/7 ports with receiver
device's LAN port doing so will destroy the device.
9HDMI IN 1~8: Connect to the HDMI input source devices such as a
10 DC 24V MAIN POWER: Plug the 24 V DC power supply into the unit
and connect the adaptor to an AC outlet.
11 PoE 24V: Plug the 24 V PoE power supply into the unit and connect
the adaptor to an AC outlet. This unit will mainly power PoE (Power
over Ethernet) capaable receiver units.
6.3 Side Panel
1
1Fan Ventilator: These are air ventilation areas, DO NOT block these
areas or cover it with any object. Please allow adequate space
around the unit for air circulation.
6
6.4 Remote Control
1POWER: Press this button to
switch on the device or set it to
standby mode.
2IN: Input ports selection 1~8.
3OUT: Output ports selection A~H.
6.5 IR Cable Pin Assignment
3
1
3
1
2
2
Power 5 V
IR Blaster Signal
NC
IR Signal
Power 5 V
Grounding
IR Receiver
IR Blaster
1
23
7
6.6 RS-232 Protocols
Pin Assignment
CMSI-8H8CVE/CMSI-4H8CVE Remote Control Console
PIN Assignment PIN Assignment
1NC 1NC
2 2
3 3
4NC 4NC
5 GND 5 GND
6NC 6NC
7NC 7NC
8NC 8NC
9NC 9NC
Baud Rate: 19200 bps
Data bit: 8 bits
Parity: None
Stop Bit: 1
Flow Control: None
