CYP CSC-5500 Bedienungsanleitung

CSC-5500

Multi-Input Scaler

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version VR1.0 November 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

RDV1 03/12/12 Preliminary Release

RDV2 08/04/13 RS-232 Command

RDV3 24/04/13 Support Input Resolution & Web

GUI

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

5. Features.................................................. 1

6. Operation Controls and Functions....... 2

6.1 Front Panel ........................................2

6.2 Rear Panel.........................................3

6.3 Remote Control................................4

6.4 RS-232 Protocols ...............................5

6.5 RS-232 and Telnet Commands .......6

6.6 OSD MENU.........................................9

6.7 Telnet Control .................................12

6.8 Web GUI Control ............................14

7. Connection and Installation............... 15

8. Specications ...................................... 16

8.1 Support I/O Resolution...................17

1. INTRODUCTION

The Multi-Input Scaler has CV, Component, PC, and HDMI inputs and

can scale the signal into HDMI, VGA with audio output ports. This high

performance Multi-Input Scaler supports HDMI output resolution up to

1080p /WUXGA and Analog Digital Conversion (ADC) & Digital Analog

Conversion (DAC) allowing a wide range of AV signal to be insert to

a High-denition signal and displaying. Further, with OSD, remote, RS-

232, Telnet, Web GUI and on-panel controls that makes whole for this

Multi-Input Scaler a friendly using device.

2. APPLICATIONS

• Lecture hall

• Meeting room

• Conference hall

3. PACKAGE CONTENTS

• Multi-Input Scaler

• Remote Control (CR-122)

• 2 x AAA Batteries

• IR Extender Cable

• D-Sub to RCA adaptor cable

• Power Adaptor

• Operation Manual

4. SYSTEM REQUIREMENTS

Input source equipments such as Blu-ray/DVD players or PC/NB,

output display and amplier or speakers.

5. FEATURES

• Supports multi-AV inputs to HDMI or PC/HD outputs

• Supports EDID and HDCP

• Supports 3D de-interlace, noise reduction and 3D Comb lter

• Supports frame rate conversion

• Supports RS-232, Telnet, Web GUI & IR Controls

• Support output timing hot keys switching

• HDMI compatible with DVI

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

1 2

POWER CV COMP PC 1 PC 2 PC 3 HDMI 1 HDMI 2 HDMI 3MENU

XGA

ENTER

720P

3 4 5 6

1POWER button & LED:

Press this button to switch ON or set the device to standby mode.

Once the device is connected with power supply and the power

toggle is switched to ON the LED will illuminate and the device will

switch ON automatically.

2IR:

This IR window receives only the IR signal from the remote control

included in the package.

3INPUT button and LEDs:

Press this button sequentially to switch in between the input sources

rotationally. LED will illuminate accordingly to the selected input

source.

4MENU:

Press this button to enter into the OSD menu.

5-/+:

Press these buttons to scroll down and up in the OSD selection.

6ENTER:

Press this button to conrm the selection. Press this button together

with [+] button to switch output to XGA instantly or with [-] button

to switch output to 720p instantly.

6.2 Rear Panel

POWER

DC 5V

CONTROL

HDMI 2HDMI 1 PC/HD

RS232 COAX AUDIO

SERVICE

OUTPUT

HDMI 1 HDMI 2 HDMI 3 PC 1 PC 2 PC 3 Cr/Pr Cb/Pb

YRLCV

AUDIO

INPUT

4 5 8

1 2 3 6 7

IR IN

1IR IN:

Plug in the IR extender cable for IR signal receiving from the

included remote control.

2SERVICE:

Reserved for factory use only.

3RS-232:

Connect with PC/Laptop and use RS-232 command to control the

device.

4OUTPUT:

HDMI 1 & 2: Connect to HDMI display or amplier for video and

audio display.

COAX: Connect to active speaker or amplier for audio output in

digital format.

AUDIO: Connect to active speaker or amplier for audio output in

stereo format.

PC/HD: Connect to monitor/display for video output display. For

HD output, use D-Sub 9-pin to 3 RCA adaptor cable for output HD

timing from 480p~1080p.

5INPUT:

HDMI 1~3: Connect to HDMI source equipments such as Blu-ray/

DVD player for both video and audio signal sending.

PC 1~3: Connect with PC/Laptop source equipments for video

signal input with D-Sub 15-pin cable.

Audio L/R: Connect to source equipment’s L/R output

corresponding to the input port below with 3.5Ø phone jack for

audio signal sending. The priority audio input of HDMI is from HDMI,

only when HDMI input has no audio signal the L/R audio will be

inserted into.

YCbCr/YPbPr + L/R: Connect to source equipment such as video/

DVD player for both video and audio signal sending.

CV + L/R: Connect to source equipment such as video/DVD player

for both video and audio signal sending.

6CONTROL:

This port is the link for Telnet or Web GUI controls, connect to an

active Ethernet link with an RJ45 terminated cable (for further

details, please refer to section 6.7 & 6.8.

7POWER:

Switch this power toggle to turn ON and activate the device or to

turn OFF and shut it down.

8DC 5V:

Plug the power adaptor included in the package and connect it

to the AC wall outlet for power supply.

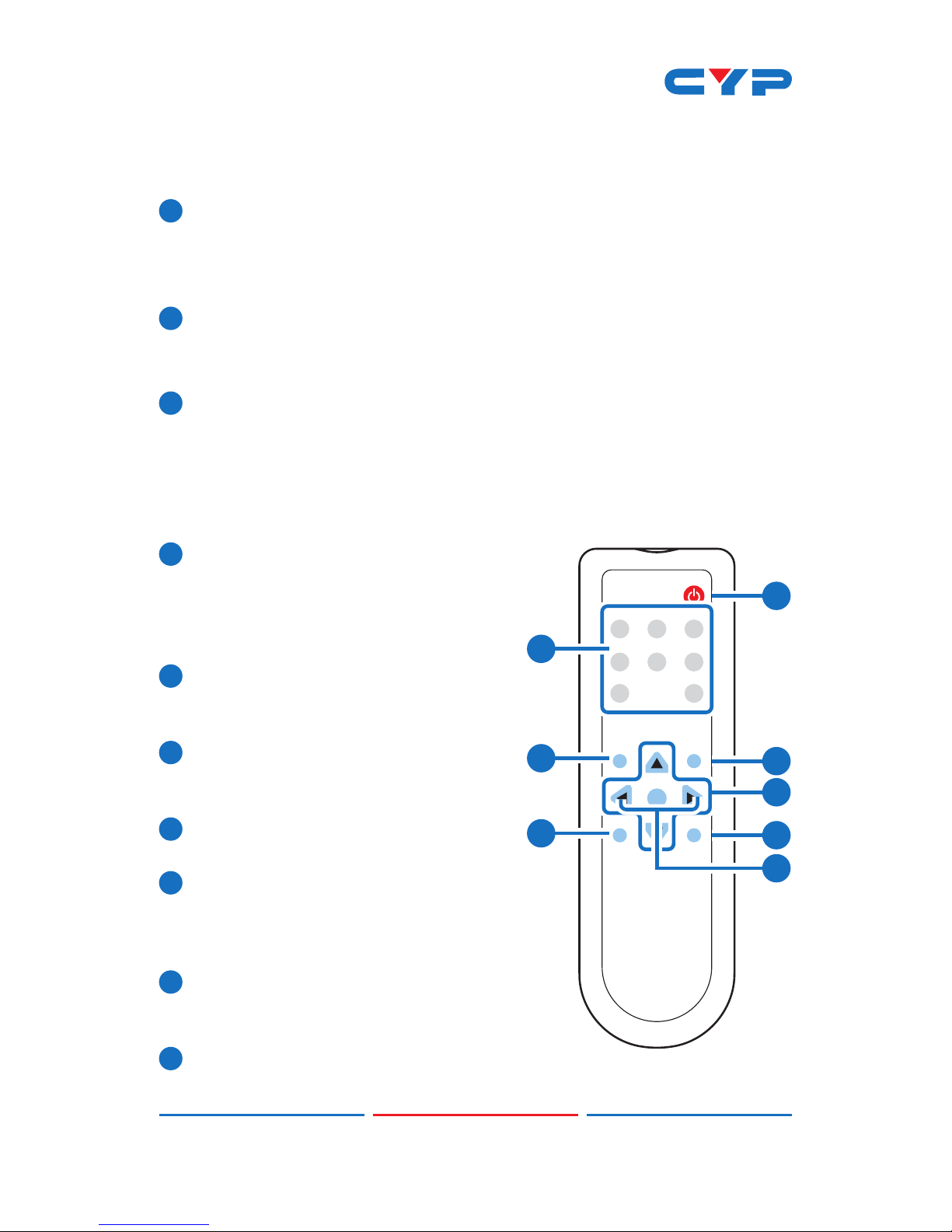

6.3 Remote Control

1POWER: Press this button to switch

ON or set the device to standby

mode. The device must connect

with power supply and the power

toggle must switch to ON.

2HDMI1~3/PC1~3/CV/COMP: Press

these hot keys to switch input

source instantly.

3EXIT: Press this button to exit the

menu or the current selection under

OSD.

4MENU: Press this button to enter into

the OSD menu.

5 OK & ▲▼◄►: Press [OK] to

conrm the selection or press the

arrow buttons to scroll in the OSD

selections.

6RESET: Press this button to set the

device back into the factory default

setting.

7AUTO ADJUST: Press this button

when output image is not tting the display's screen perfectly. The

device will auto adjust the image to full screen.

CR-122

POWER

PC1PC2 PC3

CV COMP

EXIT MENU

RESET AUTO

ADJUST

HDMI2HDMI1 HDMI3

8 ◄►: Press right and left buttons to increase and decrease the

volume when outside of OSD menu selection.

6.4 RS-232 Protocols

CSC-5500

►

◄

Remote Control

PIN Assignment PIN Assignment

1 NC 1 NC

2Tx 2Rx

3Rx 3Tx

4 NC 4 NC

5 GND 5 GND

6 NC 6 NC

7 NC 7 NC

8 NC 8 NC

9 NC 9 NC

Baud Rate: 19200bps

Data bit: 8 bits

Parity: None

Flow Control: None

Stop Bit: 1

6.5 RS-232 and Telnet Commands

?: Show command list under Telnet.

Command Description Contents

S POWER 0/1 Power ON or OFF OFF(0) / ON(1)

R POWER Request power status

S SOURCE 1~8 Select input source HDMI1(1) / HDMI2(2) /

HDMI3 (3) / YPBPR(4) /

VIDEO(5) / PC(6) / PC2(7)

/ PC3(8)

R SOURCE Inquire input source

S OUTPUT 0~21 Select output timing*1 640*480(0)/800*600(1)/

1024*768(2)/1280*768(3)/

1360*768(4)/1280*720(5)/

1280*800(6)/1280*1024(7)/

1440*900(8)/1400*1050(9)/

1680*1050(10)/

1600*1200(11)1920*1080(12)/

1920*1200(13)/

480p(14)/720p 60(15)/

1080i 60(16)/ 1080p 60(17)/

576p(18)/720p 50(19)/

1080i 50(20)/ 1080p 50(21)

R OUTPUT Inquire output timing

S SIZE 0~6 Select output size OVERSCAN(0) / FULL(1) /

FOLLOW INPUT(2) / PAN

SCAN(3)/LETTER BOX(4) /

UNDER 2(5) / UNDER 1(6)

R SIZE Inquire output size

S INPUTHDCP 0/1 Select HDCP setting ON(0) / OFF(1)

R INPUTHDCP Inquire HDCP setting ON(0) / OFF(1)

Andere Handbücher für CSC-5500

Inhaltsverzeichnis

Andere CYP Medienkonverter Handbücher

CYP

CYP VHC-1 Bedienungsanleitung

CYP

CYP CSC-6030HB Bedienungsanleitung

CYP

CYP CLUX-2HPIP Bedienungsanleitung

CYP

CYP CP-259HN Bedienungsanleitung

CYP

CYP CP-261H Bedienungsanleitung

CYP

CYP CPLUS-VHHE Bedienungsanleitung

CYP

CYP CLUX-SDI2HCA Bedienungsanleitung

CYP

CYP CM-398 Bedienungsanleitung

CYP

CYP CPT-385AMN Bedienungsanleitung

CYP

CYP CLUX-DVI2SDIA Bedienungsanleitung

CYP

CYP AU-D1 Bedienungsanleitung

CYP

CYP EL-31C-4K22 Bedienungsanleitung

CYP

CYP CSC-104 Bedienungsanleitung

CYP

CYP CV-401V Bedienungsanleitung

CYP

CYP CP-1261D Installationshandbuch

CYP

CYP CP-255I Bedienungsanleitung

CYP

CYP CLUX-11HB Bedienungsanleitung

CYP

CYP CPLUS-V11PE8 Bedienungsanleitung

CYP

CYP CDPS-US100R Installationshandbuch

CYP

CYP SY-12H-4K22 Installationshandbuch

CYP

CYP CDB-6HR Bedienungsanleitung

CYP

CYP CSC-200RS Bedienungsanleitung

CYP

CYP CP-293 Bedienungsanleitung

CYP

CYP CDL-165ETHG Bedienungsanleitung

Beliebte Medienkonverter Handbücher anderer Marken

SoundTraxx

SoundTraxx Blunami BLU-2200 Bedienungsanleitung

SPROLINK

SPROLINK VA1 Bedienungsanleitung

Acclaim Lighting

Acclaim Lighting DDC-1-AC Bedienungsanleitung

Nikon

Nikon AF-S TC-20E III Bedienungsanleitung

Axis

Axis AXIS Q7406 Bedienungsanleitung

Omega

Omega TAC80B-J Bedienungsanleitung

Zoom

Zoom Thunderbolt TAC-2R Bedienungsanleitung

OST

OST iConverter 10/100M Bedienungsanleitung

Vertiv

Vertiv Netsure Bedienungsanleitung

birddog

birddog MINI Bedienungsanleitung

Roland

Roland GI-10 Bedienungsanleitung

Wallenstein

Wallenstein WX310 Bedienungsanleitung

Pace

Pace MSS 200-1 Bedienungsanleitung

Solar Converters

Solar Converters EQ 12/24-50 Bedienungsanleitung

TIE

TIE MIDI 1i1o Bedienungsanleitung

DCS

DCS Vivaldi Upsampler Bedienungsanleitung

Westermo

Westermo MCW-211 SERIES Bedienungsanleitung

Expert

Expert EX-9543 Bedienungsanleitung
