CYP CM-398M Bedienungsanleitung
Operation Manual
Operation Manual

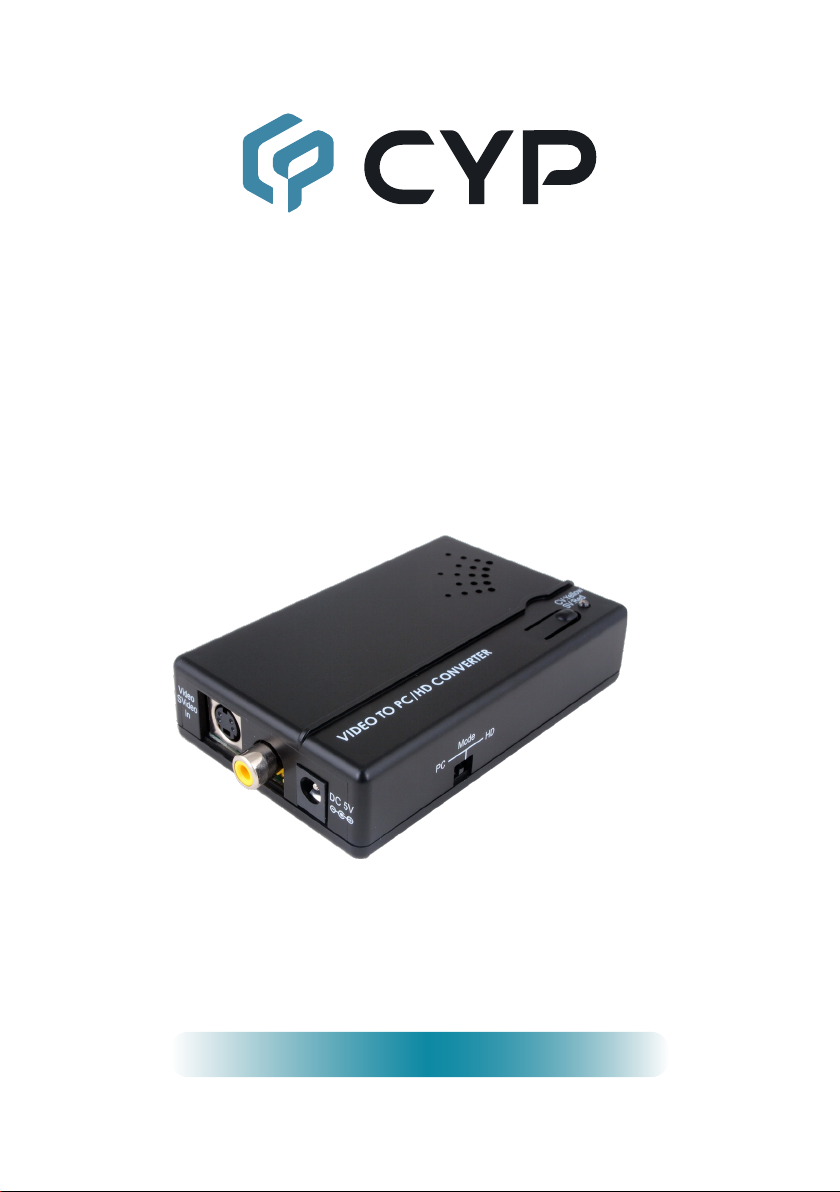

CV/SV to PC/HD Scaler Box
CM-398M
DISCLAIMERS
The information in this manual has been carefully checked and is believed
to be accurate. Cypress Technology assumes no responsibility for any
infringements of patents or other rights of third parties which may result from
its use.
Cypress Technology assumes no responsibility for any inaccuracies that
may be contained in this document. Cypress also makes no commitment to
update or to keep current the information contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express written
permission and consent from Cypress Technology.
© Copyright 2018 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document are trademarks of
the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain, moisture
or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings
or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it
is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to
be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings
in the unit housing that provide ventilation and allow for sucient space
for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use to
avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
V1 20100923 Preliminary release
V2 20190723 Add Package Contents
CONTENTS
1. Introduction...................................................... 1
2. Applications ..................................................... 1
3. Package Contents ........................................... 1
4. System Requirements..................................... 1
5. Features............................................................ 2
6. Operation Controls and Functions ................ 3
6.1 Top Panel..................................................... 3
6.2 Front Panel.................................................. 3
6.3 Left Panel .................................................... 4
6.4 Right Panel.................................................. 4
7. Connection Diagram ....................................... 5
8. Specications .................................................. 6
8.1 Technical Specications .............................. 6
8.2 Support Timing Chart................................... 7
9. OSD................................................................... 8
10. Acronyms ....................................................... 9
1
1. INTRODUCTION
This economical Video to PC converter box that can convert CV/SV (NTSC
or PAL system) to supported PC resolution like XGA to UXGA or HD olutions
of 480p to 1080p. With frame rate conversion feature that allows users to
DVD, VCR or Game sources on the PC monitor, this device also has an
On-Screen Display that allows users to easily select their desired output
resolution.
2. APPLICATIONS
• CV/SV signal display on VGA/PC monitor or TV
• STB/Camcorder signal display on PC monitor or TV
• DVD signal display on PC monitor or TV
3. PACKAGE CONTENTS
• Video to PC/HD Scaler Box
• D-Sub 15pin to 3 RCA adaptor cable
• Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
Input source equipments such as DVD/Video cassette player and output
PC/VGA monitor component TV (output component TV needs D-Sub-15 to
3RCA cable adaptor) display with connection cables.
2
5. FEATURES
• Operates in NTSC 3.58MHz and PAL system
• Can scale CV/SV to PC or Component format
• Output resolution:
PC resolutions: XGA, SXGA, UXGA
Component resolutions: 480p/576p, 720p,1080p
3D (frame based) motion adaptive YNR/CNR noise reduction
• On-Screen Display
• Advance 3D motion adaptive de-interlace
• Automatic 2:2 & 3:2 lm mode detection
• 50 to 60 Hz frame rate conversion ensures glitch-free display
• Play video games on your VGA monitors
• High-resolution output picture
• Plug & play- no drive software required
3
6. OPERATION CONTROLS AND FUNCTIONS
The following sections describe the hardware components of the unit.
6.1 Top Panel
CV:Yellow
SV:Red
VIDEO TO PC/HD CONVERTER
1
1CV/SV SW & LED: Press this button to switch input source between
com posite or S-Video. The Led will illuminate in yellow when switch to
composite input and red when switch to S-Video input.
6.2 Front Panel
PC
Mode
HD
1
1PC/HD switch: Press this button to switch input source between com
posite or S-Video. The Led will illuminate in yellow when switch to
composite input and red when switch to S-Video input.
4

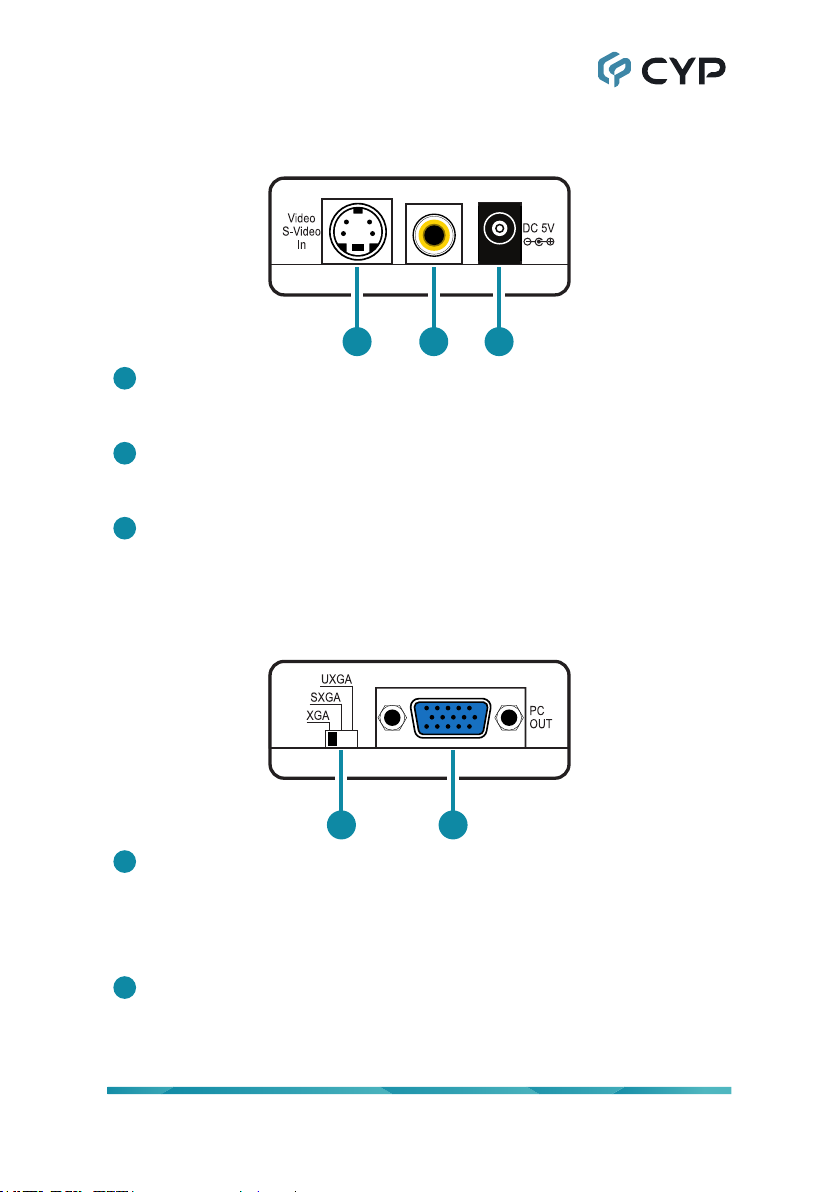

6.3 Left Panel
1 2 3
1S-Video input: This slot is where you connect the input source
equipment such as digital camcorder or PDAs with S-Video cable for
input signal sending.
2Composite (CV) input: This slot is where you connect the input source
equipment such as personal media player or personal recorder with RCA
cable for input signal sending.
3DC 5V In: This slot is where you plug the 5V DC power supply into the
unit and connect the adaptor to an AC wall outlet.
6.4 Right Panel
21
1Output resolution switch: This dip switch allows you to set PC/
HD output Timing to PC resolution: XGA/SXGA/UXGA or Component
resolution: 480p/576p/720p/1080p. Simply push the dip switch to left,
middle or right and the output image will display your desire timing. For
PC/ Composite timing selection please refer to Section 7.3 Front Panel.
2PC/HD OUT: This slot is where you connect the output display monitor
with D-Sub 15pin cable for image display. When connecting component
to TV, using D-Sub 15pin to 3RCA adaptor is required.
5

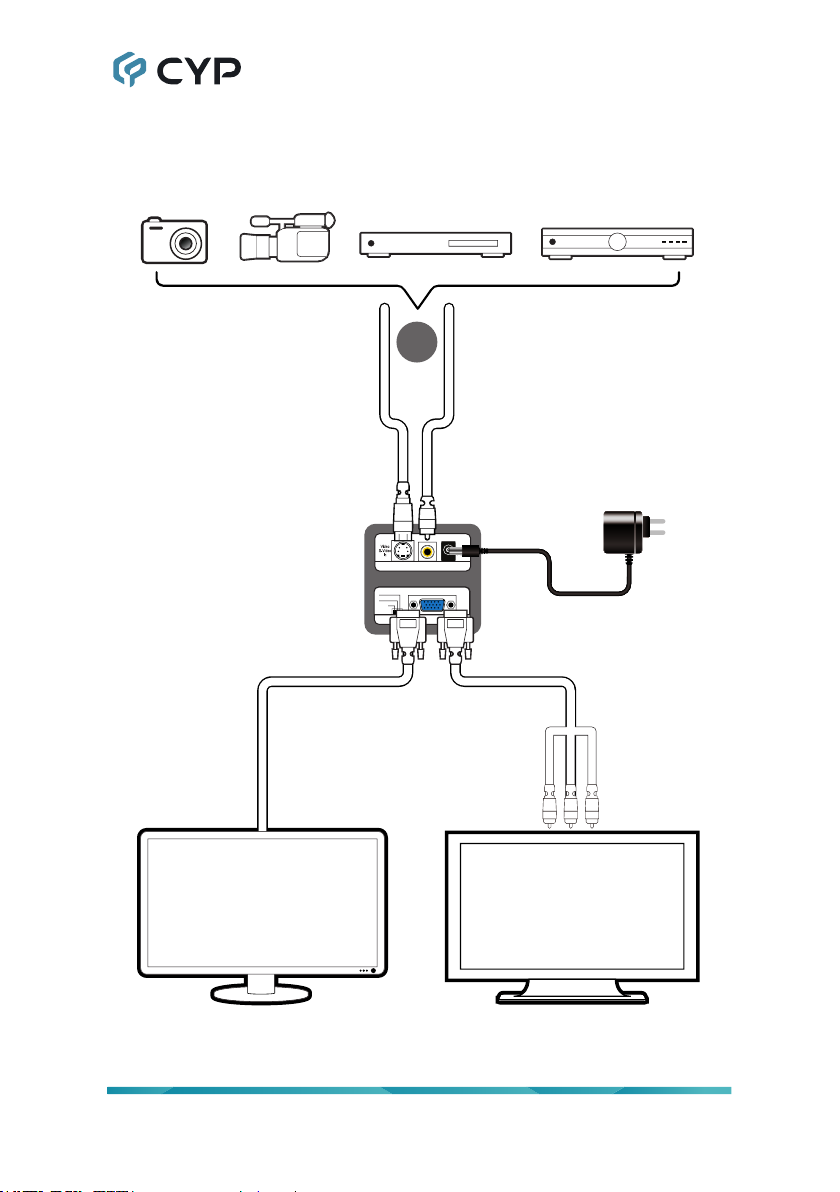

7. CONNECTION DIAGRAM
PC/HD
Out
XGA/
480P
576P
SXGA/720P
UXGA/1080P
OR
HD-SDI Source
e.g. Camera
or or or
Camera DVD Player Set-top Box
Power Supply
CV IntputSV Input
D-Sub
PC Monitor
D-Sub
or
3RCA
TV with
Component input
