Operation Manual
Operation Manual
CH-507RXWPL
HDMI over Single CAT5e/6/7 Wall-plate Receiver
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE
RDV1 13/01/15 Preliminary Release
RDV2 20/01/15 Updated Text & Diagrams
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Receiver Front Panel........................3
6.2 Receiver Rear Panel ........................4
6.3 IR Cable Pin Assignment..................4
7. Connection Diagram ............................ 5
Option 1: Point to Point..........................5
Option 2: Matrix System.........................6
8. Specications ........................................ 7
8.1 Technical Specications .................7
8.2 CAT5e/6/7 Cable Specication .....8
9. Acronyms ............................................... 8
1
1. INTRODUCTION
The HDMI over Single CAT5e/6/7 Wall-plate Receiver is designed
to receive uncompressed video, audio and IR control data from
a compatible transmitter over a single run of CAT5e/6/7 cable at
a distance of up to 60 meters. It has the added benet of control
through the built-in IR ports. Additionally, it can be powered by
a compatible transmitter unit via the Power over Cable (PoC)
functionality allowing for greater exibility in installations.
2. APPLICATIONS
• Extend an HDMI signal to a remote location
• Household entertainment sharing and control
• Showroom display and control
• Classroom display and control
3. PACKAGE CONTENTS
• 1×HDMI over Single CAT5e/6/7 Wall-plate Receiver
• 1×IR Extender
• 1×Operation Manual
4. SYSTEM REQUIREMENTS
• HDMI equipped source device (connected with HDMI cables) or
DVI equipped source (connected with DVI to HDMI cables)
• HDMI equipped display (TV or monitor) or AN HDMI equipped AV
receiver, connected with HDMI cables
• Industry standard CAT5e/6/7 cable
• Compatible PoC HDBaseT™ Receiver
2
5. FEATURES
• HDMI with 3D, 4K2K support, HDCP and DVI compliant
• Simultaneous tranmisson of uncompressed data over a single 60m
CAT5e/6/7 cable (35m for 4K2K signals)
• Uncompressed video support up to 1080p@60 Hz/36-bit
• High denition audio support up to LPCM 7.1CH, Dolby TrueHD,
Dolby Digital Plus and DTS-HD Master Audio
• Supports HDCP repeater and CEC bypass functions
• Easy to install wall plate design
Note:
1. This system was tested with CAT6/23AWG and CAT5e/24AWG
cables, results may vary with cables of a different specication.
2. The PoC function requires a compatible Transmitter unit.
Transmitters from other brands may not be compatible.
3. For playback of 4K2K HDMI source signals, a 4K2K capable display
and High Speed HDMI cables are required.
3
6. OPERATION CONTROLS AND FUNCTIONS

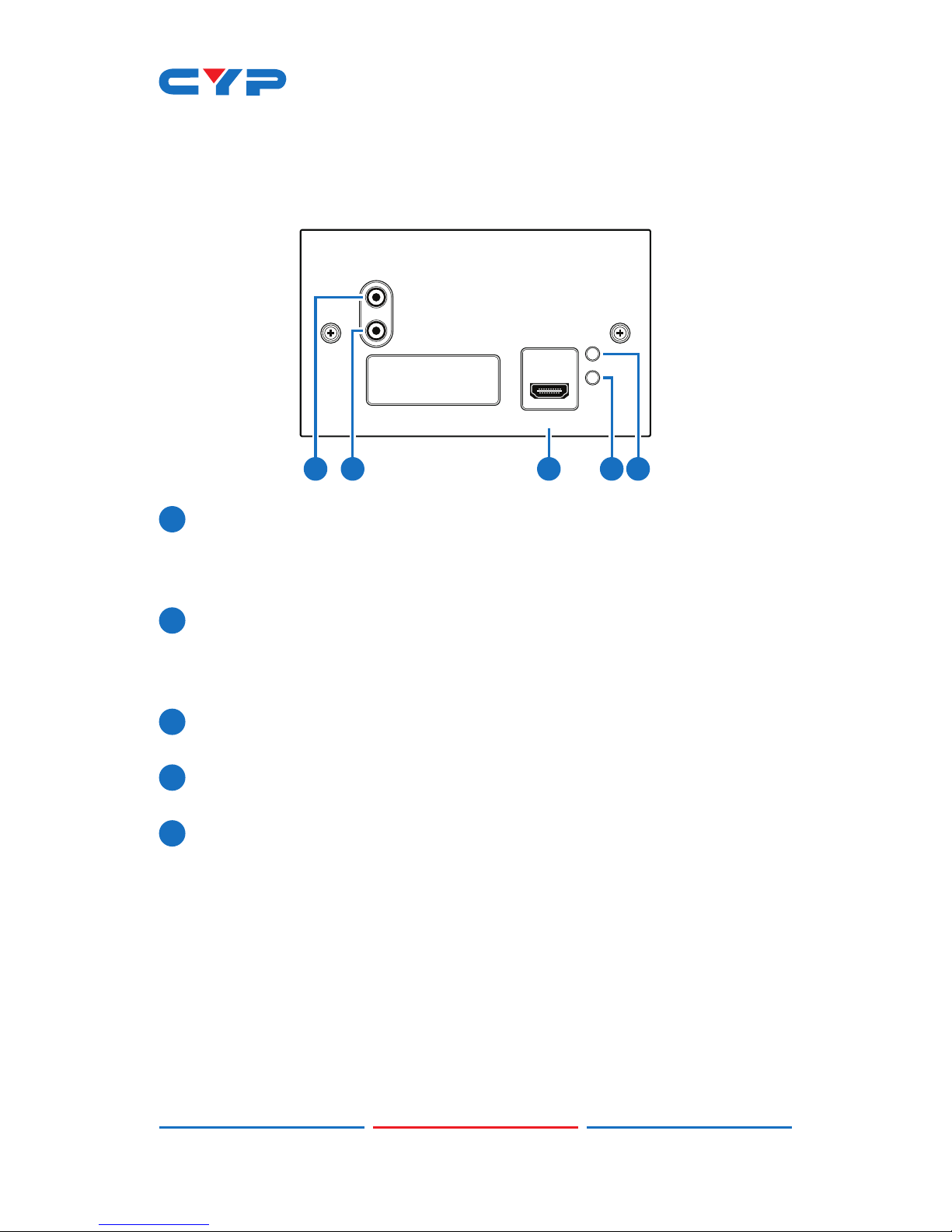

6.1 Receiver Front Panel
HDMI OUT
POWER
LINK
IR 1
EXTENDER
IR 2
BLASTER
1 2 3 4 5
1
IR 1 EXTENDER: Connect an IR Extender cable for IR signal
reception. Signals received will be transmitted to the transmitter
unit. Ensure that the remote being used is within the direct line-of-
sight of the IR Extender.
2
IR 2 BLASTER: Connect an IR Blaster cable for IR signal transmission.
IR signals received by an IR extender connected to the transmitter
unit will be transmitted by this blaster. Place the IR Blaster in direct
line-of-sight of the equipment to be controlled.
3
HDMI OUT: Connect to a HDMI equipped TV/monitor for display of
the HDMI source signal.
4
POWER LED: This LED will illuminate when the device is connected
and powered by a compatible transmitter unit via PoC.
5
LINK LED: This LED will illuminate when both the source connected
to the transmitter and the display connected to the receiver are
connected.
4
6.2 Receiver Rear Panel
1
1
CAT5e/6/7 IN: Connect to the transmitter unit with a single
CAT5e/6/7 cable for transmission of all data signals.
6.3 IR Cable Pin Assignment
3
1
2
3
2
1Power
IR Blaster Signal
NC
IR Signal
Power
Ground
IR Extender
IR Blaster
5
7. CONNECTION DIAGRAM
Option 1: Point to Point
Note: The receiver is
powered via PoC by
the transmitter.
Power
Link
CAT 5e /6 OutLite
DC 24V
IR2 Extender
RS232 In IR1 Blaster
HDMI In
HDMI OUT
POWER
LINK
IR 1
EXTENDER
IR 2
BLASTER
7m3m 3m
60°
m
m
m
1.5m
60°
1.5m
60°
7m
3m
3m
60°
m
m
3m
HDMI
Input
HDMI
Output
Power
Supply
HDTV
IR Extender
IR Extender
DVD/Blu-ray Player
IR Blaster
Single
CAT5e/6/7
Cable
IR Blaster
Compatible
Transmitter
unit with PoC
