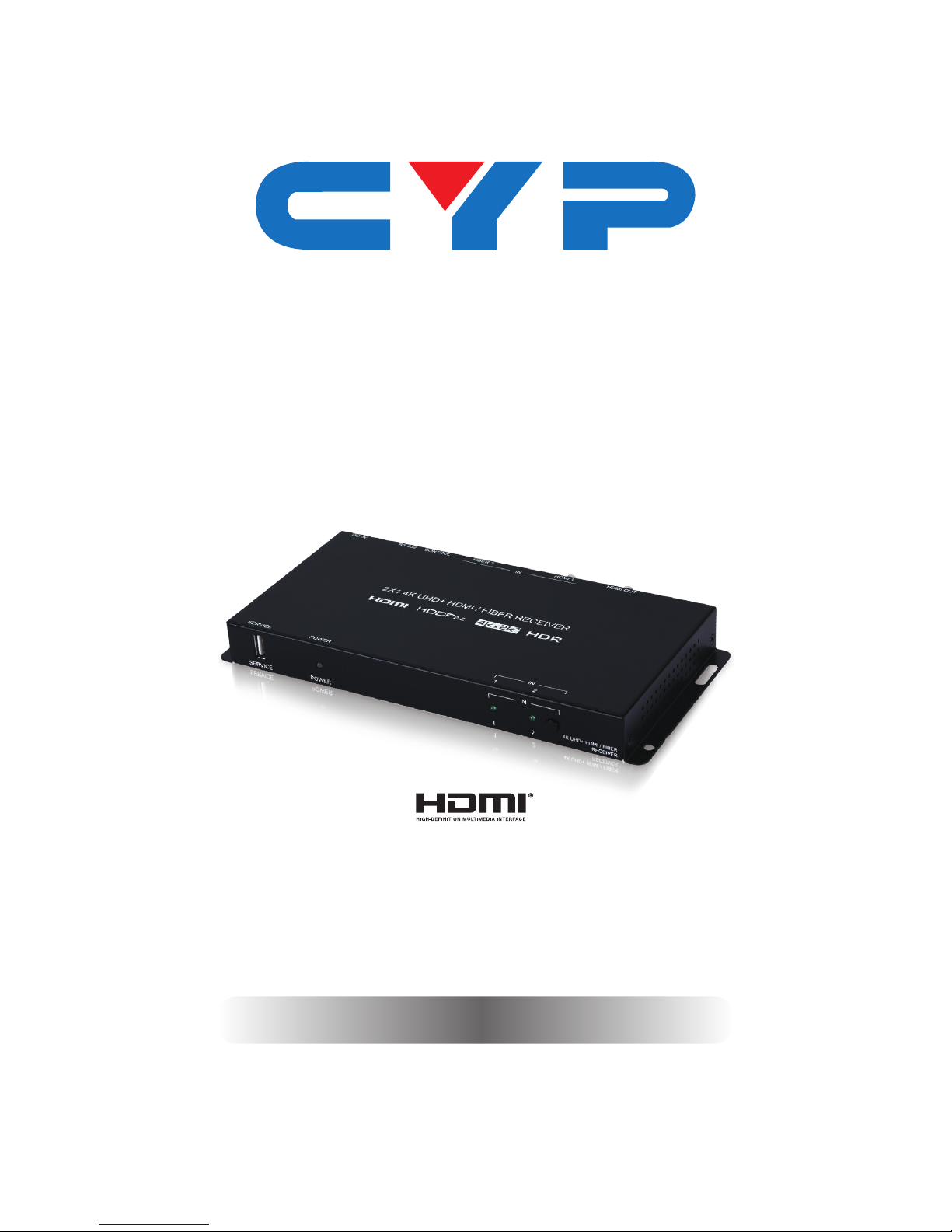

CYP CPLUS-21FRX Bedienungsanleitung
CPLUS-21FRX
4K UHD+HDMI over Fiber Receiver
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2018 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in
use to avoid wasting electricity.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
VS1 21/06/18 Final technical review
CONTENTS
1. Introduction......................................................1
2. Applications.....................................................1
3. Package Contents ..........................................1
4. System Requirements......................................2
5. Features............................................................2
6. Operation Controls and Functions.................3
6.1 Front Panel ................................................. 3
6.2 Rear Panel.................................................. 3
6.3 WebGUI Control ........................................ 4
6.4 RS-232 Control ......................................... 11
6.5 Telnet Control .......................................... 11
6.6 RS-232 and Telnet Commands .............. 12
7. Connection Diagram ....................................17
7.1 Conguration 1........................................ 17
7.2 Conguration 2........................................ 18
8. Specications ................................................19
8.1 Technical Specications ........................ 19
8.2 Video Specications............................... 20
8.3 Cable Specications .............................. 21
9. Acronyms .......................................................21
1
1. INTRODUCTION
This HDMI over Fiber Receiver is designed to extend your 4K UHD
HDMI signal using a single segment of multi-mode optical ber
cable. Using ber optical cable provides many advantages over
traditional copper-based extension methods, including immunity to
RF and magnetic interference, thinner and lighter cables, and much
longer extension distances (up to 300 meters per segment). Multiple
ber Transceiver units can be placed between the Transmitter and
Receiver to greatly extend the total extension distance via cascading
(up to 300 additional meters per Transceiver) if the extra distance or
exibility is desired.
The HDMI input and output of this unit supports resolutions up
to 4K@60Hz (4:4:4, 8-bit), 10/12-bit HDR, 16-bit Deep Color up to
1080p@60Hz, HD audio formats and other features dened by the
HDMI 2.0 specication. The ber input of this unit supports sources
with bandwidth up to 10.2Gbps (4K@30Hz or 4K@60Hz, YUV 4:2:0).
Six pre-dened internal EDIDs, one external EDID selection and two
User uploaded EDIDs are available for EDID management. The unit
provides intuitive front panel controls as well as RS-232, Telnet and
WebGUI control options.
2. APPLICATIONS
• Entertainment Rooms & Home Theaters
• Showrooms & Demo Rooms
• Lecture Hall Presentations
• Public Commercial Displays
3. PACKAGE CONTENTS
• 1×HDMI over Fiber Receiver
• 1×5V/2.6A DC Power Adapter
• 1×3.5mm to 9-pin D-sub Adapter Cable
• 1×Shockproof Feet (Set of 4)
• 1×Operation Manual
2
4. SYSTEM REQUIREMENTS
• HDMI source equipment such as a media player, video game
console or set-top box.
• HDMI receiving equipment such as an HDTV, monitor or audio
amplier.
• The use of “Premium High Speed HDMI” cables is highly
recommended.
• Use of the optical ber input requires a compatible ber Transmitter
or Transceiver and appropriate paired LC multi-mode ber in a
crossover conguration.
5. FEATURES
• HDMI with 3D & 4K@60Hz with HDR support
• DVI 1.0 compliant with the use of an HDMI-DVI adaptor
• HDCP 2.2 and 1.x compliant
• 1 HDMI (18Gbps) input
• 1 Fiber (10.2Gbps, LC pair, multimode) input
• 1 HDMI (18Gbps) output
• Supports UHD resolutions up to 4K@60Hz (4:4:4, 8-bit)
• Supports 16-bit Deep Color up to 1080p@60Hz
• Supports pass-through of audio formats: LPCM 2.0/5.1/7.1, Bitstream,
and HD Bitstream
• Comprehensive EDID management support including 6 pre-dened
internal EDIDs, 1 external EDID, and 2 User uploaded EDIDs
• Compatible with the 3×2 HDMI and Fiber Matrix Transceiver
(optional)
• Fiber transmission distances of up to 300 meters
• Supports control via front panel, WebGUI, Telnet, and RS-232
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
SERVICE POWE
R1
2
IN
4K UHD+ HDMI / FIBER
RECEIVER
321
1SERVICE: This slot is reserved for rmware update use only.
2POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
3IN Button & LEDs: Press this button to sequentially switch through
both inputs and mute. The LED will illuminate solid to indicate
which source is currently selected. When both LEDs are blinking,
the output is muted.
6.2 Rear Panel
DC 5VRS-232
CONTROL
FIBER 2
HDMI 1HDMI OUT
IN
3
21
4 5
1HDMI OUT: Connect to an HDMI TV, monitor or amplier for digital
video and audio output.
2HDMI 1 & FIBER 2 IN: Connect to HDMI source equipment such
as a media player, game console or set-top box. Connect the
ber (paired LC) input to the ber output from a compatible ber
Transmitter or Transceiver unit.
3CONTROL: Connect directly, or through a network switch, to your
PC/laptop to control the unit via Telnet/WebGUI.
4RS-232: Connect, via the provided 9-pin adapter cable, to a PC,
laptop or other serial control device to send RS-232 commands to
control the unit.
5DC 5V: Plug the 5V DC power adapter into the unit and connect it
to an AC wall outlet for power.
4
6.3 WebGUI Control
• Device Discovery APP
Please obtain the “Device Discovery” software from your authorized
dealer and save it in a directory where you can easily nd it.
Connect the unit and your PC/Laptop to the same active network
and execute the “Device Discovery” software. Click on “Find Devices
on Network” and a list of devices connected to the local network will
show up indicating their current IP address.
Note: The unit’s default IP address is 192.168.1.50.
By clicking on one of the listed devices you will be presented with the
network details of that particular device.
1) IP Mode: If you choose, you can alter the static IP network settings
for the device, or switch the unit into DHCP mode to automatically
obtain proper network settings from a local DHCP server. To switch
to DHCP mode, please select DHCP from the IP mode drop-down,
then click “Save” followed by “Reboot”.
2) WebGUI Hotkey: Once you are satised with the network settings,
you may use them to connect via Telnet or WebGUI. The network
information window provides a convenient link to launch the
WebGUI directly.
5
• WebGUI Control Page
After connecting to the WebGUI’s address in a web browser, the
login screen will appear. Please enter the appropriate user name and
password then click “Submit” to log in.
Note: The default user name and password is “admin”.
On the left side of the browser you will see the following menu tabs
where all primary functions of the unit (Video, EDID Settings and
System Settings) are controllable via the built in WebGUI. The individual
functions will be introduced in the following sections.
Clicking the red “Logout” tab will automatically log the currently
connected user out of the WebGUI and return to login page.
