CYP CH-1529RXV Bedienungsanleitung
CH-1529RXV
4K UHD+HDMI over HDBaseT Receiver
with HDR & OAR
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2018 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in
use to avoid wasting electricity.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
RDV1 02/05/18 Preliminary release
VS1 10/05/18 Final technical review
VS2 21/05/18 Updated section 6.1 & 6.5
CONTENTS
1. Introduction......................................................1
2. Applications.....................................................1
3. Package Contents ..........................................2
4. System Requirements......................................2
5. Features............................................................2
6. Operation Controls and Functions.................3
6.1 Front Panel ................................................. 3
6.2 Rear Panel.................................................. 4
6.3 IR Cable Pinouts ........................................ 5
6.4 RS-232 Control ........................................... 5
6.5 RS-232 Commands.................................... 6
7. Connection Diagram ......................................7
8. Specications ..................................................8
8.1 Technical Specications .......................... 8
8.2 Video Specications................................. 9
8.3 Audio Specications............................... 10
8.4 Cable Specications .............................. 11
8.5 HDBaseT Features.................................... 11
9. Acronyms .......................................................12
1
1. INTRODUCTION
This HDMI over single Cat.5e/6/7 Receiver is a great solution for
extending HD audio and video as well as Ethernet and control via
a single run of Cat.5e/6/7 cable over distances of up to 100 meters.
Multiple data and control interfaces are provided, including IR,
RS-232 and LAN connections. This Receiver complies with the
advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting
the legacy HDCP 1.x and HDMI 1.x standards. Despite HDBaseT’s
10.Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and
including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR,
are able to be processed and extended by the use of AVLC (Adaptive
Visually Lossless Compression) when connected to a compatible
AVLC Transmitter.
Beyond video, data, and control this unit also contains useful audio
features. The Optical Audio Return (OAR) feature supports transmitting
optical audio back to a compatible Transmitter for local playback.
Rounding out the feature set is automatic TMDS re-clocking support.
This Receiver (PD) is powered by 48V PoH (Power over HDBaseT) from
a compatible Transmitter (PSE), allowing for exibility within different
installation scenarios.
2. APPLICATIONS
• 48V PoH from Transmitter (PSE) to Receiver (PD)
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
2
3. PACKAGE CONTENTS
• 1×HDMI over HDBaseT Receiver with HDR & OAR
• 1×3.5mm to IR Extender Cable
• 1×Rackmount Ears (Set of 2)
• 1×Operation Manual
4. SYSTEM REQUIREMENTS
• HDMI receiving equipment such as an HDTV, monitor or audio
amplier.
• A compatible HDBaseT Transmitter (PSE) with 48V PoH support is
required.
• The use of industry standard Cat.6, Cat.6a or Cat.7 cable is highly
recommended.
• The use of “Premium High Speed HDMI” cables is highly
recommended.
5. FEATURES
• HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible
• HDCP 2.2 and HDCP 1.x compliant
• Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input
and output
• Supports Deep Color input and output up to 12-bit
• Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
• Supports CEC bypass
• Simultaneous reception of uncompressed video, audio and data
over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p60 and
70m/230ft at 4K
• HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet,
48V PoH, and Control (bidirectional IR/RS-232 pass-through)
• Support for compatible AVLC (Adaptive Visually Lossless
Compression) Transmitters, allowing for the output of HDMI sources
that were originally beyond 10.2Gbps (340MHz) and up to 18Gbps
(600MHz) with no loss of visual quality
3
• Supports the Optical Audio Return (OAR) function to transmit optical
audio from the Receiver to a compatible Transmitter
• Performs TMDS re-clocking and signal re-generation for improved
signal integrity
• Ultra-thin wall plate design (16mm thickness) for convenient
installation
• Powered by standard 48V PoH from Transmitter (PSE) to Receiver
(PD) (compatible Transmitters only)
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
CONSOLE/
BYPASS
RX
RS-232SERVICE
OPT. IN
TX
LINK
POWER
IR BLASTER 1IR EXTENDER 2
1 2 3 4 5 6 7
1POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
LINK LED: This LED will illuminate solidly when a live connection with
a compatible Transmitter is active.
2OPT. IN: Connect to the optical audio output of a device such
as a media player or game console using an appropriate optical
cable. Audio is sent to the Optical Audio Return output on a
connected compatible Transmitter.
3IR EXTENDER 2: Connect to an IR Extender to extend the IR control
range of devices connected to the other end of the HDBaseT
connection. Ensure that the remote being used is within direct line-
of-sight of the IR Extender.
4IR BLASTER 1: Connect to the provided IR Blaster to transmit IR
signals from the other end of the HDBaseT connection to devices
within direct line-of-sight of the IR Blaster.
4
5SERVICE: This USB port is reserved for rmware update.
6RS-232: Connect to a PC, laptop or other serial control device
with a 3-pin adapter cable for the extension of RS-232 signals to
the Transmitter in "Bypass" mode, or for control this unit when in
"Console" mode.
Note: Depending on the controlled device connected to the
Transmitter side, the Tx and Rx pins might need to be reversed.
7CONSOLE/BYPASS: This switch controls the operational mode of the
RS-232 port. When set to “Bypass”, RS-232 signals will be passed to
the connected Transmitter. When set to “Console” the RS-232 port
may be used to send commands directly to the Receiver.
Note: RS-232 bypass requires both the Transmitter and Receiver to
be set to “Bypass” mode.
6.2 Rear Panel
CAT5e/6/7 IN HQ
STD
HDMI OUT LAN
1 32 4
1LAN: Connect to an Ethernet supporting device or to your local
network, as appropriate, to extend the network to both ends of
the HDBaseT connection.
2HQ & STD LEDs: These LEDs illuminate to indicate which AVLC mode
will be used when AVLC is required. The lower green LED indicates
that AVLC will use HQ (High Quality) mode. The upper yellow LED
indicates that AVLC will use STD (Standard) mode.
3HDMI OUT: Connect to an HDMI TV, monitor or amplier for digital
video and audio output.
4CAT5e/6/7 IN: Connect to a compatible, 48V PoH supplying,
HDBaseT Transmitter with a single Cat.5e/6/7 cable for transmission
of all data signals as well as to power the unit.
5

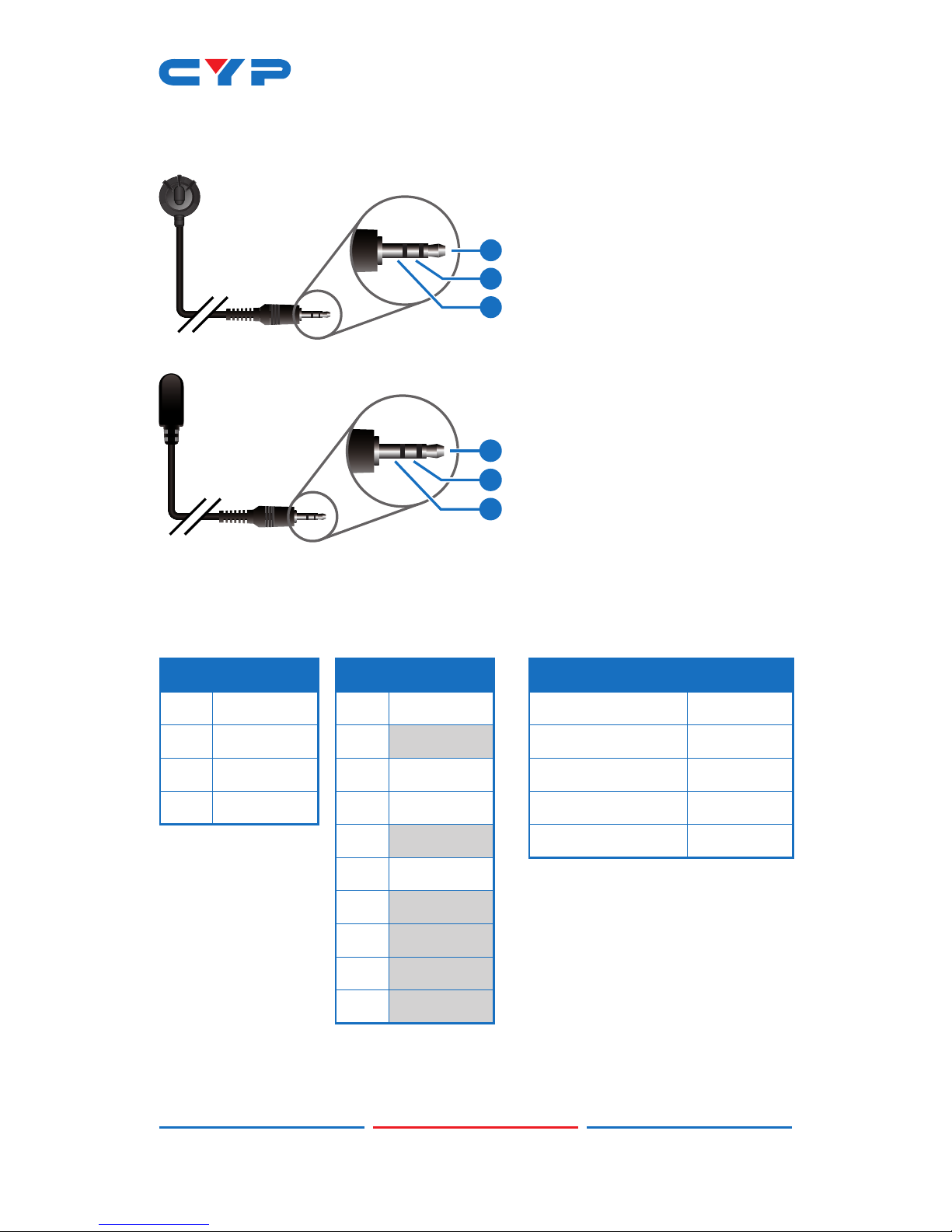

6.3 IR Cable Pinouts
3
1
2
Infrared
Power
Ground
IR Extender
3
1
2
IR Blaster Power
Infrared
NC
6.4 RS-232 Control
Terminal Block Controlling PC Serial Port Settings
Pin Denition Pin Denition Baud Rate 19200
1 GND 1 Data Bits 8
2Rx 2Rx Parity Bit None
3Tx 3Tx Stop Bits 1
4Flow Control None
5 GND
6
7
8
9
