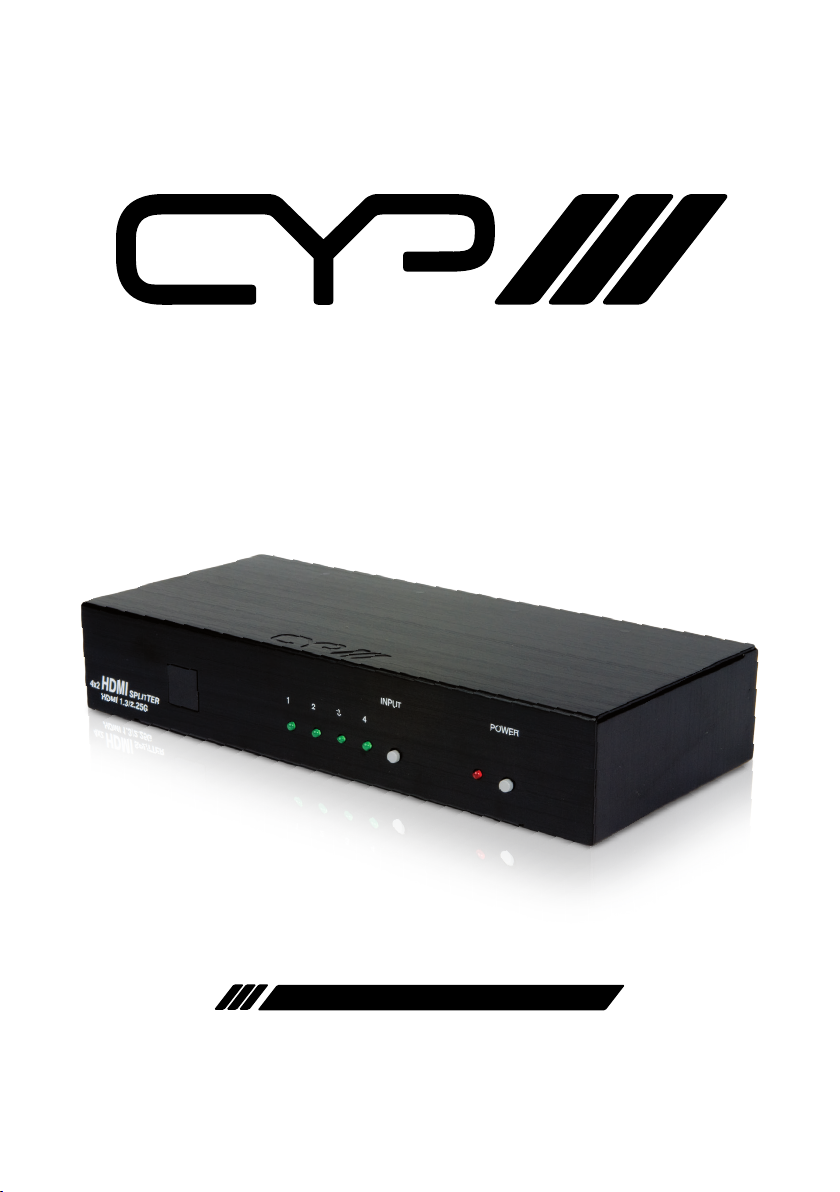

CYP EL-42S Bedienungsanleitung
EL-42S
4-Way HDMI Switcher with 2 Identical Outputs
OPERATION MANUAL
3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2019 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v2.00 10/07/2019 Updated format/diagrams
5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features..................................................7
6. Operation Controls and Functions.......8
6.1 Front Panel................................................... 8
6.2 Rear Panel..................................................... 8
6.3 Remote Control.......................................... 9
6.4 RS-232 Remote Control Protocol ......... 9
6.5 RS-232 Commands.................................... 9
7. Connection Diagram .......................... 10
8.Technical Specifications...................... 11
6
1. INTRODUCTION
The EL-42S switcher allows the user to input four HDMI sources and
switch between these sources to display HD content on 2 displays. This
switcher can be controlled via the supplied remote control, RS-232, or by
using the input switching button on the front of the device.
2. APPLICATIONS
Home Cinema/Entertainment
Lecture Room/Hall Presentation
Show Room/Demo Room
Public Commercial Display
Information Board
3. PACKAGE CONTENTS
4-Way HDMI Switcher with 2 Identical Outputs
1×IR CR-32 Remote Control
5 V/2.6 A DC Power Adaptor
Operation Manual
4. SYSTEM REQUIREMENTS
Input source equipment such as Blu-ray/DVD/PS3 player or Set-Top-Box
and output HDMI TV/Display with connection cable)
7
5. FEATURES
v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant
HDMI 4 Way Switcher with 2 Identical Outputs
Resolutions Supported: PC - VGA, SVGA, XGA, SXGA, UXGA & WUXGA
(1920x1200). HDTV - 480i, 576i, 480p, 576p, 720p, 1080i, 1080p and
1080p24fps
High Denition Audio supported - Dolby TrueHD, Dolby Digital Plus
and DTS-HD Master Audio plus LPCM
Auto signal enhancement feature can improve signal quality after
long distance transmission
RS232 & IR Remote Control
Supports 'Deep Colour' (10 & 12 bit)
Dual HDMI outputs for simultaneous connection to two HD Displays
Supports 3D signals
Supports xvYCC
8
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
POWERINPUT
4321
1 2 3
1IR Window: This IR Receiver receives the remote control signal from
the included remote control
2HDMI input Select/Indicator: Press the "Input" button sequentially
to switch to your desired input (HDMI 1 to HDMI 4), the LED will
illuminate to indicate which input source is selected
3POWER Switch/Indicator: Press the "POWER" button to turn on/o
the power, the power LED illuminate in red colour means the power is
turned on, when the LED not illuminate power is turned o.
6.2 Rear Panel
RS-232
HDMI OUTHDMI OUT
2 1
HDMI IN
4
HDMI IN
3
HDMI IN
2
HDMI IN
DC 5V
1
1 3 42
1HDMI Outputs 1 and 2: Connect each of the output ports to the
HDMI display. When more than one output connected, the HDMI
outputs play identical video signal simultaneously.
2RS232: 9-pin D-Sub connector for connecting to your PC or other
control console for remote control.
3HDMI Inputs 1 to 4: Connect each of the input ports to the HDMI or
DVI output of your source equipment such as DVD player or set-top-
box.
4Power: Plug the 5V DC power supply into this unit and connect the
adaptor to AC wall outlet.
9
6.3 Remote Control
1Power: Press the button to turn on/o the unit.
2Direct input selector: Press 1, 2, 3 or 4 to select
the desired input source.
6.4 RS-232 Remote Control Protocol
Splitter Remote Controller
Pin Definition Pin Definition
1NC 1NC
2TxD 2RxD
3RxD 3TxD
4NC 4NC
5GND 5GND
6NC 6NC
7NC 7NC
8NC 8NC
9NC 9NC
Baud Rate: 9600 bps
Data bit: 8 Bits
Parity: None
Stop Bit: 1 bit
6.5 RS-232 Commands
RS-232 command Operation
POWER 00 Select power OFF
POWER 01 Select power ON
PORT 01 Select port 1
PORT 02 Select port 2
PORT 03 Select port 3
PORT 04 Select port 4
1
2
10
7. CONNECTION DIAGRAM
RS-232
HDMI OUT HDMI OUT
2 1
HDMI IN
4
HDMI IN
3
HDMI IN
2
HDMI IN
DC 5V
1
HDTV Projector
RS-232 Control System
RS-232
HDMI Outputs
PSU
HDMI Inputs
Set-top Box Games Console
Satellite Receiver Blu-ray Player
