CYP EL-42HEAC Bedienungsanleitung

EL-42HEAC

4 Way HDMI Switcher with

2 Identical Outputs

(Including HEAC function)

OPERATION MANUAL

All manuals and user guides at all-guides.com

all-guides.com

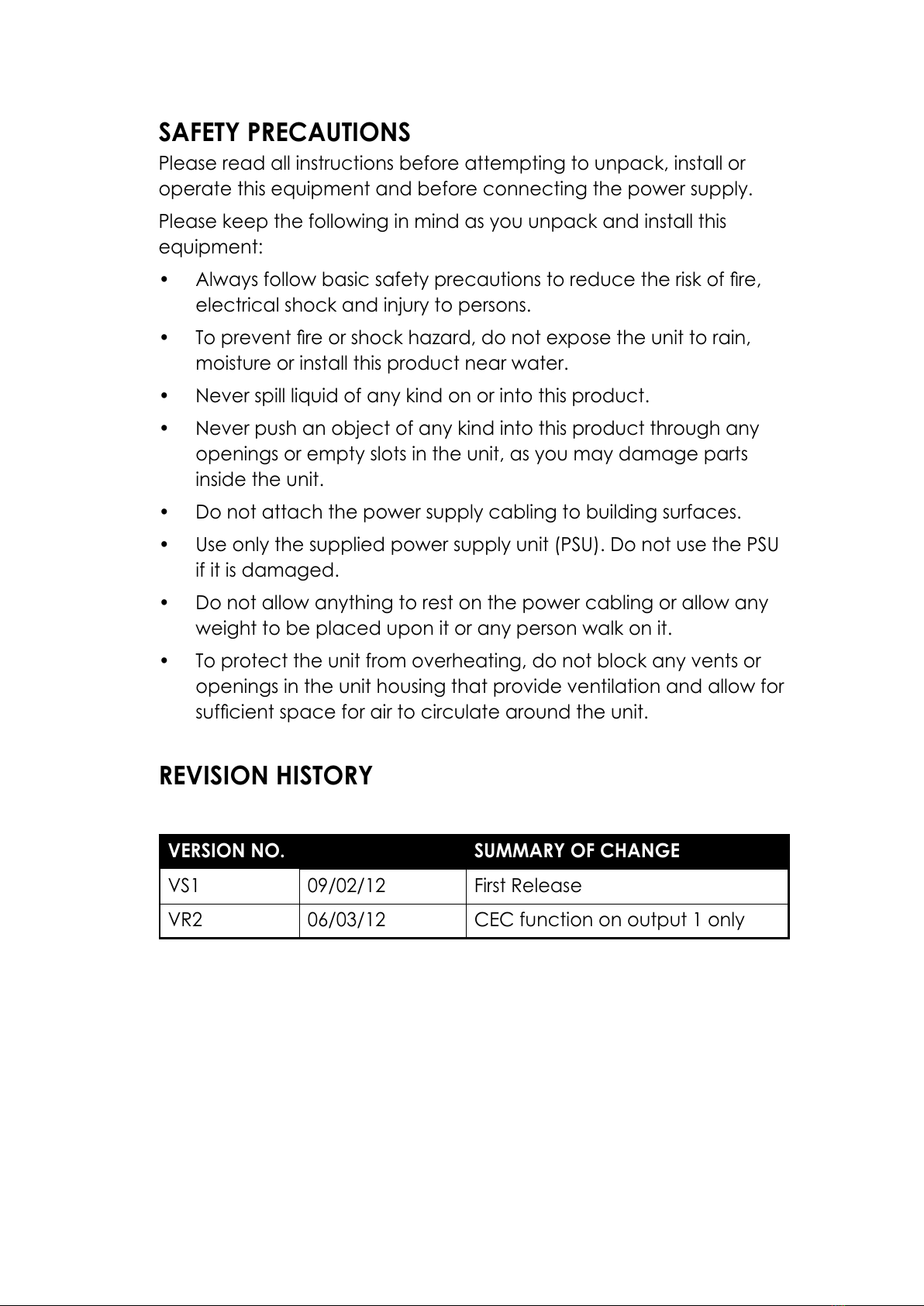

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

 

electrical shock and injury to persons.

 

moisture or install this product near water.

 Never spill liquid of any kind on or into this product.

 Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

 Do not attach the power supply cabling to building surfaces.

 Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

 Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

 To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for



REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

VS1 09/02/12 First Release

VR2 06/03/12 CEC function on output 1 only

All manuals and user guides at all-guides.com

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

5. Features.................................................. 2

6. Operation Controls and Functions....... 3

6.1 Front Panel ........................................3

6.2 Rear Panel.........................................4

6.3 Remote Control................................5

6.4 RS232 Protocol and Command......6

7. Connection Diagram ............................ 7

 ........................................ 8

9. Acronyms ............................................... 9

All manuals and user guides at all-guides.com

1. INTRODUCTION

This is a high performance HDMI™ Switcher with four HDMI inputs &

two outputs HDMI™ Switcher, the output ports support Audio Return

Channel (ARC) from a compaitble ARC TV and HDMI Ethernet



The HDMI Switcher provides an S/PDIF link from the HDMI signal and



the sink.

The HEC feature adds a network connection to the HDMI link 100 Mbps

Ethernet connection. Using an HDMI with HEAC cable allows for the

convenient integration of internet capable HEAC Televisions into the

end user’s home network system.

2. APPLICATIONS

 Simultaneously display a HDMI source on 2 TVs/displays

 Connect internet capable devices through HEC to network routers/

modems

 Connect network attached media streaming devices to

compatible HEAC TV

 Showroom displays

 Educational demonsrations

 Commercial usage

3. PACKAGE CONTENTS

 4 × 2 HDMI Switcher with HEAC

 5 V/2.6 A DC power supply adaptor

 Operation Manual

4. SYSTEM REQUIREMENTS

 Source equipment with HDMI output connector(s)

 Displays TV with HDMI HEAC input connector(s)

All manuals and user guides at all-guides.com

5. FEATURES

 

 Two output ports supporting Ethernet Channel (HEC) and Audio



 HDMI v1.4 supports:

 Audio Return Channel (ARC)

3D

 

networking at up to 100 Mb/sec

 

 EDID optiions include Standard, TV or Lock EDID feature

 Supports CEC bypass on HDMI OUT 1

 Audio support:

 HDMI 1.4 compatible audio interface

 S/PDIF pass through

All manuals and user guides at all-guides.com

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

INPUT TVSTD LOCK POWEREDID

3D2CH 4321

BITSTREAM

LPCM 5.1/7.1

1 52 3 4

1IR Remote Control Sensor

2Audio/3D Content Indicator

The system will automatically detect incoming audio/video signal

type and the green LEDs will illuminate accordingly.

3Input Selection

Press input button to select input source, the Blue LED will illuminate

accordingly. If none of the LEDs are illuminated then no input

has been selected, this is to allow the device to access the ARC

feature alone.

4EDID Selection

The EDID control button selects

between using the EDID from the

display attached to Output 1/TV or

using the onboard EDID/STD (the

Green LED will illuminate accordingly).

When the EDID button is pressed for

longer then 3 seconds, the RED LED will

illuminate to indicate that the EDID is already locked to STD or TV

EDID as you selected accordingly. When EDID is set on STD audio

will support PCM 2CH, video modes supported are listed in the

table above.

5Power Button

Press this button to switch on the device or press it again to set it to

standby mode.

81012

RGB 999

Y444 988

Y422 9

XvYCC 988

All manuals and user guides at all-guides.com

all-guides.com

6.2 Rear Panel

DC 5V

HDMI IN

RS-232

HDMI OUT

1212 1234

ETHERNET

SPDIF/ARC

OUT

1 2 3 4

1RS-232





to Section 6.4.

2HDMI OUT 1~2/ARC 1~2/ETHERNET 1~2

HDMI/HEAC equipped TVs or displays will pass the Ethernet and

Audio signals via HDMI v1.4 cable back to the HDMI Output port,

the splitter will separate the Ethernet and audio, and will output





DVD player, audio content can be sent “upstream” from the TV



The HDMI Switcher can use the HDMI Ethernet Channel (HEC) to

consolidate video, audio and data streams into a single HDMI

cable connection to an Ethernet Hub/modem in order to access

the internet and also incorporates a dedicated data channel



at up to 100 Mb to control and search from the sink (please see

Section 6 for connection diagram). The HDMI output number is

correspondingto ARC and Ethernet output number.

Note 1: Be sure to connect devices with a suitable HDMI cable

designed to support the Ethernet Channel functionality, either the

standard HDMI cable with Ethernet or High Speed HDMI cable with

Ethernet.

All manuals and user guides at all-guides.com

Note 2: When the HDMI output has both Audio and ARC at the

same time the ARC will be the prioritized.

3HDMI INPUT 1~4

Connect to HDMI or DVI sources equipment such as DVD player or



Note A: This system was tested with 24 AWG cables. If using cables



Note B:!"

LED UA40B700 12-bit LCD TV.

Note C: Figures provided in this manual are for reference only,

!"!"!#!

and display being used along with the type of cables and their



4Power

Plug the DC 5 V power supply into the unit and connect the

adaptor to an AC wall outlet.

6.3 Remote Control

1Power button

Press to switch On the device, press it again to

set the device in standby mode.

2INPUT 1~4

Press the desire input button to select the input

source.

All manuals and user guides at all-guides.com

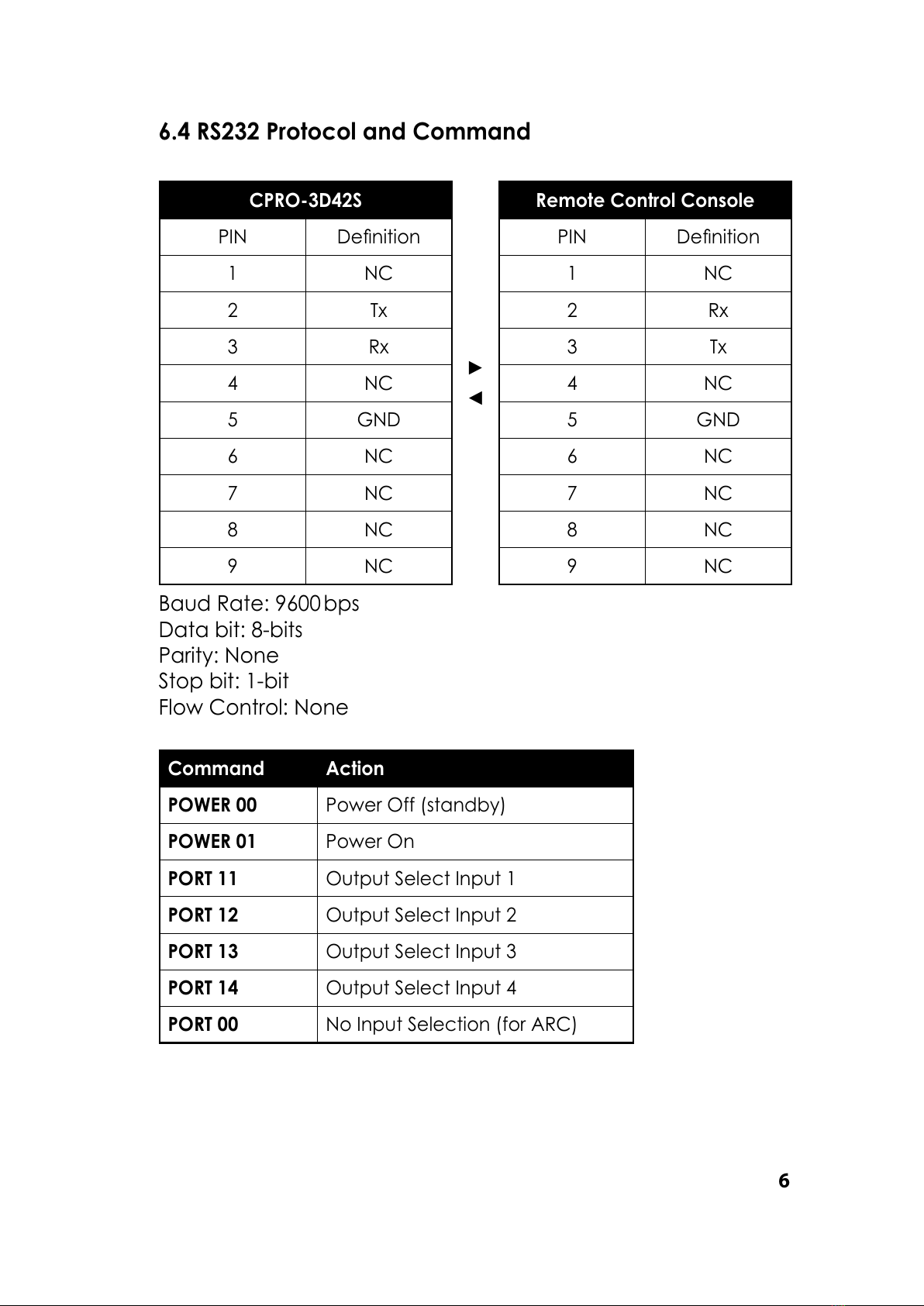

6.4 RS232 Protocol and Command

CPRO-3D42S





Remote Control Console

PIN  PIN 

1NC 1NC

2 2

3 3

4NC 4NC

5 GND 5 GND

6NC 6NC

7NC 7NC

8NC 8NC

9NC 9NC

Baud Rate: 9600 bps



Parity: None



Flow Control: None

Command Action

POWER 00 Power Off (standby)

POWER 01 Power On

PORT 11 Output Select Input 1

PORT 12 Output Select Input 2

PORT 13 Output Select Input 3

PORT 14 Output Select Input 4

PORT 00 No Input Selection (for ARC)

All manuals and user guides at all-guides.com

7. CONNECTION DIAGRAM

DC 5V

HDMI IN

RS-232

HDMI OUT

1212 1234

ETHERNET

SPDIF/ARC

OUT

RS-232

HDMI OUT

12 1 2 1

ETHERNET

SPDIF/ARC

OUT

Blu-ray Player DVD Player

Speakers

AV Amplifier

Notebook

Speakers

Internet

Modem

Blu-ray Player DVD Player

Hub/

Router

TV/Monitor

without ARC

TV/Monitor

with ARC

& HEC

Blu-ray Player

with HEC

ARC

HEC

Audio Loop Out

ARC

Note: In this example,

HDMI In 1 is selected.

EL-42HEAC

All manuals and user guides at all-guides.com
