CYP PU-8H8HBT Bedienungsanleitung

PU-8H8HBT

8 x 8 HDMI HDBaseT™ Matrix (inc. PoE)

OPERATIONS MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and is

believed to be accurate. CYP (UK) Ltd assumes no responsibility for any

infringements of patents or other rights of third parties which may result

from its use.

CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be

contained in this document. CYP (UK) Ltd also makes no commitment to

update or to keep current the information contained in this document.

CYP (UK) Ltd reserves the right to make improvements to this document

and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer le, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express

written permission and consent from CYP (UK) Ltd.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts inside

the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if

it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sucient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE SUMMARY OF CHANGE

RDV1 21/05/2012 Preliminary Release

CONTENTS

1. Introduction ...........................................6

2. Applications ...........................................6

3. Package Contents ..................................6

4. System Requirements ...........................6

5. Features ..................................................7

6. Operation Controls and Functions .......8

6.1 Front Panels ................................................. 8

6.2 Rear Panels ................................................... 9

6.3 Side Panel ...................................................10

6.4 Remote Control ........................................10

6.5 IR Pin Assignment ....................................11

6.6 RS-232 Protocols ......................................12

6.7 RS-232 Commands ..................................13

7. Connection Diagram .......................... 14

8. Specications ...................................... 16

9. Acronyms ............................................. 17

1. INTRODUCTION

As the Flagship 8x8 HDBaseT™ Matrix, the PU-8H8HBT solution oers

complete HDBaseT™ convergence. Installers can switch and distribute up

to 8 HDMI sources, RS-232, 2-Way IR, and PoE to lengths of up to 100m

using CAT5e/6 cable infrastructure. This single box solution will enable an

installer to condently integrate an eight zone multi-room AV system. The

PU-8H8HBT is designed to be used with the PU-507-RX Receiver which

can utilise the Power over Ethernet (PoE) capabilities of the matrix.

2. APPLICATIONS

HDMI System controls

Video/TV wall display and control

Security surveillance and control

Commercial advertising, displaying and control

Lecture room display and control

Hyper market demonstration and control

3. PACKAGE CONTENTS

8×8 HDMI Matrix Switcher over CAT5e/6/7

HDMI over CAT5e/6/7 Receiver (Optional)

2×IR Extender

2×IR Blaster

2×24 V/6.25 A DC Power Adaptor (1 for PoE)

1×IR Remote control

Operation manual

4. SYSTEM REQUIREMENTS

Input source equipment with HDMI connection cables, industry

standard CAT5e/6/7 cables

Output display or audio receiver equipments with HDMI connection

cables

HDMI over CAT5e/6/7 Receiver(s)

5. FEATURES

Supports all v1.3 HDMI resolutions

Supports uncompressed video/audio up to 10.2Gbps

Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i,

1080p, 1080p24; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.

HDMI, HDCP and DVI complaint

High Denition Audio supported: Dolby TrueHD, Dolby Digital Plus

and DTS-HD Master Audio plus LPCM (up to 192kHz)

Uncompressed data transfer over single CAT cable (100m - CAT6; 80m -

CAT5e)

Supports HDMI input up to 15m 1080p 8bit or 10m 1080p 12bit.

Supports RS-232, 2-Way IR, Manual Selection Buttons, and HDMI CEC

control pass through

Selectable EDID settings - TV (downstream) and STD (xed).

Compact 2U Rack mount design

Supports 3D signals

Supports additional IR Control via a master (ALL) Input/Output.

Note: The PoE function is designed for powering compatible receiver units

only—non-PoE receivers will need their own power supply.Receivers of

another brand may not be compatible.

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panels

POWER LOCK

MENU OUTA 1B2C3D4

E5F6G7H8

2 3 4 5 61

LCD Display: Displays the setting information of each input and

output selection.

Power button LED: Press this button to power the device on/o.

The LED will illuminate green when the power is on, red when it is in

'Standby' mode.

LOCK: Press this button to lock all the buttons on the panel, press

again to unlock. The LED will illuminate green when locked.

IR: IR Receiver window (accepts the remote control signal of this

device only).

MENU: Press this button to change the EDID setting from STD (internal)

1 to TV (external) 2 , press it again to conrm the selection.

1~8/A~H and Out/In button: Press the Out or In button to select the

output or input mode then press the required number button to make

the selection accordingly.

For example, if outputs A~D need to be set to input 1 and outputs

E~H need to be set to input 2 then the following sequence of button

presses need to be performed

Press: Out ABCDIn1Menu,

and then press: OutEFGHIn2Menu.

Note: If the menu button is not pressed the selection will not be changed.

6.2 Rear Panels

LAN

RS232

SERVICE

IR OUT

IR IN

IR OUT

IR IN

IR OUT

IR IN

ALL A B C D E F G H

CAT5e/6 OUT

IR OUT

IR IN

CAT5e/6 OUT

IR OUT

IR IN

CAT5e/6 OUT

IR OUT

IR IN

CAT5e/6 OUT

IR OUT

IR IN

CAT5e/6 OUT

IR OUT

IR IN

CAT5e/6 OUTCAT5e/6 OUT

IR OUT

IR IN

CAT5e/6 OUT

MAIN 24V

POE 24V

HDMI IN

V+

GND

V+

2 4

5 10 111 7

LAN: Reserved.

RS-232: Connect to a PC or laptop with D-Sub 9-pin female cable for

the transmission of RS-232 commands.

3 MATRIX IR OUT: Connect to the IR blaster (included in the package) for

transmitting IR signals to the source or display equipment. Place the IR

blaster in direct line-of-sight of the equipment to be controlled

MATRIX IR IN: Connect to the IR extender (included in the package) for

the reception of IR signals from the remote control of this device or the

source and display equipment. Ensure that remote being used is within

the direct line-of-sight of the IR extender.

SERVICE: This slot is to connect with mini USB-B type cable for rmware

update only.

IR IN 1~8: Connect the supplied IR extenders (included in the package)

for IR signal reception. Ensure that remote being used is within the

direct line-of-sight of the IR extender

IR OUT 1~8: Connect the supplied IR blasters (included in the package)

for IR signal transmission. Place the IR blaster in direct line-of-sight of

the equipment to be controlled.

CAT5e/6/7 OUT 1~8: Connect to the Receiver units with a single

CAT5e/6/7 cable from the Receiver for HDMI Audio/Video and IR/RS232

control.

HDMI IN 1~8: Connect to the HDMI input source devices such as a DVD

player or a Set-top Box with HDMI cable or DVI to HDMI converter cable.

PoE 24V: This slot is to plug the power cord with adaptor included in the

package and then connect them with AC wall outlet for power supply, for

powering receivers with Power-over-Ethernet capability.

DC 24V MAIN POWER: This slot is where user connect the 24V DC power

adaptor included in the package and plug the adaptor to an AC wall

outlet for power supply, for powering the main unit.

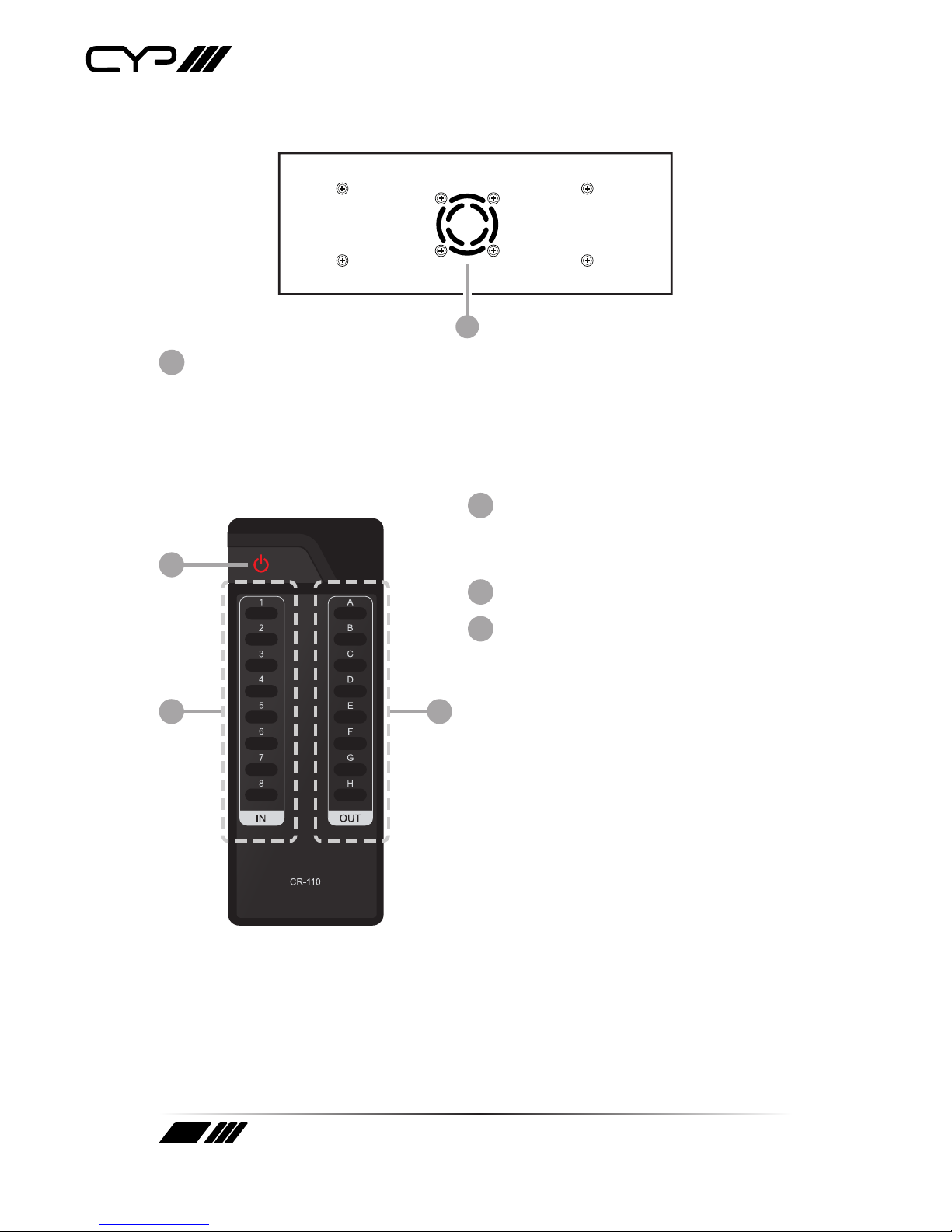

6.3 Side Panel

Fan Ventilator: These are air ventilation areas, DO NOT block these

areas or cover it with any object. Please allow adequate space around

the unit for air circulation

6.4 Remote Control

Power: Press this button to switch

on the device or set it to standby

mode.

IN: Input ports selection 1~8.

OUT: Output ports selection A~H.
