CYP CH-1103TX Bedienungsanleitung

CH-1103TX

HDMI v1.3 to

CAT6 Transmitter

Operation Manual

CH-1103TX

TABLE OF CONTENTS

1. Introduction.................................................................................1

2. Main Features............................................................................. 1

3. Package Contents..................................................................... 1

4. Operation Controls and Functions............................................1

4.1 Front Panel.............................................................................1

4.2 Rear Panel..............................................................................2

5. Connection and Installation...................................................... 2

6. Specifications............................................................................. 2

1. Introduction

This is the transmitter (Tx) unit of HDMI to CAT6 Solution that can extend

HDMI digital signal through CAT-6 cables. This is compatible to HDMI v1.3

specifications, a cutting-age technology which defines the support to

transfer Deep Color (12 bits/color) video and new lossless compressed

(Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio,

with a bandwidth up to 225MHz. The installation of HDMI to CAT6 is easy

and quick, simply place transmitter side next to your HDTV source such as

a DVD player, then place the receiver side next to your CAT 6 to CAT6

repeater unit and get all necessary cables connected and enjoy.

2. Main Features

●Compliant with HDMI 1.3, HDCP 1.1 and DVI1.1 standards.

●Supports digital video formats in Deep Color Mode at up to 36 bits

(12bits/color) and new lossless compressed (Dolby TrueHD, Dolby Digital

Plus and DTS-HD Master Audio) Digital audio .

●Supports CAT-6 cables for data/DDC transmission.

●Supports equalize and recover incoming TMDS data before re-transmitting

them with optimal quality regardless of the incoming signal quality.

●Supports high definition resolution, the cable distance test with 1080p/8bits

resolution the Input/Output source can run up to 30/45 meters. If

1080p/12bits resolution the Input/Output source can run up to 15/15

meters.

●Without power supply. (Need to connect with our HDMI series product,

otherwise this feature will not guarantee.)

●Support CEC bypass.

●Support xvYCC.

3. Package Contents

●HDMI to CAT6 Transmitter.

●Operation Manual.

4. Operation Controls and Functions

4.1. Front Panel

1 HDMI input: Connect the HDMI input port to the HDMI or DVI output of your

source equipment such as DVD player or set-top-box.

2 Power: Plug the 5VDC power supply into the unit and connect the

adaptor to AC wall outlet.

1 2

DC 5V

POWER

HDMI INPUT

4.2. Rear Panel

1 DDC output: Connect the DDC output to the DDC input of the receiver

unit using CAT-6 cable.

2 Video output: Connect the video output to the video input of the receiver

unit using CAT-6 cable.

5. Connection and Installation

6. Specifications

Input port 1 x HDMI

Output ports 1 x CAT-6 output for Video,

1 x CAT-6 output for DDC

Dimensions (mm) 50(W) x 62(D) x 23(H)

Weight(g) 90

Chassis Material Aluminum

Silk Skin Color Black

Operating Temperature Operating from 0°C ~ 40°C

1 2

VIDEODDC

CAT6 OUTPUT

HDMI

HDMI LCD TV

CH-1103TX CH-1103RX

DVD PLAYER

HDMI

Cable

DDC

VIDEO

HDMI

Cable

HDMI

CH-1103Rx

CAT6 to HDMI

Receiver

Operation Manual

CH-1103RX

TABLE OF CONTENTS

1. Introduction.................................................................................1

2. Main Features............................................................................. 1

3. Package Contents..................................................................... 1

4. Operation Controls and Functions............................................1

4.1 Front Panel.............................................................................1

4.2 Rear Panel..............................................................................2

5. Connection and Installation......................................................2

6. Specifications............................................................................. 2

1. Introduction

This is the Receiver (Rx) unit of CAT6 to HDMI Solution that can receive the

digital signal through CAT-6 cables. This is compatible to HDMI v1.3

specifications, a cutting-age technology which defines the support to

transfer Deep Color (12 bits/color) video and new lossless compressed

(Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio,

with a bandwidth up to 225MHz. The installation of CAT6 to HDMI is easy

and quick, simply place receiver side next to your CAT6 transmitter unit,

then place the CAT6 to HDMI receiver side to your display and get all

necessary cables connected and enjoy.

2. Main Features

●Compliant with HDMI 1.3, HDCP 1.1 and DVI1.1 standards.

●Supports digital video formats in Deep Color Mode at up to 36 bits

(12bits/color) and new lossless compressed (Dolby TrueHD, Dolby Digital

Plus and DTS-HD Master Audio) Digital audio.

●Supports CAT-6 cables of variable types.

●Supports equalize and recover incoming TMDS data before re-transmitting

them with optimal quality regardless of the incoming signal quality.

●Supports high definition resolution, the cable distance test with 1080p/8bits

resolution the Input/Output source can run up to 45/15 meters. If

1080p/12bits resolution the Input/Output source can run up to 15/15

meters.

●Without power supply. (Need to connect with our HDMI series product,

otherwise this feature will not guarantee.)

●Support CEC bypass.

●Support xvYCC.

3. Package Contents

●CAT6 to HDMI Receiver.

●Operation Manual.

4. Operation Controls and Functions

4.1. Front Panel

1 Video input: Connect the video input to the video output of the

transmitter unit using CAT-6 cable.

2 DDC input: Connect the DDC input to the DDC output of the transmitter

unit using CAT-6 cable. 1

1 2

DDC

CAT6 INPUT

VIDEO

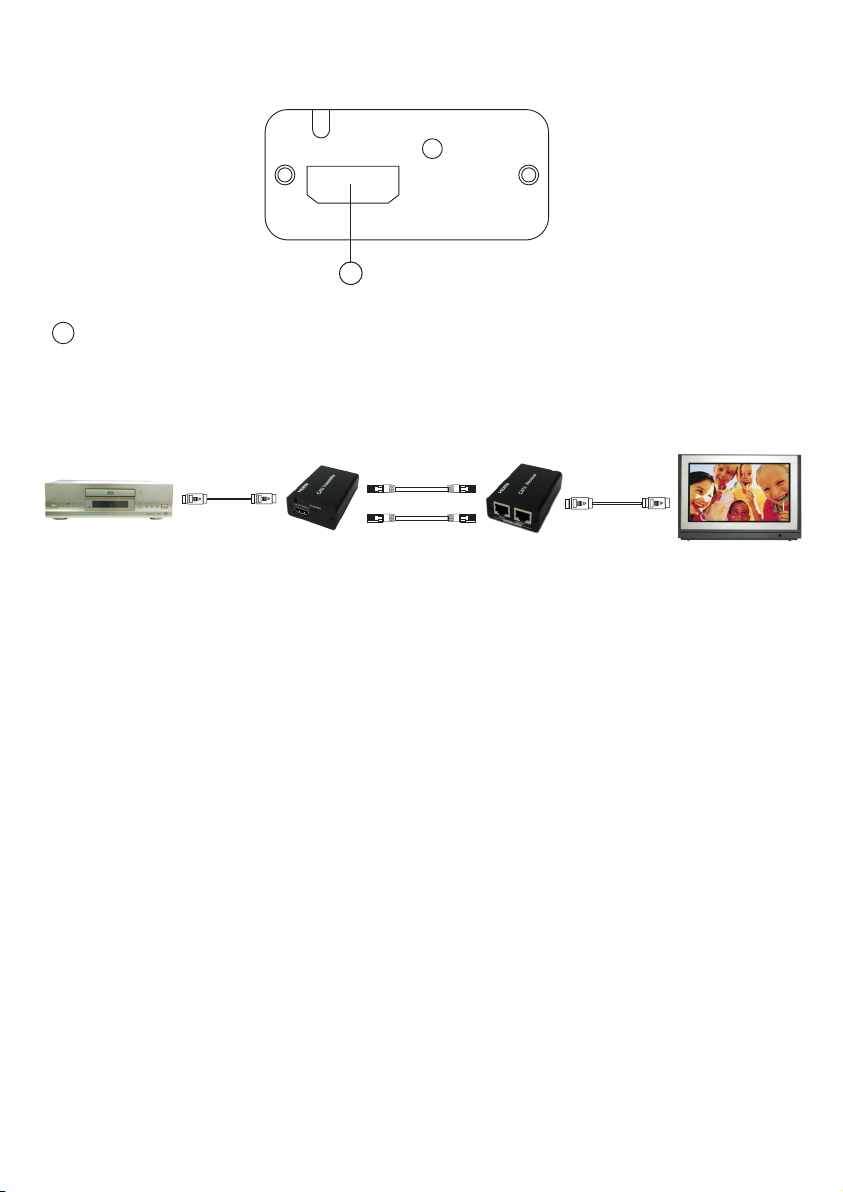

1 HDMI output: Connect the HDMI output port to the HDMI or DVI input of

your display.

5. Connection and Installation

6. Specifications

Input ports 1 x CAT-6 input for Video, 1 x CAT6 input for DDC

Output port 1 x HDMI

Dimensions (mm) 50(W) x 62(D) x 23(H)

Weight(g) 96

Chassis Material Aluminum

Silk Skin Color Black

Operating Temperature Operating from 0°C ~ 40°C

4.2. Rear Panel

HDMI

HDMI LCD TV

CH-1103TX CH-1103RX

DVD PLAYER

HDMI

Cable

DDC

VIDEO

HDMI

Cable

HDMI

POWER

HDMI OUTPUT
