CYP PUV-1550S-RX Bedienungsanleitung

PUV-1550S-RX & TX

HDBaseT™ & 4K Dual HDMI Scaler Transmitter & Receiver

(4K, HDCP2.2, PoH, LAN, OAR)

OPERATION MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and is

believed to be accurate. CYP (UK) Ltd assumes no responsibility for any

infringements of patents or other rights of third parties which may result

from its use.

CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be

contained in this document. CYP (UK) Ltd also makes no commitment to

update or to keep current the information contained in this document.

CYP (UK) Ltd reserves the right to make improvements to this document

and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer le, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express

written permission and consent from CYP (UK) Ltd.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts inside

the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if

it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sucient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE SUMMARY OF CHANGE

v1.00 21/06/2017 First release

CONTENTS

1. Introduction...........................................6

2. Applications ...........................................7

3. Package Contents ..................................7

4. System Requirements ...........................8

5. Features..................................................9

6. Operation Controls and Functions .... 10

6.1 Transmitter Front Panel .........................10

6.2 Transmitter Rear Panel...........................10

6.3 Receiver Front Panel...............................12

6.4 Receiver Rear Panel.................................12

6.5 IR Cable Pin Assignment .......................14

6.6 OSD Menu ..................................................15

7. Connection Diagram .......................... 33

8. Specications...................................... 34

8.1 Technical Specications ........................34

8.2 Video Specications................................36

8.3 Audio Specications...............................37

8.4 Cable Specications ...............................37

8.5 HDBaseT Features....................................38

9. Acronyms............................................. 39

1. INTRODUCTION

Transmitter

This HDMI to HDMI/HDBaseT Scaling Transmitter can send uncompressed

audio/video along with control, Ethernet, and extra audio data over a

single run of Cat.5e/6/7 cable up to 100m. Both the HDMI input and

local HDMI output support video signals up to 4K@60Hz (4:4:4, 8-bit). For

transmission over the HDBaseT output the signal can be converted to

4K@60Hz (4:2:0, 8-bit) or 1080p@60Hz, if necessary, in order to t within

HDBaseT bandwidth limitations.

Simple 18Gbps HDMI test patterns are also available to be output. Control

of remote devices is possible via bi-directional RS-232 or IR as well as via

a LAN connection. A balanced analog audio output provides users with

additional audio exibility. The 48V PoH design can power the connected

Receiver (PD), eliminating the need for an extra power supply while the

Transmitter itself is powered through the local 24V power supply.

Receiver

This HDBaseT to Dual HDMI Scaling Receiver can receive uncompressed

audio/video along with control, Ethernet, and extra audio data over a

single run of Cat.5e/6/7 cable up to 100m. While the HDBaseT input is

limited to a maximum of 4K@60Hz (4:2:0, 8-bit), this unit can automatically

convert or scale the input to output at 4K@60Hz (4:4:4, 8-bit) depending

on the detected capability of the connected display.

Simple 18Gbps HDMI test patterns are also available to be output for

easy testing of local equipment. Control of remote devices is possible via

bi-directional RS-232 or IR as well as via a LAN connection. Digital OAR

(Optical Audio Return) support at 48kHz and a balanced analog audio

output provides users with additional audio exibility. The 48V PoH design

can receive power from the connected Transmitter (PSE), eliminating the

need for a local power supply, however power via 5V power supply is also

supported if needed.

2. APPLICATIONS

Live events needing dual output formats and signal extension

Hotel ballroom with extension and audio breakout

Long distance extension with no local power available at the Rx side

On-site equipment testing

3. PACKAGE CONTENTS

Transmitter

1×HDMI over HDBaseT Scaling Transmitter

1×IR Blaster Cable

1×IR Extender Cable

1×Terminal Block (3-pin)

1×Terminal Block (5-pin)

1×Power Cord

1×24V/2.7A DC Power Adaptor

1×Operation Manual

Receiver

1×HDMI over HDBaseT Scaling Receiver

1×IR Blaster Cable

1×IR Extender Cable

1×Terminal Block (3-pin)

1×Terminal Block (5-pin)

1×5V/3A DC Power Adaptor

1×Operation Manual

4. SYSTEM REQUIREMENTS

HDMI source equipment such as media players, video game consoles

or set-top boxes.

HDMI receiving equipment such as HDTVs, monitors or audio

ampliers.

Transmitter requires a compatible HDBaseT™ receiver with 48V PoH

support. An HDBaseT™ receiver equipped with Optical Audio Return

(OAR) channel support are strongly recommended.

Receiver requires a compatible HDBaseT™ transmitter as a video

source. An HDBaseT™ transmitter equipped with Optical Audio Return

(OAR) channel support and 48V PoH is strongly recommended.

Notes:

When displaying 4K HDR, or an equivalent signal, an appropriate display

is required in order to obtain the best image.

HDMI cable distance can be impacted by the materials and design of

the cable used. The use of “Premium High Speed HDMI” cables is highly

recommended.

5. FEATURES

Supports the HDBaseT 1.0 specication

HDBaseT 5Play™ convergence: High-Denition (HD) Video and Audio,

100BaseT Ethernet, 48V PoH, and Control (Bi-directional IR/RS-232

pass-through)

Supports UHD resolutions up to 3840×2160@50/60Hz (YUV 4:4:4) &

4096×2160@50/60Hz (YUV 4:4:4)

Supports pass-through of all standard digital audio: LPCM 2.0/5.1/7.1,

Bitstream & HD Bitstream

Supports RS-232 baud rates from 110~115200bps

10/100 Ethernet network support

Fully compliant with HDMI 1.4, and compatible with HDMI 2.0

(4K@60Hz, YUV 4:2:0)

HDMI with 18Gbps (600MHz) 4K support and HDCP 2.2 compliant

Supports Deep Colour up to 1080p/12-bit

Supports DVI to HDMI conversion

Supports signal bypass on HDMI output (on the Transmitter)

Transmitter can upscale 1080p signals to 4K over HDBaseT output or

downscale 4K signal to 1080p (same framerate is maintained)

Receiver supports signal bypass on both outputs or output B can

upscale 1080p signals to 4K and output A can downscale a 4K signal to

1080p (same framerate is maintained)

Supports 4K UHD (4:4:4) to 4K UHD (4:2:0) conversion

Supports OAR (Optical Audio Return) and DAC audio balance

conversion

Test pattern generation at select resolutions for on-site display testing

Integrated EDID management

OSD with instant I/O resolution display

6. OPERATION CONTROLS AND FUNCTIONS

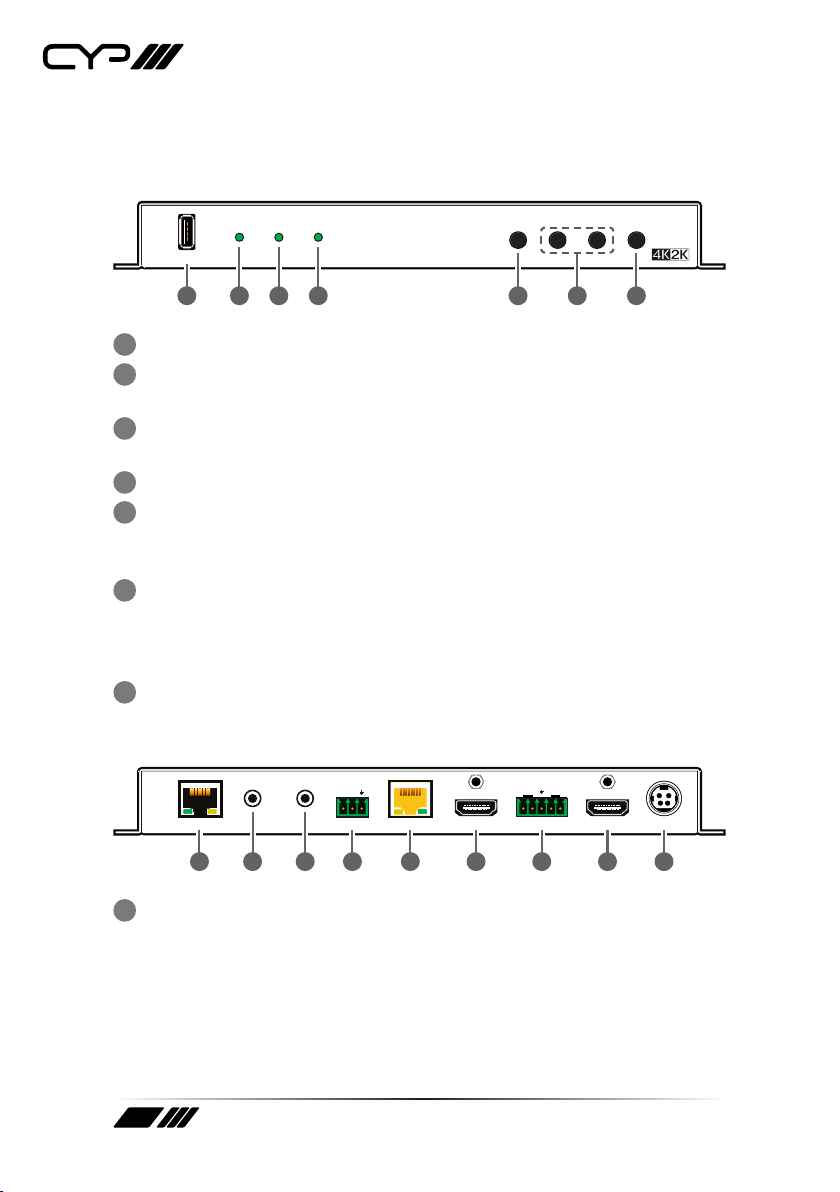

6.1 Transmitter Front Panel

POWER 4K2K SYNC MENU ENTER

TEST PATTERN

SERVICE PUV-1550S-TX

1 2 3 4 5 6 7

1SERVICE: This slot is reserved for rmware update use only.

2POWER: This LED will illuminate to indicate the unit is on and

receiving power.

34K2K: This LED will illuminate to indicate the input source contains a

4K UHD signal.

4SYNC: This LED will illuminate when a live input source is detected.

5MENU: Press to enter the OSD menu, or to back out from menu items.

Press and hold this button together with the “-” button for 3 seconds

to reset the unit back to factory defaults.

6DOWN & UP/TEST PATTERN: When the OSD menu is in use, press

these buttons to move within the menu. Outside of the OSD,

press these buttons together to instantly set the output timing to

1280×720@60Hz and display test patterns on both outputs.

7ENTER: Press to conrm a selection or to go deeper into a menu item.

6.2 Transmitter Rear Panel

DC 24V

LAN HDMI OUT HDMI INCAT5e/6/7 OUT

IR OUTIR IN LR

+ −

RX TX

+ −

AUDIO OUTRS232

1 2 3 4 5 6 7 8 9

1LAN: Connect to an Ethernet supporting device or to your local

network as appropriate. The yellow LED will illuminate to indicate a

successful LAN connection between the Transmitter and Receiver,

however, if the yellow LED blinks irregularly it indicates a data link

error. The green LED will illuminate when the connected Ethernet

speed is 100Mbit/s.
