D-Link PCMCIA WIRELESS ASAPTER DWL-650 Bedienungsanleitung

DWL-650 Wireless Cardbus Adapter

CD-ROM (containing Manual and Warranty)

Before You Begin

Check Your Package Contents

These are the items included with your DWL-650 purchase:

If any of the above items are missing, please contact your reseller.

subject to change without notice. DWL-650. 08092002

You must have at least the following:

•A laptop computer with an available 32-bit Cardbus slot

•At least a 300 MHz processor and 32 MB of memory

•Cardbus Controller properly installed and working in the laptop computer

•An 802.11b Access Point (for Infrastructure Mode) or another 802.11b

wireless adapter (for Ad-Hoc; Peer-to-Peer networking mode.)

This product works with the following

operating system software: Windows XP,

Windows 2000, Windows Me,

Windows 98se

DWL-650

D-Link Air™

Wireless Cardbus Adapter

Insert the D-Link CD-ROM

Into Your Computer

Turn on the computer and

Insert the D- Link Air DWL-650 Driver

CD in the CD-ROM drive.

The step-by-step instructions that follow are shown

in Windows XP. The steps and screens are similar

for the other Windows operating systems.

Do NOT

install

the DWL-650

Cardbus

Adapter into your

computer before

installing the driver

software on the

D-Link CD!

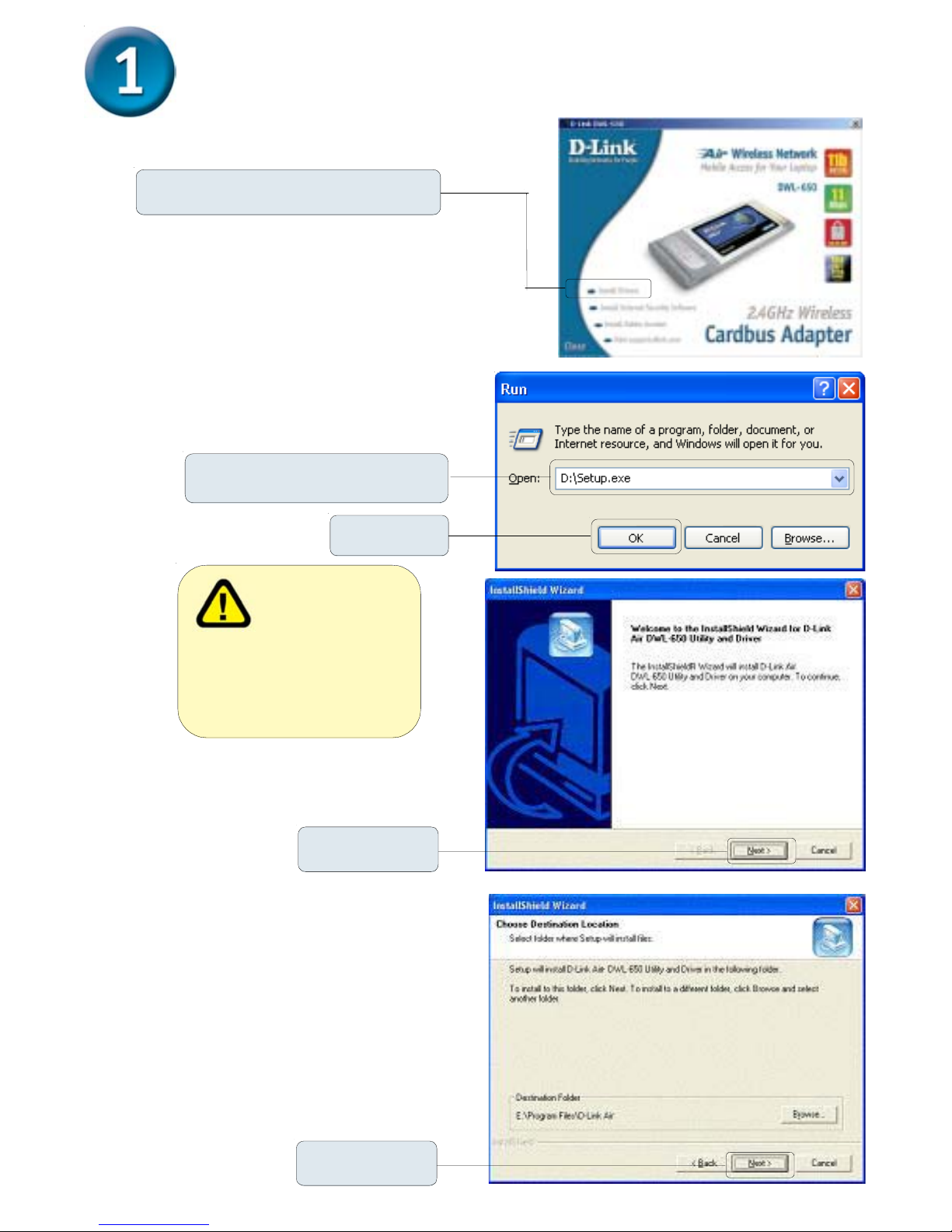

Insert the D-Link CD (continued)

The Install Screen will appear.

If the CD does not automatically start, go

to Start > Run and type “D:\Setup.exe.” If

it does start, proceed to the next screen.

The letter “D”

represents the

letter of the CD-ROM

drive. Your CD-ROM

drive may be a

different drive letter.

Click Next

Click Install Driver/PC Utility

Type “D:\Setup.exe.”

Click OK

Click No, I will

restart my

computer later

Click Finish

Shut down your laptop

Insert the DWL-650 Into the Cardbus Slot

in Your Laptop

A. Make sure your laptop computer is turned off.

B.Locate the Cardbus slot on your laptop computer.

C. Gently insert the DWL-650 into the Cardbus

slot in your laptop

computer (as shown.)

Continued...

32-bit connector

This is the

connector that fits

into the Cardbus

slot of your laptop.

Power LED

Lights to indicate

that the DWL-650

is properly

inserted.

Restart Your Laptop Computer

When you restart your computer

this Found New Hardware

Wizard (Windows XP) screen

will appear:

Select Install the

software

automatically

(Recommended)

Click Next

Link/Activity LED

Blinks when data is being

transmitted through the wireless

connection.

Built-in Antenna

Used to wirelessly

connect to 802.11b)

networks.

Restart Your Laptop Computer (cont.)

For Windows XP:

this Hardware

Installation alert screen

may appear after the

desktop computer

restarts.

Click Continue

Anyway to finalize

the installation

(The D-Link driver software for this

device is undergoing Windows

Logo testing. Microsoft certification

is pending.) For Windows 2000, this

Digital Signature Not Found screen

may appear after your computer

restarts

Click Yes

to finalize

the installation

For Windows Me and 98, after your

computer restarts, this

Systems Settings Change window

may appear.

Select Yes to finalize

the installation

Your Installation is Complete!

After you’ve continued in Windows XP (or after the computer restarts in the other

Windows operating systems), the D-Link Air DWL-650 Configuration Utility will

automatically start and the utility icon will appear in the bottom right hand corner

of the desktop screen (systray). If this icon appears GREEN, then you have

successfully installed the DWL-650, are connected to a wireless network

and are ready to communicate!

Double-click the utility icon to

use the configuration utility.

If the utility icon does not appear, double-

click the shortcut icon that has appeared

on your desktop.

Using the Configuration Utility

A. Status: Displays the

MAC Address of the

Access Point that

is associated with the

DWL-650.

B. SSID:The Service Set

Identifier is the name

assigned to the wireless

network. The factory SSID

setting is set to default.

C. TxRate:

The default

setting is 11 Mbps; however,

TxRate settings are auto-

matically determined by the

DWL-650 depending on the

distance from the access point.

D. Channel: Displays

the channel information.

By default, the channel is

set to 6 and selection is

automatically determined

by the DWL-650.

E. Link Quality / Signal Strength:

Displays the Link Quality for the DWL-

650 wireless connection to the access

point. The Signal Strength represents the

wireless signal between the access point

and the DWL-650. The percentage

coincides with the graphical bar.

F. Data Rate:

Graphically

displays the

statistics of data

transmitted and

received.

The D-Link Air Configuration Utility window will appear. By

default, it will take you to the Link Info section.

APPENDIX

Make changes to the DWL-650’s factory settings by clicking on the

Configuration menu.

G. SSID: The Service Set

Identifier is the name

assigned to the wireless

network. The factory SSID

setting is set to default.

Make changes here to

match the SSID on

existing Wireless Router

or Access Point.

H. Wireless Mode:

The factory setting is

set to Infrastructure.

Ad-Hoc mode is used

for peer-to-peer

networking.

I. Channel: By default, the

channel is set to 6. Channel

selection is automatically

determined by the DWL-650

depending on the channel setting

of the access point selected for

association. To change the

channel settings, the Wireless

Mode must be set to Ad-hoc.

J. TxRate: You can adjust

the transmission rate to get

the best signal possible

depending on your usage

and your environment.

The preamble

setting of the

DWL-650 must match the

preamble setting of the

Wireless Router or Access

Point in order to communicate

on the network.

K. Preamble: By default,

D-Link Air Products are set

to Long Preamble. The

Preamble defines the length

of the CRC block (Cyclic

Redundancy Check is a

common technique for

detecting data transmission

errors) for communication

between the Access Point

and wireless network

adapters. High network

traffic areas should use the

shorter preamble type.

L. Power Mode:

default, Power Mode is

set to Continuous

Access Mode.

Continuous Access

Mode — this default

setting consumes the

most power.

Maximum

Power Save — this

setting consumes the

least power. Power

Save — this setting

consumes a moderate

amount of power.

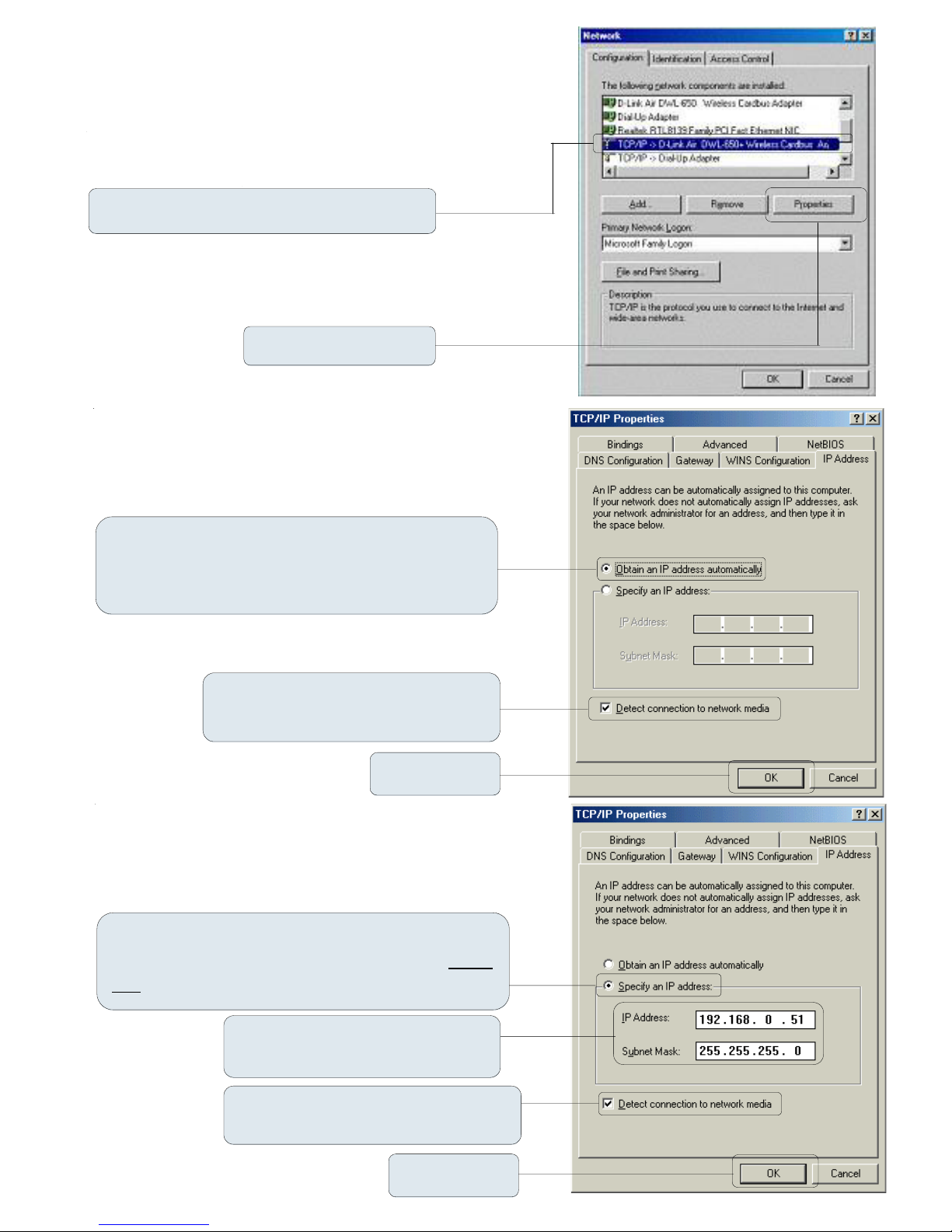

IP Address Configuration

To connect to a network, make sure

the proper network settings are

configured for DWL-650.

For Microsoft Windows XP:

Go to Start > right click on

My Network Places >

select Properties > Double-click on

the Network Connection associated

with the DWL-650.

Click Internet Protocol (TCP/IP)

Click Properties

Select Obtain an IP address

automatically (if the Wireless Router or

Access Point has DHCP server enabled)

Select Obtain DNS server

address automatically

Click OK

Select Use the following IP address (if

the Wireless Router or Access Point does

not have DHCP server enabled

Click OK

IP address: 192.168.0.51

Subnet mask: 255.255.2

55.0

Input a static IP address in the same

range as the Wireless Router or

Access Point.

Your Internet service provider provides

preferred DNS server information.

Static IP address setup

For Windows 2000 users:

Go to Start > Settings > Network and Dial-

up Connections > Double-click on the Local

Area Connection associated with the DWL-

650 > select Properties

Click Internet Protocol (TCP/IP)

Click Properties

Select Obtain an IP address

automatically (if the Wireless Router or

Access Point has DHCP server enabled)

Click OK

Select Obtain DNS server

address automatically

Setup for wireless router or Access Point

using DHCP server.

IP address: 192.168.0.51

Subnet mask: 255.255.255.0

Click OK

Select Use the following IP address (if

the Wireless Router or Access Point does

not have DHCP server enabled)

Your Internet service provider

provides preferred DNS server

information.

Static IP address setup

Input a static IP address in the same

range as the Wireless Router or

Access Point.

For Windows Me and 98 users:

Click Internet Protocol (TCP/IP)

Go to Start > Settings > Control Panel > Double-

click on the Local Area Connection associated

with the DWL-650 > select Properties

Click Internet Protocol (TCP/IP)

Click Properties

Select Obtain an IP address

automatically (if the Wireless Router or

Access Point has DHCP server enabled)

Click OK

Select Detect connection

to network media

Click OK

Select Use the following IP address (if

the Wireless Router or Access Point does

not have DHCP server enabled)

IP address: 192.168.0.51

Subnet mask: 255.255.255.0

Select Detect connection to

network media

Setup for wireless router or Access Point

using DHCP server.

Static IP address setup

Input a static IP

address in the

same range as the

Wireless Router or

Access Point.

Andere Handbücher für PCMCIA WIRELESS ASAPTER DWL-650

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere D-Link Adapter Handbücher

D-Link

D-Link DFE-550TX Montageanleitung

D-Link

D-Link XTREME N DUAL BAND USB ADAPTER DWA-160 Bedienungsanleitung

D-Link

D-Link DFE-500FX Bedienungsanleitung

D-Link

D-Link D DPH-50U DPH-50U Betriebshandbuch

D-Link

D-Link DWL-P100 Bedienungsanleitung

D-Link

D-Link DCF-650W - Air Wireless CompactFlash Cf 802.11B... Bedienungsanleitung

D-Link

D-Link DHP-P500AV Bedienungsanleitung

D-Link

D-Link DWA-121 Bedienungsanleitung

D-Link

D-Link AirPlus XTREME G DWL-G132 Bedienungsanleitung

D-Link

D-Link DFE-538TX Bedienungsanleitung

D-Link

D-Link DWL-P200 Bedienungsanleitung

D-Link

D-Link AirPlus DWL-G120 Bedienungsanleitung

D-Link

D-Link DHP?P309AV Bedienungsanleitung

D-Link

D-Link DFE-690TXD Bedienungsanleitung

D-Link

D-Link DWA-547 Bedienungsanleitung

D-Link

D-Link DWA-510 Bedienungsanleitung

D-Link

D-Link DWA-552 Bedienungsanleitung

D-Link

D-Link Air DWL-120 Bedienungsanleitung

D-Link

D-Link DWM-110 Installations- und Betriebshandbuch

D-Link

D-Link DSB-650TX Bedienungsanleitung

D-Link

D-Link AirPlus XTREME G+ DWL-G650+ Bedienungsanleitung

D-Link

D-Link D DFE-550FX DFE-550FX Bedienungsanleitung

D-Link

D-Link DVG-7111S Bedienungsanleitung

D-Link

D-Link WL-211F Bedienungsanleitung

Beliebte Adapter Handbücher anderer Marken

PCB Piezotronics

PCB Piezotronics 090B274 Bedienungsanleitung

Auvidea

Auvidea J20 Produkthandbuch

Gossen MetraWatt

Gossen MetraWatt AT3-III E Bedienungsanleitung

Akribis

Akribis ITF-21-BISS-MIT Bedienungsanleitung

Tenda

Tenda W54U Bedienungsanleitung

ROHO

ROHO AGILITY Bedienungsanleitung

PROLiNK

PROLiNK WN2001 Bedienungsanleitung

Hawking

Hawking HUF2 Bedienungsanleitung

Airlink101

Airlink101 AWLC4030 Bedienungsanleitung

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Bedienungsanleitung

Philips

Philips SWA4554S/10 Bedienungsanleitung

JVC

JVC TS-C9D2B Gebrauchsanweisung

NETGEAR

NETGEAR A6100 Bedienungsanleitung

Philips

Philips SWA2037 Bedienungsanleitung

Basalte

Basalte 0610-20 Bedienungsanleitung

Yealink

Yealink EHS40 Bedienungsanleitung

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Bedienungsanleitung

RCA

RCA AH57R Bedienungsanleitung
