Daewoo RC-4008S Bedienungsanleitung

Service Manual

VACCUM CLEANER

MAY.2004

DAEWOO ELECTRONICS CORP.

http : //svc.dwe.co.kr

MODEL : RC-4008S

S/M No. : RC4008S001

✔

Caution

: In this Manual, some parts can be changed for improving, their

performance without notice in the parts list. So, if you need the

latest parts information,please refer to PPL(Parts Price List) in

Service Information Center (http://svc.dwe.co.kr).

CONTENTS

Page

1. SPECIFICATIONS --------------------------------------------------

2. EXTERNAL VIEWS -------------------------------------------------

3. DIAGRAM -------------------------------------------------------------

3-1. WIRING DIAGRAM ------------------------------------------------------

3-2. CIRCUIT DIAGRAM -----------------------------------------------------

4. TROUBLE SHOOTING GUIDE ----------------------------------

5. DISASSEMBLING AND TREATMENT ------------------------

5-1. CLEANER ASSEMBLY ---------------------------------------------- 7

5-2. BODY ASSEMBLY ------------------------------------------------------

5-3. MOTOR ASSEMBLY ----------------------------------------------------

5-4. CORDREEL ASSEMBLY ----------------------------------------------

5-5. PCB ASSEMBLY --------------------------------------------------------- 12

5-6. HOSE ASSEMBLY ------------------------------------------------------

5-7. BRUSH ASSEMBLY ----------------------------------------------------

5-8. DUST BOX ASSEMBLY -----------------------------------------------

6. EXPLODED VIEW AND PARTS LIST -------------------------

6-1. CLEANER ASSEMBLY ---------------------------------------------- 16

6-2. BODY ASSEMBLY ----------------------------------------------- 18

6-3. COVER BODY ASSEMBLY -------------------------------------------

6-4. COVER DUST ASSEMBLY -------------------------------------------

6-5. DUST BOX ASSEMBLY -----------------------------------------------

6-6. MOTOR ASSEMBLY ----------------------------------------------------

6-7. CORDREEL ASSEMBLY ----------------------------------------------

6-8. CASE MOTOR UPPER ASSEMBLY -------------------------------

6-9. HOSE ASSEMBLY ------------------------------------------------------

6-10. PIPE ASSEMBLY ------------------------------------- 30

6-11. BRUSH ASSEMBLY --------------------------------------------------- 31

1. SPECIFICATIONS

MODEL RC-4008S

Rated Voltage/Frequency AC 230V, 50/60Hz

Input Watt 1800W

Suction Power 370W

Noise Level 75dB(A)

Weight (Body) 4.7Kg

Electrical Components Thermostat (T80:80°C OFF )

Dimension (WXHXD) 437 X 229 X 294 mm

Cord Length 5.0m

Filter HEPA

Pipe Telescopic

Nozzle Pedal

Crevice Nozzle

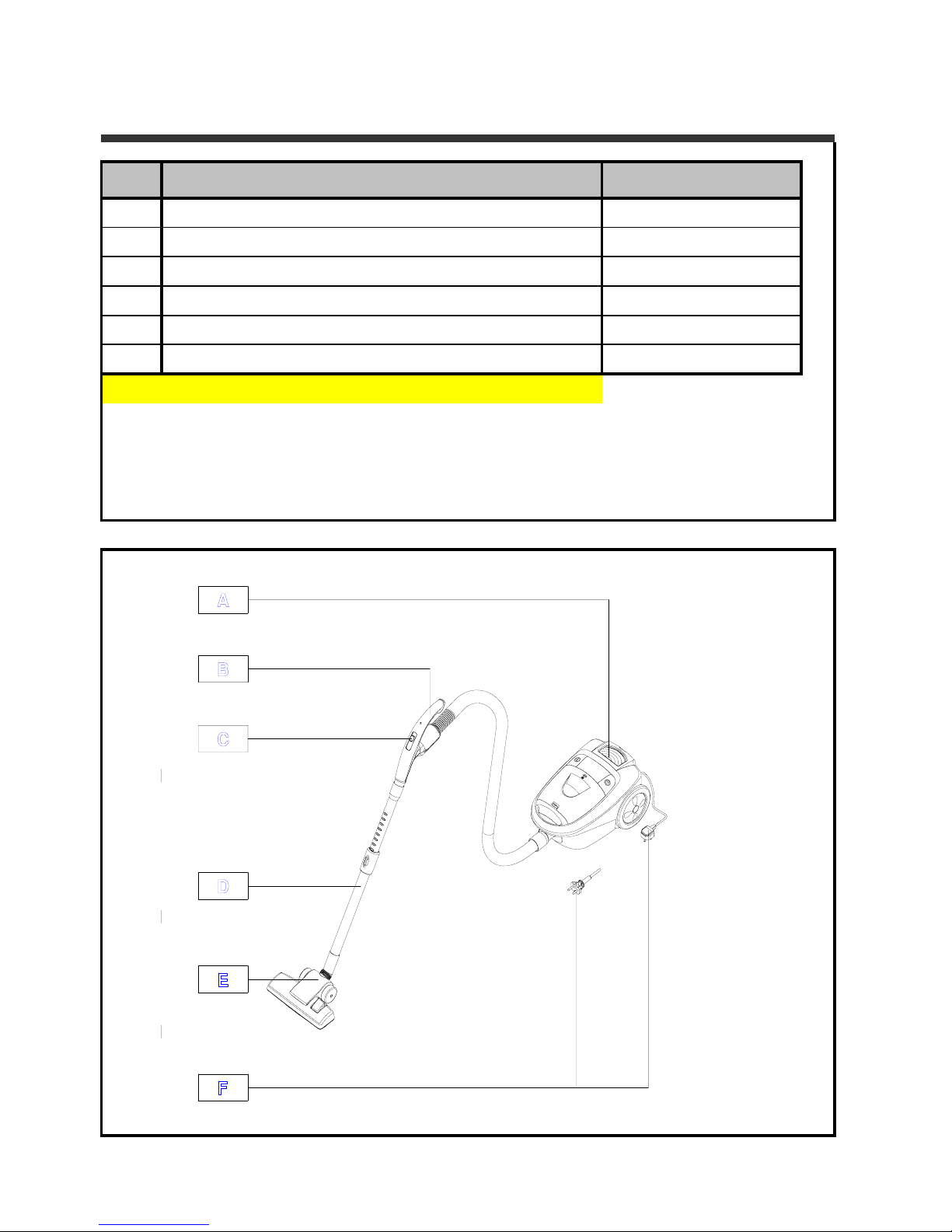

2. EXTERNAL VIEWS

PART NAME RC-4008S

AFILTER HEPA

BHOSE HANDLE GRIP

CHOSE VARIABLE O

DPIPE TELESCOPIC

ENOZZLE PEDAL

FCORD O

gFILTER : HEPA(3622204810)

gPIPE : TELESCOPIC(3624411470)

gNOZZLE : PEDAL(3629306610)

3. DIAGRAM

1) MODEL RC-4008S

3-1. WIRING DIAGRAM

3-2. CIRCUIT DIAGRAM

4. TROUBLE SHOOTING GUIDE

TROUBLE CAUSE COUNTERMEASURE

SUCTION POWER FILTER BAG(PAPER)/DUST BOX IS CHANGE IT WITH NEW ONE (See 5-1,8)

IS WEAK FULL WITH DUST REMOVE THE DUST IN DUST BOX

FILTER PRE IS CLOGGY WITH DUST REMOVE THE DUST (See 5-2)

CLOGGING OR TEAR IN HOSE REMOVE OBSTACLE

OR REPLACE THE HOSE (See 5-6)

DEFECTIVE MOTOR REPLACE THE MOTOR (See 5-3)

THE OPENING IN BRUSH IS CLOGGY REMOVE THE DUST (See 5-7)

WITH DUST

VACUUM CLEANER DOES BREAKING IN POWER CORD REPLACE THE POWER CORD (See5-4)

NOT WORK (AT BLADE TIP OR ROOT OF PLUG)

BREAKING OF CONNECTIONS REPAIR (See 5-6)

IN HOSE ASSEMBLY

DEFECTIVE SLIDE VOLUME REPLACE IT (See 5-3)

LOCATED IN CASE MOTOR UPPER

DEFECTIVE PCB ASSEMBLY REPLACE IT (See 5-5)

BREAKING OF CONNECTIONS REPAIR (See 5-4)

OR POOR CONTACTS IN

CORD REEL ASSEMBLY

DEFECTIVE MOTOR REPLACE IT (See 5-3)

BREAKING OF CONNECTIONS REPAIR (See 5-2)

IN BODY ASSEMBLY

MOTOR DOES NOT DEFECTIVE PCB ASSEMBLY REPLACE IT (See 5-5)

STOP EVEN IF

SWITCH

TROUBLE CAUSE COUNTERMEASURE

BROKEN REEL SPRING REPLACE IT (See 5-4)

OF CORD REEL

POWER CORD BROKE AWAY REPAIR (See 5-4)

FROM THE BOBBIN

ABRASION OF THE ROLLER BRAKE REPLACE THE ROLLER

OF CORD REEL BRAKE (See 5-4)

LEVER SPRING BROKE AWAY REPAIR (See 5-4)

FROM THE CORD REEL BRACKET

POWER CORD DOES

NOT STOP AT AN

ARBITRARY POSITION

POWER CORD IS

NOT WOUND UP

BE CAREFUL WHEN BREAKING UP THE CORD REEL, THE

REELSPRING

MAY SPRING OUT OF THE SPRING COVER.

CAUTION

5. DISASSEMBLING AND TREATMENT

1) LIFT THE DUST COVER(8), GRILLE(10), FILTER(9) AND UNSCREW THE 6 SCREWS(6)

AND THEN LIFT THE COVER ASSEMBLY(5) UP FROM THE BODY ASSEMBLY(1).

2) CHECK THE DUST BOX.

3) CHECK THE FILTER (9).

5-1. CLEANER ASSEMBLY

1) CHECK THE SAFETY VALVE ASSEMBLY (14).

2) CHECK THE GASKET (11).

3) CHECK THE HOLDER FILTER (9).

4) CHECK THE FILTER PRE (12).

5) CHECK THE TERMINAL AS (16).

5-2. BODY ASSEMBLY

1) TAKE THE MOTOR ASSEMBLY OUT OF THE CASE MOTOR ASSEMBLY.

2) CHECK THE MOTOR(2) (WHETHER THE MOTOR IS BURNT OUT OR NOT).

3) CHECK THE CONNECTION BETWEEN MOTOR TERMINAL AND THE LEADS.

4) CHECK THE ON/OFF SWITCH(5).

5-3. MOTOR ASSEMBLY
