SERVICE MANUAL

VACUUM CLEANER

MODEL NAME : RC-2200FR

CONTENTS

1. SPECIFICATIONS……………………………………………………………………

2 Pages

2. EXTERNAL VIEWS……………………………………………………………………

3 Pages

2-1. ASSEMBLY……………………………………………………………………

3 Pages

2-2. MODEL RC-220(Variable Control)………………………………………………………………………………

4 Pages

3. DIAGRAM……………………………………………………………………………

5 Pages

3-1. WIRING DIAGRAM………………………………………………………………

5 Pages

4. TROUBLE SHOOTING GUIDE………………………………………………………………

6 Pages

5. EXPLODED VIEW AND PARTS LIST………………………………………………………………

8 Pages

5-1. BASE ASSEMBLY………………………………………………………………

8 Pages

5-2. FRONT COVER ASSEMBLY………………………………………………………………

10 Pages

5-3. BACK COVER ASSEMBLY………………………………………………………………

12 Pages

5-4. MOTOR ASSEMBLY………………………………………………………………

14 Pages

5-5. CORD REEL ASSEMBLY………………………………………………………………

15 Pages

1. SPECIFICATIONS

Model RC-220(Variable Control) RC-220(On/Off Control)

Rated Voltage AC 220-240V AC 220-240V

Frequency 50/60Hz 50/60Hz

Input Watt MAX 1400W MAX 1400W

Weight(Body) 4.38Kg 4.38Kg

Dimension(LXHXD) 350X280X210mm 350X280X210mm

Cord Length 5m 5m

Power Control Body Variable Body On/Off

Dust Meter Mechanical Mechanical

Hose 1.5m 1.5m

Nozzle Pedal Brush Pedal Brush

Upholstery Brush Upholstery Brush

Crevice Nozzle Crevice Nozzle

Dusting Brush Dusting Brush

Extension Pipe

Telescopic Tube

2. EXTERNAL VIEWS

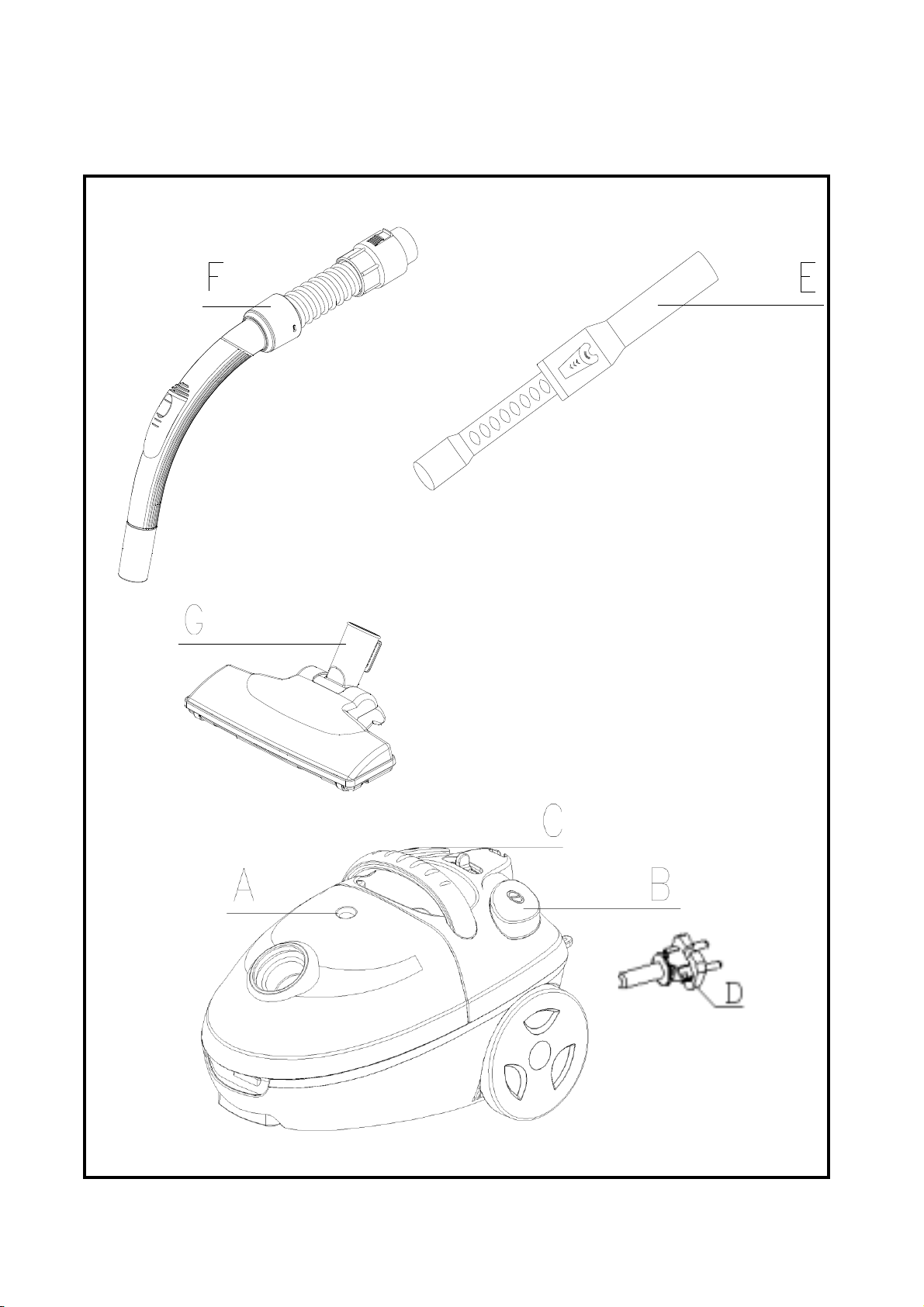

2-1. ASSEMBLY

RC-220

(Variable Control)

RC-220 (On/Off

Control)

A - DUST METER ㅇ ㅇ

B - SWITCH BUTTON ㅇ ㅇ

C - CORD REWIND BUTTON ㅇ ㅇ

D - POWER CORD ㅇ ㅇ

E - EXTENSION PIPE (Steel Telescopic Tube) ㅇ ㅇ

F - HOSE HANDLE ㅇ ㅇ

G - PEDAL BRUSH ㅇ ㅇ

PART NAME

MODEL

2-2. MODEL RC-220(Variable Control)

3. DIAGRAM

3-1. WIRING DIAGRAM

■ MODEL : RC-220 (Variable Control)

■ MODEL :RC-220 (On/Off Control)

4. TROUBLE SHOOTING GUIDE

TROUBLE CAUSE COUNTERMEASURE

SUCTION POWER FILTER BAG(PAPER OR CLOTH) CHANGE IT WITH NEW ONE

IS WEAK IS FULL WITH DUST OR REMOVE THE DUST

CLOGGING OR TEAR IN HOSE REMOVE OBSCTACLE

OR REPLACE THE HOSE

DEFECTIVE MOTOR REPLACE THE MOTOR

(SEE 5-4)

CLEANER DOES BREAKING IN POWER CORD REPLACE THE POWER

NOT WORK (AT BLADE TIP OR ROOT OF PLUG) CORD (SEE 5-5)

DEFECTIVE PCB ASSEMBLY REPLACE IT (SEE 5-3)

BREAKING OF CONNECTIONS REPAIR (SEE 5-5)

OR POOR CONTACTS IN

CORD REEL ASSEMBLY

DEFECTIVE MOTOR REPLACE IT (SEE 5-4)

BREAKING OF CONNECTIONS

IN BACK COVER ASSEMBLY REPAIR (SEE 5-3)

DEFECTIVE SWITCH REPLACE IT (SEE 5-3)

MOTOR DOES NOT DEFECTIVE PCB ASSEMBLY REPLACE IT (SEE 5-3)

STOP EVEN IF

SWITCH

TROUBLE CAUSE COUNTERMEASURE

POWER CORD IS BROKEN REEL SPRING REPLACE IT (SEE 5-5)

NOT WOUND UP OF CORD REEL

POWER CORD BROKE AWAY REPAIR (SEE 5-5)

FROM THE BOBBIN

※ CAUTION : BE CAREFUL WHEN BREAKING UP THE CORD REEL, THE REEL

SPRING MAY SPRING OUT OF THE SPRING COVER.

POWER CORD DOES ABRASION OF THE ROLLER REPLACE THE ROLLER

NOT STOP AT AN BRAKE OF CORD REEL BRAKE (SEE 5-5)

ARBITRARY

POSITION LEVER SPRING BROKE AWAY REPAIR (SEE 5-5)

FROM THE CORD REEL BRACKET

5. EXPLODED VIEW AND PARTS LIST

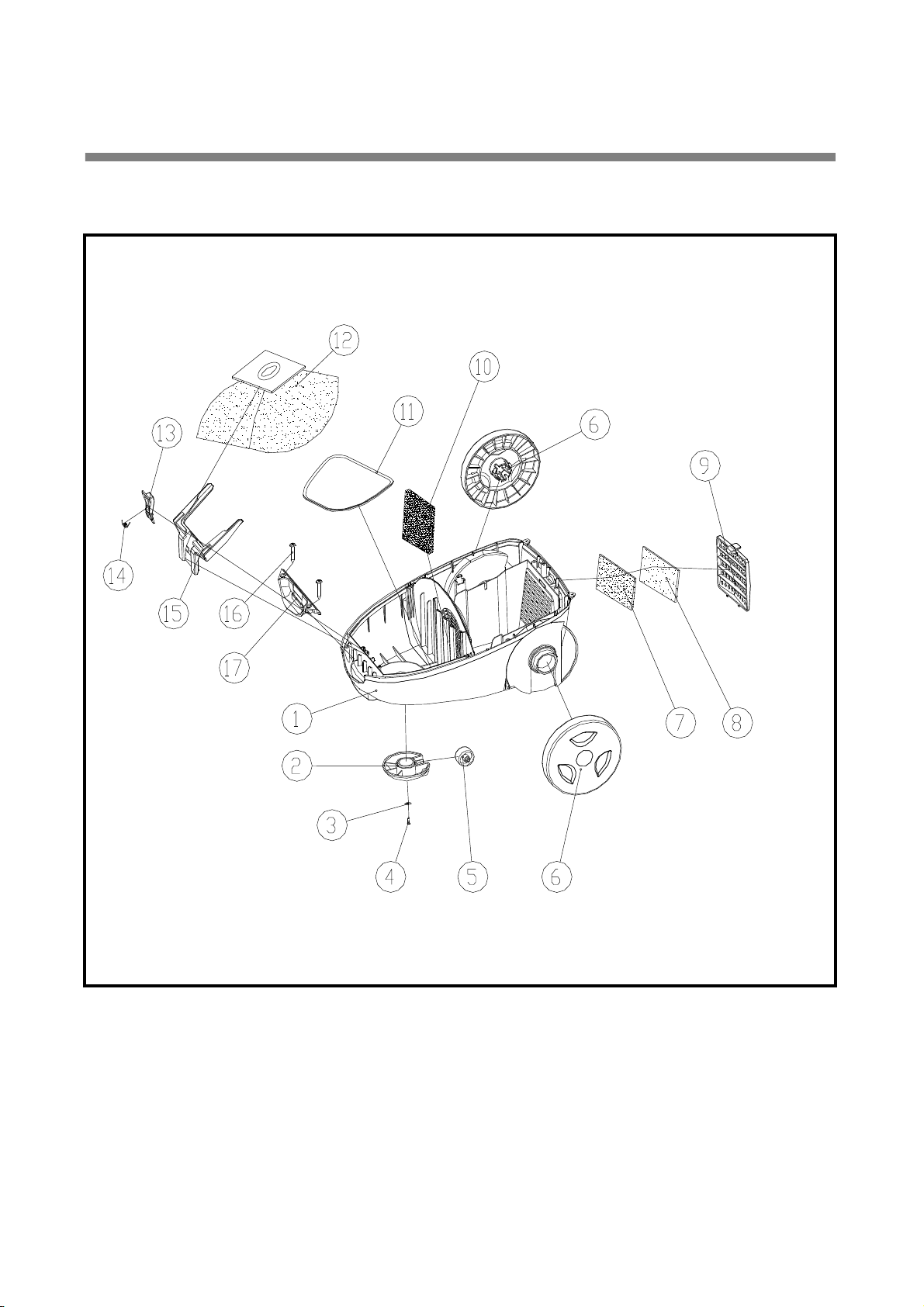

5-1.BASE ASSEMBLY

DAEWOO CHUNLAN

BASE ASSEMBLY

1BASE CLPB-CL152-A01 PP 1

2FRONT WHEEL HOLDER CLPB-CL150-A26 ABS 1

3PLAIN WASHER CLPB-CL152-B05 Φ4XΦ12X0.8/ZINCIFICATION 1

4SCREW TAPPING ST4.0x12PH/A 1

5FRONT WHEEL CLPB-CL150-A25 PP+PVC 1

6REAL WHEEL CLPB-CL152-A16 PP 2

7OUTLET FILTER(1) CLPB-CL152-E05 1

8OUTLET FILTER(2) CLPB-CL152-E06 1

9OUTLET BOARD CLPB-CL152-A09 ABS 1

10 INLET FILTER CLPB-CL152-E01 1

11 FRONTCOVER SEALING RING CLPB-CL152-C05 RUBBER 1

12 DUSTBAG CLPB-CL152-E04 1

13 PROTECTION LEVER CLPB-CL152-A15 PP 1

14 WRIGGLE SPRING CLPB-CL152-B02 1

15 DUSTBAG HOLDER CLPB-CL152-A23 ABS 1

16 SCREW TAPPING ST4.0x16PH/A 2

17 FRONT COVER BASE CLPB-CL152-A11 ABS 1

LIST OF BASE ASSEMBLY

PART CODE

NO.

PART NAME

SPECS.

Q`YT
