1. Safety

Safety Instructions 3

Approvals 3

General Warning 3

Avoid unintended Start 4

Before Commencing Repair Work 5

2. Introduction

Type Code 7

3. Programming

How to Programme 9

Programming with MCT-10 9

Programming with LCP 11 or LCP 12 9

Status Menu 11

Quick Menu 11

Main Menu 12

4. Parameter Descriptions

Parameter group 0: Operation/Display 13

Parameter Group 1: Load/Motor 18

Parameter Group 2: Brakes 27

Parameter Group 3: Reference/Ramps 30

Parameter Group 4: Limits/Warnings 36

Parameter Group 5: Digital In/Out 39

Parameter Group 6: Analogue In/Out 44

Parameter Group 7: Controllers 50

Parameter Group 8: Communication 52

Parameter Group 13: Smart Logic 57

Parameter Group 14: Special Functions 65

Parameter Group 15: Drive Information 68

Parameter Group 16: Data Readouts 71

5. Parameter Lists

6. Troubleshooting

Index

VLT Micro Drive FC 51 Contents

MG.02.C2.02 - VLT®is a registered Danfoss trademark

1. Safety VLT Micro Drive FC 51

MG.02.C2.02 - VLT®is a registered Danfoss trademark

1. Safety

1.1.1. High Voltage Warning

The voltage of the frequency converter is dangerous whenever it is connected to

mains. Incorrect installation of the motor or frequency converter may cause damage

to the equipment, serious injury or death. Consequently, it is essential to comply

with the instructions in this manual as well as local and national rules and safety

regulations.

1.1.2. Safety Instructions

• Make sure the frequency converter is properly connected to earth.

• Do not remove mains connections, motor connections or other power connections while

the frequency converter is connected to power.

• Protect users against supply voltage.

• Protect the motor against overloading according to national and local regulations.

• The earth leakage current exceeds 3.5 mA.

• The [OFF] key is not a safety switch. It does not disconnect the frequency converter from

mains.

1.1.3. Approvals

1.1.4. General Warning

Warning:

Touching the electrical parts may be fatal - even after the equipment has been dis-

connected from mains.

Also make sure that other voltage inputs have been disconnected, (linkage of DC

intermediate circuit).

Be aware that there may be high voltage on the DC link even when the LEDs are

turned off.

Before touching any potentially live parts of the VLT Micro Drive, wait at least 4

minutes for all sizes.

Shorter time is allowed only if indicated on the nameplate for the specific unit.

VLT Micro Drive FC 51 1. Safety

MG.02.C2.02 - VLT®is a registered Danfoss trademark

Leakage Current

The earth leakage current from the VLT Micro Drive FC 51 exceeds 3.5 mA. According

to IEC 61800-5-1 a reinforced Protective Earth connection must be ensured by

means of a min. 10mm² Cu or an addtional PE wire - with the same cable cross

section as the Mains wiring - must be terminated separately.

Residual Current Device

This product can cause a D.C. current in the protective conductor. Where a residual

current device (RCD) is used for extra protection, only an RCD of Type B (time de-

layed) shall be used on the supply side of this product. See also Danfoss Application

Note on RCD, MN.90.GX.YY.

Protective earthing of the VLT Micro Drive and the use of RCDs must always follow

national and local regulations.

Motor overload protection is possible by setting Parameter 1-90 Motor thermal pro-

tection to the value ETR trip. For the North American market: ETR functions provide

class 20 motor overload protection, in accordance with NEC.

Installation in high altitudes:

By altitudes above 2km, please contact Danfoss Drives regarding PELV.

1.1.5. IT Mains

IT Mains

Installation on isolated mains source, i.e. IT mains.

Max. supply voltage allowed when connected to mains: 440 V.

As an option, Danfoss offers line filters for improved harmonics performance.

1.1.6. Avoid unintended Start

While the frequency converter is connected to mains, the motor can be started/stopped using

digital commands, bus commands, references or via the Local Control Panel.

• Disconnect the frequency converter from mains whenever personal safety considerations

make it necessary to avoid unintended start of any motors.

• To avoid unintended start, always activate the [OFF] key before changing parameters.

1.1.7. Disposal Instruction

Equipment containing electrical components must not be disposed of

together with domestic waste.

It must be separately collected with electrical and electronic waste

according to local and currently valid legislation.

1. Safety VLT Micro Drive FC 51

MG.02.C2.02 - VLT®is a registered Danfoss trademark

1.1.8. Before Commencing Repair Work

1. Disconnect FC 51 from mains (and external DC supply, if present.)

2. Wait for 4 minutes for discharge of the DC-link.

3. Disconnect DC bus terminals and brake terminals (if present)

4. Remove motor cable

VLT Micro Drive FC 51 1. Safety

MG.02.C2.02 - VLT®is a registered Danfoss trademark

2. Introduction VLT Micro Drive FC 51

MG.02.C2.02 - VLT®is a registered Danfoss trademark

2. Introduction

2.1.1. FC Identification

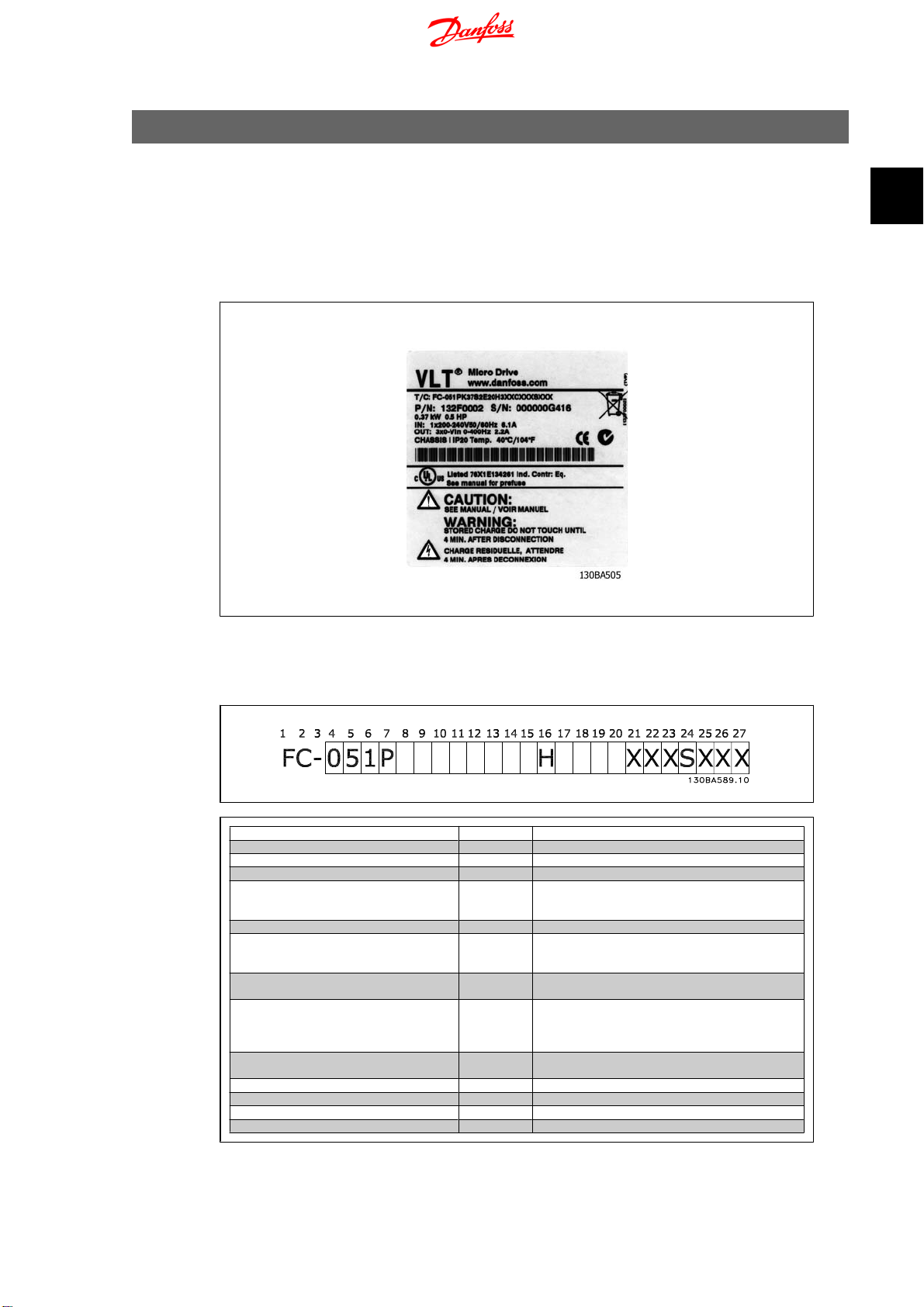

Below is an example of an identification sticker. This sticker is situated on the frequency converter

and shows the type and options fitted to the unit. See following tables for details, how to read the

Type code string.

Illustration 2.1: This example shows the identification sticker.

2.1.2. Type Code

Description Pos Possible choice

Product group 1-3 Adjustable Frequency Converters

Series and product type 4-6 Micro Drive

Power size 7-10 0.18 - 7.5 kW

Mains voltage 11-12 S2: Single phase 200 - 240 V AC

T 2: Three phase 200 - 240 V AC

T 4: Three phase 380 - 480 V AC

Enclosure 13-15 IP20/Chassis

RFI filter 16-17 HX: No RFI filter

H1: RFI filter class A1/B

H3:RFI filter A1/B (reduced cable length)

Brake 18 B: Brake chopper included

X: No brake chopper included

Display 19 X: No Local Control Panel

N: Numerical Local Control Panel (LCP)

P: Numerical Local Control Panel (LCP) with potentiom-

eter

Coating PCB 20 C: Coated PCB

X. No coated PCB

Mains option 21 X: No mains option

Adaptation A 22 No adaptation

Adaptation B 23 No adaptation

Software release 24-27 Latest release - std. software

Table 2.1: Type code description

VLT Micro Drive FC 51 2. Introduction

MG.02.C2.02 - VLT®is a registered Danfoss trademark

2.1.3. Symbols

Symbols used in this Programming Guide.

NB!

Indicates something to be noted by the reader.

Indicates a general warning.

Indicates a high-voltage warning.

* Indicates default setting

2.1.4. Abbreviations and Standards

Terms: Abbreviations: SI-units: I-P units:

Acceleration m/s² ft/s²

American wire gauge AWG

Automatic Motor Tuning AMT

Current A Amp

Current limit I

LIM

Energy J = N·m ft-lb, Btu

Fahrenheit ˚F

Frequency Converter FC

Frequency Hz Hz

Kilohertz kHz

Local Control Panel LCP

Milliampere mA

Millisecond ms

Minute min

Motion Control Tool MCT

Motor Type Dependent M-TYPE

Newton Metres Nm

Nominal motor current I

M,N

Nominal motor frequency f

M,N

Nominal motor power P

M,N

Nominal motor voltage U

M,N

Parameter par.

Protective Extra Low Voltage PELV

Power W Btu/hr, hp

Pressure Pa = N/m² psi, psf, ft of

water

Rated Inverter Output Current I

INV

Revolutions Per Minute RPM

Size Related SR

Temperature ˚C˚F

Time s s,hr

Torque limit T

LIM

Voltage V V

Table 2.2: Abbreviation and Standards table .

2. Introduction VLT Micro Drive FC 51

MG.02.C2.02 - VLT®is a registered Danfoss trademark

3. Programming

3.1. How to Programme

3.1.1. Programming with MCT-10

The frequency converter can be programmed from a PC via RS485 com-port by installing the

MCT-10 Set-up Software.

This software can either be ordered using code number 130B1000 or downloaded from the Dan-

foss Web site: www.danfoss.com, Business Area: Motion Controls.

Please refer to manual MG.10.RX.YY.

3.1.2. Programming with LCP 11 or LCP 12

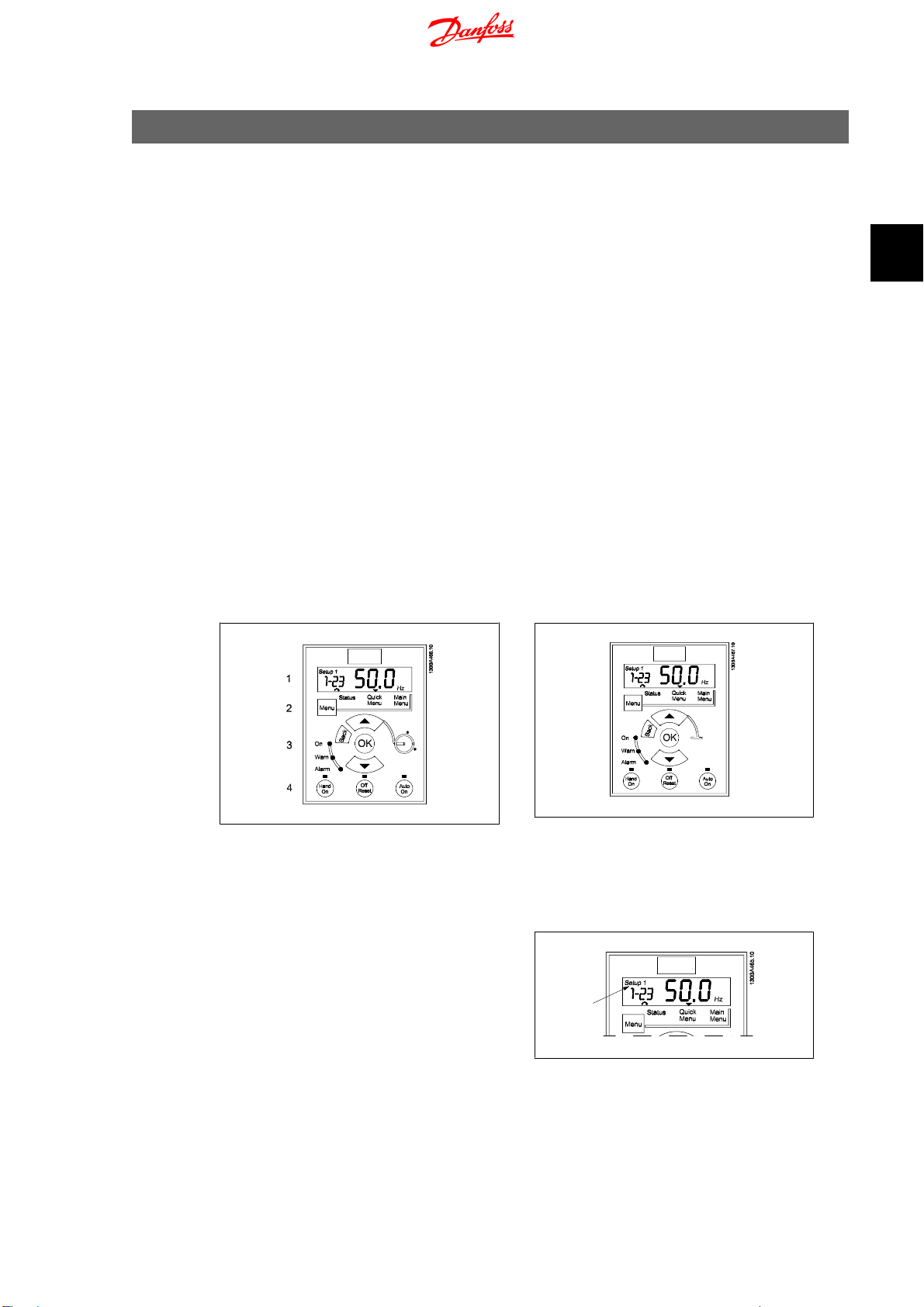

The LCP is divided into four functional groups:

1. Numeric display.

2. Menu key.

3. Navigation keys.

4. Operation keys and indicator lights (LEDs).

Illustration 3.1: LCP 12 with potentiometer Illustration 3.2: LCP 11 without potentiometer

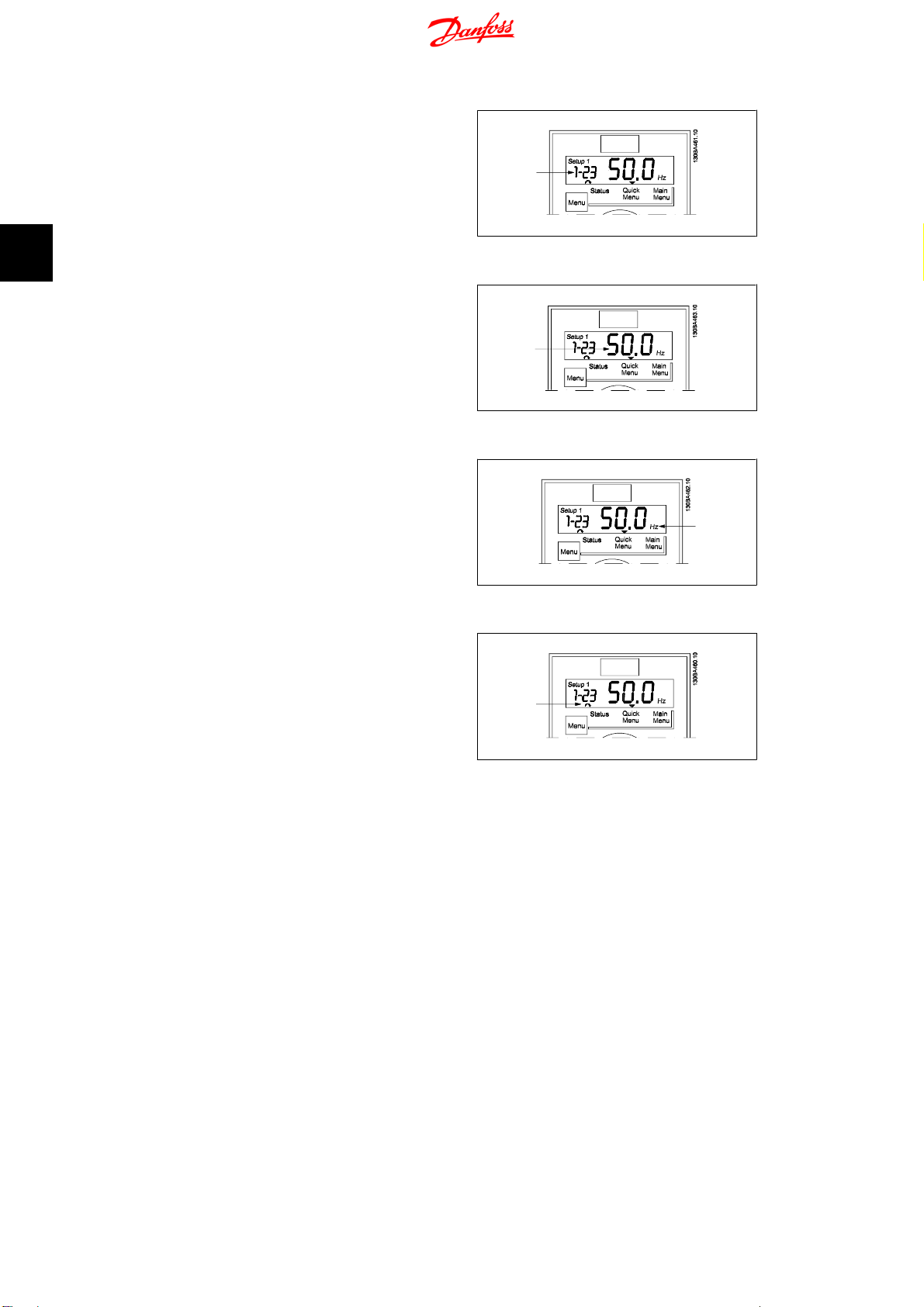

The display:

A number of information can be read from the display.

Set-up number shows the active set-up and

the edit set-up. If the same set-up acts as

both active and edit set-up, only that set-up

number is shown (factory setting).

When active and edit set-up differ, both num-

bers are shown in the display (Setup 12). The

number flashing, indicates the edit set-up.

Illustration 3.3: Indicating Set-up

VLT Micro Drive FC 51 3. Programming

MG.02.C2.02 - VLT®is a registered Danfoss trademark

The small digits to the left are the selected

parameter number .

Illustration 3.4: Indicating selected par. no.

The large digits in the middle of the display

show the value of the selected parameter.

Illustration 3.5: Indicating value of selected par.

The right side of the display shows the unit

of the selected parameter. This can be either

Hz, A, V, kW, HP, %, s or RPM.

Illustration 3.6: Indicating unit of selected par.

Motor direction is shown to the bottom left

of the display - indicated by a small arrow

pointing either clockwise or counterclockwise.

Illustration 3.7: Indicating motor direction

Use the [MENU] key to select one of the following menus:

Status Menu:

The Status Menu is either in

Readout Mode

Hand on Mode

. In

Readout Mode

the value of the

currently selected readout parameter is shown in the display.

Hand on Mode

the local LCP reference is displayed.

Quick Menu:

Displays Quick Menu parameters and their settings. Parameters in the Quick Menu can be accessed

and edited from here. Most applications can be run by setting the parameters in the Quick Menus.

Main Menu:

Displays Main Menu parameters and their settings. All parameters can be accessed and edited

here. A parameter overview is found later in this chapter.

3. Programming VLT Micro Drive FC 51

MG.02.C2.02 - VLT®is a registered Danfoss trademark

Andere Handbücher für VLT Micro Drive FC 51 Series

Inhaltsverzeichnis

Andere Danfoss Gleichstromantrieb Handbücher

Danfoss

Danfoss VLT FC Series Bedienungsanleitung

Danfoss

Danfoss VLT 5000 Series Gebrauchsanweisung

Danfoss

Danfoss VACON 100 flow Benutzerhandbuch

Danfoss

Danfoss vlt aqua Bedienungsanleitung

Danfoss

Danfoss VLT AQUA Drive FC 202 Bedienungsanleitung

Danfoss

Danfoss vlt aqua Bedienungsanleitung

Danfoss

Danfoss VLT HVAC Basic Drive FC 101 Bedienungsanleitung

Danfoss

Danfoss VLT AutomationDrive FC 360 Bedienungsanleitung

Danfoss

Danfoss 176F3167 Benutzerhandbuch

Danfoss

Danfoss VLT FC 322 Bedienungsanleitung

Danfoss

Danfoss VLT AutomationDrive FC 301 Betriebsanleitung

Danfoss

Danfoss FC 300 Leitfaden

Danfoss

Danfoss VLT HVAC Basic Drive FC 101 Bedienungsanleitung

Danfoss

Danfoss VLT AutomationDrive FC 302 Bedienungsanleitung

Danfoss

Danfoss VLT PTC Thermistor Card MCB 112 Bedienungsanleitung

Danfoss

Danfoss VLT Midi Drive FC 280 Bedienungsanleitung

Danfoss

Danfoss VLT AQUA Drive FC 202 Bedienungsanleitung

Danfoss

Danfoss VLT CDS302 Bedienungsanleitung

Danfoss

Danfoss RAVV Bedienungsanleitung

Danfoss

Danfoss VLT series Bedienungsanleitung

Danfoss

Danfoss VLT HVAC Bedienungsanleitung

Danfoss

Danfoss VLT 6000 HVAC Bedienungsanleitung

Danfoss

Danfoss FC 100 Series Betriebsanleitung

Danfoss

Danfoss VLT AutomationDrive FC 360 Bedienungsanleitung

Beliebte Gleichstromantrieb Handbücher anderer Marken

Vincent Associates

Vincent Associates UNIBLITZ ED12DSS Bedienungsanleitung

EKSMA OPTICS

EKSMA OPTICS DQ-100-4 Stücklistenhandbuch

Chamberlain Garog

Chamberlain Garog D Series Bedienungsanleitung

Parker

Parker PDS Series Bedienungsanleitung

Festo

Festo DGC G Series Einrichtungshandbuch

Binks

Binks QS-5012-1-CE Bedienungsanleitung

ABB

ABB ACQ580-01 Series Installationshandbuch

YASKAWA

YASKAWA CANopen SI-S3 Bedienungsanleitung

GE D20A6 Bedienungsanleitung

Unex

Unex MC-D-250-1000-050W-TW Bedienungsanleitung

Geckodrive

Geckodrive G213V Bedienungsanleitung

ABB

ABB RSYC-01 Bedienungsanleitung

Rockwell Automation

Rockwell Automation PowerFlex 700S Betriebsanleitung

WEG

WEG DeviceNet CFW500 Bedienungsanleitung

Siemens

Siemens SINAMICS G Datenblatt

Siemens

Siemens SINAMICS SM150 6SL3815-7NP41-0AA1 Betriebsanleitung

SOMFY

SOMFY JR RU 30 Bedienungsanleitung

Beckhoff

Beckhoff AX8911 Bedienerhandbuch
