DFI WB72-SC Bedienungsanleitung
WB72-SC
WB72-SR
Rev. A+
System Board Users Manual
Carte Mère Manuel Pour Utilisateur
System-Platine Benut erhandbuch
Manual del Usuario de Placas Base
51310136
Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose. The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 001. All Rights Reserved.
Trademarks
Windows® 98, Windows® 98 SE, Windows® ME, Windows® 000
and Windows NT® 4.0 are registered trademarks of Microsoft
Corporation. Intel® and Pentium® 4 are registered trademarks of
Intel Corporation. Award is a registered trademark of Award
Software, Inc. Other trademarks and registered trademarks of
products appearing in this manual are the properties of their
respective holders.
Caution
To avoid damage to the system:
Use the correct AC input voltage range.
To reduce the risk of electric shock:
Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.
Battery:
Danger of explosion if battery incorrectly replaced.
Replace only with the same or equivalent type recommend by
the manufacturer.
Dispose of used batteries according to the battery
manufacturers instructions.
Joystick or MIDI port:
Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
. Shielded interface cables must be used in order to comply with
the emission limits.
4
Quick Setup Guide
Quick Setup
Guide
Table of Contents
Chapter 1
Quick Setup Guide.............................................
Chapter 2
En lish......................................................................
Chapter 3
Français (French).................................................
Chapter 4
Deutsch (German)................................................
Chapter 5
Español (Spanish)..................................................
5
25
42
59
76
5
Quick Setup Guide
Quick Setup
Guide
Chapter 1 - Quick Setup Guide
Table of Contents
1.1 System Board Layout..................................................................................................
1. Jumpers.....................................................................................................................................
1.3 Ports and Connectors................................................................................................
1.4 Award BIOS Setup Utility.......................................................................................
6
8
11
0
Note:
The users manual in the provided CD contains detailed information
about the system board. If, in some cases, some information doesnt
match those shown in this manual, this manual should always be
regarded as the most updated version.
6
Quick Setup Guide
Quick Setup
Guide

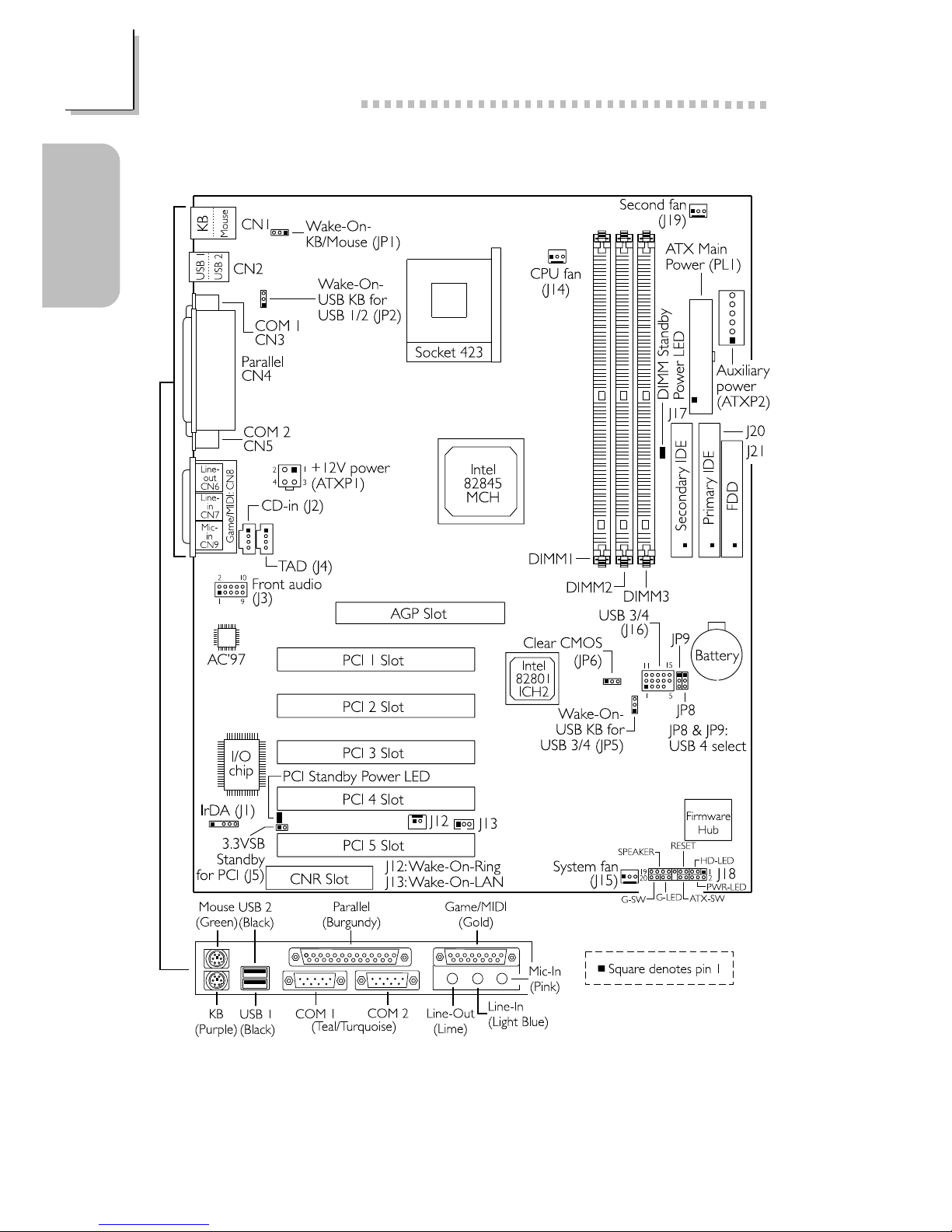

1.1 System Board Layout
WB72-SC
7
Quick Setup Guide
Quick Setup
Guide
WB72-SR
(Supports AID)
8
Quick Setup Guide
Quick Setup
Guide
1.2 Jumpers

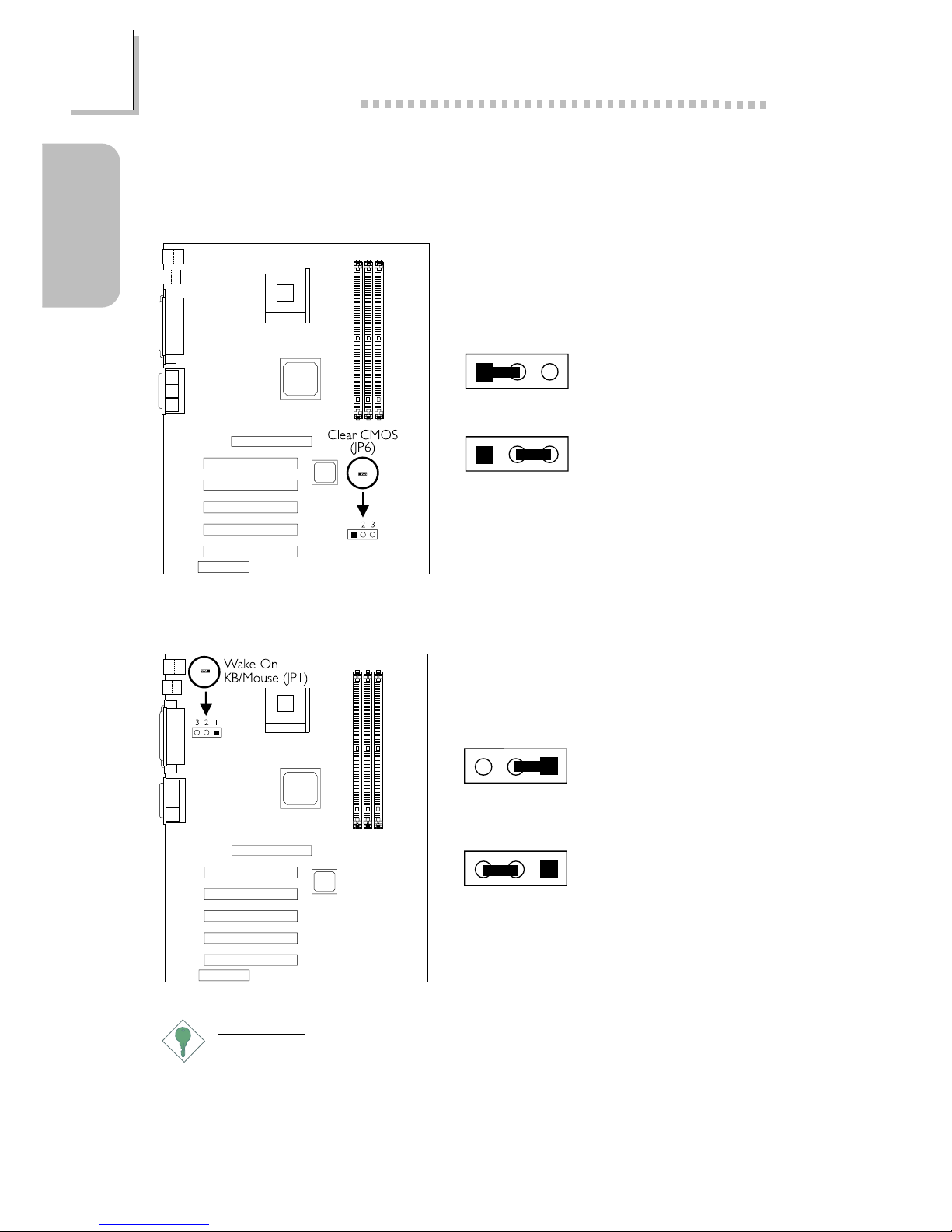

1.2.1 Clear CMOS Data - JP6
-3 On:
Clear CMOS Data
1- On:
Normal (default)
1.2.2 Wake-On-Keyboard / Wake-On-Mouse - JP1
1- On:
Disable the Wake-On-
KB/Mouse function
(default)
-3 On:
Enable the Wake-On-
KB/Mouse function
Important:
The 5VSB power source of your power supply must support
≥
720mA.
13
1 3
3 1
3 1
9
Quick Setup Guide
Quick Setup
Guide

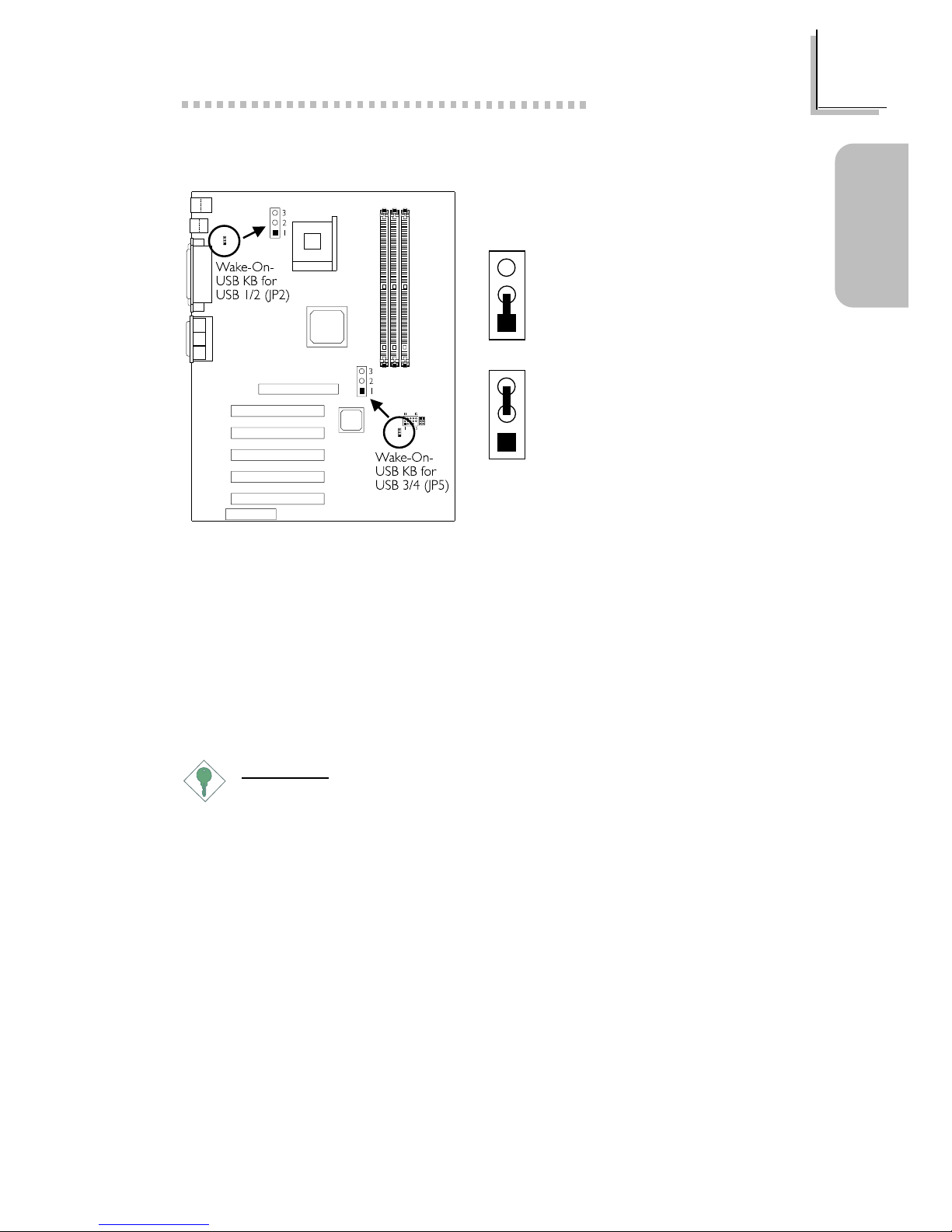

1.2.3 Wake-On-USB Keyboard - JP2 and JP5
Important:
If you are using the Wake-On-USB Keyboard function for 2 USB
ports, the 5VSB power source of your power supply must
support
≥
1.5A.
If you are using the Wake-On-USB Keyboard function for 4 USB
ports, the 5VSB power source of your power supply must
support
≥
2A.
-3 On:
Enable the
Wake-On-USB KB
1- On:
Disable the
Wake-On-USB KB
(default)
JP2 - for the USB keyboard that is connected to the USB 1 or USB
port.
JP5 - for the USB keyboard that is connected to the USB 3 or USB 4
port.
USB KB Wake-Up From S3 in the Power Management Setup submenu
of the BIOS must also be enabled.
3
1
3
1
10
Quick Setup Guide
Quick Setup
Guide
1.2.4 USB 4 Select - JP8 and JP9
1- On:
USB 4 on J16
(default)
-3 On:
USB 4 on CNR
1
3
JP9 JP8
1
3
JP9 JP8
