Chapter 1 Introduction

PIC-H61

Full Size PICMG 1.3

User’s Manual

A-239-M-2008

www.dﬁ.com

Chapter 1 Introduction

This publication contains information that is protected by copyright. No part of it may be re-

produced in any form or by any means or used to make any transformation/adaptation without

the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no

representations or warranties with respect to the contents or use of this manual and specifi-

cally disclaims any express or implied warranties of merchantability or fitness for any particular

purpose. The user will assume the entire risk of the use or the results of the use of this docu-

ment. Further, the manufacturer reserves the right to revise this publication and make changes

to its contents at any time, without obligation to notify any person or entity of such revisions

or changes.

Changes after the publication’s first release will be based on the product’s revision. The website

will always provide the most updated information.

Trademarks

Product names or trademarks appearing in this manual are for identification purpose only and

are the properties of the respective owners.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-

able protection against harmful interference when the equipment is operated in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encour-

aged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compli-

ance could void the user’s authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

www.dﬁ.com

Chapter 1 Introduction

Trademarks ........................................................................................................2

FCC and DOC Statement on Class B.....................................................2

About this Manual ..........................................................................................4

Warranty ............................................................................................................4

Static Electricity Precautions......................................................................4

Safety Measures ..............................................................................................4

About the Package.........................................................................................5

Chapter 1 - Introduction .............................................................................6

Specifications ................................................................................................6

Features ........................................................................................................7

Chapter 2 - Hardware Installation................................................8

Board Layout.................................................................................................8

System Memory............................................................................................ 9

Installing the DIM Module........................................................................... 10

CPU ................................................................................................................ 11

Installing the CPU....................................................................................... 11

Installing the Fan and Heat Sink.................................................................. 13

Jumper Settings ......................................................................................... 14

Clear CMOS ............................................................................................... 14

USB Power Select ....................................................................................... 15

KB/MS Power Select.................................................................................... 15

Power-on Select.......................................................................................... 16

COM1 RS232/422/485 Select....................................................................... 16

Rare Panel I/O Ports.................................................................................... 17

COM (Serial) Ports...................................................................................... 17

USB Ports................................................................................................... 18

RJ45 LAN Ports........................................................................................... 18

VGA Ports .................................................................................................. 19

I/O Connectors ............................................................................................ 20

Digital I/O Power Connector........................................................................ 20

Digital I/O Connector.................................................................................. 20

Cooling Fan Connectors............................................................................... 21

Chassis Intrusion Connector ........................................................................ 21

Front Panel Connector ................................................................................ 22

LPT Connector............................................................................................ 22

FPD Connector ........................................................................................... 23

KB/MS Connector........................................................................................ 23

IrDA Connector .......................................................................................... 24

SMBus Connector ....................................................................................... 24

Power Connectors....................................................................................... 25

Battery....................................................................................................... 25

Chapter 3 - BIOS Setup............................................................... 26

Overview ..................................................................................................... 26

AMI BIOS Setup Utility............................................................................. 27

Main .......................................................................................................... 27

Advanced ................................................................................................... 27

Chipset ...................................................................................................... 35

Boot........................................................................................................... 39

Security...................................................................................................... 40

Save & Exit ................................................................................................ 41

Updating the BIOS ....................................................................................... 41

Chapter 4 - Supported Software .......................................................... 42

Appendix A - Watchdog Sample Code................................................ 53

Appendix B - Troubleshooting ................................................................ 54

Appendix C - Troubleshooting ................................................................ 55

Appendix D - BIOS Status Code............................................................ 57

Table of Contents

www.d.com

Chapter 1 Introduction

About this Manual

This manual can be downloaded from the website, or acquired as an electronic file included in

the optional CD/DVD. The manual is subject to change and update without notice, and may

be based on editions that do not resemble your actual products. Please visit our website or

contact our sales representatives for the latest editions.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product,

inability to use the product, unauthorized replacement or alteration of components and

product specifications.

2. The warranty is void if the product has been subjected to physical abuse, improper instal-

lation, modification, accidents or unauthorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-

stances, attempt to perform service, adjustments or repairs on the product, whether in or

out of warranty. It must be returned to the purchase point, factory or authorized service

agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequencial damages to the

product that has been modified or altered.

Static Electricity Precautions

It is quite easy to inadvertently damage your PC, system board, components or devices even

before installing them in your system unit. Static electrical discharge can damage computer

components without causing any signs of physical damage. You must take extra care in han-

dling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are

ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the components, contacts

or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con-

nectors by their ends.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range.

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installa-

tion or servicing. After installation or servicing, cover the system chassis before

plugging the power cord.

Important:

Electrostatic discharge (ESD) can damage your processor, disk drive and other com-

ponents. Perform the upgrade instruction procedures described at an ESD worksta-

tion only. If such a station is not available, you can provide some ESD protection by

wearing an antistatic wrist strap and attaching it to a metal part of the system chas-

sis. If a wrist strap is unavailable, establish and maintain contact with the system

chassis throughout any procedures requiring ESD protection.

www.d.com

Chapter 1 Introduction

About the Package

The package contains the following items. If any of these items are missing or damaged,

please contact your dealer or sales representative for assistance.

• One PIC-H61 board

• Two USB port cables (with bracket)

• Two COM port cables (with bracket)

• Two Serial ATA data cables

• One QR (Quick Reference)

Optional Items

• Serial ATA data cable

• Serial ATA power cable

• USB port cable

• COM port cable

The board and accessories in the package may not come similar to the information listed

above. This may differ in accordance to the sales region or models in which it was sold. For

more information about the standard package in your region, please contact your dealer or

sales representative.

Before Using the System Board

Before using the system board, prepare basic system components.

If you are installing the system board in a new system, you will need at least the following

internal components.

• A CPU

• Memory module

• Storage devices such as hard disk drive, CD-ROM, etc.

You will also need external system peripherals you intend to use which will normally include at

least a keyboard, a mouse and a video display monitor.

www.dﬁ.com

Chapter 1 Introduction

Serial ATA • 4 SATA 2.0 ports with data transfer rate up to 3Gb/s

BIOS • AMI BIOS

- 64Mbit SPI BIOS

Rear I/O • 1 DB-15 VGA port

• 2 RJ45 LAN ports

• 2 USB 2.0/1.1 ports

I/O Connectors • 1 PS/2 Keyboard/Mouse connector

• 4 serial connectors

- 1 RS232/422/485

- 3 RS232

• 4 SATA 2.0 ports

• 1 parallel connector

• 1 ﬂoppy connector

• 2 connectors for 4 USB 2.0/1.1 ports

• 1 8-bit Digital I/O connector

• 1 SMBus connector

• 1 IrDA connector

• 1 front panel connector

• 1 chassis intrusion connector

• 1 CPU fan connector (supports Smart fan)

• 1 8-pin 12V ATX power connector

Energy Efﬁcient

Design • Supports ErP Lot6 power saving (optional)

• Supports ACPI

• System Power Management

• Wake-On-Events include:

- Wake-On-PS/2 KB/Mouse

- Wake-On-USB KB/Mouse

- Wake-On-LAN

- RTC timer to power-on the system

• CPU stopped clock control

• AC power failure recovery

Damage Free

Intelligence • Monitors CPU/system temperature and overheat alarm

• Monitors VCORE/5V/3.3V/V_DIMM/12V/5VSB voltages and failure alarm

• Monitors CPU/system fan speed and failure alarm

• Read back capability that displays temperature, voltage and fan speed

• Watchdog timer function

OS Support • Windows XP Professional x86 & SP3 (32-bit)

• Windows XP Professional x64 & SP2 (64-bit)

• Windows 7 Ultimate x86 & SP1 (32-bit)

• Windows 7 Ultimate x64 & SP1 (64-bit)

Temperature • Operating: 0oC to 60oC

• Storage: -20oC to 85oC

Humidity • 10% to 90%

Dimensions • 338mm (13.3") x 122mm (4.8")

Certiﬁcation • CE

• FCC Class B

• RoHS

Chapter 1 - Introduction

Specifications

Processor • LGA 1155 socket for:

- 3rd generation Intel®CoreTM processors (22nm process technology)

: Intel®CoreTM i7-3770 (8M Cache, up to 3.9 GHz); 77W

: Intel®CoreTM i5-3550S (6M Cache, up to 3.7 GHz); 65W

: Intel®CoreTM i3-3220 (3M Cache, 3.3 GHz); 55W

: Intel®Pentium®G2120 (3M Cache, 3.1 GHz); 65W

- 2nd generation Intel®CoreTM processors (32nm process technology)

: Intel®CoreTM i7-2600 (8M Cache, up to 3.8 GHz); 95W

: Intel®CoreTM i5-2400 (6M Cache, up to 3.4 GHz); 95W

: Intel®CoreTM i3-2120 (3M Cache, 3.3 GHz); 65W

: Intel®Pentium®G850 (3M Cache, 2.9 GHz); 65W

• Intel®Advanced Vector Extensions (Intel®AVX) Instructions

• Intel®Turbo Boost Technology

Chipset • Intel®H61 Express Chipset

System Memory • Two 240-pin DDR3 DIMM sockets

• Supports DDR3 1333/1600MHz (3rd generation processors)

Supports DDR3 1066/1333MHz (2nd generation processors)

• Supports dual channel memory interface

• Supports up to 16GB system memory

• DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3 DRAM technologies are

supported for x8 and x16 devices, unbuffered, non-ECC

Expansion

Interfaces

(via gold

ﬁngers)

• 1 PCIe x16 slot

- Supports Gen 3.0 (3rd generation processors)

- Supports Gen 2.0 (2nd generation processors)

• 4 PCIe x1

• 4 PCI

• 4 USB 2.0

Graphics • Intel®HD Graphics

• Display outputs:

- 1 VGA port at rear I/O

- 1 TMDS port pin header supports PIC-DVI module (optional)

• DVI-D supports up to 1920x1080 @ 60Hz resolution (optional)

• VGA supports up to 2048x1536 @ 75Hz resolution

• Supports 6 Graphics Execution Units (EUs)

• Intel®Clear Video Technology

• DirectX Video Acceleration (DXVA) support for accelerating video processing

LAN • 2 Intel®W82574L PCI Express Gigabit Ethernet controllers

• Integrated 10/100/1000 transceiver

• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Onboard USB • 6 USB 2.0

- 2 USB at the rear I/O

- 4 USB via 2 USB connectors

Trusted

Platform

Module - TPM

(optional)

• Inﬁneon SLB9635

• Provides a Trusted PC for secure transactions

• Provides software license protection, enforcement and password protection

Chapter 1

www.dﬁ.com

Chapter 1 Introduction

Features

• Watchdog Timer

The Watchdog Timer function allows your application to regularly “clear” the system at the set

time interval. If the system hangs or fails to function, it will reset at the set time interval so

that your system will continue to operate.

• DDR3

DDR3 delivers increased system bandwidth and improved performance. The advantages of

DDR3 are its higher bandwidth and its increase in performance at a lower power than DDR2.

• Graphics

The integrated Intel®HD graphics engine delivers an excellent blend of graphics performance

and features to meet business needs. It provides excellent video and 3D graphics with out-

standing graphics responsiveness. These enhancements deliver the performance and com-

patibility needed for today’s and tomorrow’s business applications. Supports DVI-D and VGA

interfaces for diaplay outputs.

• Serial ATA

Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of

up to 3Gb/s (SATA 2.0), it improves hard drive performance faster than the standard parallel

ATA whose data transfer rate is 100MB/s.

• Gigabit LAN

The Intel W82574L Gigabit LAN controller supports up to 1Gbps data transmission.

• Wake-On-LAN

This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It

is supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power

Management Event) signal. However, if your system is in the Suspend mode, you can power-

on the system only through an IRQ or DMA interrupt.

Chapter 1

• Wake-On-PS/2

This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system.

• Wake-On-USB

This function allows you to use a USB keyboard or USB mouse to wake up a system from the

S3 (STR - Suspend To RAM) state.

• RTC Timer

The RTC installed on the system board allows your system to automatically power-on on the

set date and time.

• ACPI STR

The system board is designed to meet the ACPI (Advanced Configuration and Power Interface)

specification. ACPI has energy saving features that enables PCs to implement Power Manage-

ment and Plug-and-Play with operating systems that support OS Direct Power Management.

ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM

function.

With the Suspend to RAM function enabled, you can power-off the system at once by pressing

the power button or selecting “Standby” when you shut down Windows® without having to

go through the sometimes tiresome process of closing files, applications and operating system.

This is because the system is capable of storing all programs and data files during the entire

operating session into RAM (Random Access Memory) when it powers-off. The operating ses-

sion will resume exactly where you left off the next time you power-on the system.

• Power Failure Recovery

When power returns after an AC power failure, you may choose to either power-on the system

manually or let the system power-on automatically.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the

5V_standby power source of your power supply must support ≥1.5A. For 3 or more

USB ports, the 5V_standby power source of your power supply must support ≥2A.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

• USB

The system board supports USB 2.0 and USB 1.1 ports. USB 1.1 supports 12Mb/second band-

width while USB 2.0 supports 480Mb/second bandwidth providing a marked improvement in

device transfer speeds between your computer and a wide range of simultaneously accessible

external Plug and Play peripherals.

www.dﬁ.com

Chapter 2 Hardware Installation

Chapter 2

Chapter 2 - Hardware Installation

Board Layout

Buzzer

DIO

KB/MS

DIO Power

LGA 1155

SATA 1

SATA 0

SATA 4

SATA 5

SPI Flash BIOS

CPU FAN

(JP2)

USB 4-5

(JP3)

(JP4)

1112

Front Panel

Battery

COM4 COM3 COM2

COM1 DDR3_1

DDR3_2

ATX12V

(JP5)

(JP6)

910

(JP1)

USB 2-3

LPT FPD

133

USB 1

USB 0

VGA

LAN 2

LAN 1

Intel

H61

Fintek

F71889F

IrDA SMBus

Chassis

Intrusion

XIO3130I

Fintek

81216

IT8892

www.dﬁ.com

Chapter 2 Hardware Installation

Chapter 2

System Memory

DDR3

Features

• Two 240-pin DDR3 DIMM sockets

• Supports 1066/1333/1600 MHz DDR3 SDRAM

• Dual channel memory interface

• Supports maximum of 16GB system memory

The system board supports the following memory interface.

Single Channel (SC)

Data will be accessed in chunks of 64 bits (8B) from the memory channels.

Dual Channel (DC)

Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides

better system performance because it doubles the data transfer rate.

Single Channel

DIMMs are on the same channel.

DIMMs in a channel can be identical or

completely different. However, we highly

recommend using identical DIMMs.

Not all slots need to be populated.

Dual Channel DIMMs of the same memory configuration

are on different channels.

Important:

You can populate either Channel A or Channel B first.

Important:

Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in

boards, and other components. Perform installation procedures at an ESD workstation

only. If such a station is not available, you can provide some ESD protection by wear-

ing an antistatic wrist strap and attaching it to a metal part of the system chassis. If

a wrist strap is unavailable, establish and maintain contact with the system chassis

throughout any procedures requiring ESD protection.

www.dﬁ.com

Chapter 2 Hardware Installation

Chapter 2

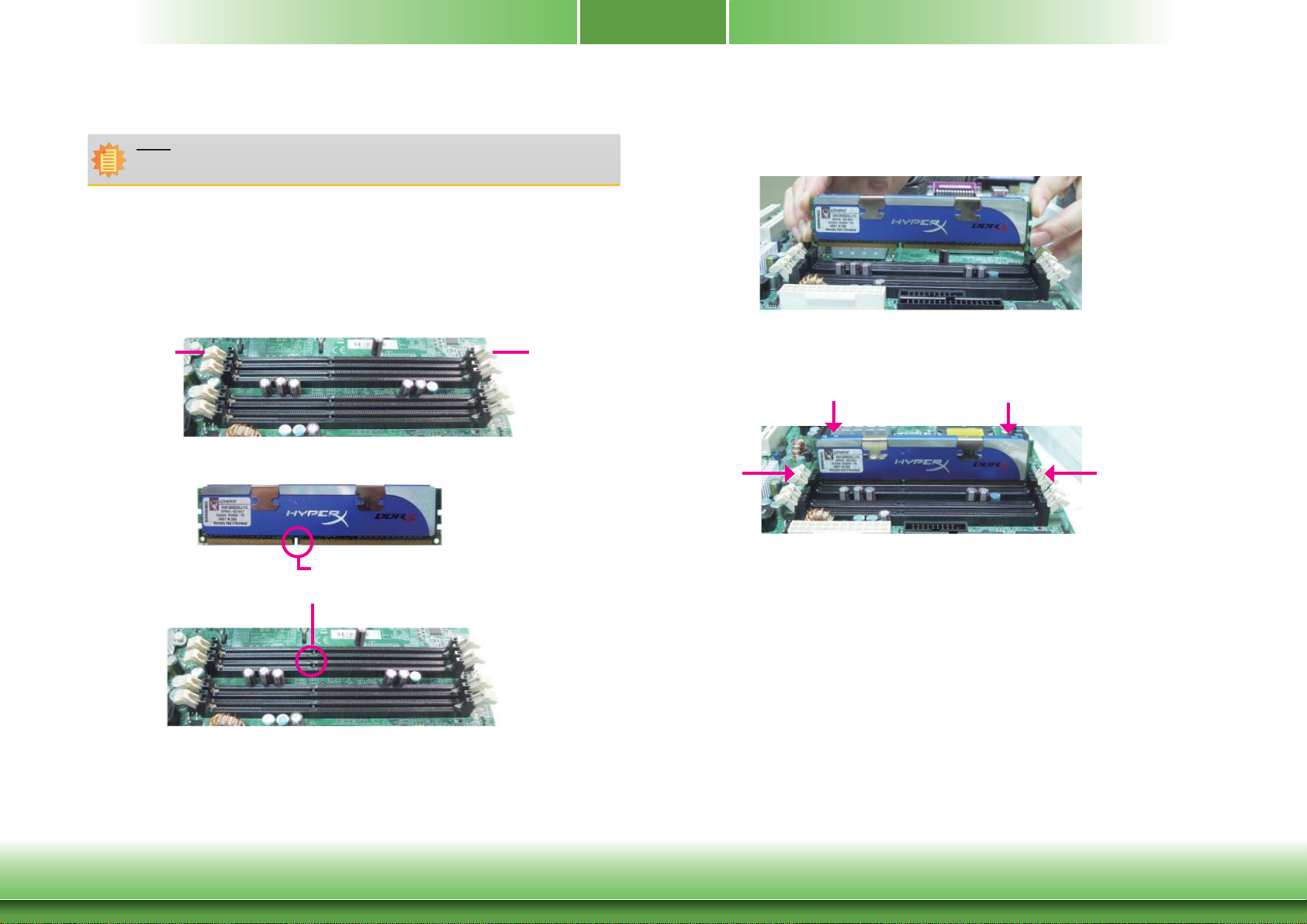

Installing the DIM Module

Note:

The system board used in the following illustrations may not resemble the actual

board. These illustrations are for reference only.

1. Make sure the PC and all other peripheral devices connected to it has been

powered down.

2. Disconnect all power cords and cables.

3. Locate the DIMM socket on the system board.

4. Push the “ejector tabs” which are at the ends of the socket to the side.

Ejector tab

5. Note how the module is keyed to the socket.

Key

Notch

7. Seat the module vertically, pressing it down firmly until it is completely seated

in the socket. The ejector tabs at the ends of the socket will automatically

snap into the locked position to hold the module in place.

6. Grasping the module by its edges, position the module above the socket with

the “notch” in the module aligned with the “key” on the socket. The keying

mechanism ensures the module can be plugged into the socket in only one

way.

Inhaltsverzeichnis

Andere DFI PCI-Karte Handbücher

DFI

DFI SH960-CM236 Bedienungsanleitung

Beliebte PCI-Karte Handbücher anderer Marken

ERMA

ERMA SSI 1417 Bedienungsanleitung

SIIG

SIIG CyberSerial Dual PCI Montageanleitung

Moxa Technologies

Moxa Technologies CP-102E Bedienungsanleitung

I-Bus

I-Bus IBC2602 Bedienungsanleitung

Exsys

Exsys EX-60102 Bedienungsanleitung

Chelsio Communications

Chelsio Communications T5 Series Bedienungsanleitung

Conrad Electronic

Conrad Electronic 97 46 71 Bedienungsanleitung

Micro Innovations

Micro Innovations USB650A Bedienungsanleitung

KTI Networks

KTI Networks KF-310 Bedienungsanleitung

Asus

Asus SpaceLink WL230 Bedienungsanleitung

SIIG

SIIG SC2475 Bedienungsanleitung

TRENDnet

TRENDnet TEW-703PI Bedienungsanleitung

Belkin

Belkin F5D7000F Bedienungsanleitung

Pericom

Pericom PI7C7100 Bedienungsanleitung

ADLINK Technology

ADLINK Technology cPCI-3548 Bedienungsanleitung

Digium

Digium TE200 Series Bedienungsanleitung

Allo.com

Allo.com 2nd Gen E1/T1/J1 Bedienungsanleitung

Western Digital

Western Digital FireWire PCI Adapter Bedienungsanleitung
