Digimerge DPV34D Bedienungsanleitung

Polaris Vision3

Day & Night Dome Camera

V2.0

www.digimerge.com

Vandal Model: DPV34D / DPV24TLXR

Indoor Model: DPD34D

Polaris Vision3

Day & NightDomeCamera

INSTRUCTION MANUAL

Please read thismanual thoroughly before use and keepit handy for future reference.

-i-

-ii-

the

-iii-

FEATURES

All Models Feature:

• 1/3” Sony Ex-View™ II 960H

• Excellent low light performance using Polaris Vision3

• 0.03Lux/F1.2 (Color)

• 0.00002Lux w/Sense-Up at x512

• 700+ TV lines of resolution

• 3D Digital Noise Reduction (3D-DNR)

• Advanced Shadow Reduction (D-WDR)

• OSD menu control

• Privacy Masking / Motion Detection

• VIDEO OUT(BNC)

• Operates in 12VDC or 24VAC

• Test Monitor Output (RCA)

DPD34D

• Indoor Dome Model

• Camera

Mounting:

Surface

/ Semi-Flush

Mounting

DPV34D

• Vandal

Dome

Model

• Camera

Mounting:

Surface Mounting

• Weatherproof Rated

(IP66)

General DPD34D DPV34D

Power source

Power consumption

DC 12V / AC 24V +10%

2.5Watt Max

Minimum Power

Requirement 191mA

Image sensor 1/3” Sony Ex-View™ II 960H

Total pixels 976 (H) x 494 (V)

Scanning system 2:1 interlace

Scanning frequency 15.734KHz(H), 59.95Hz(V)

Sync. system Internal / Line Lock

Resolution 700+ TV Lines

Min. illumination 0.00002 LUX (F1.2) Slow Shutter (x512)

Video output 1.0 Vp-p (75 ohm, composite)

S/N Ratio more than 50dB (AGC OFF)

Power input 2-Pin terminal block (Detachable)

Video output BNC Connector (2nd video RCA)

Lens mount Fixed mount

Lens 2.8 - 10.5mm F1.4

Varifocal DC Auto Iris

Operating temperature -10~50°C

Operating humidity 0-90% RH

SPECIFICATIONS

-1-

DPV24TLXR

13.2Watt Max

0.0 LUX with IR LED On

1.1A (Heater On)

-40~50°C

DPV24TLXR

• Vandal Dome Model

• Camera Mounting: Surface Mounting

• Weatherproof Rated (IP66)

• Smart IR Technology

True Day/Night with ICR mechanism (TDN)•

ArcticPro technology with built-in heater

•

2.8 - 12mm F1.4

Varifocal DC Auto Iris

-2-

Vandal Dome Dimensions Base hole positions

Ø 0.1"

3.5 mm

3.9"

100.0 mm

3.4"

87 mm

Indoor Dome Dimensions

115 mm

4.5 in

137°

123°

100°

7 mm

.28 in

Underside Base hole positions

IndoorDome Flush Mount

Fitting dimensions

3/4’’ -14

NPS thread

4.4"

(112 mm)

5.1"

(130 mm)

112 mm

4.4 in

5.1"

130 mm

39 mm

1.5 in

27 mm

1.1 in

Flush Mount Cutout

andFitting Clearance

MEASUREMENTS

-3-

PACKING CONTENTS

Junction box plate allows tting of either Vandal dome or

Indoor dome to standard 2S, 4S and Octagon junction

boxes.

Junction Box tting plate accessories:

Junction Box Fiting plate -------------------------1

2S / 4S plate screws (KM3.5 Type) ------------4

Octagon tting screws (KM4 Type)-------------2

Base Fitting Screws PWM3 ----------------------3

JUNCTION BOX PLATE

Screw hole overview Camera base tting illustration Junction box tting plate attached to camera

Base Fitting

Screws

88.9 mm

3.5 in

83.3 mm

3.28 in

46.0 mm

1.8 in

Base Fitting

Screw.

Octagon

Screw

2S / 4S

Screw

Indoor Dome package contains the following:

Camera in housing ---------------------------------1

Camera Locking screws (PA3 Type) -----------2

Instruction guide (This Document)-------------1

Surface & Flush Mounting Templates----------2

RCA - BNC test cable------------------------------1

Junction Box Plate----------------------------------1

Mounting screw pack ------------------------------1

Vandal Dome package contains the following:

Camera in housing ---------------------------------1

Camera Locking screws (PM4 Type) ----------3

Instruction guide (This Document)-------------1

Surface Mounting Template ----------------------1

RCA - BNC test cable------------------------------1

Junction Box Plate----------------------------------1

Mounting screw pack ------------------------------1

Tamper allen key------------------------------------1

Conduit Key ------------------------------------------1

Locking

Screw

Conduit

Key

Allen Key

Mounting Screws Pack.

3pc 70mm / 2.8in Screws

3pc 30mm / 1.2in Screws

3pc 40mm 1.6in plugs

-4-

JUNCTION BOX INSTALLATION TYPES

2S FITTING

a. 2S Fitting requires only 2pcs of 2S/4S screws.

Note: You have a reduced space in which

to hide cables using this type of

installation. Recommended for indoor

dome only.

TWO GANG FITTING

of 2S/4S screws.

Note: A two gang provides the most robust

vandal domes.

4S FITTING

a. 4S Fitting requires 2pcs of 2S/4S screws.

Note:

Suitable for both indoor and vandal domes.

OCTAGON FITTING

Octagon screws.

Note:

are larger compared to those used for

the 2S/4S (M4 type). Suitable for both

indoor and vandal domes

Cable

Entry

Screws

Cable

Entry

Screws

Cable

Entry

Screws

Cable

Entry

Screws

-5-

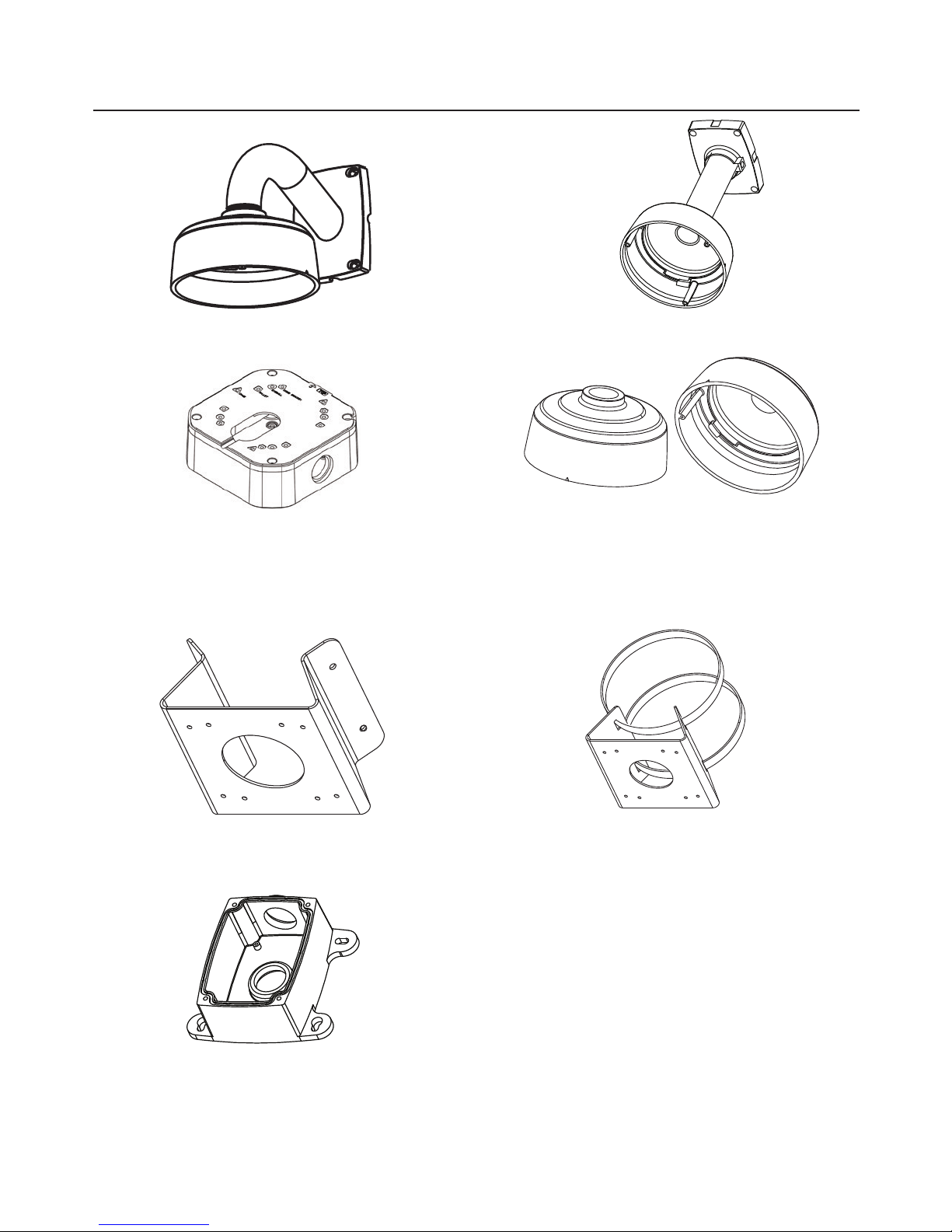

VANDAL DOME FITTINGS

Pendant Cap - model # MNTV2XPC

Replaces the need for the camera base.

Compatible with ceiling conduit installations.

Pole Mount - model # MNTV2XP

Junction Box Attachment for

MNTV2XW & MNTV2XC - model # MNTV2XJ

Fits either wall mount and ceiling mount.

Symmetrical design - reversible for top or bottom

conduit.

Corner Mount bracket - model # MNTV2XR

Pendant Mount - model # MNTV2XC

Wall Mount - model # MNTV2XW

Junction Box Mount - model # MNTV2XB

Can fit either MNTV2XW or MNTV2XJ. Can fit either MNTV2XW or MNTV2XJ.

Mount for either Vandal or Indoor Dome.

Can also mount MNTV2XC or MNTV2XW.
