Digital Watchdog DWC-PTZ37XAL Bedienungsanleitung

2012.09

Super Speed Dome

x37PTZ Outdoor All in One

Dome Camera

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

User’s Manual

Safety Information

This symbol indicates that dangerous voltage

consisting a risk of electricshock is present within

this unit.

Warning Precaution

This exclamation point symbol is intended to alert the

user to the presence of important operating and

maintenance (servicing)instructions in the literature

accompanying the appliance.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION:

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

To prevent damage which may result in ﬁre or electric shock

hazard, do not expose this appliance to rain or moisture.

Be sure to use only the standard adapter that is speciﬁed in

the speciﬁcation sheet. Using any other adapter could cause

ﬁre, electrical shock, or damage to the product.

Incorrectly connecting the power supply or replacing battery

may cause explosion, ﬁre, electric shock, or damage to the

product.

Do not connect multiple cameras to a single adapter.

Exceeding the capacity may cause excessive heat generation

or ﬁre.

Securely plug the power cord into the power receptacle.

Insecure connection may cause ﬁre.

When installing the camera, fasten it securely and ﬁrmly.

A falling camera may cause personal injury.

Do not place conductive objects (e.g. screw drivers, coins,

metal items, etc.) or containers ﬁlled with water on top of

the camera. Doing so may cause personal injury due to ﬁre,

electric shock, or falling objects.

Do not install the unit in humid, dusty, or sooty locations.

Doing so may cause ﬁre or electric shock.

If any unusual smells or smoke come from the unit, stop

using the product. Immediately disconnect the power sorce

and contact the service center. Continued use in such a

condition may cause ﬁre or electric shock.

If this product fails to operate normally, contact the nearest

service center. Never disassemble or modify this product in

any way.

When cleaning, do not spray water directly onto parts of the

product. Doing so may cause ﬁre or electric shock.

WARNING

10.

Precaution

Operating

•Before using, make sure power supply and all other parts are

properly connected.

•While operating, if any abnormal condition or malfunction

is observed, stop using the camera immediately and contact

your dealer.

Handling

• Do not disassemble or tamper with parts inside the camera.

• Do not drop the camera or subject it to shock or vibration as

this can damage the camera.

• Clean the clear dome cover with extra care. Scratches and

dust can ruin the quality of the camera image.

Installation and Storage

• Do not install the camera in areas of extreme temperature,

exceeding the allowed range.

• Avoid installing in humid or dusty environments.

• Avoid installing in places where radiation is present.

• Avoid installing in places where there are strong magnetic

elds and electric signals.

• Avoid installing in places where the camera would be subject

to strong vibrations.

• Never expose the camera to rain or water.

1. Read these instructions. - All these safety and operating instructions should be read before the product is

installed or operated.

2. Keep these instructions. - The safety, operating and use instructions should be retained for future reference.

3. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to.

4. Follow all instructions. - All operating and use instructions should be followed.

5. Do not use this device near water. - For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet

basement; near a swimming pool; etc.

6. Clean only with dry cloth. - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Slots and

openings in the cabinet are provided for ventilation, to ensure reliable operation of the product, and to protect it

from over-heating. The openings should never be blocked by placing the product on bed, sofa, rug or other similar

surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper

ventilation is provided and the manufacturer’s unstructions have been adhere to.

8. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including ampliers)

that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade

or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult an

electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and

the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12. Use only with cart, stand, tripod, bracket, or table specied by the

manufacturer, or sold with the apparatus. When a cart is used, use

caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged

in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been

dropped.

Important Safety Instructions

Contents

Product & Accessories

Parts Name & Functions_Appearance

Parts Name & Functions_Inside

1. Introduction

Installation

DIP Switch Setup

Cabling

2. Installation

OSD Information

General Rules of Menu Operation

ROOT MENU & SYSTEM INFORMATION

DISPLAY SETUP > CAMERA ID

DISPLAY SETUP > PRIVACY ZONE

MOTION SETUP

FUNCTION SETUP > PRESET SETUP

FUNCTION SETUP > SCAN SETUP

FUNCTION SETUP > PATTERN SETUP

FUNCTION SETUP > GROUP SETUP

FUNCTION SETUP > SCHEDULE SETUP

CAMERA SETUP > WB SETUP

CAMERA SETUP > AE SETUP

CAMERA SETUP > SPECIAL

SYSTEM SETUP

SYSTEM INITIALIZE

3. OSD Menu

Dimension

Specification

4. Specifications

WARRANTY INFORMATION

LIMITS AND EXCLUSIONS

Product & Accessories

Introduction -

Please check if all the camera and accessories are included in the package.

All-In-One Camera Manual CD

Hexagonal Wrench

Product Accessories

Quick Manual

NOTE: Mounting Accessories sold separately.

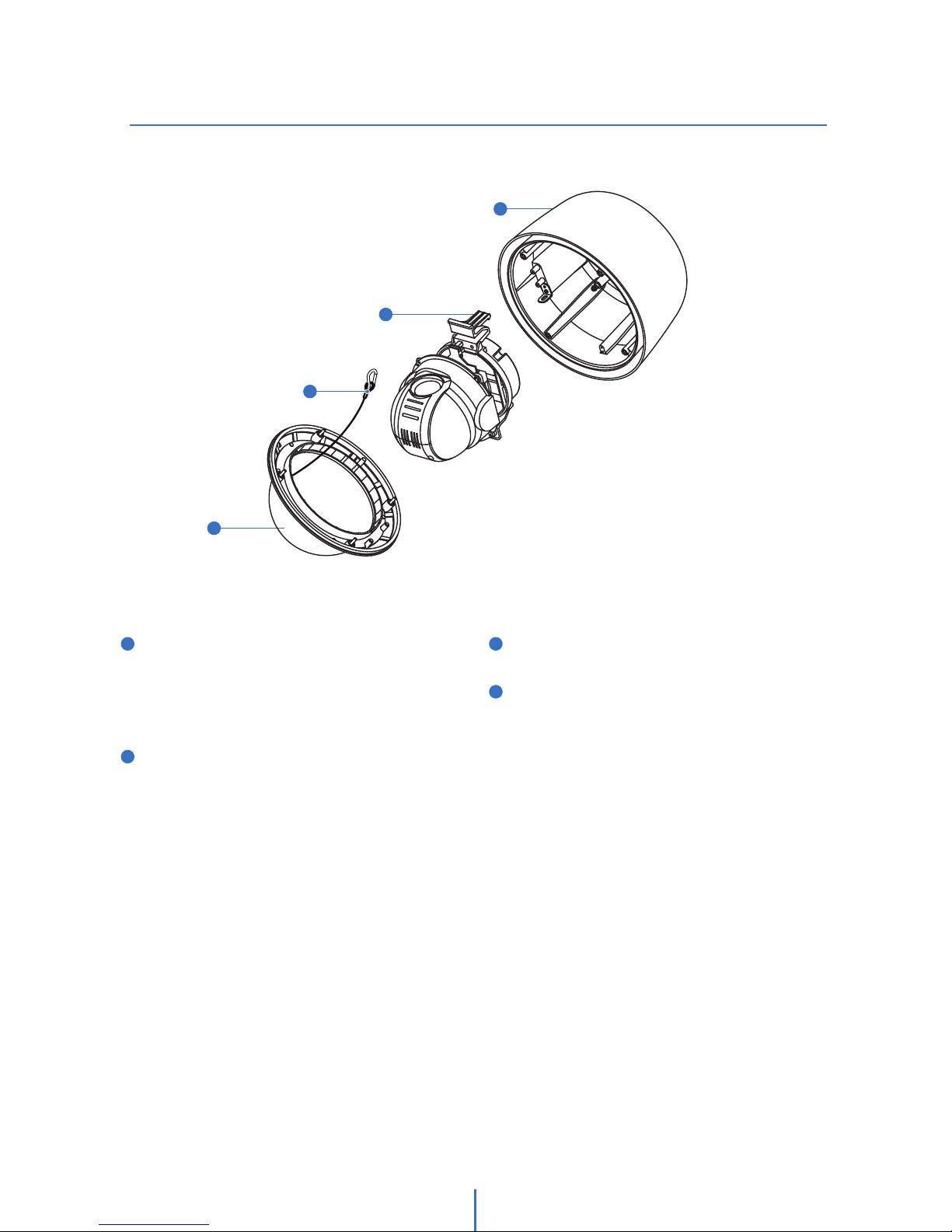

Part Name & Functions_Appearance

Introduction -

Dome Safety Wire

Prevents the dome cover from falling.

Dome Cover

Do not detach protection lm from dome cover before

ﬁnishing all installation process to protect dome cover

from scratches or dust. In the dome cover, there are fan

and heater to remove moisture on the bubble dome.

Sunshield & Upper Housing

Sunshield protect bubble dome cover from the sun rays and

rain fall. In the sunshield, there is the upper housing which

will contain accommodate PTZ mechanism. Also, the upper

housing will be connected to both mounting brackets and

dome cover.

PTZ Mechanism

Control the PTZ operations of the camera.

Sunshield & Upper Housing

PTZ Mechanism

Dome Safety Wire

Dome Cover

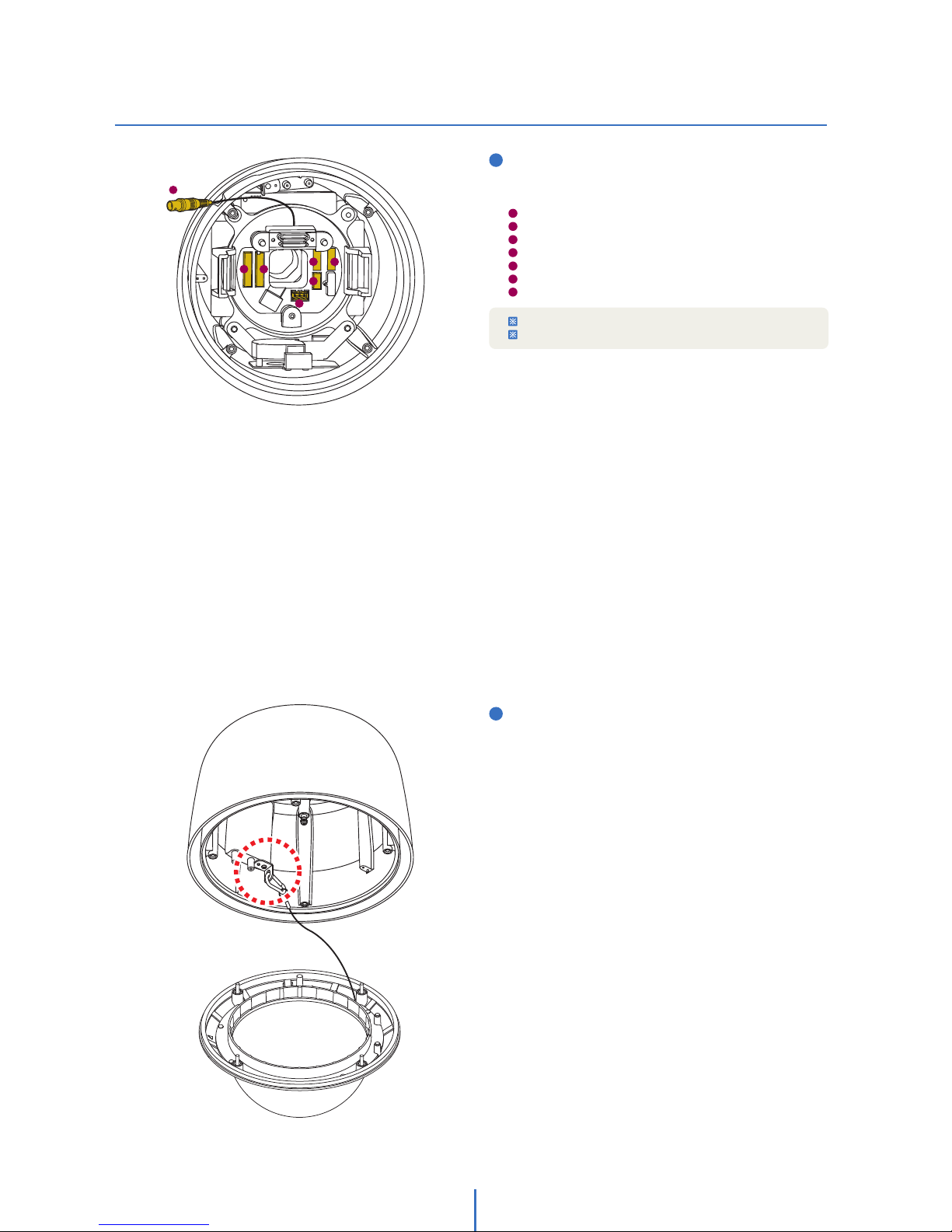

Part Name & Functions_Inside

Introduction -

ID Setup Switch

Specify the camera ID.

Communication Setup Switch

Set the transfer rate and protocols.

RS-485 Port

Used for RS-485 communications.

Power Port

Connect the power source here.

BNC Coaxial Cable

Connects to video output device such as monitor using the

BNC coaxial cable.

Alarm Output Port

It connects to the alarm lights, siren or lamps, and it is

activated according to the OSD menu or ‘Setup’ on the Web

-viewer setting.

Alarm Input Port

It connects to IR sensor, IrDA sensor or door switch. If the

sensor is activated, it can activate to move camera to the

specic angle and to connect the alarm device.

Fan

Defrosts the dome cover and removes moisture.

Heater

Defrost the dome cover in a low temperature by increasing

the internal temperature of the housing.

Alarm Output Port

Alarm Input Port

Fan

Heater

ID Setup Switch

Communication

Setup Switch

RS-485 Port

Power Port

Video Coaxial Cable

Installation -

Installation

Using the hole template, mark the holes on the wall or

ceiling.

After drilling the holes, x the four anchor bolts into the

holes.

Place the wall/ceiling mount bracket on the anchor bolts

properly and tighten the nuts on the anchor bolts.

Ceiling Mount Bracket Installation

(Bracket is Option)

Wall Mount Bracket Installation

(Bracket is Option)

Installation

Installation -

[2]

[1]

[3]

4Detach the PTZ mechanism from the upper housing to plug

the main cable. When detaching the PTZ mechanism, press

down and hold up the black handles on both sides of the

PTZ mechanism.

Remove the protecting tape used to fix the PTZ

mechanism.

[1] Wind the waterproof tape around the pipe of housing.

[2] Hook the safety wire on the hole of pipe and the housing

safety cable hanger.

[3] Attach the upper housing to wall mount bracket by

turning it at least seven turns.

To secure the orientation of the housing, turn the ring

cap counter-clockwise until it is tight.

Installation

Installation -

Connect each of the following cables to the applicable port

and set the DIP switch to congure the camera ID,

communication protocol.

Video Output Cable

Alarm Input Port

Alarm Output Port

DIP Switch for Camera ID Setup

DIP Switch for Communication Setup

RS-485 Slot

Power Port

See the ‘DIP Switch Setup’ on 13, 14 page for details.

See the ‘Cabling’ on 15, 16 page for details.

Connect the dome safety wire to the upper housing.

cde

Inhaltsverzeichnis

Andere Digital Watchdog Sicherheitskamera Handbücher

Digital Watchdog

Digital Watchdog Starlight D2363TIR Series Bedienungsanleitung

Digital Watchdog

Digital Watchdog DWC-V5661T Bedienungsanleitung

Digital Watchdog

Digital Watchdog Star-Light Plus DWC-B6563WTIR Bedienungsanleitung

Digital Watchdog

Digital Watchdog MEGApix DWC-MF5Wi4TW Bedienungsanleitung

Digital Watchdog

Digital Watchdog STAR-LIGHT PLUS DWC-V6863WTIRW Bedienungsanleitung

Digital Watchdog

Digital Watchdog DWC-MV72Wi4 Bedienungsanleitung

Digital Watchdog

Digital Watchdog DWC-D4365T Bedienungsanleitung

Digital Watchdog

Digital Watchdog MEGApix DWC-MD421TIR Bedienungsanleitung

Digital Watchdog

Digital Watchdog Star-Light Plus Universal HD over Coax... Bedienungsanleitung

Digital Watchdog

Digital Watchdog MEGApix IVA DWC-MB84Wi4T Bedienungsanleitung

Digital Watchdog

Digital Watchdog MEGApix DWC-MV85WiAT Bedienungsanleitung

Digital Watchdog

Digital Watchdog STAR-LIGHT Universal HD over Coax... Bedienungsanleitung

Digital Watchdog

Digital Watchdog iV3377WD Bedienungsanleitung

Digital Watchdog

Digital Watchdog STAR-LIGHT FLEX DWC-VS753WT6666 Bedienungsanleitung

Digital Watchdog

Digital Watchdog MEGApix DWC-MB82i4V Bedienungsanleitung

Digital Watchdog

Digital Watchdog MEGApix DWC-MD72Di28T Bedienungsanleitung

Digital Watchdog

Digital Watchdog MegaPix Pano DWC-PZ21M69T Bedienungsanleitung

Digital Watchdog

Digital Watchdog Infinity OMNI-Plus B2382TIR Bedienungsanleitung

Digital Watchdog

Digital Watchdog Megapix DWC-MTT4Wi6 Bedienungsanleitung

Digital Watchdog

Digital Watchdog MEGApix DWC-MV84WiA Bedienungsanleitung

Digital Watchdog

Digital Watchdog DWC-T8553TIR Bedienungsanleitung

Digital Watchdog

Digital Watchdog Starlight BL5363D Bedienungsanleitung

Digital Watchdog

Digital Watchdog MEGAPIX DWC-MV95WiATW Bedienungsanleitung

Digital Watchdog

Digital Watchdog MegaPix DWC-MVT4WiA Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
