Digital Watchdog STAR-LIGHT DWC-D4283WD Bedienungsanleitung
User’s Manual Ver. 08/17
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
STAR-LIGHT Universal HD
over CoaxTM SnapitTM Indoor
Dome Cameras
DWC-D4283WD
DWC-D4283WTIR
Index
INTRODUCTION
Safety Information
Features
Part Name
Dimension
Product & Accessories
02
07
08
09
10
INSTALLTION
Installation
Connecting to Monitors
Control Board
Adjusting the Camera angle
11
13
14
15
OSD MENU
Menu Tree
OSD Menu - Exposure
OSD Menu - Color
OSD Menu - Day&Night
OSD Menu - Function
OSD Menu - Motion
OSD Menu - Privacy
OSD Menu - Setup
OSD Menu - Exit
16
17
21
22
23
24
25
26
28
APPENDIX
Troubleshooting
29
Specifications
Limits & Exclusions
Warranty
30
32
33
2
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
This symbol indicates that dangerous voltage
consisting a risk of electric shock is present within
this unit.
This exclamation point symbol is intended to alert the
user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance
To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to
rain or moisture.
1. Be sure to use only the standard adapter that is specified in the specification sheet.
Using any other adapter could cause fire, electrical shock, or damage to the product
2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric
shock, or damage to the product.
3. Do not connect multiple cameras to a single adapter.
Exceeding the capacity may cause abnormal heat generation or fire.
4. Securely plug the power cord into the power receptacle. Insecure connection may cause fire.
5. When installing the camera, fasten it securely and firmly.
A falling camera may cause personal injury.
6. Do not place conductive objects (e.g. screw drivers, coins, metal things, etc.) or containers filled
with water on top of the camera. Doing so may cause personal injury due to fire, electric shock,
or falling objects.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION:
WARNING
WARNING
3
Safety Information
7. Do not install the unit in humid, dusty, or sooty locations.
Doing so may cause fire or electric shock.
8. If any unusual smells or smoke come from the unit, stop using the product.
In such case, immediately disconnect the power source and contact the service center.
Continued use in such a condition may cause fire or electric shock.
9. If this product fails to operate normally, contact the nearest service center.
Never disassemble or modify this product in any way.
10. When cleaning, do not spray water directly onto parts of the product.
Doing so may cause fire or electric shock.
Operating
. Before using, make sure power supply and all other parts are properly connected.
. While operating, if any abnormal condition or malfunction is observed, stop using the camera
immediately and contact your dealer.
Handling
. Do not disassemble or tamper with parts inside the camera.
. Do not drop the camera or subject it to shock or vibration as this can damage the camera.
. Clean the clear Lens cover with extra care. Scratches and dust can ruin the quality of the camera image.
Installation and Storage
. Do not install the camera in areas of extreme temperature, exceeding the allowed range.
. Avoid installing in humid or dusty environments.
. Avoid installing in places where radiation is present.
. Avoid installing in places where there are strong magnetic ÿelds and electric signals.
. Avoid installing in places where the camera would be subject to strong vibrations.
. Never expose the camera to rain or water.
PRECAUTION
4
Important Safety Instructions
1. Read these instructions.
- All these safety and operating instructions should be read before the product is installed or operated.
2. Keep these instructions.
- The safety, operating and use instructions should be retained for future reference.
3. Heed all warnings.
- All warnings on the product and in the operating instructions should be adhered to.
4. Follow all instructions.
- All operating and use instructions should be followed.
5. Do not use this device near water.
- For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement; near a swimming pool; etc.
6. Clean only with dry cloth.
- Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
-Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the product, and
to protect it from over-heating. The openings should never be blocked by placing the product on bed, sofa, rug or
other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless
proper ventilation is provided and the manufacturer’s unstructions have been adhere to.
8. Do not install near any heat sources such as radiators, heat registers, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
5
Important Safety Instructions
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
Disposal of Old Appliances
1. When this crossed-out wheel bin symbol is attached to a product it means the
product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately form the
municipal waste stream stream in accordance to laws designated by the
government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for
the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city
office, waste disposal service or the shop where you purchased the product.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user
will be required to correct the interferenece at his own expense.
6
Features
Universal HD over Coax™ Technology with HD-Analog, HD-TVI, HD-CVI and all Analog
to 960H Signal Support
STAR-LIGHT™ Super Low Light Technology
2.1MP 1/3" Image Sensor at Real-time 30fps
Microphone Built-in
Auto Focus P-Iris Lens from 2.8~12mm
True Wide Dynamic Range (WDR)
OSD Control Via Coaxial (UTC)
Snapit™ Easy Installation Housing
100' Smart IR™ with Intelligent Camera Sync. (DWC-D4283WTIR)
Smart DNR™ 3D Digital Noise Reduction
True Day/Night Mechanical IR Cut Filter
De-Fog™ Extreme Weather Image Compensation
Highlight Masking Exposure (HME)
Auto Sensing 24VAC/12VDC with Line Lock
Easy Icon Driven OSD Menu with Built-in Joystick
Programmable Privacy Zones
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Dynamic Range Compressor (DRC) Reveals Low Light Detail
Auto White Balance (AWB)
UTP Built-In
RS-485 Built-in
5 Year Warranty
7
Part name
Vent
Lens
Mic
Power Cable
BNC Cable
Cables:
Audio, UTP, RS485, Alarm
Upper Case
Tilt Stopper Screw
Joystick
Test Video Cable Slot
Bubble Dome Cover
Mic connector
8
Dimension
Unit : Inches (mm)
4.25" (108mm)
2.21" (56.3mm)
1.6" (40.5mm)
4.25" (108mm)
9

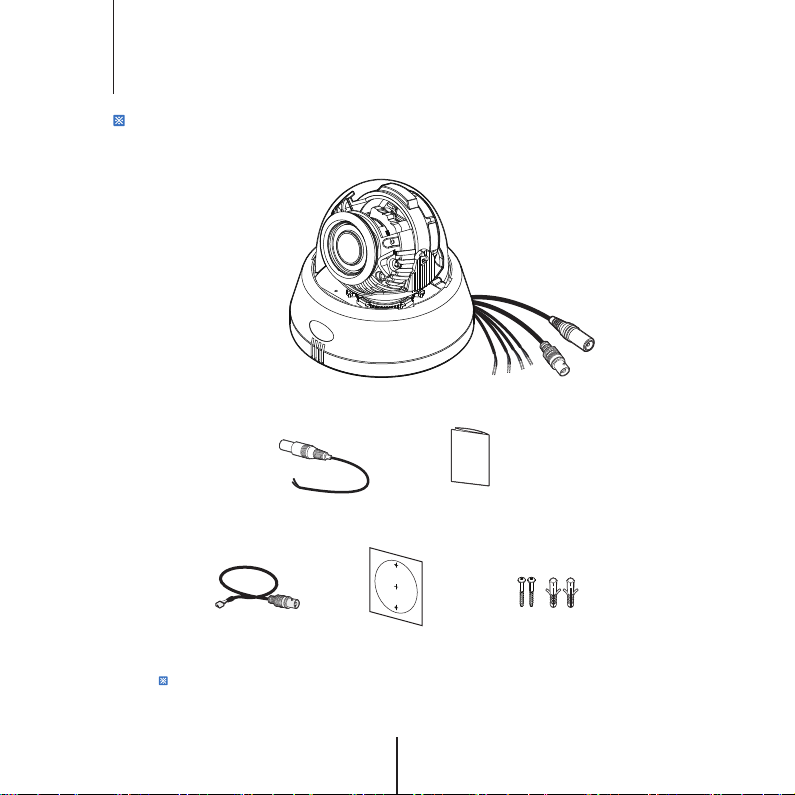

Product & Accessories
NOTE:The ‘Test Video Cable’ is used to test the camera by connecting to a portable display.
Please check if all the camera and accessories are included in the package.
Camera Cables
Manual
Template Sheet
Screw &
Plastic Anchor-2pcs
Test Video Cable
DC Plug Cable
10
