INSTRUCTION MANUAL

2.7 LITER

aINSTRUCTION MANUAL

BAGLESS SINGLE CYCLONE

VACUUM CLEANER

ITEM NO: 871125247534

MODEL: DD2504 / V8229

IMPORTANT SAFETY INSTRUCTIONS

This appliance should only be used for domestic cleaning and not

for commercial or industrial use. Please ensure that this guide is fully

understood before operating the appliance.

WARNING: DANGER TO THE PERSON!

IMPORTANT: Damage to the appliance!

In addition we offer the following safety advice:

LOCATION

• Do not use or keep this product outside when it is raining.

• Do not store the appliance near hot ovens or heating appliances.

• Store your vacuum cleaner in a cool, dry area. If lters have been

cleaned as per user guide instructions ensure they are thoroughly

dry before storing away.

MAINS LEAD

• Do not allow the mains lead to become strained or run this

appliance over it.

• If the electrical cable becomes damaged, the complete cable

assembly must be replaced. Do not attempt this task yourself.

Contact the local retailers.

• Agency service: To ensure the continued safe and efcient

operation of this appliance we recommend that any servicing

or repairs are only carried out by an authorized Agency service

engineer.

CHILDREN

• This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in

a safe way and understand the hazards involved.

• Children shall not play with the appliance

Scan QR-Code for

extended manual

• This appliance can be used by children aged from 8 years and

above.

PERSONAL SAFETY

• The plug must be removed from the wall socket before cleaning or

maintaining the appliance.

• Never modify the cleaner in any way.

• Never use in the presence of explosive liquids or vapors.

• Never pick up inammable or poisonous liquids such as petrol,

copier toner or other volatile substances. Never pick up acids,

asbestos or asbestos dust.

• Repairs to electrical appliances are only to be undertaken by

trained personnel.

• Unprofessional repairs can be dangerous for users.

• The appliance must never be left running when unsupervised.

PRODUCT SAFETY

• Never use the appliance without the lters being installed.

• Never use the appliance to vacuum hot ashes, broken glass, sharp

objects or liquids.

• To protect against re, electric shock and personal injury do not

immerse cord, plug or cleaner in water or other liquid.

• This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a

person responsible for their safety. –

• Cleaning and user maintenance shall not be made by children

without supervision.

• If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualied persons in

order to avoid a hazard.

• Always switch off the vacuum cleaner before

disconnecting or connecting the hose and

accessories.

• Keep all openings clear and free from debris as this

may affect the airow/suction.

• Do not use the appliance to clean animals or people.

Electrical requirements

• Check that the voltage on the rating plate corresponds with your

house electricity supply which must be A.C (alternating current).

Product Description

Features

1. Separator 6. Dirt bin lid release clip

2. Hose entry point 7. Dirt container

3. Dirt container release button 8. Carry handle

4. Power On/Off button 9. Cord rewind button

5. Post motor lter cover 10. Post-motor lter cover release clip

HOW TO INSTALL / OPERATE THE MACHINE

Before you start

• Always switch off and unplug the vacuum cleaner before

connecting or disconnecting the hose/attachments, or

removing and emptying the dirt container.

• The vacuum cleaner is equipped with a thermal cut-out. If for

any reason the vacuum cleaner does overheat the thermostat

will automatically turn the vacuum cleaner off. If this happens,

switch the vacuum cleaner off and unplug from electrical

socket. Remove and empty the dirt container and also heck

the vacuum cleaner for blockages. Allow the vacuum cleaner

to cool for approximately 1 hour (if you have cleaned the lters

please wait 24 hours for the lters to fully dry before putting

back into the machine).

• For best cleaning results, lters should be tapped over a bin

every 4-6 uses to remove dirt and debris and washed every 3

to 6 months (depending on the level of use).

• If the vacuum cleaner is blocked, switch off and unplug before

removing the blockage.

ASSEMBLING YOUR MACHINE

IMPORTANT: The base of the vacuum cleaner should always

be positioned at on the oor when starting and in use. The

dirt container should be locked into place before lifting the

vacuum cleaner by the carry handle.

1. Press both buttons at the end of the hose and push hose into the

hose entry point.

2. Insert the hose grip into the telescopic extension tube.

3. Press the button on the telescopic extension tube and adjust to

required length.

4. Insert the other end of the telescopic extension tube into the

oorhead.

5. Fully unwind the power cord. A yellow mark on the cord indicates

the recommended cord length.

Do not exceed the cord beyond the yellow mark.

6. Plug in and switch the unit on by pressing the power button.

CAUTION: When unwinding the power cord always pull out to

the yellow marker but not further.

HOW TO USE

Carpets

Hard oors

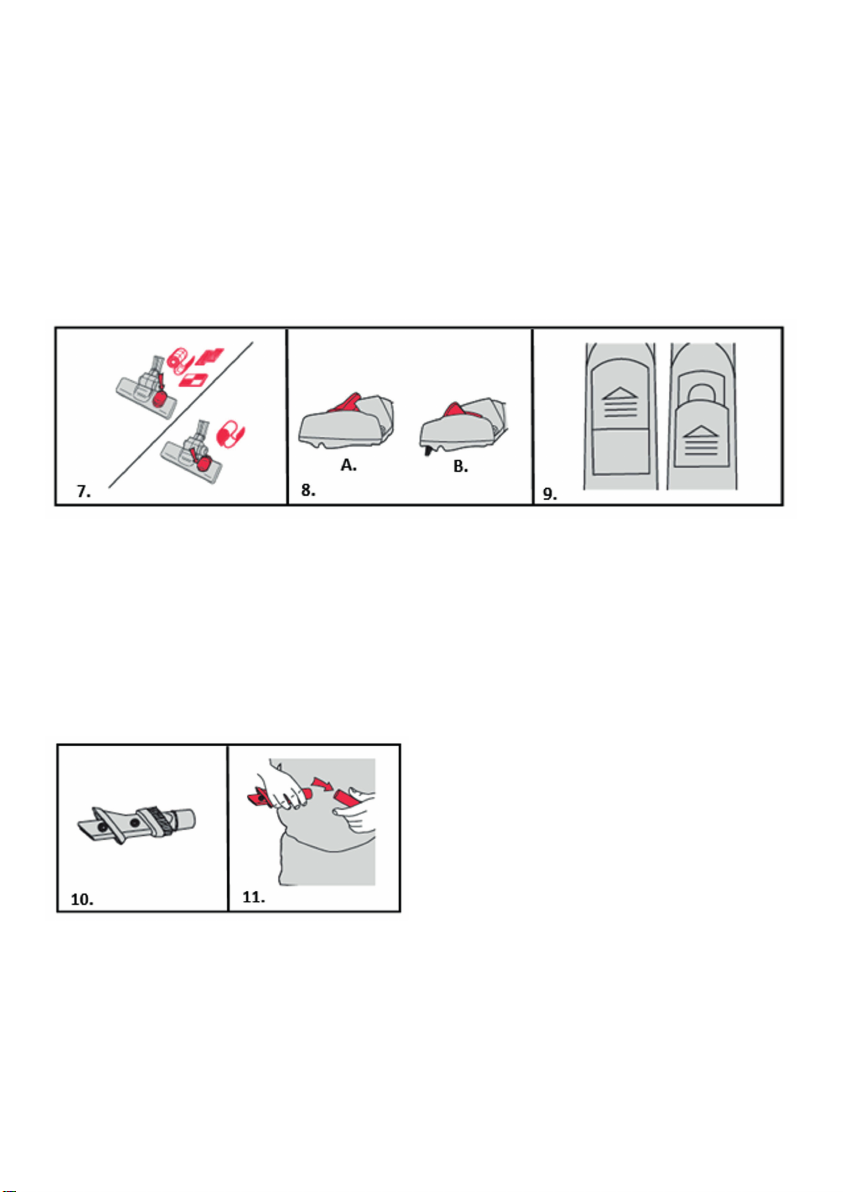

7. For use on carpets, click rocker switch forward for use on hard

oors click rocker switch back.

8. A: Raise brushes for carpets. B: Lower brushes for hard oors.

9. Slide vent cover on hose grip open to reduce suction if required.

USING YOUR ACCESSORIES

10. Choose an accessory (parquet brush / 3-in-1 tool)

11. Push accessory onto the telescopic extension tube or hose.

STORAGE

12. Press the cord rewind button to retract the cord into the

vacuum cleaner.

13. Place the oorhead into the parking slot on the back of the

vacuum cleaner for storage and carrying.

CAUTION: Make sure to hold the cord with your other hand to

prevent injury when rewinding.

EMPTYING AND CLEANING THE DIRT CONTAINER

IMPORTANT: Always switch off and unplug the vacuum

cleaner from the electrical socket before assembling,

opening or emptying the dirt container, or before connection

/ disconnecting the attachments. Check the pre-motor lter

every time you empty the dirt container and tap against a bin

to remove dirt/debris if required. Do not use your vacuum

cleaner without all of the lters in place.

The motor is equipped with a thermal cut-out. If for any

reason the unit should overheat, the thermostat will

automatically turn the unit off.

14. Remove dirt container by pushing down the dirt container

release button and lifting the dirt container.

15. Hold dirt container over a bin. Pull the dirt release clip at the

bottom of the container, the dirt release door will open allowing

dirt/debris to fall out.

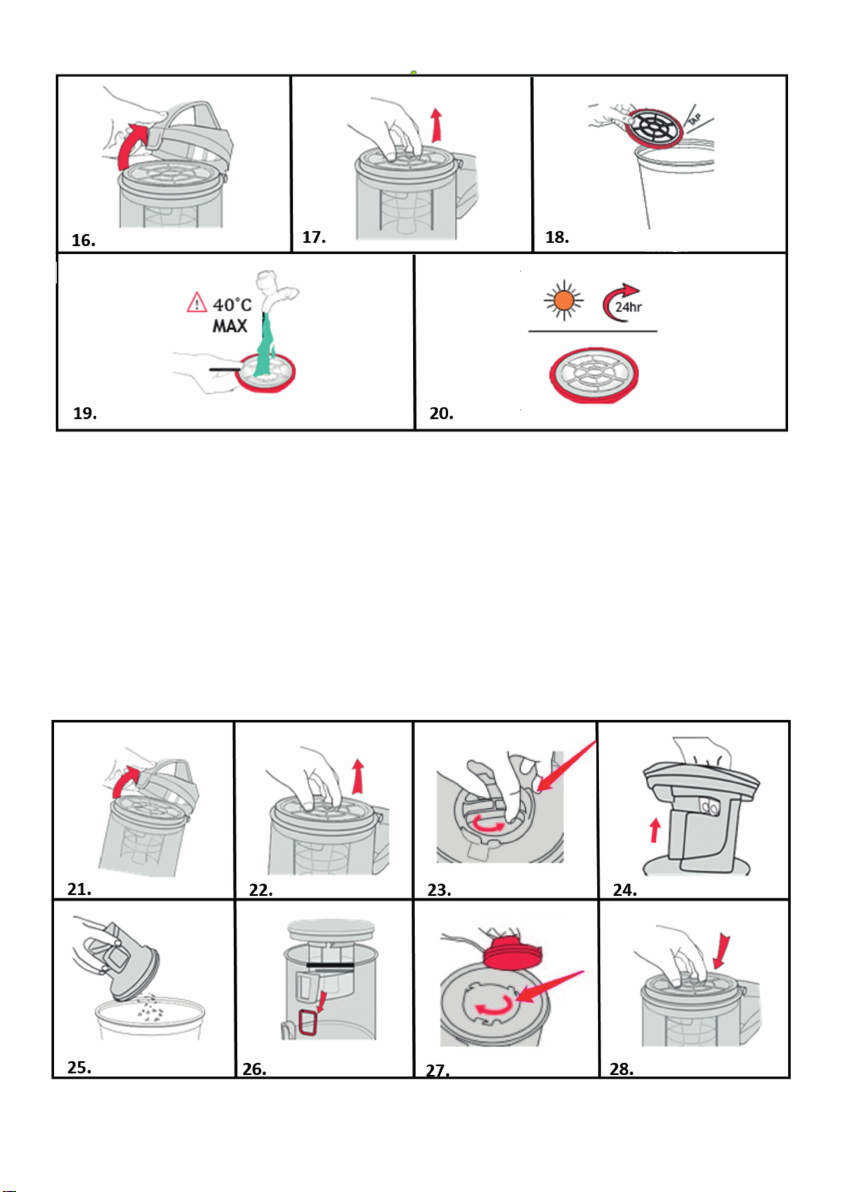

CLEANING THE PRE-MOTOR FILTER

16. Lift the dirt bin lid release clip.

17. Lift the pre-motor lter and remove the dirt container.

18. Tap the pre-motor lter and sponge against a bin to remove any

dirt/debris.

19. Separate the sponge and lter and rinse under water (Max 40°C).

20. Leave to dry for 24 hours or until fully dry before placing back in the

machine.

CLEANING THE SEPARATOR

CAUTION: Incorrect tting of the separator cap will reduce

suction

21. Lift the dirt bin lid release clip.

22. Lift the pre-motor lter and remove from the dirt container.

23. Twist the separator cap anti-clockwise to unlock and remove.

24. Lift and remove the separator from the dirt container.

25. Tap the separator against a bin to remove any dirt/debris.

26. Make sure the rectangular hole in the dirt container lines up with the

rectangular hole on the separator.

27. Replace the separator cap, twist clockwise to lock.

28. Replace the pre-motor lter. Close dirt bin lid making sure it clicks

and locks into place.

POST-MOTOR FILTER MAINTENANCE

IMPORTANT: The exhaust lter is designed to offer long life with

no maintenance. The lter should be checked periodically and

when heavily discolored it should be replaced. Please do not

wash, scrub or brush the lter as this will damage the delicate

lter media.

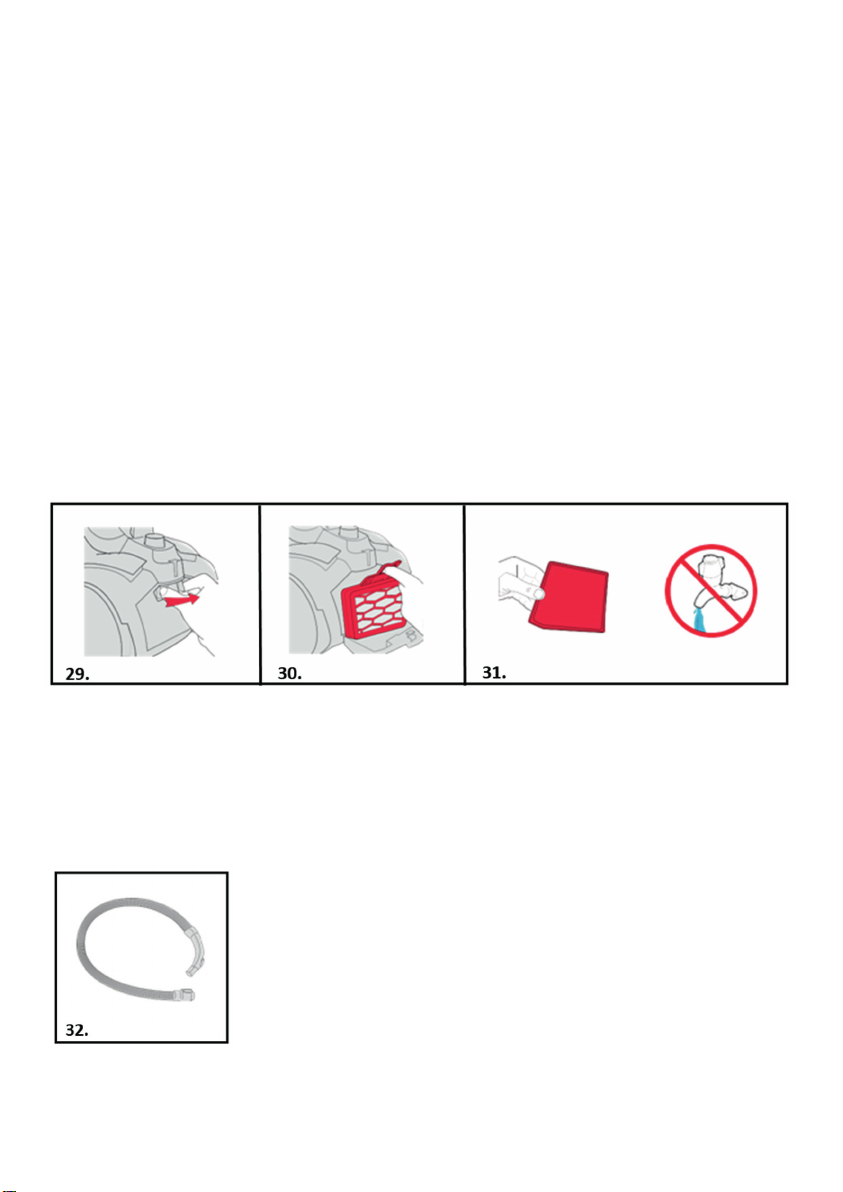

29. Push the post-motor lter cover release clip to the right.

30. Pull open the post-motor lter cover. Lift out the post-motor lter.

31. Check the post-motor lter for discoloration. Do not wash the post-

motor lter.

REMOVING BLOCKAGES FROM THE HOSE

32. Remove the hose from the vacuum cleaner and telescopic

extension tube. Remove any blockage by inserting a wire coat

hanger into the hose.

NOTE: To test for a blockage in the hose, drop a small ball of

paper into the hose. The paper will drop through if the hose is

clear.

TROUBLE SHOOTING

Should you have any problem with you cleaner, follow this simple

check list before calling the agency customer service center.

A: Some accessories are missing

1. Check the packaging content that is mentioned below the product

specications to be sure the parts included with the appliances.

B: Appliances have no power

1. The plug is not connected (well) into the electrical socket.

2. Check if the plug need to be replaced.

3. The motor thermostat may have tripped. If this has happened,

unplug the vacuum cleaner. Remove and empty the dirt container

and check the hose for blockages. Clean the lter sand allow

the vacuum cleaner to cool for approximately 1 hour (if you have

washed the lters you will need to wait 24 hours for the lters to

fully dry before putting them back into the vacuum cleaner).

C: Vacuum cleaner won’t pick up dust

1. The dirt container may not be correctly tted, remove the dirt

container from the vacuum cleaner and check it’s assembled

correctly, ret ensuring it’s locked into place.

2. The lter may be clogged, clean the lter.

3. The dirt container may be blocked, empty the dirt container.

4. There may be a blockage in the hose/tube. Disconnect from the

vacuum cleaner and carefully remove any blockages.

5. The separator is blocked. Check cleaning the separator.

6. The separator is incorrectly tted. Check cleaning the separator.

D: Dust is escaping from the vacuum cleaner

1. The lters may be clogged, clean the lter.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dirt Devil Staubsauger Handbücher

Dirt Devil

Dirt Devil Vapormate Bedienungsanleitung

Dirt Devil

Dirt Devil Quick & Light FH50010 Bedienungsanleitung

Dirt Devil

Dirt Devil Infinity V12 eco Bedienungsanleitung

Dirt Devil

Dirt Devil Cargo M7066 Bedienungsanleitung

Dirt Devil

Dirt Devil DD2501 Bedienungsanleitung

Dirt Devil

Dirt Devil M091200 Bedienungsanleitung

Dirt Devil

Dirt Devil Vacuum Cleaner Bedienungsanleitung

Dirt Devil

Dirt Devil M2012-2 Bedienungsanleitung

Dirt Devil

Dirt Devil 360 REACH DDU03-E01 Bedienungsanleitung

Dirt Devil

Dirt Devil infinity rebel 50 Bedienungsanleitung

Dirt Devil

Dirt Devil DD2001 Bedienungsanleitung

Dirt Devil

Dirt Devil M0896 Bedienungsanleitung

Dirt Devil

Dirt Devil Pick Up DD2650 Bedienungsanleitung

Dirt Devil

Dirt Devil DD7700 Bedienungsanleitung

Dirt Devil

Dirt Devil CENTRINO XL Bedienungsanleitung

Dirt Devil

Dirt Devil Breeze Bedienungsanleitung

Dirt Devil

Dirt Devil REBEL73 Bedienungsanleitung

Dirt Devil

Dirt Devil SimpliStik Plus Bedienungsanleitung

Dirt Devil

Dirt Devil M085580 Bedienungsanleitung

Dirt Devil

Dirt Devil DDW01-E01 Bedienungsanleitung

Dirt Devil

Dirt Devil Stick Vac Bedienungsanleitung

Dirt Devil

Dirt Devil Infinity V12 eco Bedienungsanleitung

Dirt Devil

Dirt Devil Scorpion Hand Vac Bedienungsanleitung

Dirt Devil

Dirt Devil DD7375 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
