Draytek VigorSwitch G1260 Bedienungsanleitung

Quick Start Guide

European Community Declarations

Manufacturer: DrayTek Corp.

Address: No. 26, Fu Shing Road, HuKou Township, HsinChu Industrial

Park, Hsin-Chu, Taiwan 303

Product: VigorSwitch G1260

DrayTek Corp. declares that VigorSwitch G1260 is in compliance with the

following essential requirements and other relevant provisions of 2004/108/EC.

The product conforms to the requirements of Electro-Magnetic Compatibility

(EMC) Directive 2004/108/EC by complying with the requirements set forth in

EN55022/Class A and EN55024/Class A.

The product conforms to the requirements of Low Voltage (LVD) Directive

2006/95/EC by complying with the requirements set forth in EN60950-1.

Federal Communications Commission (FCC) Statement

This equipment has been tested and found to comply with the limits for a class

A computing device pursuant to Subpart J of part 15 of FCC Rules, which are

designed to provide reasonable protection against such interference when

operated in a commercial environment.

Version: 1.02

Date: June 11, 2014

Package Content

The 24-port Gigabit Web Smart Switch is a standard switch that meets all

IEEE 802.3/u/x/z Gigabit, Fast Ethernet specifications. The switch has 20

10/100/1000Mbps TP ports and 4 Gigabit TP/SFP transceiver slots.

The network administrator can logon the switch to monitor, configure and

control each port’s activity. In addition, the switch implements the QoS

(Quality of Service), VLAN, and Trunking. It is suitable for office

application.

VigorSwitch Rack Mount Kit CD

The type of the power cord depends on the country that the router will be

installed:

UK-type power cord EU-type power cord USA-type power cord

Note: If any of these items is found missing or damaged, please contact

your local supplier for replacement.

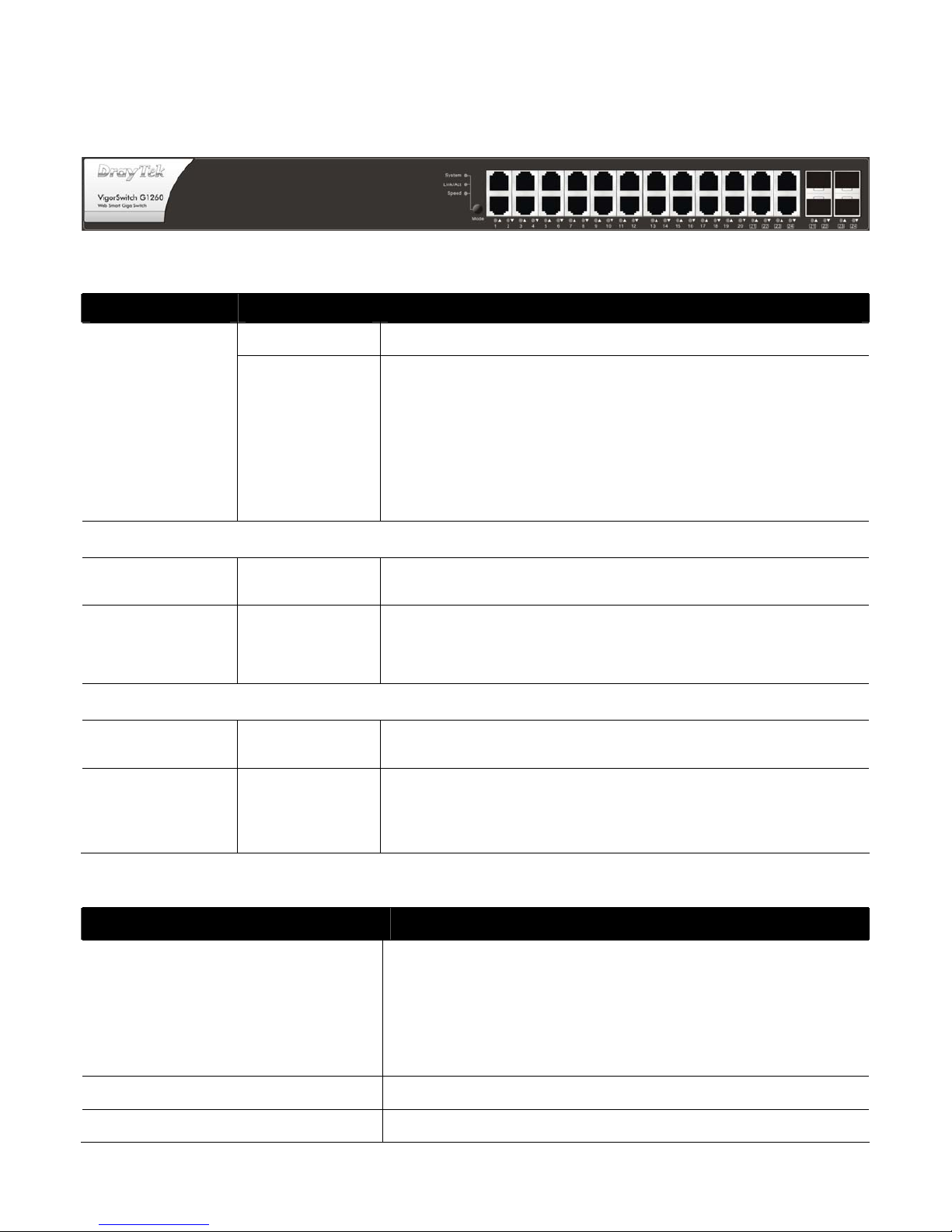

Descriptions of Panel

LED Explanation

LED Color Explanation

Green Lit when +3.3V power is coming up.

System Red

Lit when

The voltage is smaller than 10.8V or greater than

13.2V.

When the temperature of the switch near power supply

is greater than 45°C or the temperature near fan

entrance is greater than 70°C.

When looping occurs.

10/100/1000Ethernet TP Port 1 to 24 LED

LINK/ACT Green Lit when connection with remote device is good.

Blinks when any traffic is present.

Speed Green/

Yellow/

Off

Lit Green when TP link on 1000Mbps speed.

Lit Amber when TP link on 10/100Mbps speed.

Off when no link occur.

1000SX/LX Gigabit Fiber Port 21, 22, 23, 24 LED

LINK/ACT Green Lit when SFP connection with remote device is good.

Blinks when any traffic is present.

Speed Green/

Yellow/

Off

Lit Green when SFP link on 1000Mbps speed.

Lit Yellow when SFP link on 100Mbps speed.

Off when no link occur.

Connector Explanation

Interface Description

Mode Switch the status display among System, Link/Act

and Speed.

Press and hold for 3~5 seconds to reboot the router.

Press until all the LEDs light on for returning to

factory default settings.

LAN P1 – P24 Giga Ethernet Port.

SFP (21 – 24) SFP Fiber Port.



Installing Your Switch

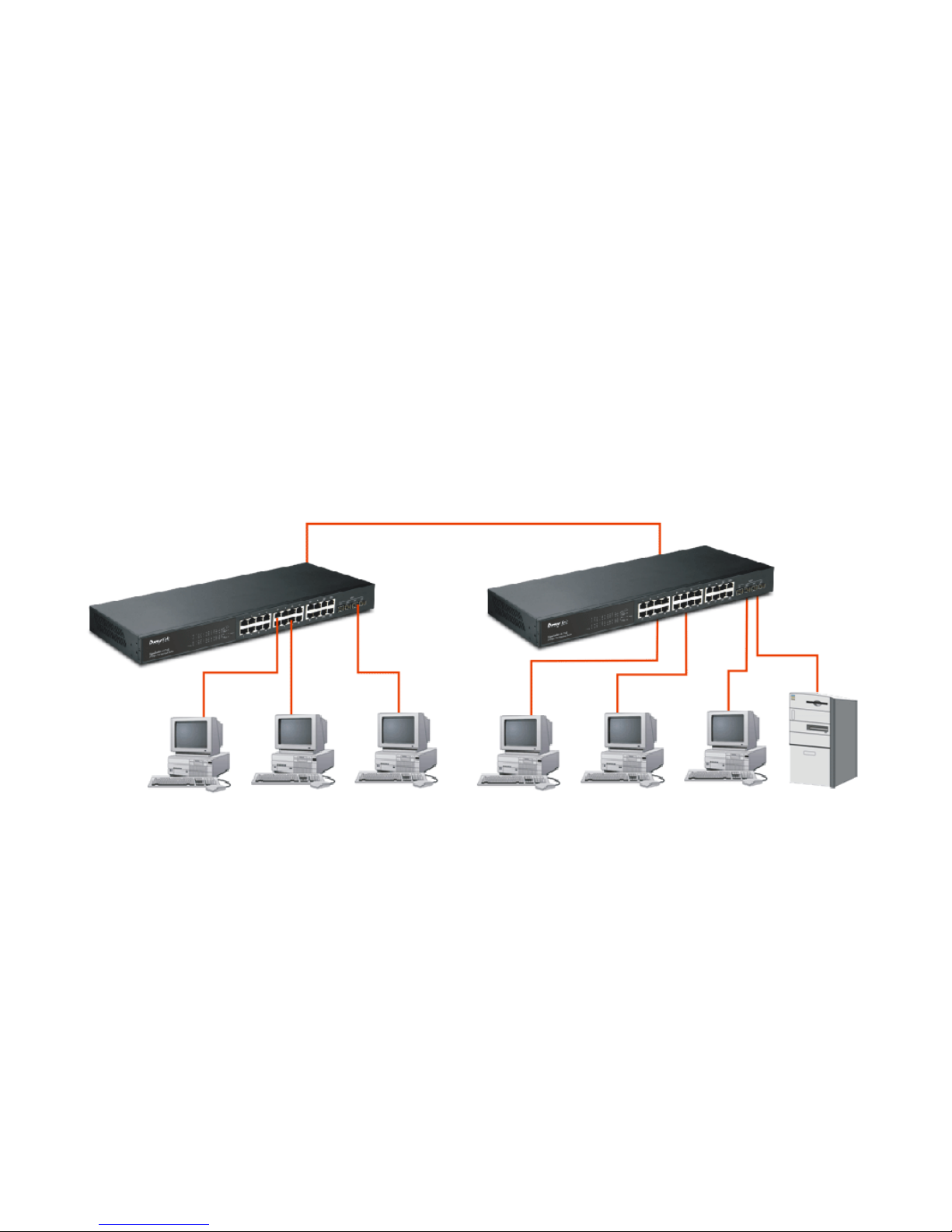

A hierarchical network with minimum levels of switch may reduce the timing

delay between server and client station. Basically, with this approach, it will

minimize the number of switches in any one path; will lower the possibility of

network loop and will improve network efficiency. If more than two switches

are connected in the same network, select one switch as Level 1 switch and

connect all other switches to it at Level 2. Server/Host is recommended to

connect to the Level 1 switch. This is general if no VLAN or other special

requirements are applied.

All switch ports are in the same local area network.

(*The switch image is sample only)

For other examples of hardware installation, please refer to User’s Guide for

detailed information.
