Dreame F9 Bedienungsanleitung

Robot Vacuum Mop F9

User Manual • Uživatelský manuál •

Užívateľský manuál • Használati utasítás •

Benutzerhandbuch

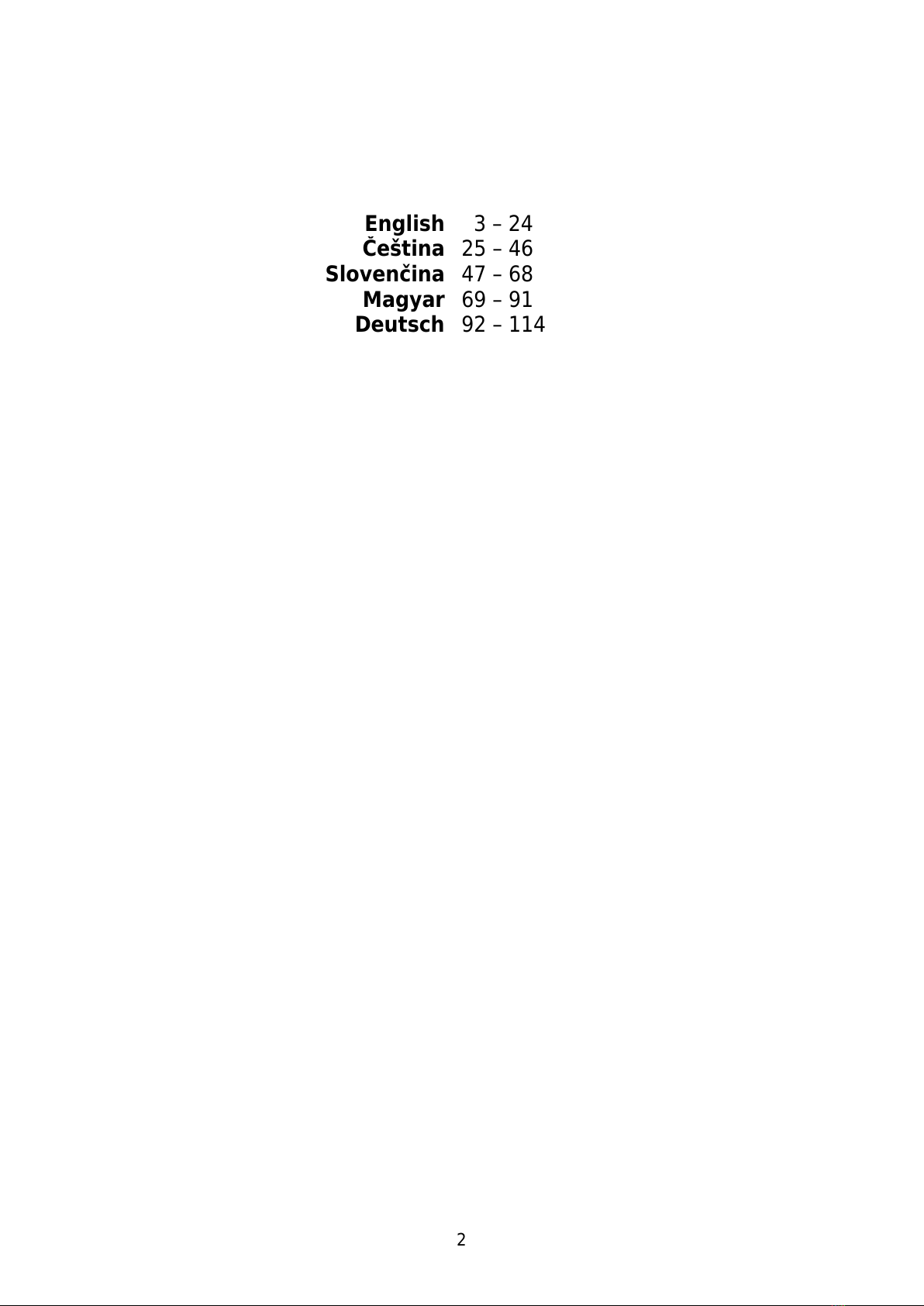

English

3 –24

Čeština

25 –46

Slovenčina

47 –68

Magyar

69 –91

Deutsch

92 –114

Dear customer,

Thank you for purchasing our product. Please read the following instructions carefully

before first use and keep this user manual for future reference. Pay particular attention to

the safety instructions. If you have any questions or comments about the device, please

contact the customer line.

✉www.alza.co.uk/kontakt

✆+44 (0)203 514 4411

Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Prague 7, www.alza.cz

Safety Information

Only for navigation and positioning purposes, the camera of the vacuum-mop will collect

individuals in the surrounding within the range of the viewing angles when it is cleaning.

Please b assured that all your personal information will be protected by the data

encryption technology.

Usage Restriction

This product is for floor cleaning in a home environment only. Do not use it

outdoors, on non-floor surfaces, or in commercial or industrial setting.

Do not use the vacuum-mop in an area suspended above ground level without a

protective barrier.

Do not use the vacuum-mop at an ambient temperature above 40°C or below 0° or

on a floor with liquids or sticky substances.

Pick up any cables from the floor before using the vacuum-mop to prevent it from

dragging them while cleaning.

Remove fragile or small items from the floor to prevent the vacuum-mop from

bumping into and damaging them.

This product can be used by children aged from 8 years and above and persons

with physical, sensory, intellectual deficiencies or limited experience or knowledge,

under the supervision of a parent of guardian to ensure safe operation and to avoid

any risk of hazards. Cleaning and maintenance shall not be made by children

without supervision.

Children shall not paly with this product. Ensure children and pets are kept at a

safe distance from the vacuum mop while it is operating.

Keep the brush cleaning tool out of reach of children.

Do not place children, pets or any item on top of the vacuum-mop regardless of

whether it is stationary or moving.

Keep hair, fingers, and other body parts away from the suction opening of the

vacuum-mops.

Do not use the vacuum-mop to clean aby burning substances.

Do not vacuum up hard or sharp objects.

Make sure the vacuum is turned off and charging dock is unplugged before

cleaning or performing maintenance.

Do not wipe any part of this product using a wet cloth or any liquids.

Please use this product in accordance with the instructions in the User Manual.

Users are responsible for any loss or damage arising from improper use of this

product.

Batteries and Charging

Do not use any third party battery, charger, or charging dock. Use only with RCS0

supply unit.

Do not attempt to disassemble, repair, or modify the battery or charging dock on

your own.

Do not place the charging dock near a heat source.

Do not use a wet cloth or wet hands to wipe or clean dock’s charging contacts.

Do not improperly dispose of old batteries. Unneeded batteries should be discarded

at an appropriate recycling facility.

If the power cord becomes damaged or broken, stop using it immediately and

contact after-sales service.

Make sure the vacuum-mop is turned off when being transported and kept in its

original packaging if possible.

If the vacuum-mop will not be used for an extended period, fully charge it, then

turn it off and store in a cool, dry place. Recharge the vacuum-mop at least once

every 3 months to avoid over-discharging battery.

This product contains batteries that can only be replaced by qualified technicians

or after-sales service.

Product Overview

Accessories

Charging Dock

Cleaning Tool

Power Cord

Water Tank

Mop Pad

Side Brush

Note: The illustrations I this manual are for reference only, please refer to the actual

product for the actual appearance.

Vacuum-Mop

Power/Clean Button

Press and hold for 3 seconds

Press to start cleaning after the vakuum-mop is powered on

Status Indicator

White: Cleaning or cleanup is completed

Blinking white: Cleaning paused

Blinking blue: Connecting to network

Blinking orange: Error

Spot/Dock Button

Press and send vakuum-mop back to charging dock

Press and hold for 3 seconds to start Spot Clean Mode

Note: Press any button to pause while the vakuum-mop is

cleaning returning to dock, or in Spot Clean mode

Visual Navigation Sensor

Cover latch

Reset Button

Press and hold to restore factory settings

Wi-Fi Indicator

Blinking slowly: To be connected

Blinking quickly: Connecting

On: Wi-Fi connected

Cleaning Tool

Air Outlet/Speaker

Vacuum-Mop Sensors

Omnidirectional Wheel

Charging Contacts

Optical Sensor

Side Brush

Main Wheels

Main Brush

Brush Guard Clips

Cliff Sensors

Infrared Decelaration Sensor

Collision Buffer

Dust Bin

Mopping Module

Charging Dock

Bin Clip

Bin Cover

Filter

Water Tank

Water Tank Stopper

Mop Pad

Attaching Area

Signaling Area

Charging Contacts

Power Port

Preparation

Remove the protective film.

Install the slide brush.

Place the charging dock on the level ground against wall and connect to a

power outlet.

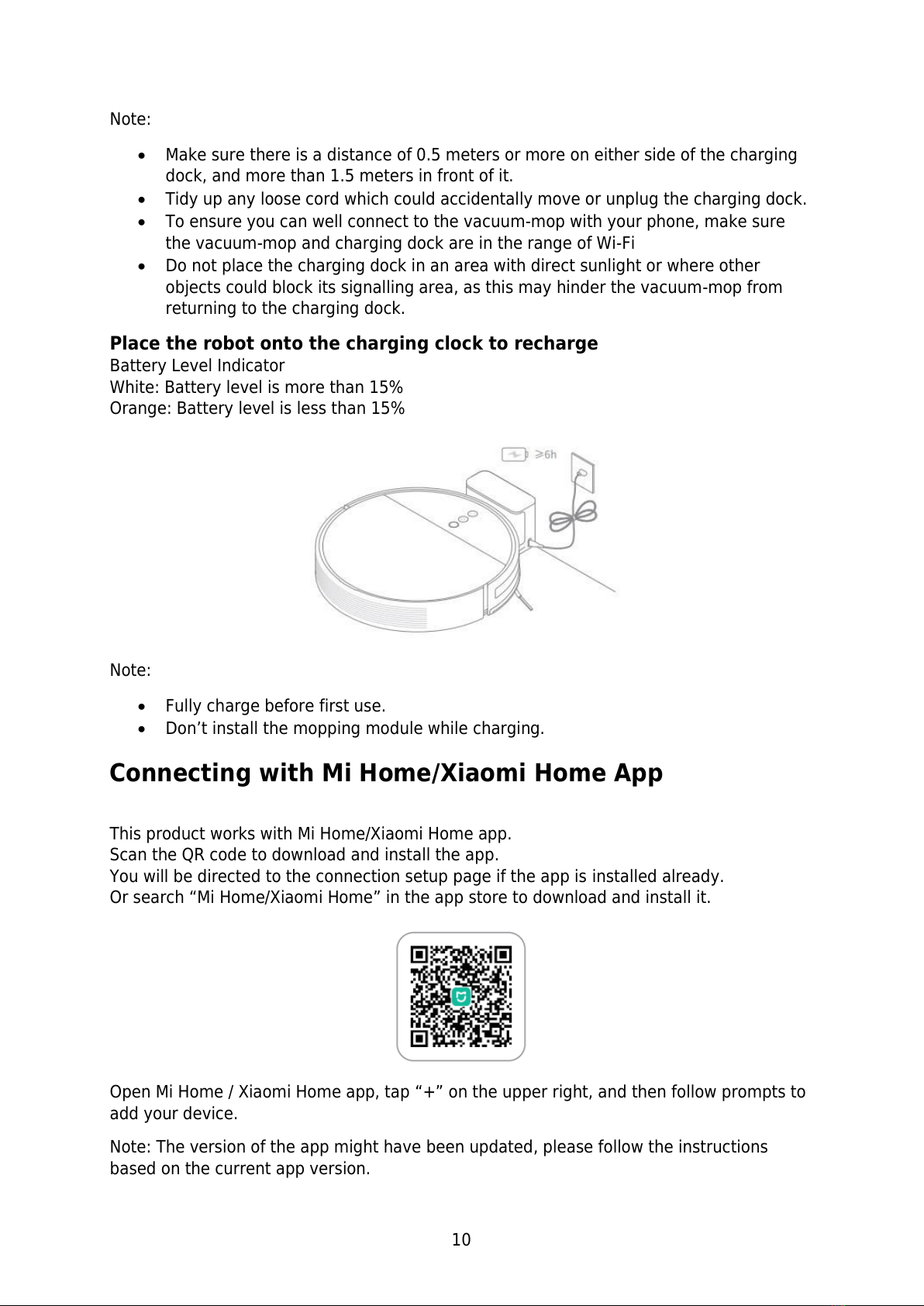

Note:

Make sure there is a distance of 0.5 meters or more on either side of the charging

dock, and more than 1.5 meters in front of it.

Tidy up any loose cord which could accidentally move or unplug the charging dock.

To ensure you can well connect to the vacuum-mop with your phone, make sure

the vacuum-mop and charging dock are in the range of Wi-Fi

Do not place the charging dock in an area with direct sunlight or where other

objects could block its signalling area, as this may hinder the vacuum-mop from

returning to the charging dock.

Place the robot onto the charging clock to recharge

Battery Level Indicator

White: Battery level is more than 15%

Orange: Battery level is less than 15%

Note:

Fully charge before first use.

Don’t install the mopping module while charging.

Connecting with Mi Home/Xiaomi Home App

This product works with Mi Home/Xiaomi Home app.

Scan the QR code to download and install the app.

You will be directed to the connection setup page if the app is installed already.

Or search “Mi Home/Xiaomi Home”in the app store to download and install it.

Open Mi Home / Xiaomi Home app, tap “+”on the upper right, and then follow prompts to

add your device.

Note: The version of the app might have been updated, please follow the instructions

based on the current app version.
