Durafly Tomahawk Bedienungsanleitung

Instruction Manual

P.01

"FPV flying is the new way of looking at the world. The Durafly Tomahawk is the best way to get into

mini racing FPV flying wings. This wing is only 670mm so it can be easily fitted in your car for an after

work flight. The wing is designed for stable flying and also allows for all the extreme maneuvers

needed when racing."

REQUIRED TO COMPLETE MODEL :

1. Main wing with preinstalled motor, ESC and servos

2. Upper vertical fins

3. Lower composite vertical fins

4. Optional Action camera battery hatch

5. Ball link control arms

6. Propeller

7. Sticker kit

Transmitter-

OrangeRX TX6i

Full Range 2.4GHz DSM2/DSMX

compatible 6ch Radio System

9171001328-0 ( mode 2 )

9171001327-0 ( mode 1 )

Receiver-

OrangeRX R620X V2 6ch 2.4Ghz

DSM2/DSMX Comp Full Range Rx

w/Sat, Div Ant, F/Safe & SBUS

9171000901-0

Battery-

Turnigy Grapene 1000mAh 4S 65C

Lipo Pack w/XT60

9067000124-0

Battery-

Turnigy 1300mAh 4S 45C Lipo Pack

9067000177-0

The Durafly Tomahawk “Plug and Fly” model will still require a few components to complete this

model and have it ready for flight.

Durafly recommends the following products avalible at www.hobbyking.com

CONTENT :

Specifications :

- Wingspan-670mm

- Length - 360mm

- ESC-20A

- Motor-Multistar 2206 2150kv Brushless outrunner

- Propeller-5045BN CCW

- Servos- 2 x 9g

- Weight - 220g

P.02

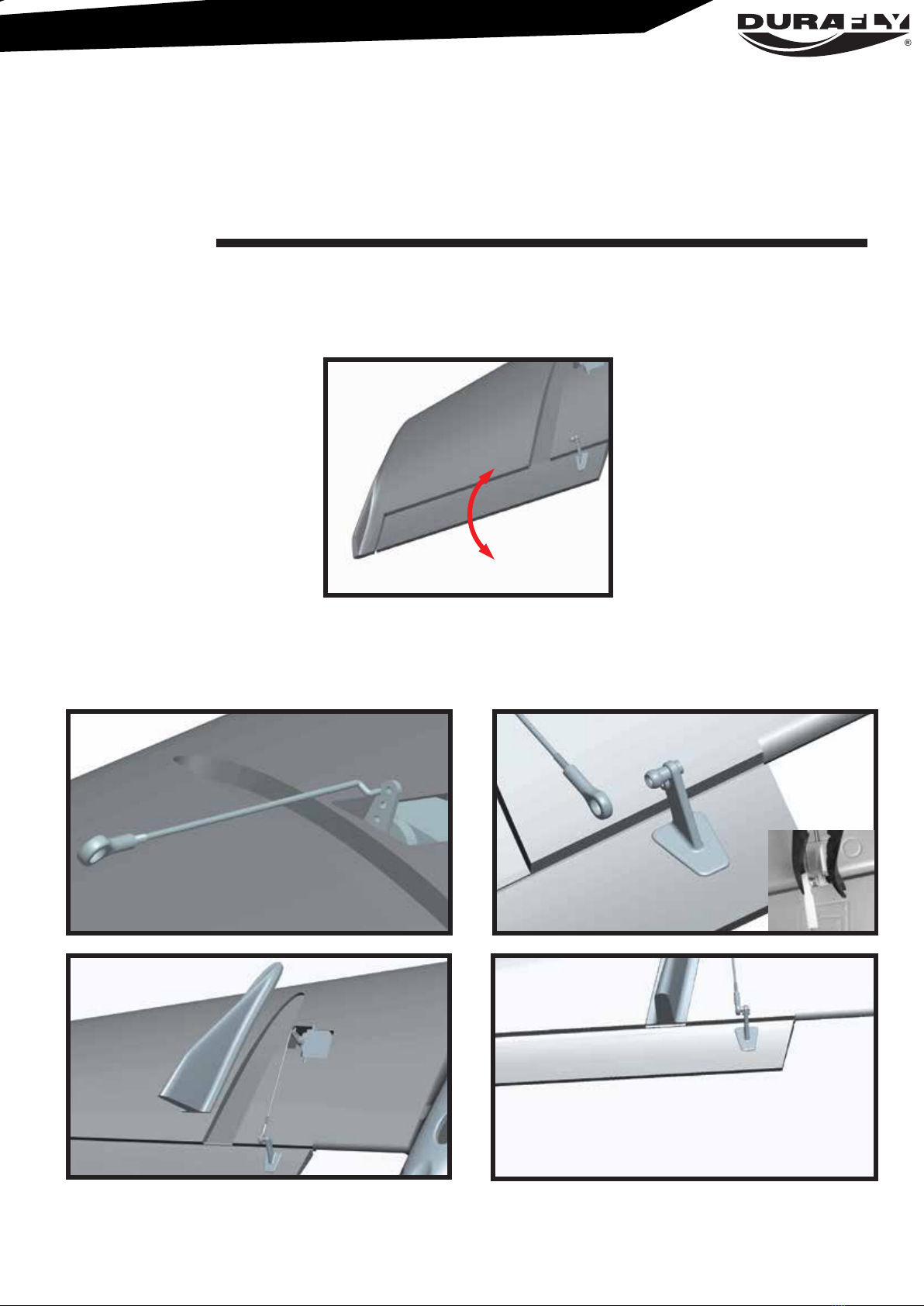

1. Out of the box your Tomahawk comes with reinforced foam hinges. However before assembly

can begin, each hinge line must be flexed back and forth 5-6 times to reduce tension and load on

the servo. Do this for all control surfaces before continuing.

2. With the elevon control horns at 90 degrees to the wing surface or neutral insert the Elevon into

the top hole of the control horn z-bend then using ball link pliers to connect the control horns. Use

CA or contact adhesive to attach the upper vertical fin.

Your Durafly Tomhawk has 4 different coloured stickers to individualise your own model,

please apply the stickers before you assemble the model.

NOTE:

ASSEMBLY :

P.03

3. Attach the bottom vertical find with CA foamsafe glue.

1. Before you install your propeller and with your receiver installed and all servos plugged into their

corresponding channels, connect the flight battery to the ESC to power up the electronics. With

the model now armed, ensure all servos are centered and all control surfaces are level. If not,

adjust by turning the control clevis’s by hand accordingly until the control surfaces are level as

shown.

NOTE: It is recommended that you balance the prop and spinner

before installing for optimum performance and effciency.

SETTING UP YOUR MODEL:

P.04

2. Check all control surfaces are moving in the correct direction with the applicable stick input

(see below)

NOTE: For safety reasons, it is advised that this is done with the prop removed from the

model.

P.05

3. The Tomahawk handles very well in flight and that’s not down to good design alone, but a good

pre-flight set-up too. Before you fly you Tomahawk please follow the recommended settings

below for optimum handling and performance.

Control throws:

Elevon

CoG or centre of gravity is 175-180mm from the nose of the Durafly Tomahawk

P.06
