Dynojet Power commander V Bedienungsanleitung

2013 Arctic Cat 700cc H1 ATV - PCV - 1I11-014.01 www.powercommander.com

PARTS LIST

1 Power Commander

1 USB Cable

1 CD-ROM

1 Installation Guide

2 Power Commander Decals

2 Dynojet Decals

1 Posi-tap

2 Velcro

1 Alcohol swab

YOU CAN ALSO DOWNLOAD THE

POWER COMMANDER SOFTWARE AND

LATEST MAPS FROM OUR WEB SITE AT:

www.powercommander.com

2013 Arctic Cat 700cc H1 ATV

Installation Instructions

PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION

THE IGNITION MUST BE TURNED

OFF BEFORE INSTALLATION!

2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com

EXPANSION PORTS 1 & 2

Optional Accessories such as

Color LCD unit or Autotune kit.

POWER COMMANDER V

INPUT ACCESSORY GUIDE

ACCESSORY INPUTS

PCV Wire Connections

1. Remove the rubber plug on the backside of the

unit and loosen the screw for the corresponding

unit.

2. Using a 22-24 gauge wire, strip about 10mm

from its end.

3. Push the wire into the hole of the PCV until it

stops and then tighten the screw.

4. Make sure to reinstall the rubber plug.

Note: If you tin the wires with solder it will make

inserting them easier.

USB CONNECTION

2013 Arctic Cat 700cc H1 ATV - PCV - 2I11-014.01 www.powercommander.com

Map The PCV has the ability to hold two different

base maps. You can switch on the fly between

these two base maps when you connect

a switch to the MAP inputs. You can use

any open/close type switch. The polarity of

the wires is not important. When using the

Autotune kit, one position will hold a base map

and the other position will let you activate the

learning mode. When the switch is “closed”

Autotune will be activated.

Shifter Not used for this application.

Speed If your application has a speed sensor, you

can tap into the signal side of the sensor and

run a wire into this input.

Analog This input is for a 0-5v signal such as

engine temp, boost, etc. Once this input

is established you can alter your fuel curve

based on this input in the Control Center

Software.

Crank Do not connect anything to this port unless

instructed to do so by Dynojet. It is used to

transfer crank trigger data from one module to

another.

ACCESSORY INPUTS

CRANK

ANALOG

SPEED

MAP

SHIFTER

I11-014.01 www.powercommander.com 2013 Arctic Cat 700cc H1 ATV - PCV - 3

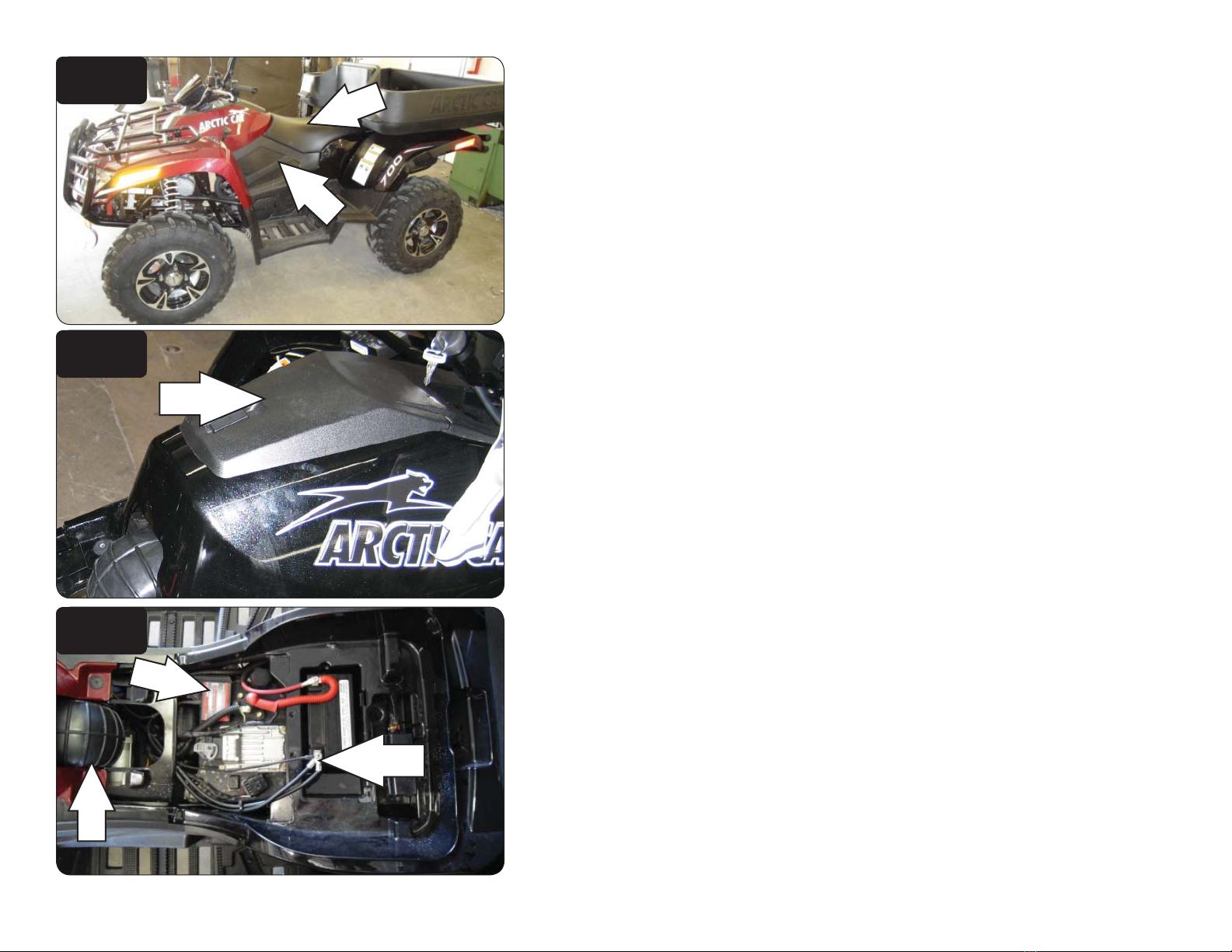

1 Remove the seat and left hand side panel as shown in Figure A.

2 Remove the storage cover and storage bin as shown in Figure B.

3 Loosen the clamp from the throttle body and remove the air snorkel from the

throttle body as shown in Figure C.

4 To make the injector more accessible, lift the snorkel/airbox upward away from

the top of the engine.

5 Remove the two screws securing the tool kit to expose the battery.

6 Using the supplied velcro, secure the PCV under the seat. Make sure to clean

both surfaces with the alcohol swab before attaching.

7 Route the PCV wiring harness under the frame spar toward the front of the

machine.

8 Attach the ground wire from the PCV to the negative terminal of the battery.

FIG.A

FIG.B

remove

FIG.C

ground lug

snorkel

PCV

I11-014.01 www.powercommander.com 2013 Arctic Cat 700cc H1 ATV - PCV - 4

9 Disconnect the stock wiring harness from the injector as shown in Figure D.

10 Attach the PCV connectors to the stock wiring harness and the injector.

11 Locate the Throttle Position Sensor (TPS) on the

left hand side of the throttle body.

12 Using the supplied posi-tap, attach the grey wire

from the PCV to the green/black wire from the

TPS.

13 Replace the storage bin, cover, tool kit, side panel,

and seat.

14 Insert the cd provided into your computer’s cd-rom

drive and follow the on-screen instructions to install

the PCV software. Visit www.powercommander.

com to download software tutorials.

FIG.E

TPS

posi-tap

FIG.D
