POWER VISION

PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION

98200118.07

1 POWER VISION

1 REFLASH HARNESS

1 USB CABLE

2 VELCRO

2 DYNOJET DECAL

PARTS LIST

Installation Guide for: PV3-25-07

Model Coverage:

2019-2021 Ski-Doo Ace Turbo

2 SKI-DOO 900 ACE TURBO INSTALLATION GUIDE 98200118

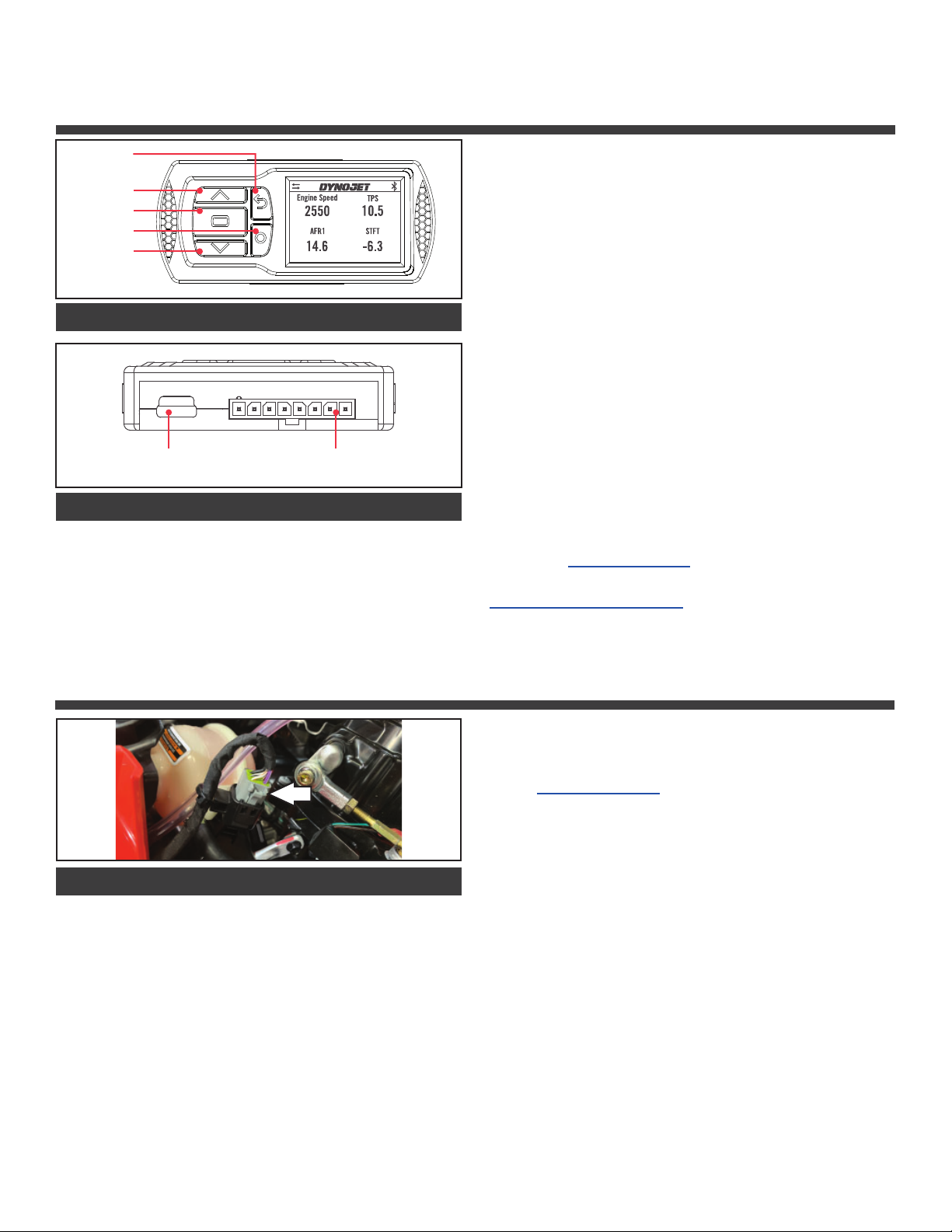

INSTALLING THE POWER VISION

1 Secure the Power Vision to the vehicle using the supplied

Velcro

. Make sure the Power Vision

will not interfere with

the operation and steering of the vehicle.

Visit www.dynojet.com for an array of mounting solutions

for your Power Vision.

Note: The Power Vision does not need to be mounted

to the vehicle, however, the Power Vision provides

a window into your vehicle. Mount the Power Vision

to your dashboard and gain access to customizable

full-color gauge screens, along with data logging and

troubleshooting screens.

2 Attach the diagnostic cable to the diagnostic port on the

Power Vision and to the diagnostic port on the vehicle.

900 Ace Turbo Models: located near the coolant bottle

above the chaincase.

DIAGNOSTIC PORT

INTRODUCTION

POWER VISION OVERVIEW—SIDE VIEW

SCROLL

USB CABLE PORT

CONNECT TO COMPUTER

DIAGNOSTIC CABLE PORT

CONNECT TO VEHICLE

POWER VISION OVERVIEW—FRONT VIEW

HOME/LOG

SCROLL

ENTER

RETURN Thank you for purchasing the Power Vision from Dynojet

Research. At Dynojet, our mission is to make every ride

the ultimate ride. The Power Vision allows you to tune

your stock ECU to achieve optimal performance from

your vehicle.

The Power Vision is the device to interface between

your computer and the vehicle ECU. Use the buttons

to navigate the device menus, make selections, cycle

through the four full-color available gauge screens, and

log data. Connect to the diagnostic port to ﬂash a tune;

use the USB connection to interface between the Power

Vision and your computer.

Make your Power Vision device yours; display the

channels you want to see with four user-customizable

full-color gauge screens. Make the Power Vision your

window into your vehicle; secure the Power Vision to

your dashboard or handlebars to monitor any desired

set of gauges such as Throttle Position, Engine Speed,

and more. Wideband Air:Fuel Ratio can be added as a

channel to the PV3’s monitors by adding the accessory

available at www.dynojet.com.

For state of the art technical support, please visit

www.dynojet.zendesk.com.

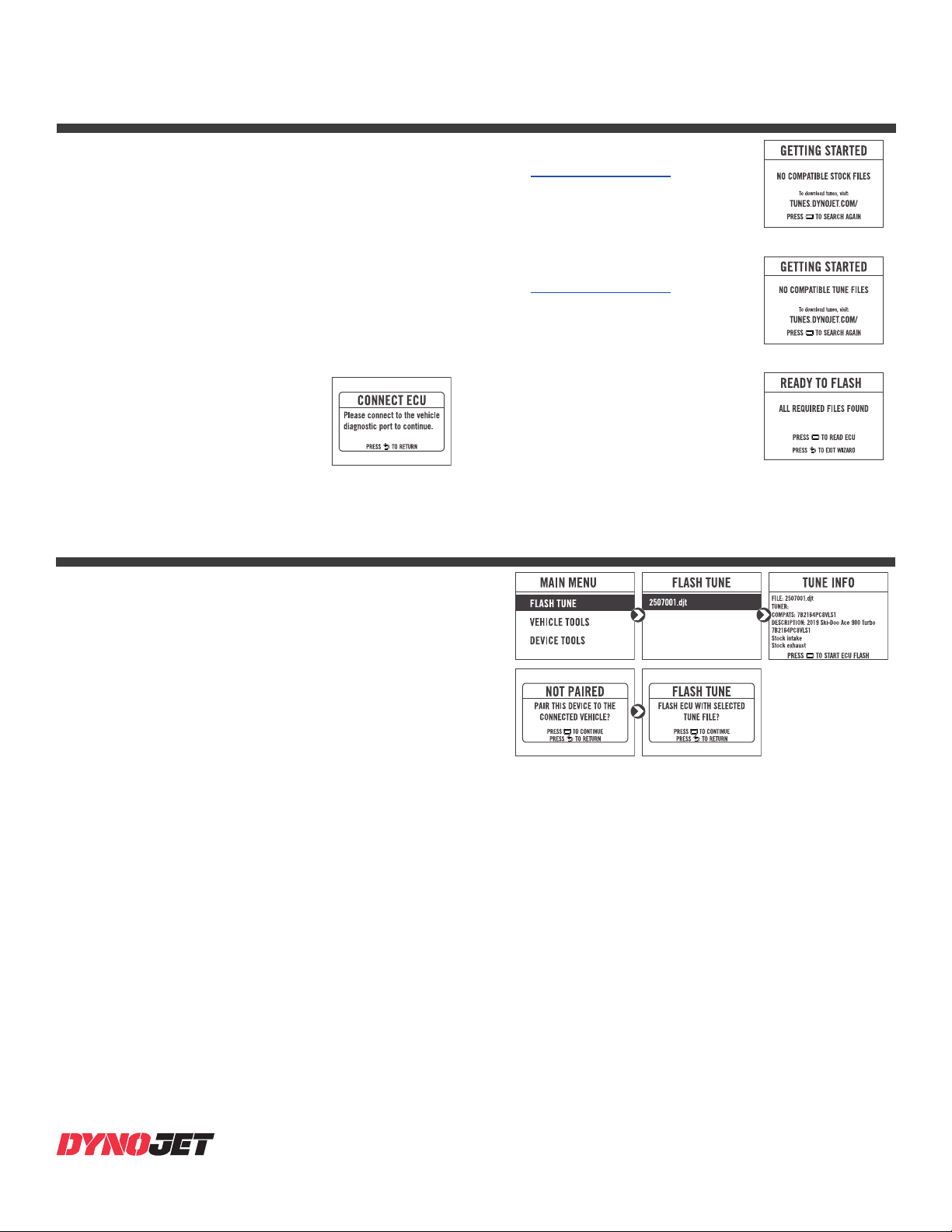

GETTING STARTED

Use the Tune File Wizard to prepare your Power Vision

device with the stock (stk) and tune (djt) ﬁles needed to

ﬂash your vehicle.

1 Connect the Power Vision to the vehicle.

2 Turn the key on. The Power Vision will scan for ﬁles.

There are three possible ﬁle states:

File State 1: No compatible tune or stock ﬁles.

File State 2: No compatible tune ﬁles.

File State 3: All required ﬁles found.

3 Gauges are displayed.

Connect the Power Vision to the

vehicle diagnostic port to collect

ECU information. Turn the key on.

File State 3:

All required ﬁles found. The Power

Vision is ready to ﬂash a tune to the

connected vehicle.

FLASHING YOUR VEHICLE

The Power Vision must be paired to the connected vehicle ECU

to function properly.

Note: Once paired to the vehicle ECU, the Power Vision will

not work on another vehicle without purchasing a tune

license.

1 From the Main Menu, select Flash Tune.

2 Select the tune ﬁle (.djt) and press Enter to view the Tune Info.

Note: The Dynojet tune ﬁle (.djt) is a tune ﬁle which is

different (better than stock performance or the necessary

ﬁle when bolting on an exhaust, for example); the stock ﬁle

(.stk) is the direct duplicate of what the OEM shipped.

3 Press Enter to accept the tune, or restore the ECU to original

stock (.stk) ﬁle, and pair the Power Vision to the vehicle.

Note: Pair to vehicle will only happen on the ﬁrst ﬂash.

4 Press Enter to pair and lock the Power Vision to the ECU and to

begin the ﬂash. Do not turn off the key switch or disconnect the

Power Vision during the ﬂash.

5 After the ﬂash is complete, turn the key off and wait 45 seconds

before turning the key back on to start.

File State 2:

Go to tunes.dynojet.com/ to

download tune ﬁles.

File State 1:

Go to tunes.dynojet.com/ to

download stock and tune ﬁles.

4 SKI-DOO 900 ACE TURBO INSTALLATION GUIDE 98200118

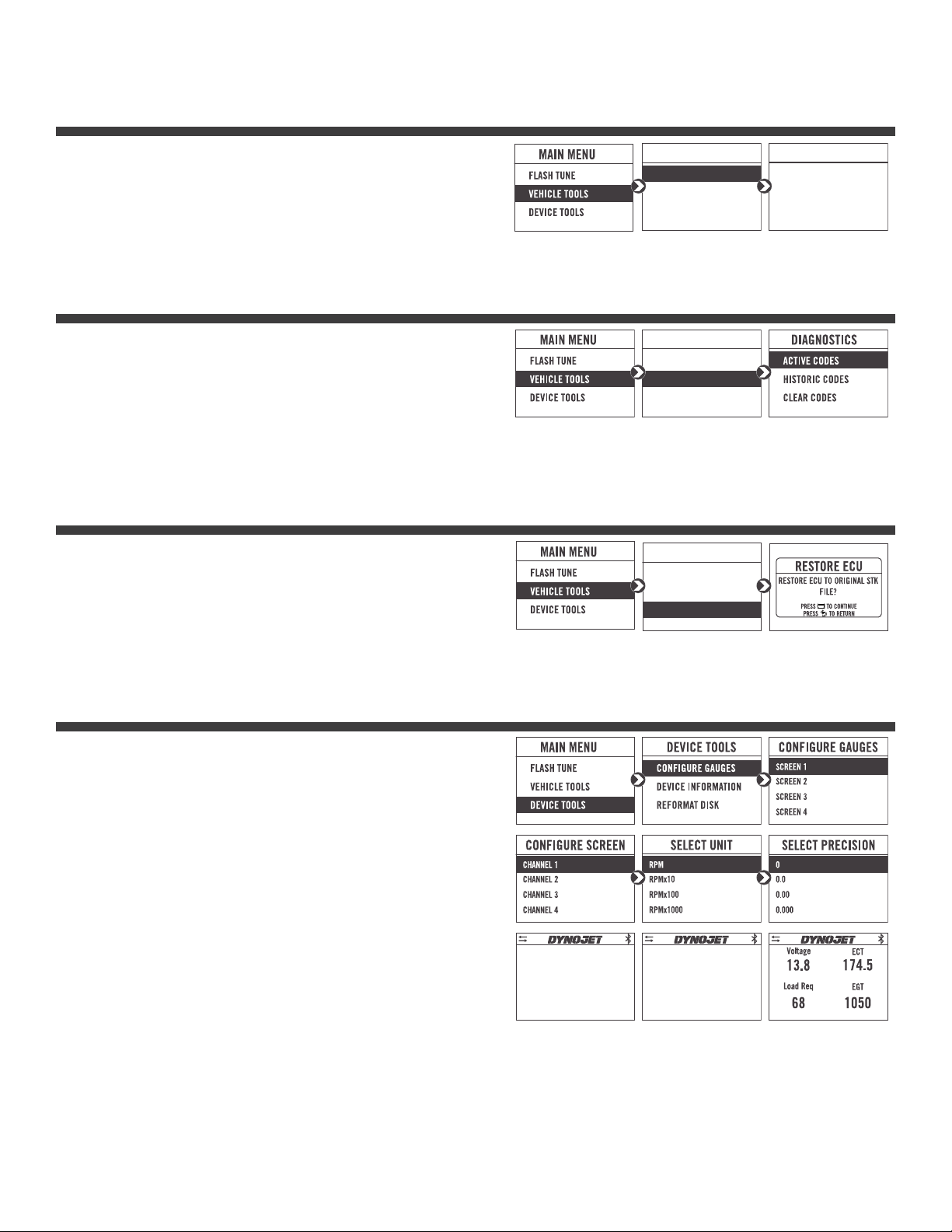

This menu allows you to read and clear diagnostic trouble

codes.

1 To read codes, select Vehicle Tools>Diagnostics>Active

Codes.

2 To clear codes, select Vehicle Tools>Diagnostics>Clear

Codes.

VEHICLE TOOLS

VEHICLE INFORMATION

DIAGNOSTICS

DELETE DATA LOGS

VIEWING THE DIAGNOSTIC CODES

This menu allows you to view the device status (paired/not

paired), VIN #, Model ID, ECU serial number, tune compat, and

checksum compat.

Select Vehicle Tools>Vehicle Information.

VEHICLE TOOLS

VEHICLE INFORMATION

DIAGNOSTICS

DELETE DATA LOGS

VEHICLE INFO

PAIRED VEHICLE: DEVICE NOT PAIRED

VIN: 3JBV6AWZ4HK000560

MODEL ID: 666939

TUNE COMPAT: 7B2164PC8VLS1

CSUM COMPAT:

VIEWING THE VEHICLE INFORMATION

RESTORING THE ECU

This menu allows you to restore the ECU. Use Restore ECU if

the device does not complete the ﬂash or if your vehicle will

not start.

Select Vehicle Tools>Restore ECU.

VEHICLE TOOLS

DIAGNOSTICS

DELETE DATA LOGS

RESTORE ECU

CONFIGURING GAUGES

Make your Power Vision device yours; display the channels

you want to see with four user-customizable full-color gauge

screens. Each gauge screen has one, two, or four conﬁgurable

channels. Monitor channels such as Wideband, AFR, Boost,

and integrated belt temperature sensor. Sample gauges shown

here; for a complete list of monitors available, open the tune ﬁle

in Power Core or scroll through the gauges on the device when

conﬁguring or selecting channels for the list of options.

1 From the Main Menu, select Device Tools>Conﬁgure Gauges.

2 Select a gauge screen and press Enter.

3 Select a channel and press Enter.

4 Select a channel from the list and press Enter.

5 Select the precision or units for that channel and press Enter.

6 Continue setting up the remaining channels as desired.

7 Continue conﬁguring the remaining gauge screens as desired.

13.3

6550

Engine Speed

AFR1

6550

Engine Speed

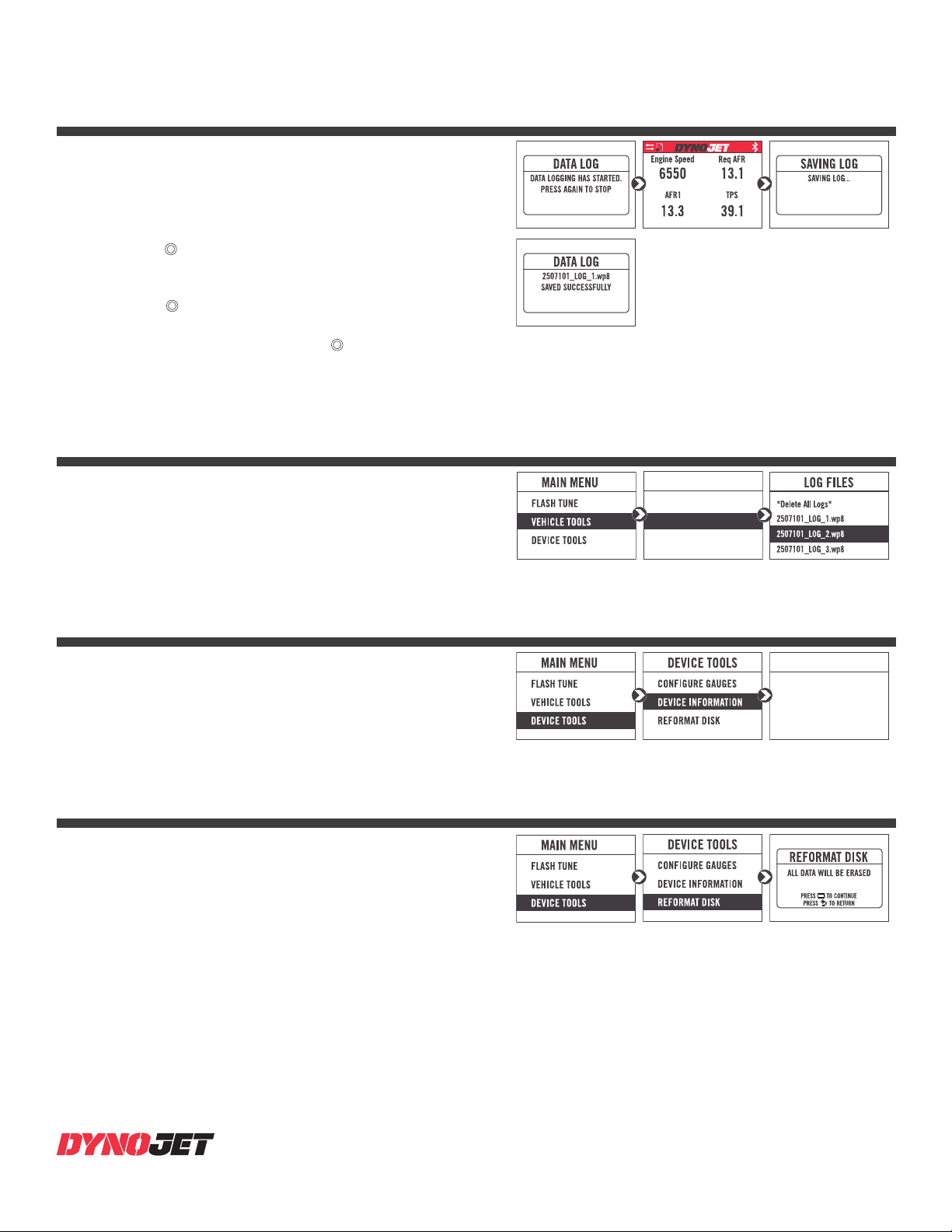

LOGGING DATA

DELETING DATA LOGS

This menu allows you to delete data logs.

1 Select Vehicle Tools>Delete Data Log.

2 Select a speciﬁc log to delete or select *Delete All Logs*.

VEHICLE TOOLS

DIAGNOSTICS

DELETE DATA LOGS

RESTORE ECU

VIEWING THE DEVICE INFORMATION

This menu allows you to view the device ﬁrmware version,

serial number, and stock code.

Select Device Tools>Device Information.

DEVICE INFORMATION

DYNOJET POWER VISION

FW VERSION: 4.12.8299.20956

SERIAL NUMBER: 00073231

STOCK CODE: 76125080

The Power Vision is a powerful logging tool to diagnose running issues.

Use the Power Vision to log all vehicle operating data and review the

data in the Power Core software. Troubleshoot an issue such as knock,

speed/RPM limitation, throttle blade closure and more by keeping the

Power Vision mounted to view and record channels.

1 Press the Log button to begin logging. The Power Vision

screen will illuminate a bright red banner across the top when

logging.

2 Press the Log button again to stop logging.

3 Use the Power Core software to view log ﬁles.

Snapshot Log: Press and hold the Log button for two

seconds to record the previous two minutes of operating time.

REFORMATTING THE DISK

This menu allows you to reformat the disk and erase all data.

Select Device Tools>Reformat Disk.

6 SKI-DOO 900 ACE TURBO INSTALLATION GUIDE 98200118

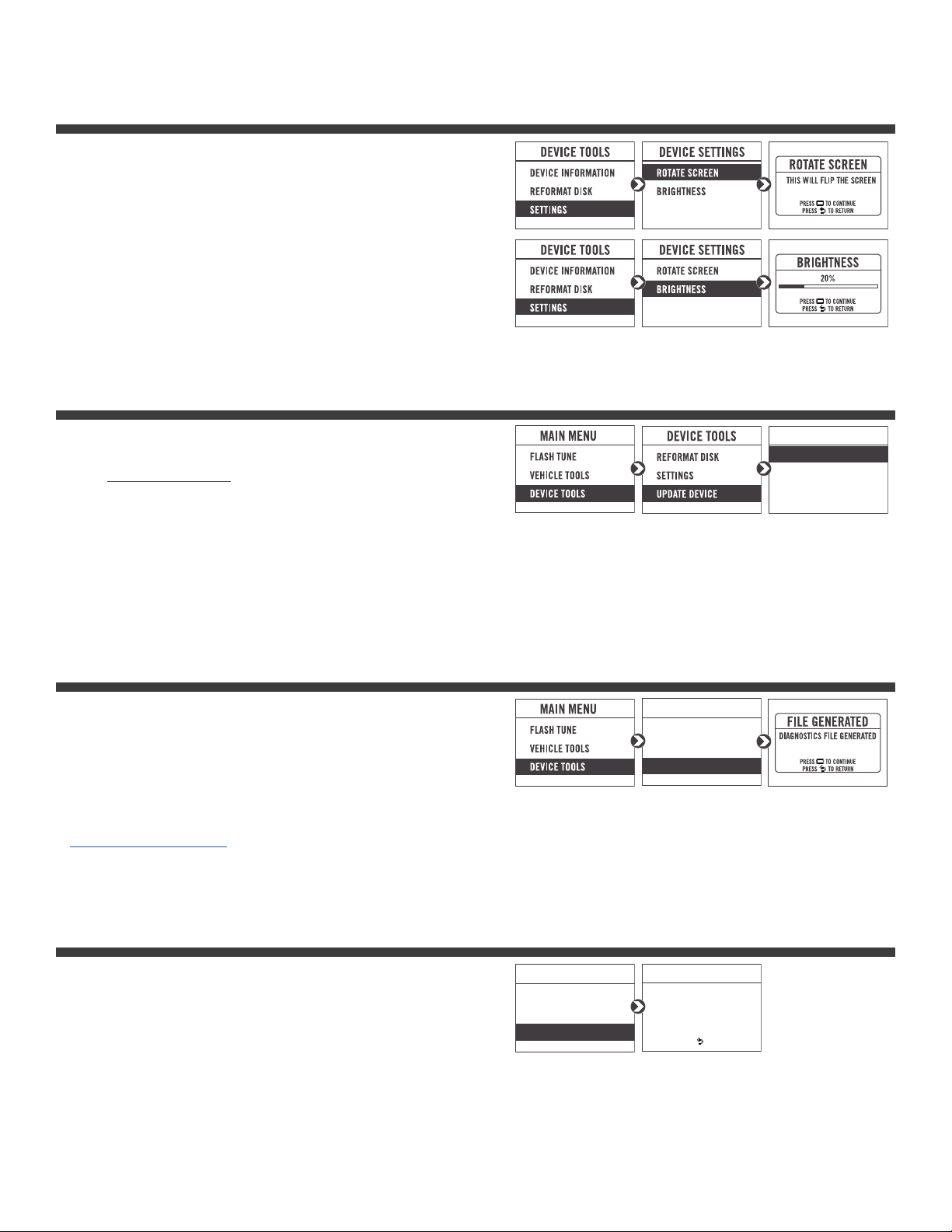

CHANGING THE SETTINGS

UPDATING THE DEVICE

UPDATE DEVICE

PV3_4.12.8299.20956.dfu

This menu allows you to update the device with the latest

ﬁrmware.

1 Go to www.dynojet.com.

From the top navigation menu, select Support>Downloads.

3 Click Power Vision 3.

4 Click the Firmware drop-down and download the Power Vision

3 Firmware for CanAm.

5 Save the ﬁle to your device.

6 Select Device Tools>Update Device.

This menu allows you to rotate the screen allowing you to

change the orientation of the Power Vision device along with

adjusting the screen brightness. Turn the brightness up and

make your screen pop!

Select Device Tools>Settings>Rotate Screen to ﬂip the

screen.

Select Device Tools>Settings>Brightness to change the

screen brightness.

DIAGNOSTIC ENABLE

This menu allows you to create a ﬁle containing device

diagnostic information used by Dynojet Tech Support.

1 From the Main Menu, select Device Tools>Diagnostic Enable.

This will turn on diagnostic logging. Logging will continue until

the device is restarted.

2 If requested by Dynojet Tech Support, connect your Power

Vision to a computer and email the diagnostic ﬁle to

PV3tech@dynojet.com. Diagnostic log ﬁles are placed in the

log ﬁles directory.

DEVICE TOOLS

SETTINGS

UPDATE DEVICE

DIAGNOSTIC ENABLE

USB MODE

This menu allows you to connect your Power Vision to your

computer and enables sending and receiving ﬁles.

1 Connect the Power Vision to your computer using the included

USB cable. The Power Vision will automatically enter USB Mode.

From the Main Menu, select USB Mode.

2 Transfer the desired ﬁles to your computer or to the Power

Vision.

USB MODE

USB FILE TRANSFER ENABLED

PRESS TO EXIT

MAIN MENU

DEVICE TOOLS

HELP

USB MODE

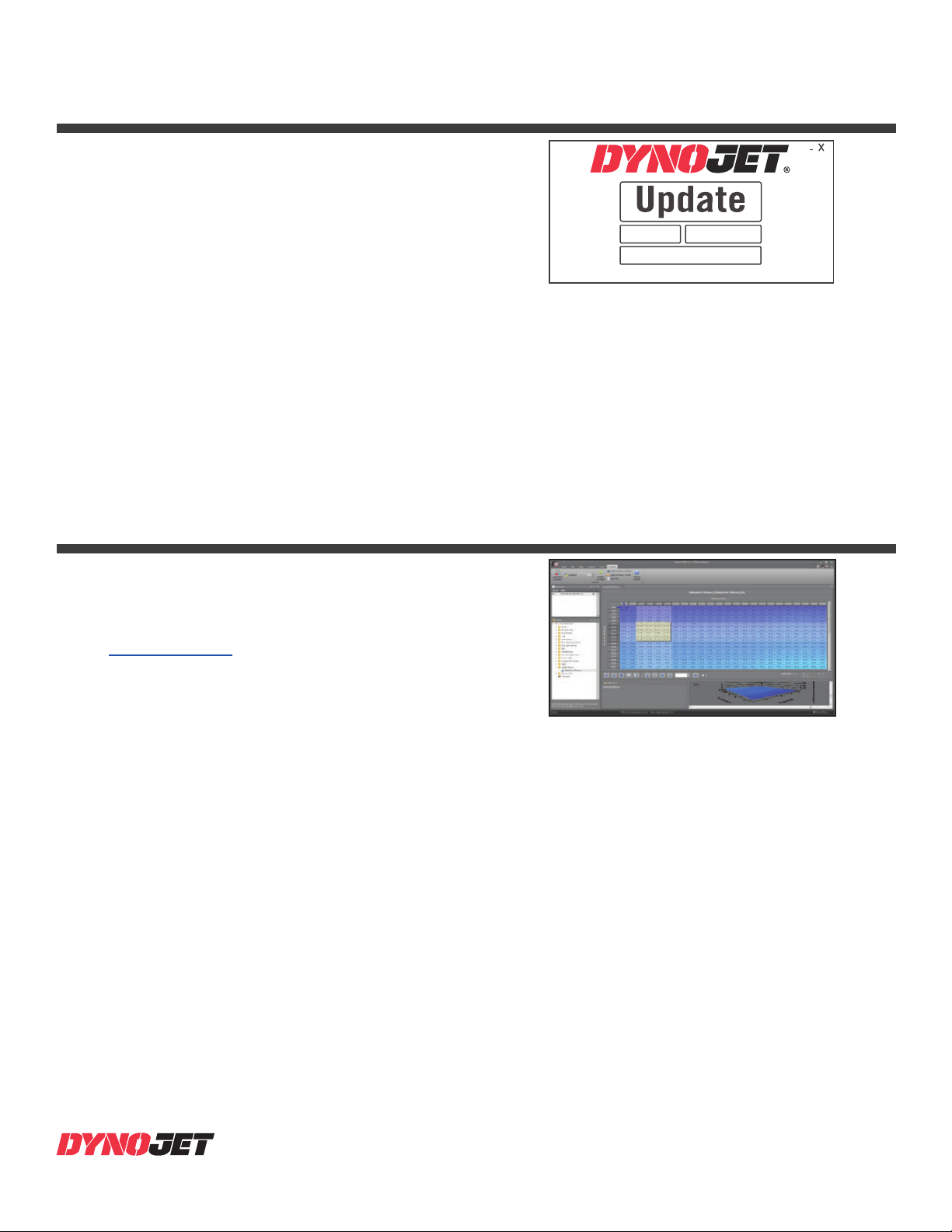

INSTALLING THE POWER CORE SOFTWARE

USING THE POWER VISION UPDATE CLIENT

This stand alone application will launch the Update Client

allowing you to update your Power Vision with the latest

ﬁrmware, retrieve additional tunes, or restore the Power Vision to

the original Dynojet factory settings.

1 Connect the Power Vision to your computer using the included

USB cable.

2 Navigate to the POWERVISION drive attached to your computer

and run the Update.exe ﬁle.

3 Click Update to load the current ﬁrmware. If the Update button is

grayed out, your Power Vision already has the latest ﬁrmware.

4 Click Restore to reload all original Dynojet tune and stock ﬁles.

5 Click Get Tunes to open the Dynojet Tune Finder. Follow the

instructions to Upload your PV_Info.txt ﬁle and retrieve new tunes.

6 Click Manual Firmware Update to navigate to and load a version

of ﬁrmware already saved on your computer.

Firmware Version: 4.12.8299.20956 S/N: PV00073231

Help 1.0.3.0

Manual Firmware Update

Restore Get Tunes

Download the Power Core software and take tuning to a

whole new level.

Note: Downloading the Power Core software is optional

and not necessary to use the Power Vision.

1 Go to www.dynojet.com.

From the top navigation menu, select Support>Downloads.

3 Click Power Vision 3.

4 Click the Software drop-down and download the Dynojet

Power Core software.

5 Double-click the saved ﬁle to begin installation. Follow

the on-screen prompts. Refer to the Power Core Help for

more information.

Andere Handbücher für Power Vision

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dynojet Autozubehör Handbücher

Dynojet

Dynojet Power commander V Bedienungsanleitung

Dynojet

Dynojet POWER VISION PV3-16-03 Bedienungsanleitung

Dynojet

Dynojet Power commander V Bedienungsanleitung

Dynojet

Dynojet Power commander V Bedienungsanleitung

Dynojet

Dynojet POWER COMMANDER III USB EX Bedienungsanleitung

Dynojet

Dynojet Power Commander III Bedienungsanleitung

Dynojet

Dynojet Power Commander III USB EX Bedienungsanleitung

Dynojet

Dynojet Power Commander III Bedienungsanleitung

Dynojet

Dynojet Power commander V Bedienungsanleitung

Dynojet

Dynojet Power commander V Bedienungsanleitung

Dynojet

Dynojet Power commander V Bedienungsanleitung

Dynojet

Dynojet POWER VISION PV3-16-07 Bedienungsanleitung

Dynojet

Dynojet Power commander V Bedienungsanleitung

Dynojet

Dynojet power commander III Bedienungsanleitung

Dynojet

Dynojet POWER VISION PV3-17-02 Bedienungsanleitung

Dynojet

Dynojet power commander III Bedienungsanleitung

Dynojet

Dynojet POWER VISION PV3-25-16 Bedienungsanleitung

Dynojet

Dynojet Power Vision PV3-25-02 Bedienungsanleitung

Dynojet

Dynojet INVISION INV-1901 Bedienungsanleitung

Dynojet

Dynojet POWER VISION PV3-25-09 Bedienungsanleitung

Dynojet

Dynojet Power commander V Bedienungsanleitung

Dynojet

Dynojet Power commander V Bedienungsanleitung

Dynojet

Dynojet Power commander V Kurzanleitung

Dynojet

Dynojet Power Commander III Service-Handbuch

Beliebte Autozubehör Handbücher anderer Marken

James Baroud

James Baroud Odyssey Bedienungsanleitung

Motorola

Motorola i50sx Bedienungsanleitung

Yakima

Yakima 9MM STANDARD BIKE MOUNT Bedienungsanleitung

Feniex

Feniex T3 Bedienungsanleitung

Renault

Renault 77 11 423 180 Bedienungsanleitung

Kia

Kia E8300-4D000 Bedienungsanleitung

Brink

Brink 756843 Bedienungsanleitung

Whispbar

Whispbar K085W Bedienungsanleitung

v.link

v.link CI-VL2-PC-HSD Bedienungsanleitung

Viking

Viking Stack-Rack Kurzanleitung zur Einrichtung

Aries

Aries 203015 Bedienungsanleitung

Choetech

Choetech AT0005 Bedienungsanleitung

ZZ2

ZZ2 ZZAIR-PRO Bedienungsanleitung

Holman

Holman 4A80L Bedienungsanleitung

Thule

Thule 2075 Bedienungsanleitung

Motorola

Motorola T325 Bedienungsanleitung

TAUBENREUTHER

TAUBENREUTHER 16-3950 Installationsanleitung

DV8

DV8 FBJL-02 Bedienungsanleitung
