Eaton Powerware 5125 Bedienungsanleitung

Powerware 5125 (9910-E33) UPS

Installation Guide for IBM Applications

Special Symbols

The following are examples of symbols used on the UPS or accessories to alert you to important

information:

RISK OF ELECTRIC SHOCK - Indicates that a risk of electric shock is present and the

associated warning should be observed.

CAUTION: REFER TO OPERATOR’S MANUAL - Refer to your operator’s manual for

additional information, such as important operating and maintenance

instructions.

This symbol indicates that you should not discard the UPS or the UPS batteries

in the trash. This product contains sealed, lead-acid batteries and must be

disposed of properly. For more information, contact your local recycling/reuse or

hazardous waste center.

This symbol indicates that you should not discard waste electrical or electronic

equipment (WEEE) in the trash. For proper disposal, contact your local

recycling/reuse or hazardous waste center.

IBM, pSeries, AIX, xSeries, AS/400, and RS/6000 are registered trademarks and iSeries, OpenPower, and i5/OS are

trademarks of International Business Machines Corp.

Eaton, Powerware, X-Slot, and LanSafe are registered trademarks and ConnectUPS is a trademark of Eaton

Corporation or its subsidiaries and affiliates.

Microsoft and Windows are registered trademarks of Microsoft Corporation.

Linux is a registered trademark of Linus Torvalds.

Burndy is a registered trademark of Framatone Connectors International.

reproduced in any way without the express written approval of Eaton Corporation.

EATON Powerware®5125 (9910-E33) UPS Installation Guide for IBM®Applications S164201695 Rev 1 i

Table of Contents

1 Installation 1.........................................................

Parts List 1..........................................................................

UPS Internal Battery Connection 3..........................................................

Setup and Installation 4.................................................................

Tools Required 4....................................................................

Rack-Mount Setup 5.................................................................

EBM Installation 10.....................................................................

UPS Installation 11.....................................................................

Remote Emergency Power-off Installation 12...................................................

Power Connections and Startup 14..........................................................

Load Segments 20......................................................................

2 Operation 21..........................................................

Turning the UPS On 21...................................................................

Starting the UPS on Battery 21.............................................................

Turning the UPS Off 21...................................................................

Operating Modes 22....................................................................

Normal Mode 22....................................................................

Battery Mode 23....................................................................

Bypass Mode 23.....................................................................

Standby Mode 23....................................................................

Configuration Mode 24...................................................................

3 Communication 27.....................................................

Single-Port Card 27.....................................................................

Communication Options 30................................................................

i5, iSeries, or AS/400 and Serial Server Interface Overview 30....................................

Serial (TTY) Interface Overview 33........................................................

p5 or pSeries with Logical Partitions Interface Overview 34......................................

4 Service and Support 35.................................................

TABLE OF CONTENTS

EATON Powerware®5125 (9910-E33) UPS Installation Guide for IBM®Applications S164201695 Rev 1

This page intentionally left blank.

EATON Powerware®5125 (9910-E33) UPS Installation Guide for IBM®Applications S164201695 Rev 1 1

Chapter 1 Installation

Parts List

IBM part numbers are subject to change without notice.

Table 1. E33 Base Configuration (42R8065)

Quantity IBM MN IBM FC IBM PN Eaton®PN Description

1E33 —42R8065 05147155-3995 E33 UPS 3000 VA, 2700W (in shipping carton or

factory-installed in rack)*

103006256 Accessory Kit:

S(1) UPS Front Cover (157603827-003)*

S(1) Read Me First Card (164201568)

S(2) Square-Hole Adapter Plates (157606109-001)*

S(1) Left Rail Assembly (103006173)*

S(1) Right Rail Assembly (103006172)*

1 — — 42R8066 05147532-3992 E33 Accessory Kit

* If the UPS is factory-installed in an IBM rack, these items are pre-assembled.

Table 2. E33 Application Matrix

IBM MN IBM FC IBM PN Eaton PN Description

Quantity for

p5/pSeries®

Rack Worldwide

Quantity for

i5/iSeriest

Rack Worldwide

—2934139J4824 116750221-001 -X Web/SNMP

Card2Kit

ConnectUPStMin: 0, Max: 1 —

—2939142R4332 103004741-5591 Relay-Serial Card and Cable

Kit (DB-9, 1.8m/6 ft; DB-25,

9.1m/30 ft)

—Min: 0, Max: 1

—6643 42R8067 05147156-3996 Extended Battery Module

(EBM)

Min: 0, Max: 4

— — 42R8068 05147533-3992 EBM Accessory Kit 1 per FC 6643

Varies Varies Varies Varies UPS Input Power Cord 1 per E33 UPS

1Maximum: One FC 2934 or 2939 per E33 UPS.

2ConnectUPS-X Web/SNMP Card required if implementing Logical Partitions (LPARs) on p5 or pSeries.

INSTALLATION

EATON Powerware®5125 (9910-E33) UPS Installation Guide for IBM®Applications S164201695 Rev 1

Table 3. E33 Accessory Kit (42R8066)

Quantity Eaton PN Description

1164201383 Powerware 5125 Two-in-One UPS (2400/3000 VA) User’s Guide

1164201695 Powerware 5125 (9910-E33) Installation Guide for IBM Applications

1164201568 Read Me First Card

4152601942-001 IEC 320-C13 to C14, 10A Equipment Power Cords (2m/6.6 ft)

1152601971-001 IEC 320-C19 to C20, 16A Equipment Power Cord (4.5m/14.8 ft)

1154105635-001 Connector Plug, 10A, 2-Pin

1103005159 Burndy®to IEC 320-C20 16A Power Cord (1.8m/6 ft)

1Bag 130500051-001 Cord Retention Clips

1103004870 Software Suite CD

1124102043-001 UPS to Server Communication Cable (DB-9 to DB-9, 1.8m/6 ft)

2130500110-001 Mounting Handles

4180500200-002 Mounting Handle Screws

1103002843-3992 Rail Hardware Kit (metric):

S(8) M5×12 Pan-Head Screws

S(8) M5×10 Flat-Head Screws

S(4) M5×16 Hex-Head Screws

S(4) M5 Clip Nuts

S(2) Square-Hole Adapter Plates

Table 4. E33 6643 EBM Configuration (42R8067)

Quantity IBM MN IBM FC IBM PN Eaton PN Description

1 — 6643 42R8067 05147156-3996 E33 6643 EBM 2U High (in shipping carton or

factory-installed in rack)*

103006302 Accessory Kit:

S(1) EBM Front Cover (157603827-103)*

S(2) Square-Hole Adapter Plates (157606109-001)*

S(1) Left Rail Assembly (103006173)*

S(1) Right Rail Assembly (103006172)*

S(2) Mounting Handles (130500110-001)*

S(4) Mounting Handle Screws (180500200-002)*

1 — — 42R8068 05147533-3992 EBM Accessory Kit

* If the EBM is factory-installed in an IBM rack, these items are pre-assembled.

INSTALLATION

EATON Powerware®5125 (9910-E33) UPS Installation Guide for IBM®Applications S164201695 Rev 1 3

Table 5. EBM Accessory Kit (42R8068)

Quantity Eaton PN Description

1164201378 Powerware 5125 Two-in-One EBM (2500/3000 VA) User’s Guide

1152602008 EBM Cable

1103002843-3992 Rail Hardware Kit (metric):

S(8) M5×12 Pan-Head Screws

S(8) M5×10 Flat-Head Screws

S(4) M5×16 Hex-Head Screws

S(4) M5 Clip Nuts

S(2) Square-Hole Adapter Plates

UPS Internal Battery Connection

NOTE Check the battery recharge date on the shipping carton label. If the date has expired

and the batteries were never recharged, do not use the UPS. Contact your service

representative.

To ensure proper battery operation before installing the UPS:

1. Verify that the UPS is off and unplugged.

2. Remove the packing material (see Figure 1).

Figure 1. Removing Packing Material

3. Connect the internal battery connector (see Figure 2).

NOTE A small amount of arcing may occur when connecting the batteries. This is normal

and does not damage the unit or present any safety concern.

INSTALLATION

EATON Powerware®5125 (9910-E33) UPS Installation Guide for IBM®Applications S164201695 Rev 1

Figure 2. Connecting the Internal Battery Connector

4. Install the UPS front cover (see Figure 3).

Figure 3. Installing the Front Cover

Setup and Installation

The E33 UPS can be purchased separately or factory-installed in an IBM

iSeries or pSeries rack.

NOTE If the UPS is pre-installed in an IBM pSeries (RS/6000®) system, continue to “EBM

Installation” on page 10 or “UPS Installation” on page 11.

Tools Required

To assemble the components, the following tools may be needed:

SMedium flat-bladed screwdriver

S#2 Phillips screwdriver

S8mmwrenchorsocket

INSTALLATION

EATON Powerware®5125 (9910-E33) UPS Installation Guide for IBM®Applications S164201695 Rev 1 5

Rack-Mount Setup

The rail kit can be installed in 48-cm (19-inch) racks and needs only 2U of

valuable rack space.

NOTE Mounting rails are required for each individual cabinet and are located in the UPS

and EBM cartons. All hardware is supplied.

NOTE The UPS and any optional cabinets MUST be installed at the bottom of the rack. If

placed in a rack with existing equipment, the rack must be reconfigured to allow the UPS

installation at the bottom of the rack.

Each rail kit requires one (1) of each item in the following list:

SLeft rail assembly (located in the UPS and EBM cartons)

SRight rail assembly (located in the UPS and EBM cartons)

SMounting handles and screws (located in the UPS and EBM cartons)

SRail hardware kit (located in the E33 UPS and EBM accessory kits)

To install the rail kit(s):

1. Loosen the assembly wing nuts on both rail assemblies and adjust

the rail size for the depth of your rack (see Figure 4).

Assembly Wing Nuts

Front

Rear

Rear Hold-Down Bracket

Figure 4. Adjusting the Rail Depth

INSTALLATION

EATON Powerware®5125 (9910-E33) UPS Installation Guide for IBM®Applications S164201695 Rev 1

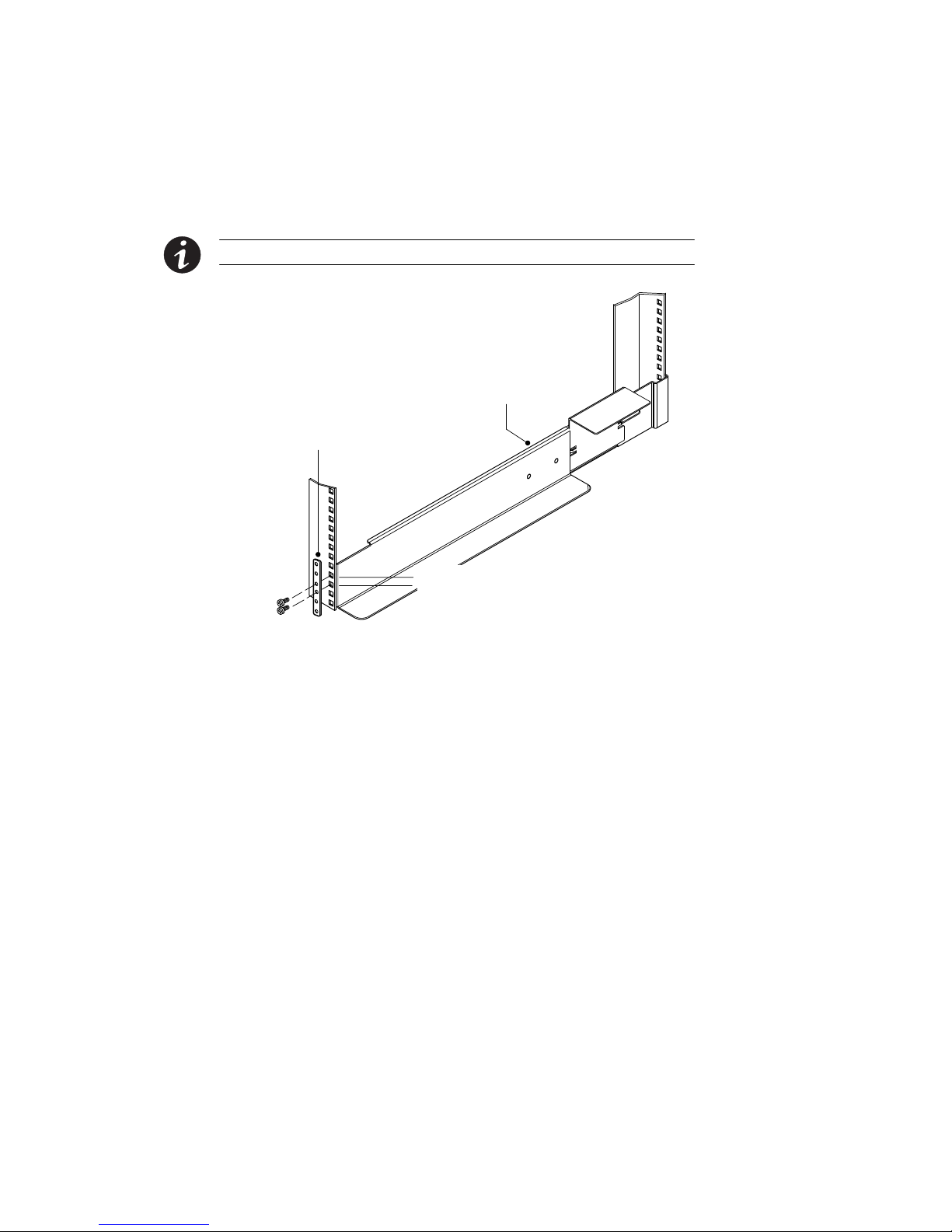

2. Select the proper holes in the rail for positioning the UPS and any

optional cabinets in the rack.

3. Secure the rail to the front of the rack with two pan-head screws

and one adapter plate. Insert the screws through positions 3 and 4

oftherail(seeFigure5).

NOTE Do not tighten the screws until the UPS or EBM is installed.

Assembly Wing Nuts

Front Rail Pan-Head

Screws

Adapter

Plate

Position 4

Position 3

Figure 5. Securing the Front of the Rail

4. Using two clip nuts and two hex-head screws, attach the rail to the

rear of the rack (see Figure 6 and Figure 7).

The bottom rail uses positions 2 and 4 for the rear hex-head

screws. If you are installing additional rails, place the next rail

4 holes above the last installed screw.

Andere Handbücher für Powerware 5125

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Eaton UPS Handbücher

Eaton

Eaton 9E 10000i Bedienungsanleitung

Eaton

Eaton 9PX1000IRT2U-L Montageanleitung

Eaton

Eaton 5E 100i USB Bedienungsanleitung

Eaton

Eaton Powerware 9125 Bedienungsanleitung

Eaton

Eaton 93E Bedienungsanleitung

Eaton

Eaton 93E Bedienungsanleitung

Eaton

Eaton 3S 700 Bedienungsanleitung

Eaton

Eaton Protection Station 650 Bedienungsanleitung

Eaton

Eaton MPS12-30 Betriebsanleitung

Eaton

Eaton Powerware 9355 Bedienungsanleitung

Eaton

Eaton Powerware 9395 Handbuch

Eaton

Eaton Eaton 5PX Montageanleitung

Eaton

Eaton Eaton 5PX Montageanleitung

Eaton

Eaton Powerware 5125 Bedienungsanleitung

Eaton

Eaton multimatic HotSwap MBP3KI Bedienungsanleitung

Eaton

Eaton 5E Montageanleitung

Eaton

Eaton 5P 1550G RL Bedienungsanleitung

Eaton

Eaton Eaton 5PX Montageanleitung

Eaton

Eaton Power Xpert 9395 Plus Bedienungsanleitung

Eaton

Eaton Ellipse MAX 600 Bedienungsanleitung

Eaton

Eaton 93PM-L IAC-B Bedienungsanleitung

Eaton

Eaton BladeUPS none Bedienungsanleitung

Eaton

Eaton 9393PM Handbuch

Eaton

Eaton Power Xpert Programmierhandbuch

Beliebte UPS Handbücher anderer Marken

Pylontech

Pylontech Victron & Pylontech US5000 Bedienungsanleitung

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Bedienungsanleitung

Mecer

Mecer ME-1000-WTU Bedienungsanleitung

Mustek

Mustek PowerMust 530(B) Plus Installations- und Betriebshandbuch

Emerson

Emerson Liebert NXL series Bedienungsanleitung

MAKELSAN

MAKELSAN BOXER SERIES Bedienungsanleitung

Block

Block PC-0524-400-0 Bedienungsanleitung

CyberPower

CyberPower CP585LCD Bedienungsanleitung

CyberPower

CyberPower Office Tower Series UPS 1000 Bedienungsanleitung

CyberPower

CyberPower BM100 Bedienungsanleitung

Best Power

Best Power 610 Bedienungsanleitung

Best Power

Best Power Unity/I UT3K Bedienungsanleitung

Mustek

Mustek PowerMust 400 Offline Bedienungsanleitung

Xantrex

Xantrex Trace 512 UR-UPS Bedienungsanleitung

Forza

Forza SL-1501UL Bedienungsanleitung

LEGRAND

LEGRAND keor 310081 Bedienungsanleitung

ABB

ABB Conceptpower DPA 500 Bedienungsanleitung

ZincFive

ZincFive BC Series Bedienungsanleitung
