Electrolux PI92-4ANM Bedienungsanleitung

Instruction Book

GB INSTRUCTION BOOK

FR MDE D’EMPLOI

BG   

CZ PŘÍRUČKA K POUŽITÍ

DE ANLEITUNG

DK VEJLEDNING

EE KASUTUSJUHEND

MANUAL DE INSTRUCCIONES

FI OHJEKIRJA

HR KNJIŽICA S UPUTAMA

HU HASZNÁLATI ÚTMUTATÓ

IT ISTRUZIONI

LT INSTRUKCIJŲ KNYGELĖ

LV LIETOŠANAS PAMĀCĪBA

NO BRUKSANVISNING

PL INSTRUKCJA OBSŁUGI

RO MANUAL DE INSTRUCIUNI

SR 

  

SE BRUKSANVISNING

SI NAVODILA ZA UPORABO

SK NÁVOD NA POUŽÍVANIE

TR TALİMAT KİTAPÇIĞI

UA 

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Electrolux

PI92-4ANM o cerca il tuo prodotto tra le migliori offerte diAspirapolvere e Pulitrici

ENGLISH

FRANÇAIS

БЪЛГАРСКИ

ČEŠTINA

DEUTSCH

DANSK

EESTI

ESPAÑOL

Click! SUOMI

HRVATSKI

MAGYAR

ITALIANO

LIETUVIŠKAI

LATVIEŠU

NORSK

POLSKI

CONTENTS

ROMÂNĂ

SRPSKI

РУССКИЙ

SVENSKA

SLOVENŠČINA

SLOVENČINA

TΫRKCE

УКРАЇНСЬКА

3www.electrolux.com

OVERVIEW OF THE ROBOT

HOW TO USE THE ROBOT VACUUM CLEANER

HOW TO CONNECT TO THE ”PUREI9” APP

TIPS ON HOW TO GET THE BEST RESULTS

EMPTYING THE DUST CONTAINER

CLEANING THE FILTER

MAINTENANCE

CHANGING THE BATTERIES

ERROR HANDLING

TROUBLESHOOTING

SAFETY PRECAUTIONS

CONSUMER INFORMATION AND SUSTAINABILITY POLICY

Click!

TABLE OF CONTENTS:

4www.electrolux.com

Overview of the robot

Description of your robot vacuum cleaner

1 Display / Control panel

2 ECO function button

3 SPOT cleaning button

4 Play/Pause button / O button (long press)

5 Home button

6 Clock

7 Dust container indicator

8 WIFI connection indicator

9 Scheduled cleaning indicator

10 Warning indicator

11 Battery status indicator

12 Fan unit

13 Air outlet

14 Bumper

15 Side brush

16 3DVision System (Camera)

17 Main wheels

18 Charging connectors

19 Brush roll lid

20 Brush roll

21 Battery compartments

22 Dust container release button

23 Dust container lid

24 Filter

25 Filter frame (and mesh net)

26 Dust container

27 Charging base

28 Charging connectors

29 Power adaptor and cord

* Accessories may vary from model to model.

1717

15 20

27 29

24135

5www.electrolux.com

How to use the robot vacuum cleaner

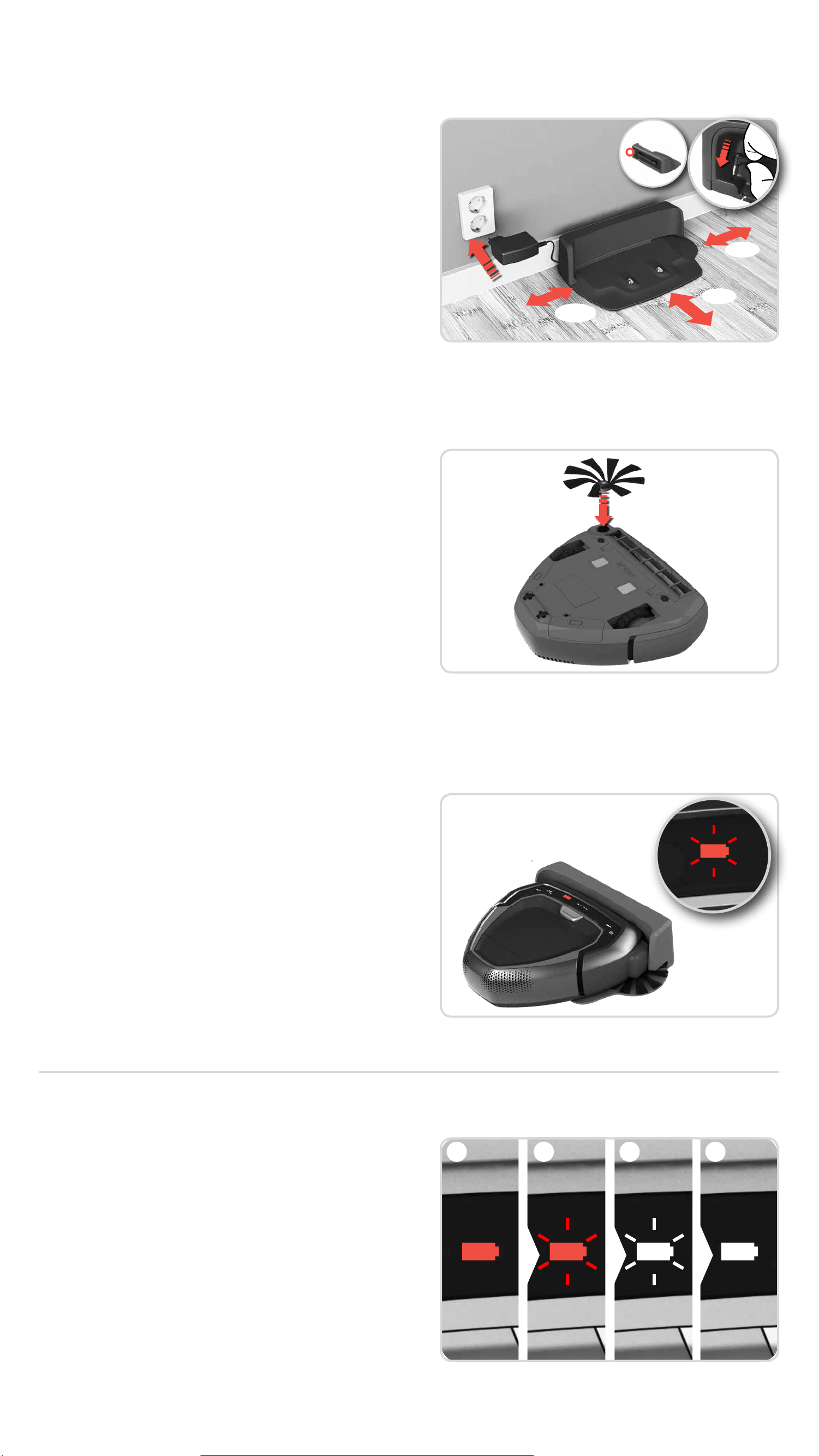

Installation of the robot vacuum cleaner

1.Place the Charging base on the oor against the

wall. Plug the adaptor to the power jack on the

side of the base. Connect the Power cord plug to the

main socket.Wind up excessive cord on the back of

the base. Make sure there is an empty area of 0.5 m

on the sides and 1.5 m in front of the Charging base.

WiFi model: Place the base in range of the WiFi

router.

2.Place the side brush.

Note: If the robot is used to clean rooms with wall-to-

wall carpet, remove the side brush for best cleaning

results.t

Battery/Charging status

3.Place the robot on the Charging base.

The Battery icon will pulse, to indicate that the

robot is recharging.

1.Red battery (A) indicates that the robot needs to

get charged.

Red light pulse (B): The robot is charging – Low

charging level.

White light pulse (C):The robot has charged

enough to be used. (Press Play/Pause button to

clean.)

White light (D): The robot is ready for use.

Full charging time is ~3 hours.

0.5

1.5

0.5

A B C D

6www.electrolux.com

How to use the robot vacuum cleaner

Battery/Charging status

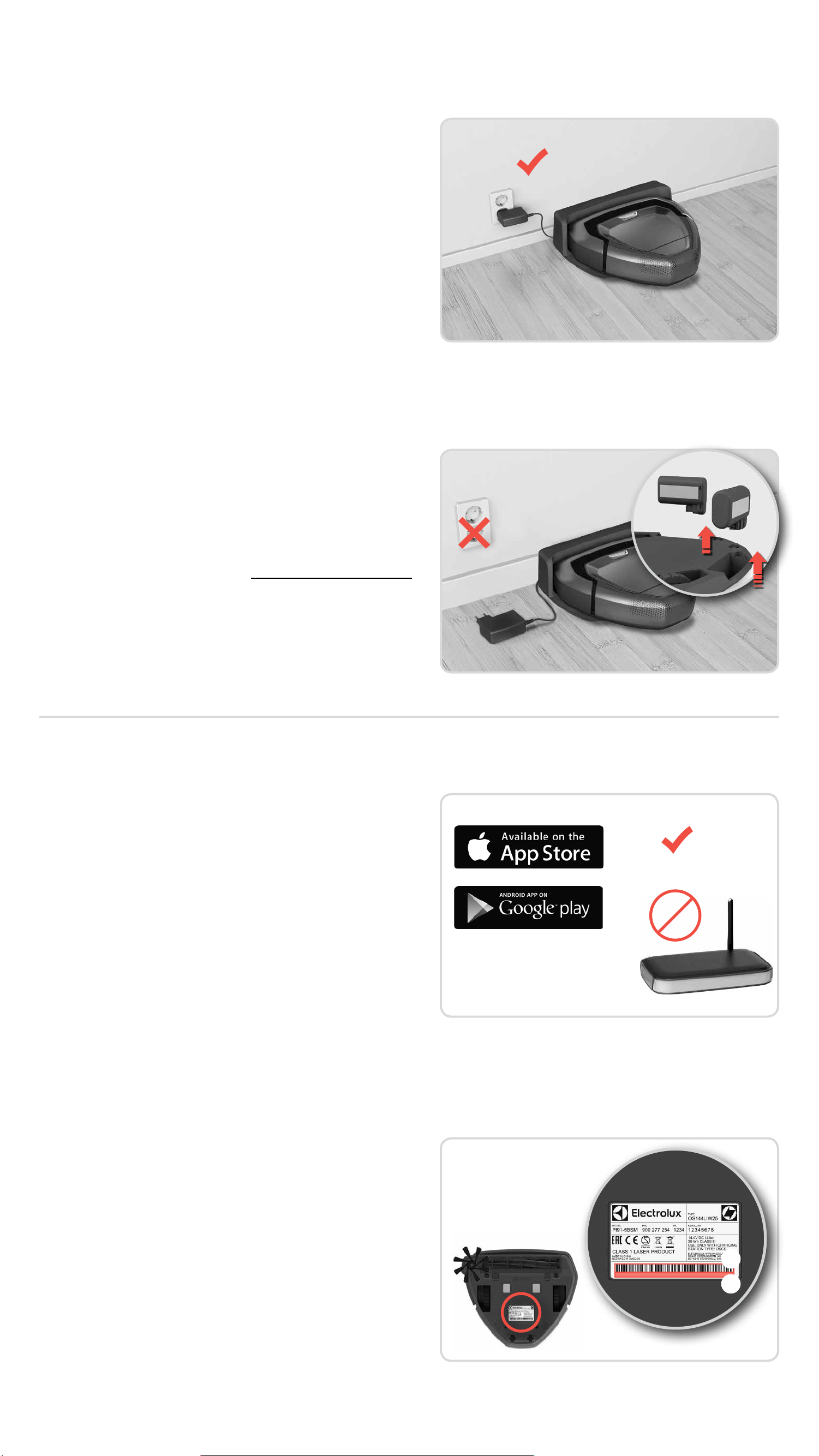

2.To preserve the battery life and performance:

- Always keep the robot charging when not in use.

- Charge it as soon as possible in the charging base

after the cleaning cycle.Waiting too long might

aect the batteries.

3.Storage (not plugged): In case the robot is stored

without being charged for a longer period of time,

remove the batteries and store them separately.

(Charge batteries before removing them).

To remove the batteries see “Changing the batteries”

on page 15.

How to connect to the ”PUREi9”APP

1.Download the ”PUREi9”App in the App Store

or Google play and then follow the instruction to

create the account and connect to the robot.

Note: Make sure that the phone is connected to the

home WiFi

(2.4 GHz).

2.During the process the App will ask you to

turn the robot upside down to activate theWiFi

module and scan the serial number bar code (A) or

enter it manually (B).Then continue following the

instruction from the App.

Note: before turning the robot, make sure that it has

been switched on for at least one minute.

2.4 GHz

5 GHz

We recommend to download the App and update the software before the first use.

7www.electrolux.com

How to use the robot vacuum cleaner

How to connect to the ”PUREi9”APP

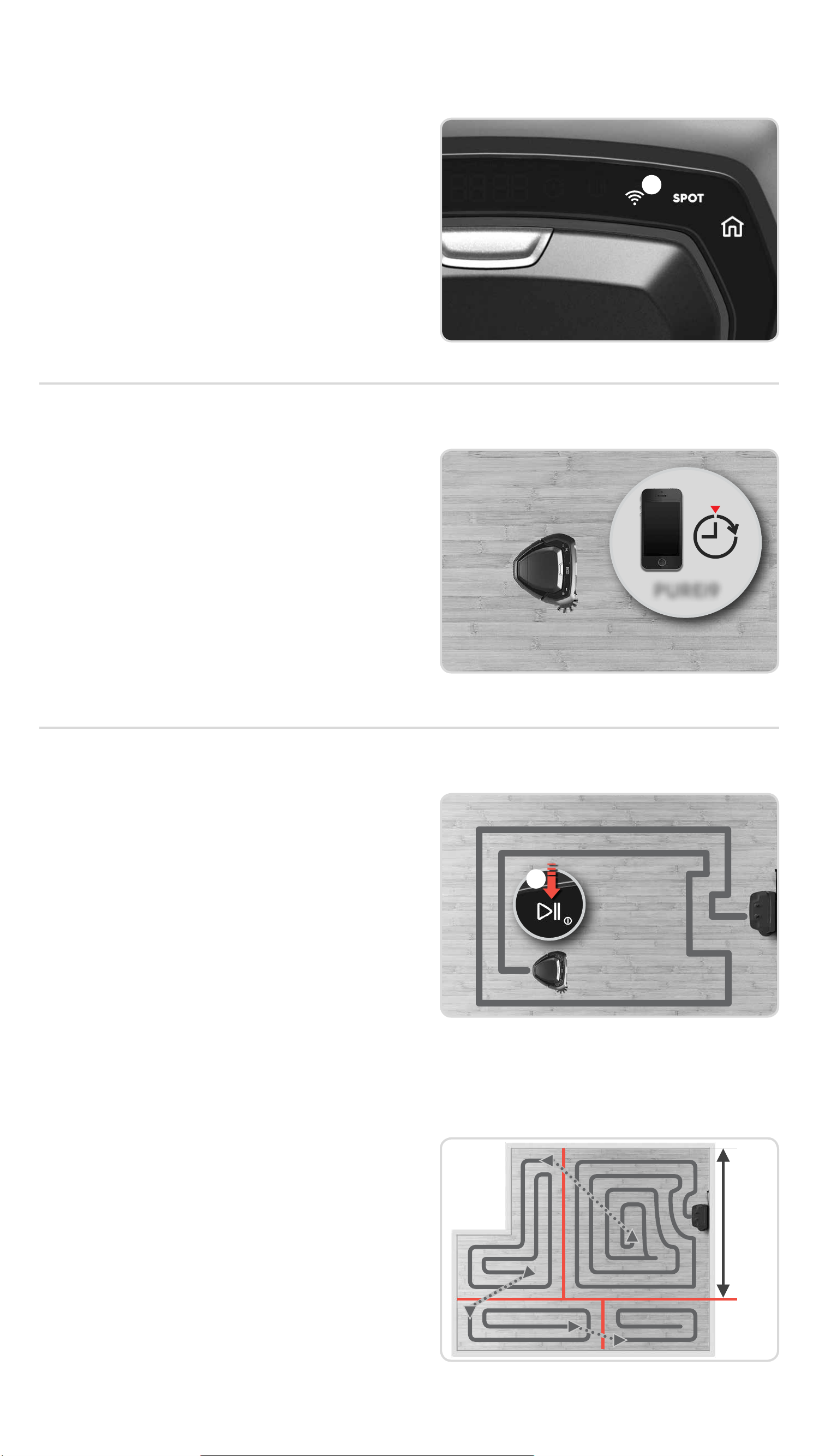

3.When the setup is completed, turn the robot

back to its normal position.TheWiFi symbol (A)

will be lit up to indicate that the robot is connected

to your home network. Note: it could take a few

moments for the robot clock to automatically

synchronise with your mobile device.

Note: Pulsing WiFi symbol indicates that the robot is

trying to connect to the network.

Cleaning schedule

Cleaning can be scheduled in the APP (Days & time)

Cleaning modes

1.Press Play/Pause button (A) to start cleaning.

After a few seconds of start-up, cleaning will be

commenced.The robot will start cleaning alongside

walls, working its way inwards.

Note: Press “Play/Pause” (A) brieﬂy to pause

cleaning, or press and hold to terminate cleaning.

2.Large rooms will be divided into cells of at

most 2 x 2.3 m.

Note: The cleaning pattern is more efficient if the

robot is started next to a wall.

PUREi9

~2.3m

8www.electrolux.com

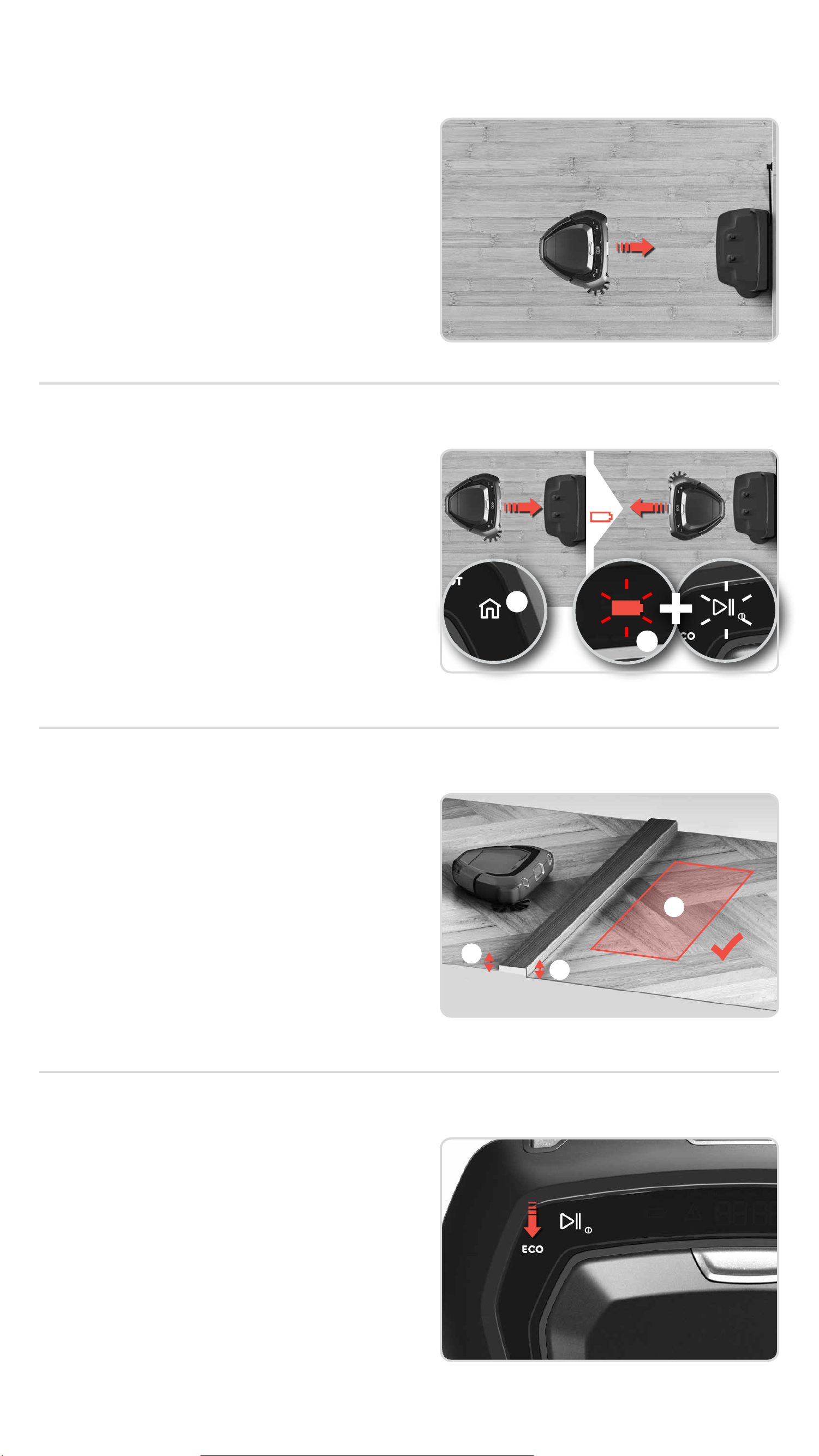

Should recharging be needed during cleaning,

the home button will light up and the robot will

return to the charging base. Home button (A) is lit.The

battery and Play/Pause button (B) ash to indicate

that the robot is charging and that it will resume

where it stopped.

The robot will recharge up to 90% to resume cleaning

quicker. Charging time is ~2 hours.

How to use the robot vacuum cleaner

Auto Docking/Charging

When cleaning is completed, the robot

automatically returns to the charging base.

Note: If the robot is not started from the charging base,

it will return to the start position when ﬁnished.

Auto charging during cleaning cycle

Crossing threshold

ECO Mode

Before crossing a threshold or climbing

over any obstacle, the robot will stop and

check:

- the heights (A & B) on both sides of the

threshold/obstacle

- that the area on the other side is clear to

operate (C)

ECO mode: For a lighter cleaning, press the

ECO button to reduce the power, prolong

the running time and reduce noise level.The

robot will stay in ECO mode until the button is

pressed again.

9www.electrolux.com

How to use the robot vacuum cleaner

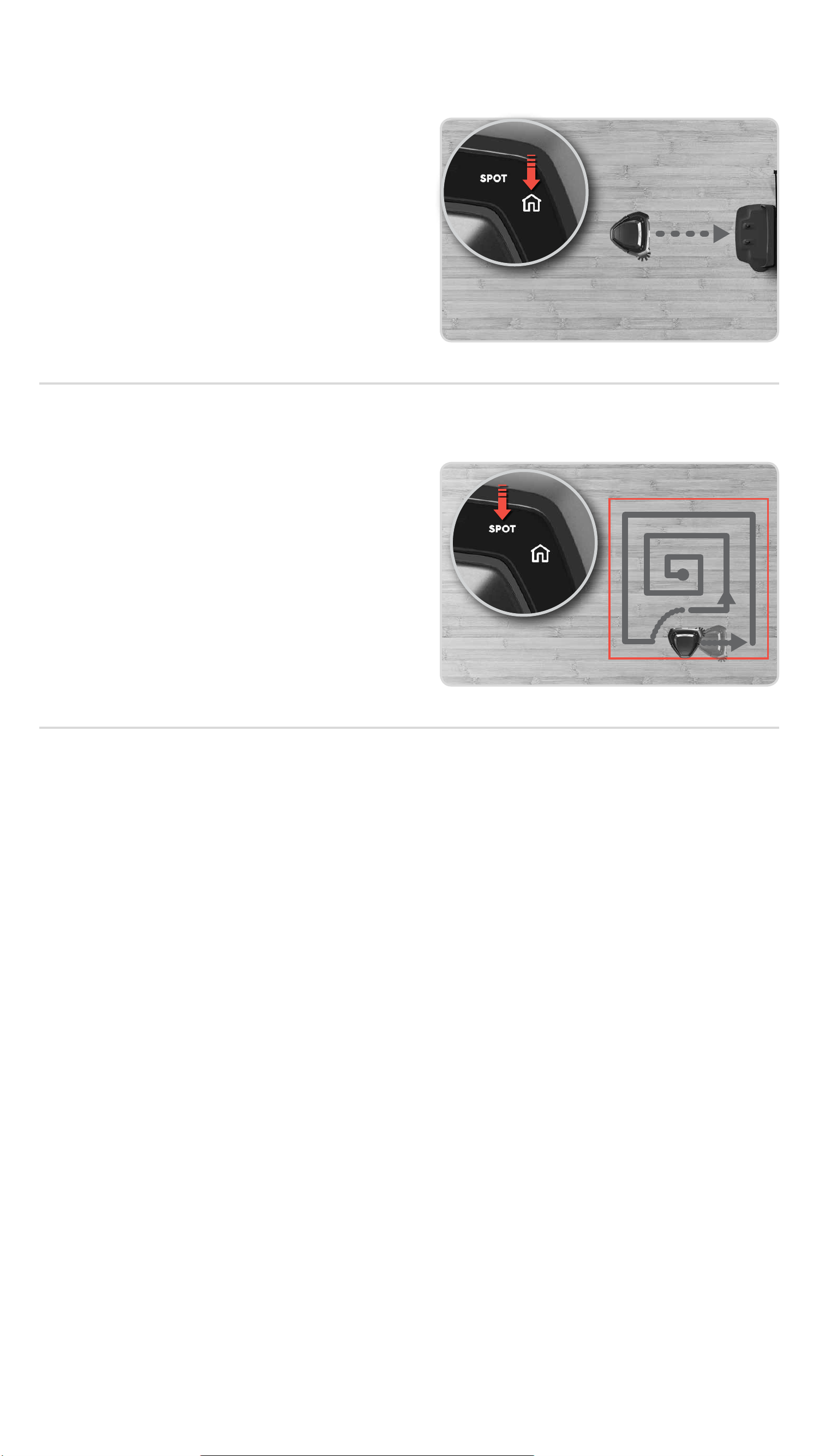

Docking

Stop cleaning and send the robot to the

charging base: Press the Home button. If the robot

is not started from the charging base, it will return to

the starting position.

SPOT Cleaning

SPOT cleaning (small area, ~1 m): Place the robot

facing the spot and press the SPOT button. The robot

will will clean the area twice.

Tips on how to get the best results

Preparing the cleaning area

Before cleaning, remove smaller and fragile objects such as clothing, curtain strings, papers and power

cords from the oor. If the device passes over a power cord and drags it, there is a risk that an object could

be pulled o a table or shelf.

Larger/taller objects such as chairs can be left as the robot will clean around them.

Strong light, Mirrored walls, oor-to-ceiling windows and very shining objects could disturb the 3DVision

system.

Limiting the cleaning area

The robot will clean all oors it can access.To limit the cleaning area, simply close doors or put an obstacle

in the way.

Dust emptying between scheduled cleanings

To get the most out of scheduled cleaning, empty the dust container regularly.

10www.electrolux.com

40 cm

22 mm

95 mm

(A) Leave a space of 40 cm around furniture without legs.

(B) The robot easily crosses thresholds with a height up to 22 mm.

(D) Place the charging base on the left side of a door.

(E) The robot detects stairs and steep clis.

Carpets: The robot cleans

- short-pile carpets: (A) in the same pattern as the room

- medium-pile carpets : (B) rst around it (C) and comes back later to clean the carpet separately

- high-pile carpets: (D) are not cleaned.When the robot reaches the edge it continues with the rest of

the cleaning.

Tips on how to get the best results

Preparing the cleaning area
