Vacuum Cleaner

Operating Instructions

T77xx 02 01 01

Vacuum Cleaner

Operating Instructions

ACCESSORIES

1a Dust container

1b Dustbag

2* Telescopic tube

3* Extension tube (2)

4 Hose handle + hose

5 Carpet/hardfloor nozzle

6* Parquet nozzle

7* Turbo nozzle

8a Combination nozzle

8b Upholstery nozzle

1a 2*

8a 8b

* Depending on the model

SAFETY PRECAUTIONS

This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety.

The vacuum cleaner features double insulation and does not need to be earthed.

Children should be supervised to ensure that they do not play with the appliance.

Never vacuum :

•In wet areas.

•Close to flammable gases, etc.

•Without a dust container / dustbag (this may damage the cleaner). A safety

device is fitted which prevents the cover to close without a dust container /

dustbag. Do not attempt to force cover to close.

•Sharp objects.

•Fluids (this can cause serious damage to the machine).

•Hot or cold cinders, lit cigarette butts, etc.

•Fine dust from plaster, concrete, or ash, for example.

The above can cause serious damage to the motor – damage which is not

covered by the warranty.

Electrical cable precautions:

•Regularly check that the cable is not damaged. Never use the vacuum cleaner if

the cable is damaged.

•If the supply cord is damaged, it must be replaced by the manufacturer, it’s

service agent or similary qualified person in order to avoid a hazard. Damage to

the cleaner cable will not be covered by the warranty.

•Never pull or lift the vacuum cleaner by the cable.

•Disconnect the plug from the wall socket before cleaning or maintaining the

vacuum cleaner.

All service and repairs must be carried out by an authorised Electrolux service centre.

Always keep the vacuum cleaner in a dry place.

BEFORE STARTING

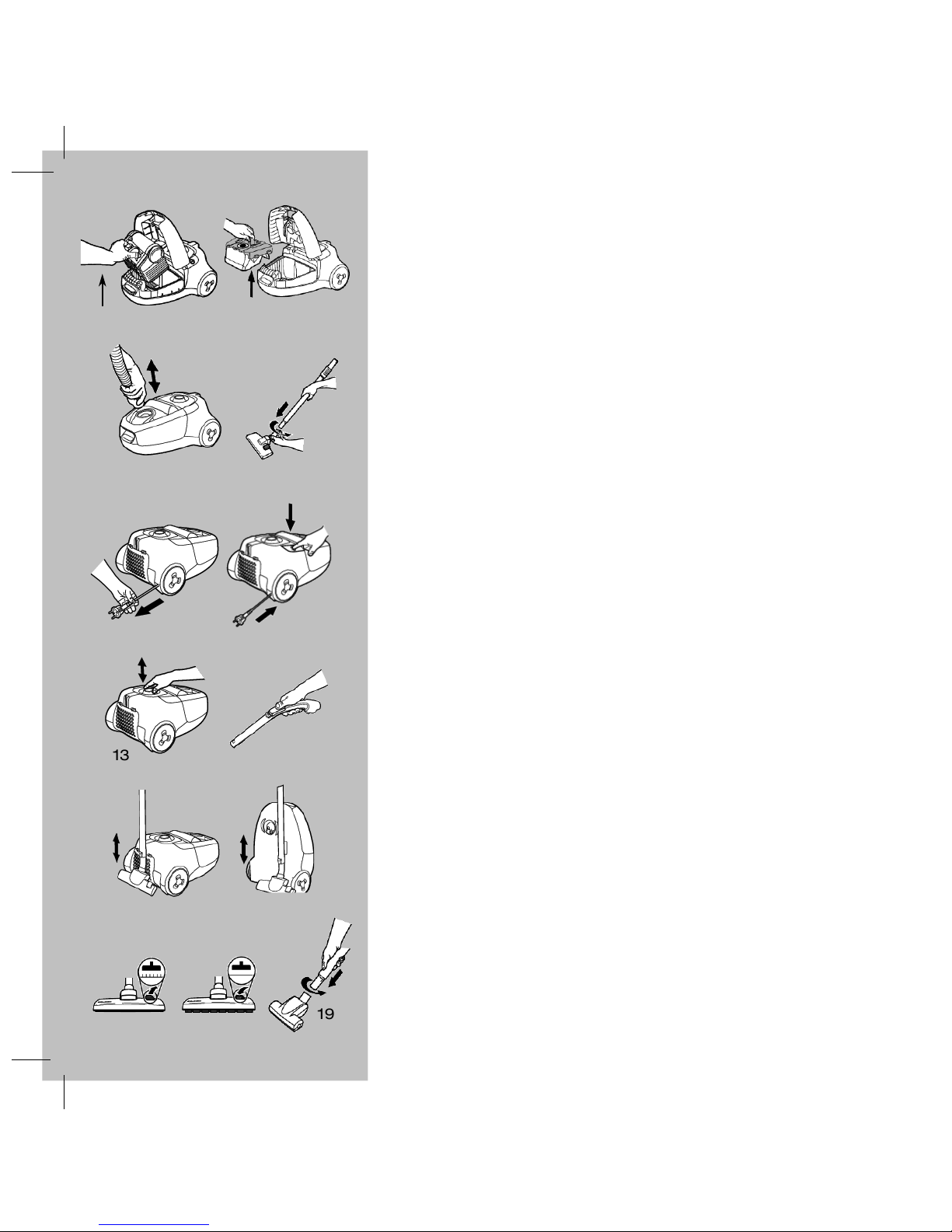

(9.) Check that the dust container / dustbag and motor filter are in place.

(10.) Insert the hose until the catch clicks to engage (press the catch to release the

hose).

(11.) Attach the extension wand or telescopic wand (only on certain models) to the

hose handle and or nozzle (to take them apart again, twist and pull).

(12.) Extend the cord and plug it into the wall socket. The vacuum cleaner has an

integrated cord winder. To rewind the cable press the foot pedal (take hold of

the plug to prevent it striking you).

(13.) Press the ON/OFF button to switch the appliance on.

(13./14.) Adjust suction power using the power control button on the vacuum cleaner

or the suction control on the hose handle.

(15.) A practical parking feature (as well as minimizing the risk of breakage) makes

things easier when pausing during cleaning.

(16.) The parking feature makes it easier to move and store the vacuum cleaner.

USE THE NOZZLES AS FOLLOWS:

Carpets: Use the carpet/hardfloor nozzle with the lever in position (17). Reduce

suction power for small carpets.

Hard floors: Use the carpet/hardfloor nozzle with the lever in position (18).

Wooden floors: Use the parquet nozzle (certain models only, 6).

Special combined nozzle: Detach the nozzle from the accesory dock and use it

for bookshelves (with folding out of the „brush” end) or crevices, corners (with the

„crevice” end) (8a.)

Upholstery nozzle: Use the furniture nozzle (8b).

Curtains, lightweight fabrics, etc.: Use the furniture nozzle (8b).

Reduce suction power if necessary.

Using the turbo nozzle (certain models only) (7)

(19.) Attach the nozzle to the tube.

Note: Do not use the power or turbo nozzle on fur rugs, rugs with long fringes or a

pile depth exceeding 15 mm. To avoid damaging the carpet, do not keep the nozzle

stationary whilst the brush is rotating. Do not pass the nozzle across electric cables,

and be sure to switch off the vacuum cleaner immediately after use.

10 11

15 16

17 19

MAINTENANCE (BAGLESS VERSION)

REMOVING THE CONTENTS OF THE DUST CONTAINER

Never operate the cleaner without the dust container installed.

The dust container must be emptied if the window of the dust container indicator

changes into red when the cleaner is operating at maximum power and the nozzle is

raised from the floor.

21 Remove the dust container from the cleaner.

22 Remove the filter set from the dust container by taking it in the way indicated in

the icon.

23 Remove the contents of the dust container.

24 Each time you empty the dust container, check and clean the two filters in the

dust container lid.

22 Put the filter set back into the dust container.

21 Put the dust container back into the cleaner.

MAINTENANCE (BAGGED VERSION)

Replacing the dust bag

Changing the dust bag

The dust bag must be replaced latest when the indicator window is completely red.

Read with the nozzle lifted up (20).

1 Open the lid.

2 Remove the dustbag holder (21b).

3 Pull the cardboard to take the dustbag out the grooves.

This automatically seals the dustbag and prevents dust from leaking out of the bag

(25).

4 Insert a new dustbag by pushing the cardboard to the end of the grooves in the

holder, you will feel a “click”. Replace the holder and close the cover. (26)

Recommended dust bag

S-bag® Classic (E 200, E 200B) is the approved dust bag for your Electrolux

vacuum cleaner.

21a

24*

25* 26

* Depending on the model

21b

REPLACING THE MOTOR FILTER

Should be done with every 10th emptying of the dust container or every 10th

replacement of the dust bag.

1 Open the lid.

2 Remove the old filter (28).

3 Insert a new filter and close the lid.

REPLACEMENT OF THE MICRO FILTER AND THE NONWASHABLE HEPA

FILTER*

The filter must always be replaced with new ones and cannot be washed. Should be

done with every 10th emptying of the dust container or every 10th replacement of the

dustbag.

1 Open and remove the lid (28. ; 29.).

2 Remove the filter and replace it with a new one as shown in the picture (30.; 32.).

Important: snap on the lower part of the filter frame first then after the upper one.

Make sure the sealing is in place.

CLEANING THE WASHABLE HEPA FILTER*

1 Open and remove the lid, then remove the filter

(28. ; 29.).

2 Rinse the inside (dirty side) of the filter in warm tap water. (31.) Tap the filter

frame to remove excess water. Repeat four times and allow the filter to dry.

Note: Do not use cleaning agents and avoid touching the delicate filter surface.

3 Replace the filter and lid as shown (30. ; 32.).

Important: snap on the lower part of the filter frame first then after the upper

one. Make sure the sealing is in place.

RECOMMENDED FILTERS:

Motor Filter: Menalux EF1

Micro Filter: Menalux EF17

HEPA filter non-washable: Menalux EFH12

27*

28*

29*

30*

31*

* Depending on the model

CLEANING THE HOSE AND NOZZLE

The vacuum cleaner stops automatically if the nozzle, tube, hose or filters and dust

bag/dust container becomes blocked. In such cases, disconnect from wall socket

and allow to cool for 20-30 minutes.

Clear blockage and/or replace filters and dust bag/remove the contents of the dust

container and restart.

Cleaning tubes and hose

(33.) Use a cleaning strip or similar to clear the tubes and hose.

(34.) It may also be possible to remove the obstruction in the hose by squeezing it.

However, be careful in case the obstruction is caused by glass or needles

caught inside the hose.

Note: The warranty does not cover any damage to the hose caused by cleaning it.

Cleaning the floor nozzle

(35.) To avoid deterioration of suction power, frequently clean the carpet/hard floor

nozzle. The easiest way to clean it is by using the hose handle.

Cleaning the turbo nozzle (certain models only)

(36.) Disconnect the nozzle from the vacuum cleaner tube and remove entangled

threads, etc. by snipping them away with scissors. Use the hose handle to clean

the nozzle.

(37.) In case the turbo nozzle stops working, open the cleaning lid and remove any

objects that obstructs the turbine to rotate freely.

TROUBLE SHOOTING

The vacuum cleaner does not start

1 Check that the cable is connected to the mains.

2 Check that the plug and cable are not damaged.

3 Check for a blown fuse.

The vacuum cleaner stops

1 Check whether the dust container / dustbag is full.

2 Is the nozzle, tube or hose blocked?

3 Are the filters blocked?

Water has entered the vacuum cleaner

It will be necessary to replace the motor at an authorised Electrolux service centre.

Damage to the motor caused by the penetration of water is not covered by the

warranty.

CONSUMER INFORMATION

Electrolux decline all responsibility for all damages arising from any improper use of

the appliance or in cases of tam pering with the appliance.

This product is designed with the environment in mind. All plastic parts are marked for

recycling purposes. For details see our website: www.www.electrolux.co.uk

FILTER AND ACCESSORIES!

If you are experiencing difficulties in finding the right filter or accessories to your new

vacuum cleaner- please call our callcentre (you will find the number in the warranty

folder) or visit our webshop at www.menalux.com

The symbol on the product or on its packaging indicates that this product may

not be treated as household waste. Instead it shall be handed over to the applicable

collection point for the recycling of electrical and electronic equipment. By ensuring

this product is disposed of correctly, you will help prevent potential negative

consequences for the environment and human health, which could otherwise be

caused by inappropriate waste handling of this product. For more detailed information

about recycling of this product, please contact your local city office, your household

waste disposal service or the shop where you purchased the product.
