Elite Screens TE100HC2 Betriebsanleitung

031 www.elitescreens.com

Manual ScreensCineTension2 SeriesFixed Frame ScreensPortable Screens

001

www.elitescreens.com

Manual Screens CineTension2 Series Fixed Frame Screens Portable Screens

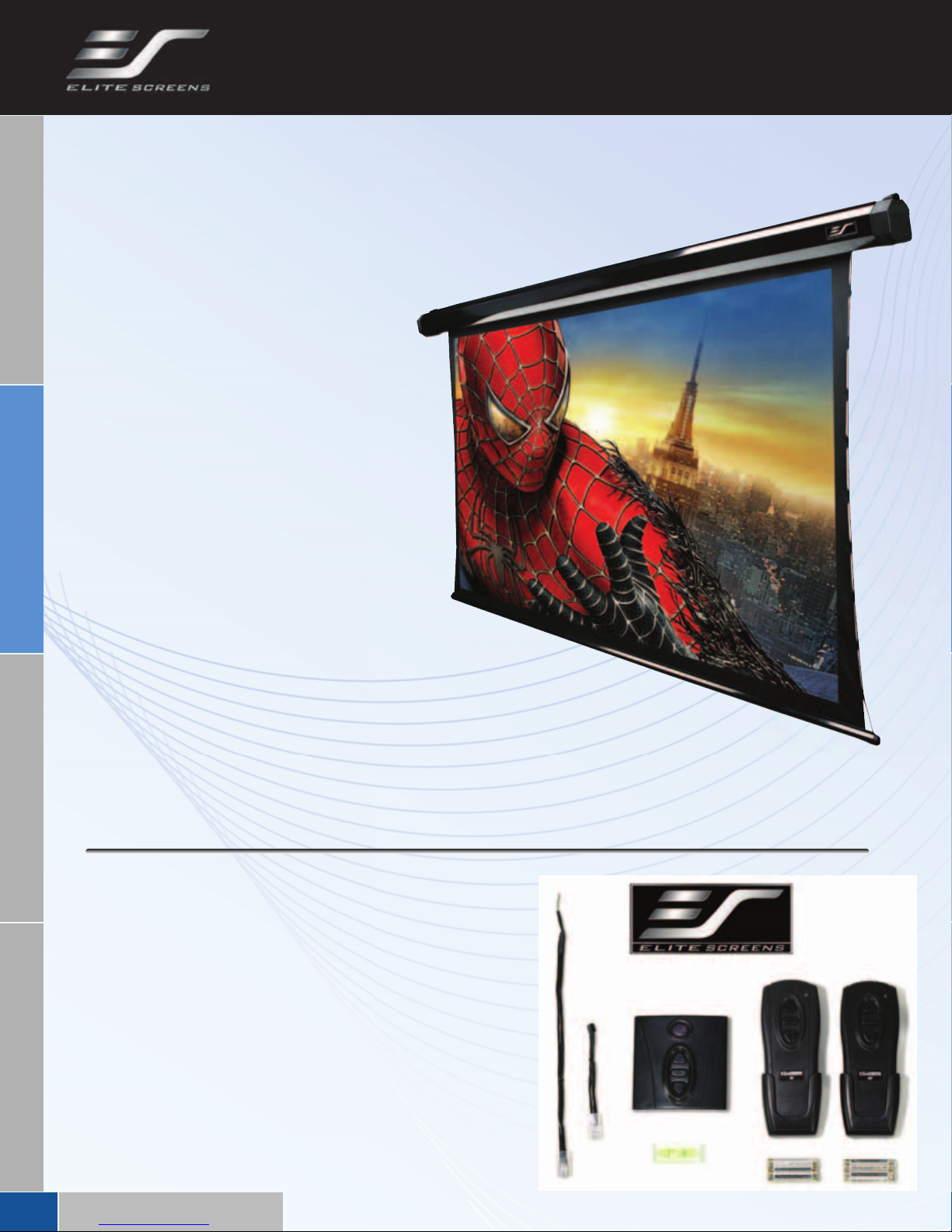

CineTension2 Series

• Tab-Tension Electric Screen

• Premium Grade Tension Electric Screens

Total Control

• Standard Infrared (IR) remote control with extended operational range and Optional

Elite ZR800D Universal Learning Remote Control

• Standard Radio Frequency (RF) remote control-operational range of

100' does not require line of sight operation

• Low Voltage 3-way wall switch or extended IR

“eye” sensor provides additional control

options

• Built-In 5-12 Volt Trigger synchronizes screen

drop/rise with projectors power cycle

• Optional Wireless 5-12V trigger available

• Optional In-Wall Wireless 3-way Switch

Premium Screen Material

• CineWhite™ PVC tension material provides uniform

flatness in a versatile material making it a favorite for

consumers and installers alike

• 160˚ Wide Viewing Angle with 1.1 Gain for either Home

Cinema or Commercial Presentations

• All CineTension2 Series Screen surfaces regardless to

size are seamless

• AcousticPro™ Acoustically transparent fabrics are

available with specific models

Easy Installation

• Alumiumn Housing with Enamel Coating is moisture resistant.

Floating brackets is made for versatile wall & ceiling installations

• Tubular motor provides superior timing and lift capacity for sizes up to 350" (16:9) Adjustable

vertical limit switch regulates screen drop/rise settings

• Optional In-Ceiling Trim Kits for all sizes available

• Shipped fully assembled ready to plug & play with installation kit containing bracket, wall screws and bubble level

Our Commitment-2 Year Manufacturer’s Warranty which is double the industry standard

Standard IR & RF remotes and built-In Infrared & Radio Frequency

Receivers support your Screens On-wall or In-Ceiling application for

a clean appearance. A Low Voltage Controller (LVC) is included with

5-12V trigger port (RJ45) that can be connected to your projector

Trigger port. This enables synchronization between the drop/rise

cycle of your screen and the power cycle of the projector. You could

extend this port using a standard RJ45 connector and CAT-5 cable

to anywhere in the room. Or mount your Wall-switch like a regular

light Switch.

Extra Eye IR Receiver can be extended when screen is recessed

into ceiling and can still be controlled with your IR remote or Univer-

sal Learning Remote Control.

Optional Control Accessories: 1. Wireless (RF) 5-12V Trigger, 2.

In-Wall Wireless RF 3-Way Wall Switch. 3. In-Wall 3-Way Wire wall

switch (CAT5 Ethernet cable) 4. CAT5 50 feet cable (F to M) for

extending the IR receiver or 3-Way Wall Box 5.Elite ZR800D Univer-

sal Learning Remote Control

001 www.elitescreens.com

Manual ScreensCineTension2 SeriesFixed Frame ScreensPortable Screens

032

www.elitescreens.com

Manual Screens CineTension2 Series Fixed Frame Screens Portable Screens

CineTension2 Series screens

are available with up to 30"

seamless top masking

borders on select models.

This is ideal for recessed

ceiling installations using our

Optional In-Ceiling Trim kit.

The vertical drop/rise position

is pre-set for optimum visibility

but is adjustable to suit your

various needs. Please contact

our Tech-support for more

information about this feature.

Standard Wall / Ceiling Sliding Brackets, make it

easier to mount on Studs. Optional 11"x 4" and

12"x 8" L brackets can allow more flexibility when

installing the screen away from walls. Please

contact your reseller or visit

shop.elitescreens.com for accessory parts.

Optional Elite ZR800D Universal Learning Remote

Control, allows one-touch regulation over your entertainment

system managing up to 8 devices simultaneously. Each unit

has a simplified programming option with learning function

to accompany 800 pre-programmed TV/DVD/VCR codes.

CineWhite Screen Material is our most popular by far

with its universal applications. It has a 160° wide

viewing Angle in 1.1 Gain, suitable for today’s new

high contrast ratio projectors in both home theater

and commercial presentations

PowerGain Screen Material is a 1.8 gain pearles-

cent material capable of enhancing the color repro-

duction with low output projectors or countering the

effects of ambient light. Its special surface coating it

provides a high uniformity while decreasing hot-

spotting to virtually non-existent levels
