The Emerson PrPMC800

series processor PCI

mezzanine card (PMC) is

the ideal solution when

time-to-market and flexibil-

ity are important.

MPC7410 PowerPC®

microprocessor

AltiVec technology

Latest high-performance

PowerPlus III Architecture

2MB/1MB of L2 cache

Up to 512MB on-board

ECC SDRAM

32MB on-board ash

72-bit ECC memory

controller ASIC

Single-wide PMC with a

66/33 MHz PCI interface

Optional 10/100BaseT

Ethernet interface

64-bit PCI host bridge

One asynchronous serial

debug port

Hardware DMA channel

Four 32-bit timers

Two watchdog timers

The Emerson PrPMC800 series processor PCI mezzanine card (PMC) is the ideal

solution when time-to-market and exibility are important. In addition to the

highlighted features, this PMC module also includes a full-length heatsink, creating

a CPU package capable of handling the thermal requirements of complex tasks.

Processor PMC (PrPMC) modules provide a complete host CPU and memory subsys-

tem to a base board full of PCI-based I/O controllers in a compact, rugged, industry

standard form factor. The PrPMC isolates the complexities of a high-speed CPU, cache

and memory signals from application-specic hardware, enabling OEMs to focus

on their market requirements while simplifying their product release. These modules

also simplify CPU and memory upgrades in performance-driven embedded and

telecom applications.

PrPMC800 Series

High-Performance Processor PMC

Front page

Interior page

EIA232

Planar

Base Board

PCI Bus – A32/D64-bit

66/33 MHz

10/100 Base T

PMC Interface to

Base Board

Pn4

Pn3

Pn2

Pn1

Ethernet

PCI Bridge and

Memory Controller PowerPC Bus – A32/D64-bit

ECC DRAM

Up to 512MB

Flash

32MB

L2 Cache

2/1MB

MPC7410

processor

COM1

I2C Serial

EEPROM

Specications

PROCESSOR

Microprocessor: MPC7410 class

Clock Frequency: 400 – 500 MHz

On-chip Cache (I/D): 32KB/32KB

L2 Cache: 1MB – 2MB

Cache Bus Clock Frequency: 180 MHz – 225 MHz

MEMORY

ECC Protected Main Memory: PC100 SDRAM

On-board Capacity: Up to 512MB

Single Cycle Accesses: 10 read/5 write

Read Burst Mode: 8-1-1-1 idle; 3-1-1-1 aligned

page hit (CL3)

Write Burst Mode: 4-1-1-1 idle; 3-1-1-1 aligned

page hit

User I2C Serial EEPROM: 8KB

EEPROM/Flash: 32MB surface mount (on-board

programmable), up to 512MB addressable on

carrier (optional)

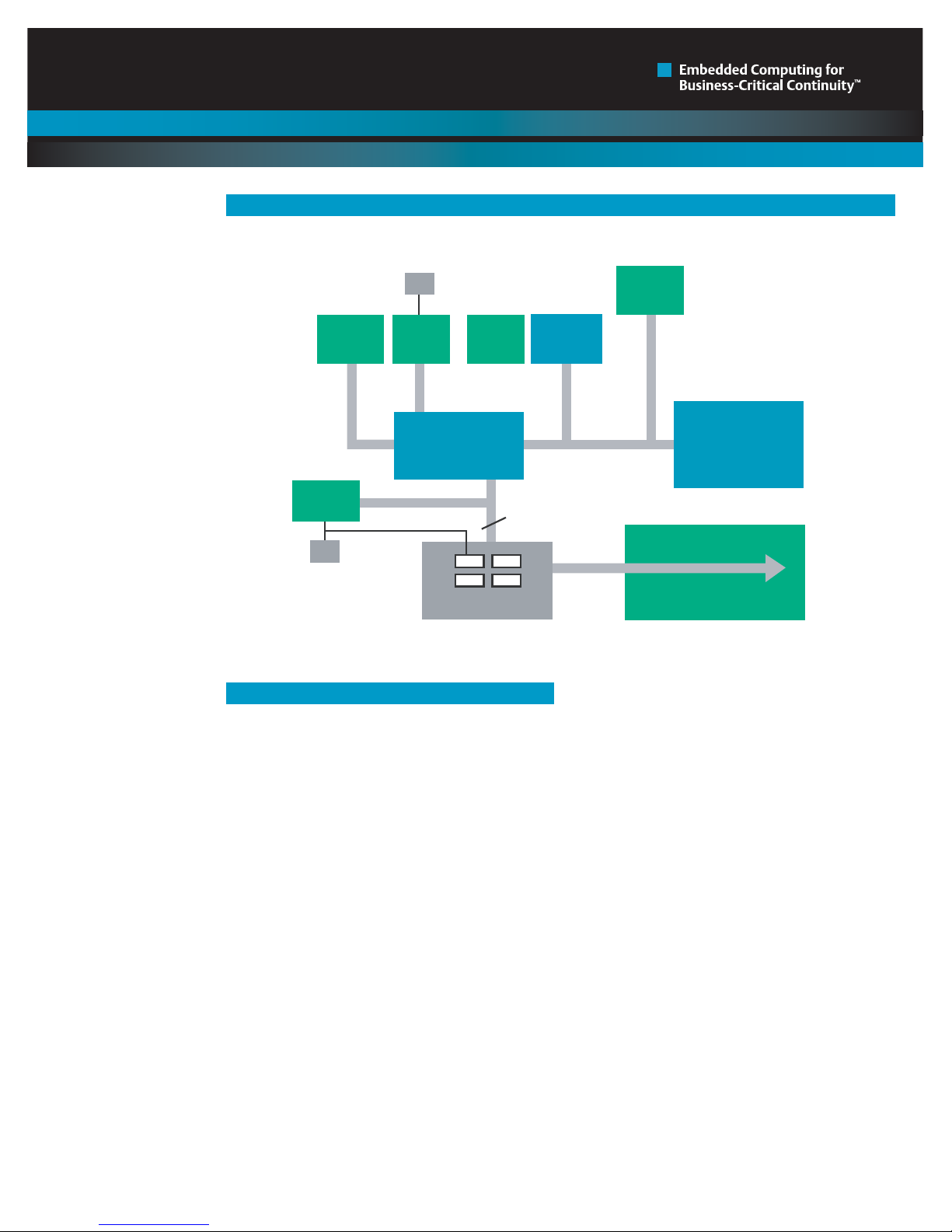

PrPMC800 Block Diagram

SYNCHRONOUS SERIAL PORT

Controller: 16C550 compatible

Number of Ports: One

Conguration: DTE

Async Baud Rate, b/s max.: 38.4K EIA-232,

115Kb/s raw

IEEE P1386.1 INTERFACE

Address/Data: A32/D32/D64, PMC Pn1, Pn2, Pn3,

Pn4 connectors

PCI Bus Clock: 33 MHz or 66/33 MHz capable

Signaling: 3.3V output; VIO input

Power: +3.3V

Height: 13.5 mm from top of carrier board

(one slot)

Module Type: Single-wide

ETHERNET

Controller: Intel®82559ER/82551IT

PCI Bus Master: 33 MHz with PCI burst

Connector: Models congured for Ethernet routing

via Pn4 do not have a front bezel.

Front page

Interior page

COUNTERS/TIMERS

Real-Time Timers/Counters: Four 32-bit

programmable

Watchdog Timers: Two, time-out generates

interrupt or reset

MISCELLANEOUS

Reset, Abort and JTAG/COP via on-board debug

connector

Two planar LEDs for Fail and CPU active

POWER REQUIREMENTS

(AltiVec disabled)

+ 3.3V ± 5% @ 20° C

PrPMC8005E-12xx: 3.3 A typical, 3.9 A

maximum

PrPMC8005E-13xx: 4.1 A typical, 4.5 A

maximum

VIO: PCI buffer diode clamping

voltage

DEMONSTRATED MTBF

(based on a sample of eight boards in accelerated

stress environment.)

Mean: 190,509 hours

95% Condence: 107,681 hours

SAFETY

All printed wiring boards (PWBs) are manufactured

with a ammability rating of 94V-0 by UL recognized

manufacturers.

ENVIRONMENTAL

Operating Non-operating

Temperature: 0° C to +55° C,

forced air

cooling

Humidity (NC): 5% to 85% 5% to 95%

Vibration: 1.0 G sine

sweep, 5.0

to 100 Hz, 25

octaves/min

0.5 G sine sweep;

50-500 Hz; 0.1

octaves/min 3.0 G

sine sweep; 5-50 Hz;

0.25 octaves/min

ELECTROMAGNETIC COMPATIBILITY (EMC)

Intended for use in systems meeting the following

regulations:

U.S.: FCC Part 15, Subpart B, Class A (non-residen-

tial)

Canada: ICES-003, Class A (non-residential)

This product was tested in a representative system

to the following standards:

CE Mark per European EMC Directive 89/336/EEC

with Amendments; Emissions: EN55022 Class B;

Immunity: EN50082-1

Front page

Interior page
