Endon EL-40085 Bedienungsanleitung

The Light pack contains:

IP44 rated Wall light.

The following tools may be required:

Selection of cross and flat head screwdrivers.

Electric drill and assorted drill bits.

Wire strippers.

Electrical insulation tape.

INSTRUCTION MANUAL

This product is only suitable for connection to a 240V~50Hz supply.

It is recommended that this wall light is installed by a qualified electrician in accordance with current IEE

Wiring Regulations and local Building Regulations and is for the Domestic environment only.

The light fitting should be connected to a lighting circuit protected by a 5 amp fuse (or a 6 amp miniature

circuit breaker).

This light has an IP44 rating suitable for use outdoors.

Run supply wire from a 5-amp electrical supply using double insulated 3-core cable of type H05RN-F 1.0mm2

(not supplied) to selected site, ensuring it is adequately protected through the full length of the cable run, it

must come out of the mounting surface in line with the entry to the fitting.

Except where installed in a conduit or duct , which provides equivalent protection against mechanical damage,

a cable buried in the ground shall incorporate an earthed armour or metal sheath or both, suitable for use as a

protective conductor, or be of insulated concentric construction. Buried cables shall be marked by cable

covers or a suitable marking tape. Buried conduits and ducts shall be suitably identified. Buried cables,

conduits and ducts shall be at a sufficient depth to avoid being damaged by any reasonably foreseeable

disturbance of the ground.

This product contains breakable parts – be careful during handling and maintenance to avoid breakage.

This light fitting is intended to use a Compact Fluorescent Lamp (23w) (not supplied).

If any part of the bulb housing is broken or cracked then it cannot be replaced and the fittings must not be

used - as the water ingress protection has been compromised.

If any modification is made it will invalidate the warranty and may render the product unsafe.

Before you start

Please read these instructions carefully before fitting your new light and retain for reference.

Switch off the mains supply and remove the appropriate fuse or switch off the appropriate circuit breaker

before commencing installation.

Ensure that no one else has access that would enable the supply to be inadvertently reconnected.

Check the packaging and make sure that you have all the required parts.

Follow each assembly step in order to prevent incorrect assembly

Make sure all screws / nuts, including electrical connections etc are fully tightened before use.

AS THIS UNIT IS DESIGNED TO USE A CFL TYPE LAMP AND THESE ARE, GENERALLY, NOT DIMMABLE, DO

NOT CONNECT THIS PRODUCT TO A DIMMER SWITCH / EXTERNAL PIR UNIT.

EL-40085 - Outdoor wall fitting.

Safety Warnings

Endon Lighting

LS9 0SE

20151112

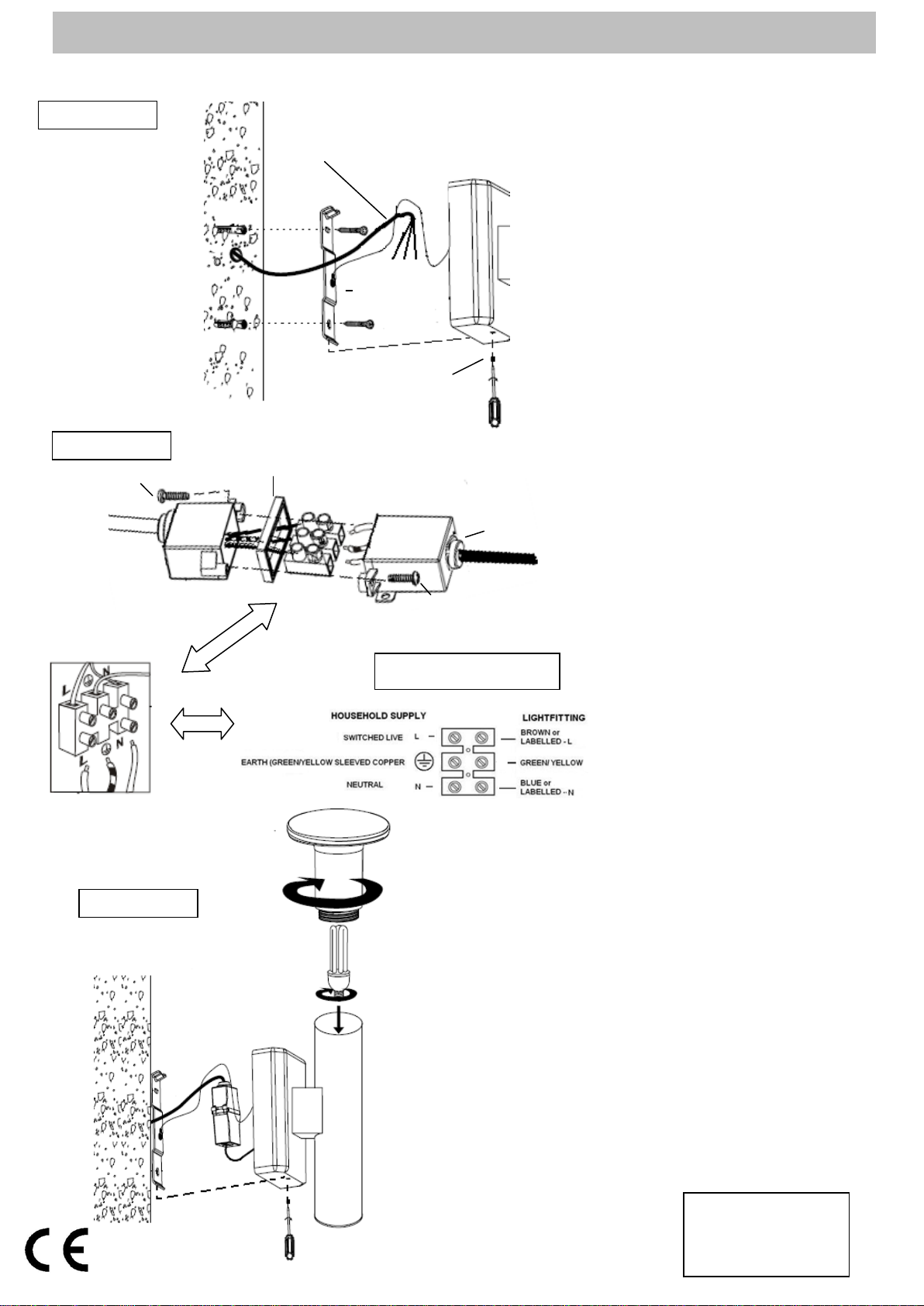

These assembly diagrams are intended as a guide – if in doubt consult a qualified electrician.

Assembly / user instructions

C280 004

Diagram A

Diagram B

Diagram C

1. Determine the position of your

light fitting. Make sure there is

sufficient cable coming out of

the wall to connect to the

terminal block. Ensure that the

mounting surface is solid,

preferably a brick or block wall

and ensure that there are no

other cables or pipes beneath

the surface.

2. Diagram A. If the back plate

bracket is attached – remove

it by undoing the single grub

screw. Use the back plate

bracket as a template and

mark the 2 fixings holes,

making sure the back plate is

the correct way up and the

sides of the back plate are

vertical. Use appropriate

fixings to secure the back

plate to the wall.

3. Diagram B. Open the terminal

block housing (A) by taking

out the screws (B) at either

side of the housing. Connect

the mains wiring to the

internal terminal block (C) –

see wiring details. The cable

entry grommet (D) and any

seals (E) must be securely in

place to ensure that the water

ingress protection is

maintained. NOTE: This is a

Class I fitting and must be

earthed.

4. Diagram C. Fit the terminal

block housing together and

secure with the screws –

removed in 3 above. Fit the

front frame over the back

plate and secure with the

single grub screw removed in

2 above. Take care not to trap

or strain the internal cables.

5. Unscrew the top cover and fit

the recommended CFL lamp –

not supplied. NOTE: Do not

fit lamps of a higher wattage

than those recommended as

this may cause overheating

and damage the fitting.

Re-fit the cover over the lamp.

6. Turn on the power and test.

Back plate

bracket

Incoming mains

cable

WIRING DETAILS

Bracket Grub

screw

(A)

(B)

(C)

(D)

(E)
