M5000 Wireless 802.11 a/b/g Outdoor AP

•2.4GHz / 5GHz

• 54Mbps

• 802.11 a/b/g

• MESH Function

Learn more about EnGenius Solutions at www.engeniustech.com.sg

BUSINESS CLASS

M5000

M5000 Datasheet Version 02032010

*Theoretical wireless signal rate based on IEEE standard of 802.11 a, b, g chipset used. Actual throughput may vary.Network conditions and environmental

factors lower actual throughput rate.

** All specifications are subject to change without notice

PRODUCT DESCRIPTION

M5000 is a long range outdoor wireless Access Point / Client Bridge that

operates in both 5GHz and 2.4GHz frequency. It provides high bandwidth

up to 54Mbps and features high transmitted output power as well as

superior sensitivity. M5000 extends radio coverage, avoids unnecessary

roaming between Access Points and ensures a stable wireless connection

while reduces the number of required equipments. With mesh function

implemented, it can be used to establish mesh network, reduces the

expense of equipment and risk of disconnection.

M5000 provides user friendly interface including user friendly distance

control ranges from 1KM up to 30KM and RSSI LED indicator offering

real time signal status. It comes with PoE injector for convenient outdoor

installation.

M5000 enforces transmission security with full support of latest encryption

mechanism including 64/128-bit WEP, WPA and WPA2. With 14dBi

internal antenna and superior performance, M5000 makes an optimal

wireless solution for both small and large scale projects.

Package Content

1* (M5000)

1* PoE Injector (EPE-1212)

1* Power Adaptor(24V/1A)

1* CD with User’s Manual

1* QIG

1* Metal strap

2* Special screw set

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Learn more about EnGenius Solutions at www.engeniustech.com.sg

Datasheet

M5000

BUSINESS CLASS

M5000

M5000 Datasheet Version 02032010

*Theoretical wireless signal rate based on IEEE standard of 802.11 a, b, g chipset used. Actual throughput may vary.Network conditions and environmental

factors lower actual throughput rate.

** All specifications are subject to change without notice

FEATURES

Wireless

:: 2.4GHz/5GHz It works in 2.4GHz or 5GHz frequency spectrum.

:: MESH It is designed to establish a network with best link reliability under harsh outdoor environment. There is not any limitation on

transmission and network communication. In this mode for better performance, recommended 1 Gateway with 4 Relay in linear and

radiative deployment scenario.

:: High output power Transmit high output power programmable for different country selections.

:: High Data Rate High speed transmitting rate up to 54Mbps, support large payload such as MPEG video streaming.

:: Multifunction application Access Point/Client Bridge/Client Router/WDS Function/MESH.

:: Long range transmitting Transmit power control and distance control (ACK timeout).

:: Narrow Bandwidth Provide 5MHz/10MHz/20MHz bandwidth selection.

:: Signal Strength Display RF signal strength status shown LEDs of 3 colors, making network build-up easier. LED indicators

have the best transmit and receive signal for traffic communication.

:: Multiple SSID 4 SSID supported. Each SSID can set itself wireless or WAN access setting.

:: QoS(WMM) Enhance performance and density.

Networking

:: PPPoE & PPTP Point-to-Point Protocol over Ethernet at Client Router mode. This function will keep trying when failed or

disconnected. Point-to-Point Tunneling Protocol (PPTP) is a method for implementing virtual private networks.

:: Traffic Shaping Traffic shaping is the control of network traffic in order to optimize or guarantee performance.

:: VPN Pass Through

Security

:: 802.11i WEP, WPA, WPA2 (Encryption support TKIP/AES)

:: MAC address functions MAC address filter (AP mode)

:: 802.1x IEEE802.1x Authenticator

:: Station isolation L2 isolation

Management

:: 802.11i & 802.1x WEP, WPA, WPA2 (Encryption support TKIP/AES), IEEE802.1x Authenticator

:: MAC address functions MAC address filter (AP mode) up to 50

:: AP Detection Scan all neighboring APs with their channels and signal strengths automatically for best operated channel

selection on installing

:: Firmware Upgrade Upgrading firmware via web browser, setting are reserved after upgrade

:: Reset & Backup Reset to factory default. User can export all setting into a file via WEB

:: Ping & Trace Route Built-in PING function & Trace Route function in Web GUI

:: MIB MIB I, MIB II(RFC1213) and Private MIB

:: SNMP V1, V2c

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Learn more about EnGenius Solutions at www.engeniustech.com.sg

Datasheet

M5000

BUSINESS CLASS

M5000

M5000 Datasheet Version 02032010

*Theoretical wireless signal rate based on IEEE standard of 802.11 a, b, g chipset used. Actual throughput may vary.Network conditions and environmental

factors lower actual throughput rate.

** All specifications are subject to change without notice

TECHNICAL SPECIFICATION

> Hardware Specification

MCU/RF Atheros AR2316 Single Chip

Memory 32MB SDRAM

Flash 8MB

Physical Interface One 10/100 Fast Ethernet RJ-45

One Reset Button

One Power Jack

LED indicators Power/ Status

LAN (10/100Mbps)

WLAN (Wireless Connection)

Power Requirements Power Supply : 90 to 240 VDC ± 10%, 50/60Hz (Depends on different countries)

Active Ethernet (Power over Ethernet, IEEE802.3af), 48VDC/0.375A

Adapter : 12V/1A

> RF Specification

Frequency Band 802.11b/g

2.412~2.472GHz

Modulation Technology OFDM = BPSK, QPSK, 16-QAM, 64-QAM

DSSS = DBPSK, DQPSK, CCK

Operating Channels 802.11b/g

11 for North America, 14 for Japan, 13 for Europe

Receive Sensitivity (Typical) 802.11g

-92 dBm @ 6Mbps

-74 dBm @ 54Mbp

802.11b

-97 dBm @ 1Mbps

-89 dBm @ 11Mbps

Available transmit power (Average

power)

FCC ETSI

Frequency Power Frequency Power

2.412~2.462

GHz

IEEE802.11g

28dBm@6~24Mbps

26dBm@36Mbps

24dBm@48Mbps

23dBm@54Mbps

2.412~2.472

GHz

IEEE802.11g

28dBm@6~24Mbps

26dBm@36Mbps

24dBm@48Mbps

23dBm@54Mbps

2.412~2.462

GHz

IEEE802.11b

28dBm@1~11Mbps

2.412~2.472

GHz

IEEE802.11b

28dBm@1~11Mbps

Antenna Specification

Gain 5dBi

Radiation Omni

Internal Antenna

(Dual Polarization)

Frequency Band Range 0-6GHz

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Learn more about EnGenius Solutions at www.engeniustech.com.sg

Datasheet

M5000

BUSINESS CLASS

M5000

M5000 Datasheet Version 02032010

*Theoretical wireless signal rate based on IEEE standard of 802.11 a, b, g chipset used. Actual throughput may vary.Network conditions and environmental

factors lower actual throughput rate.

** All specifications are subject to change without notice

TECHNICAL SPECIFICATION

> Hardware Specification

MCU/RF Atheros AR2313+AR5112

Memory 32MB SDRAM

Flash 8MB

Physical Interface 1 x 10/100 Fast Ethernet RJ-45

LED indicators Power/ Status

Power Requirements Active Ethernet (Power over Ethernet) Proprietary PoE design

Regulation Certifications FCC Part 15C/15B/15E, EN301 893, EN 300 328, EN 301 489-1/-17, EN60950, IC

> RF Specification

Frequency Band 802.11a = 5.150~5.350GHz, 5.470~5.725GHz, 5.725~5.825GHz

Modulation Technology OFDM = BPSK, QPSK, 16-QAM, 64-QAM

Operating Channels 802.11a = See the Table1

Receive Sensitivity (Typical) 802.11a

-92dBm @ 6Mbps,

-73dBm @ 54Mbps

802.11g

-92 dBm @ 6Mbps,

-75 dBm @ 54Mbp

802.11b

-97 dBm @ 1Mbps

-91 dBm @ 11Mbps

Available transmit power (Average

power)

FCC ETSI

Frequency Power Frequency Power

5.150~5.350 GHz

IEEE802.11a

26dBm@6~24Mbps

24dBm@36Mbps

22dBm@48Mbps

20dBm@54Mbps

5.150~5.350 GHz

IEEE802.11a

26dBm@6~24Mbps

24dBm@36Mbps

22dBm@48Mbps

20dBm@54Mbps

5.470~5.725 GHz

IEEE802.11a

26dBm@6~24Mbps

24dBm@36Mbps

22dBm@48Mbps

20dBm@54Mbps

5.470~5.725 GHz

IEEE802.11a

26dBm@6~24Mbps

24dBm@36Mbps

22dBm@48Mbps

20dBm@54Mbps

5.725~5.825 GHz

IEEE802.11a

26dBm@6~24Mbps

24dBm@36Mbps

22dBm@48Mbps

20dBm@54Mbps

5.725~5.825 GHz

IEEE802.11a

26dBm@6~24Mbps

24dBm@36Mbps

22dBm@48Mbps

20dBm@54Mbps

2.412~2.462 GHz

IEEE802.11g

26dBm@6~24Mbps

24dBm@36Mbps

23dBm@48Mbps

22dBm@54Mbps

2.412~2.472 GHz

IEEE802.11g

26dBm@6~24Mbps

24dBm@36Mbps

23dBm@48Mbps

22dBm@54Mbps

2.412~2.462 GHz

IEEE802.11b 27dBm@1~11Mbps 2.412~2.472 GHz

IEEE802.11b 27dBm@1~11Mbps

Antenna Specification

Gain 14dBi

Radiation Directional

Frequency Band Range 5.1-5.8GHz

Horizontal -3dB Bandwidth 35O

Internal Antenna

(Dual Polarization)

Vertical -3dB Bandwidth 15O

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Learn more about EnGenius Solutions at www.engeniustech.com.sg

Datasheet

M5000

BUSINESS CLASS

M5000

M5000 Datasheet Version 02032010

*Theoretical wireless signal rate based on IEEE standard of 802.11 a, b, g chipset used. Actual throughput may vary.Network conditions and environmental

factors lower actual throughput rate.

** All specifications are subject to change without notice

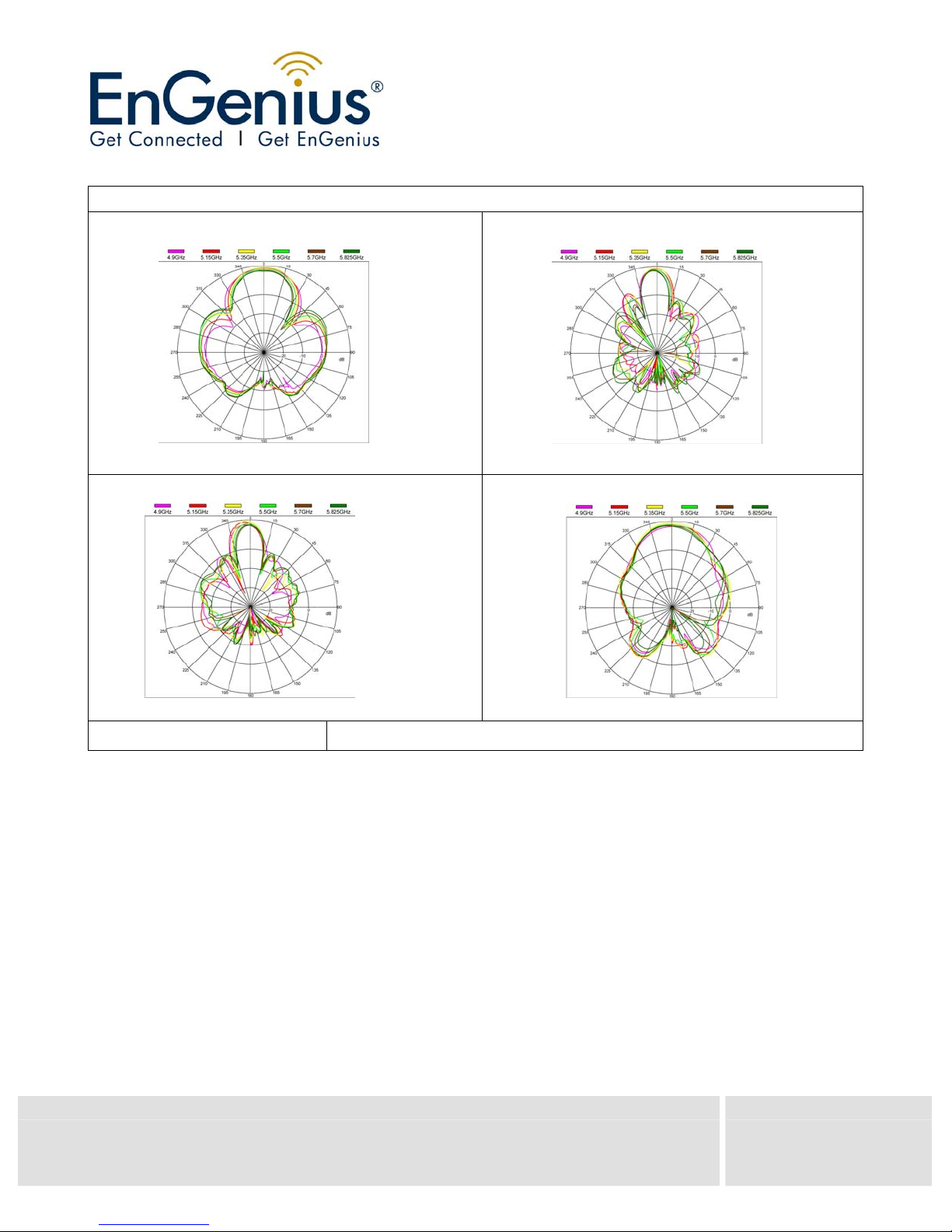

Internal Antenna Pattern

Horizontal Azimuth

Horizontal Elevation

Vertical Azimuth

Vertical Elevation

External Antenna 2 x SMA connector (for 2.4GHz and 5GHz individually)

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Learn more about EnGenius Solutions at www.engeniustech.com.sg

Datasheet

M5000

BUSINESS CLASS

M5000

M5000 Datasheet Version 02032010

*Theoretical wireless signal rate based on IEEE standard of 802.11 a, b, g chipset used. Actual throughput may vary.Network conditions and environmental

factors lower actual throughput rate.

** All specifications are subject to change without notice

SOFTWARE FEATURES

> General

Topology Infrastructure

Protocol / Standard IEEE 802.3 (Ethernet)

IEEE 802.3u (Fast Ethernet)

IEEE 802.11b/g (2.4GHz WLAN)

Operation Mode 802.11 a/b/g

Access Point

Client Bridge

Client Router

WDS AP/CB

Mesh Function

LAN DHCP Server

DHCP Client

VPN VPN Pass through

Wireless Channel Selection (Setting varies by countries)

Transmission Rate

11 a/b/g：54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps

Long distance transmission : 1km to 30km

Transmit power table

Antenna Diversity with Dual Polarization

Signal Strength indication using LEDs

Auto Channel Selection

AP Detection

Traffic Shaping

PPPoE(CR mode) and PPTP

Narrow Bandwidth 5MHz/10MHz/20MHz Support

PING function and Trace Route function

MSSID Support

BSSID

VLAN Support

Security WEP Encryption-64/128/152 bit

WPA/WPA2 Personal (WPA-PSK using TKIP or AES)

WPA/WPA2 Enterprise (WPA-EAP using TKIP)

802.1x Authenticator

Hide SSID in beacons

MAC address filtering, up to 50 field

Wireless STA (Client) connected list

QoS WMM

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Learn more about EnGenius Solutions at www.engeniustech.com.sg

Datasheet

M5000

BUSINESS CLASS

M5000

M5000 Datasheet Version 02032010

*Theoretical wireless signal rate based on IEEE standard of 802.11 a, b, g chipset used. Actual throughput may vary.Network conditions and environmental

factors lower actual throughput rate.

** All specifications are subject to change without notice

> Management

Configuration Web-based configuration (HTTP)

Firmware Upgrade - Upgrade firmware via web-browser

- Keep latest setting when f/w update

Administrator Setting Administrator password change

Reset Setting - Reboot (Press 1 second)

- Reset to Factory Default (Press 5 seconds)

System monitoring Status, Event Log

SNMP V1, V2c

MIB MIB I, MIB II (RFC1213)

Backup & Restore Settings through Web

Time setting NTP (Auto-setting of time); Time setting manually

ENVIRONMENTAL AND MECHANICAL

Temperature Range Operating -20°C~70°C

Storage -30°C to 80°C

Humidity (non-condensing) 0%～95% typical

Dimensions 260mm (L) x 84mm (W) x 55mm (H)

Weight 300g

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Andere Handbücher für M5000

Inhaltsverzeichnis

Andere EnGenius Drahtloser Zugangspunkt Handbücher

EnGenius

EnGenius EOC-2610 Bedienungsanleitung

EnGenius

EnGenius ENH200EXT Bedienungsanleitung

EnGenius

EnGenius EAP600 Bedienungsanleitung

EnGenius

EnGenius EWS357AP v3/ECW220 v2 Bedienungsanleitung

EnGenius

EnGenius EAP600 Leitfaden

EnGenius

EnGenius EOA7535 Bedienungsanleitung

EnGenius

EnGenius EAP9550 Bedienungsanleitung

EnGenius

EnGenius ENH500 Bedienungsanleitung

EnGenius

EnGenius ENS202v2 Bedienungsanleitung

EnGenius

EnGenius Neutron EWS320AP Bedienungsanleitung

EnGenius

EnGenius X-TRA RANGE ERB300H Bedienungsanleitung

EnGenius

EnGenius EAP-3660 Bedienungsanleitung

EnGenius

EnGenius EWS860AP The Neutron Series Bedienungsanleitung

EnGenius

EnGenius EAP 11AC Series Bedienungsanleitung

EnGenius

EnGenius EWS375-FIT Bedienungsanleitung

EnGenius

EnGenius EOC1650 Bedienungsanleitung

EnGenius

EnGenius ENS200 Bedienungsanleitung

EnGenius

EnGenius ECB1200 Bedienungsanleitung

EnGenius

EnGenius EOC5611P Bedienungsanleitung

EnGenius

EnGenius ECB-8610 Bedienungsanleitung

EnGenius

EnGenius ENH500 Bedienungsanleitung

EnGenius

EnGenius EAP1750H Bedienungsanleitung

EnGenius

EnGenius ENS500EXT Bedienungsanleitung

EnGenius

EnGenius EWS385AP Bedienungsanleitung

Beliebte Drahtloser Zugangspunkt Handbücher anderer Marken

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Bedienungsanleitung

Ubiquiti

Ubiquiti NanoStation NSM2 Bedienungsanleitung

Cisco

Cisco Aironet 1550 Series Bedienungsanleitung

Aruba

Aruba IAP-335 Bedienungsanleitung

Advantek Networks

Advantek Networks AWN-AP-54MR Bedienungsanleitung

IP-COM

IP-COM AP355 Bedienungsanleitung

Buffalo

Buffalo AirStation WLA-L11G Bedienungsanleitung

D-Link

D-Link DAP-3662 Bedienungsanleitung

xG Technology

xG Technology xMax CN1300 Bedienungsanleitung

Widelink

Widelink ezWave WAP-1100 Series Bedienungsanleitung

Edimax

Edimax CAP1200 Bedienungsanleitung

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Bedienungsanleitung

Aruba

Aruba AP-203R Bedienungsanleitung

LuXout Shades

LuXout Shades LUXSHADE MOTION Bedienungsanleitung

CreatComm

CreatComm TB5F Bedienungsanleitung

SineDigital

SineDigital MW-1500AP(H) Bedienungsanleitung

TP-Link

TP-Link AP9650 V1 Bedienungsanleitung

Draytek

Draytek VIGORAP 902 Bedienungsanleitung
