Eton MATRIX PN2H 50CC Bedienungsanleitung

E-TON 2009 MATRIX SCOOTER

LUGGAGE BOX INSTALLATION

LUGGAGE BOX PACKAGE CONTENTS

 One (1) luggage box and keys

 One (1) replacement rear rack

 One (1) inner mat

 Two (2) mounting brackets

 Two (2) mounting plates

 Four (4) Philips-head bolts

 Four (4) metal washers

 Four (4) locking nuts

 Two (2) rack spacers

 Two (2) wire connectors

 One (1) electrical wire tie

REAR RACK INSTALLATION

Before installing the luggage box on the 2009 Matrix 50 and

Matrix R4-150 scooters, the rear rack must be replaced with the

one included with the luggage box.

 STEP 1—Remove the rear trim piece from the vehicle by re-

moving the three bolts shown in the picture. It is the silver

plastic piece that curves around the back of the scooter.

 STEP 2—Install the new rear rack by positioning it on the

back of the vehicle and reinstalling the three bolts removed

before as shown in the picture. Be sure to insert the two

spacers under the front of the rack as show in the

picture.

Continued

MOUNTING HARDWARE ASSEMBLY

 STEP 3—Assemble the mounting

hardware as shown in the diagram

and photograph. Two bolts and

washers fit through either side of

the mounting plates and through

the bottom of the luggage box on

the inside.

CONTINUED ON NEXT PAGE

BOLT

WASHER

PLATE

BOX FLOOR

SPACER

E-TON 2009 MATRIX SCOOTER

LUGGAGE BOX INSTALLATION

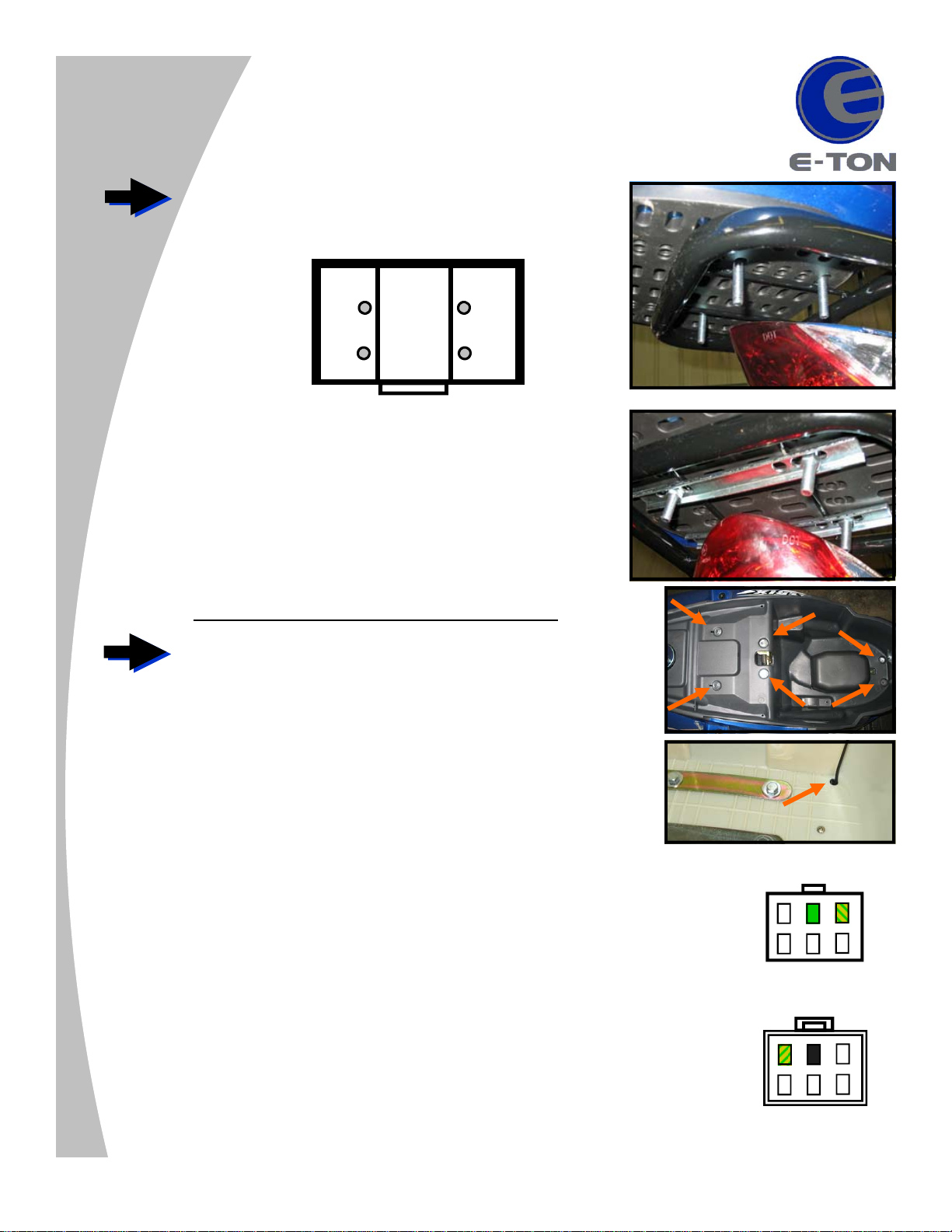

 STEP 4—The bolts should protrude from the bottom of

the box and on either side of the middle two bars on

the rack as shown in Picture Aand the diagram.

 If the bolts are aligned properly on the outsides of the

bars as shown, install the mounting brackets from

underneath by sliding them widthwise across the bars

onto the bolts with the hollow side facing down and

affixing locking nuts onto the bolts. Refer to Picture B.

Tighten the nuts with a wrench to hold the assembly in

place.

RACK

BOLT

CONNECTING THE LIGHTS

 STEP 5—Remove the storage box underneath the seat by

removing the six bolts shown in the picture to gain access to

the rear tail light wire harness, which is located on the right-

hand side of the vehicle next to the fuel tank.

 STEP 6—Thread the lamp wire through the hole in the cor-

ner at the base of the luggage box as shown in the picture.

 STEP 7—Connect the BLACK/WHITE wire from the luggage box to the

GREEN/YELLOW wire on the tail light wire harness.

 Connect the BLACK wire from the luggage box to the BLACK wire on

the tail light wire harness. Use the connector supplied with the kit.

Ensure all connections are tight and use electrical tape or an electrical

wire tie where necessary.

 Test operation by turning on the ignition and squeezing the brake lever.

The brake lights on the box should illuminate. If not, ensure the con-

nections are correct and properly secured. Reinstall the storage box

beneath the seat when wiring is complete. The luggage box is now

ready to be enjoyed.

MALE END

FEMALE END
