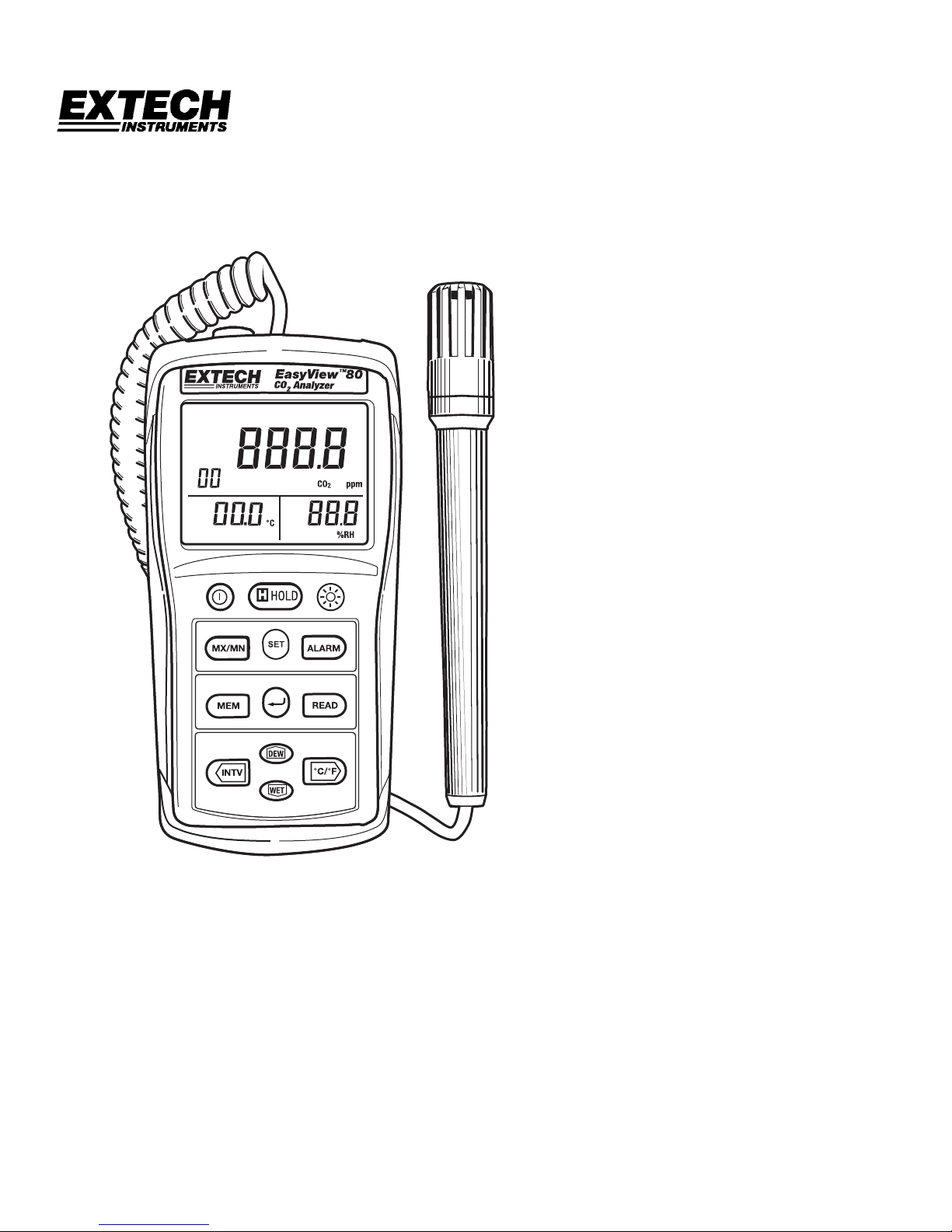

Extech Instruments EA80 Bedienungsanleitung

User's Guide

Indoor Air Quality Meter/Datalogger

Model EA80

EA80 V2.1H 11/06

2.5

EA80 V2.1H 11/06

Preparation for Use

Power Supply

The meter is powered by six AAA-size alkaline batteries or an AC adapter.

Installing the Batteries

Insert six AAA-size batteries as indicated by the diagram located on the inside of the

battery compartment.

When the battery voltage drop below the operating voltage, the “ +” indicator will

be displayed indicating that the batteries need to be changed.

AC Adapter

The AC adapter allows you to power the meter from a wall outlet.

When using the AC adapter, the batteries (if installed) will be bypassed. The AC adapter

is not a battery charger.

Gas Inlet

Always ensure that the meter gas inlet port and gas exhaust are not blocked.

Operation

Note: Do not hold the instrument close to your face. Exhaled CO2will affect

the accuracy of the reading.

Taking Measurements

The sensor for Temperature, Humidity, Dew Point and Wet Bulb measurements is located in the

remote probe. Hold the probe in the air in the area to be tested. DO NOT immerse in liquid.

The sensor for CO2 measurements is located on the top of the meter itself.

Selecting temperature units of measure (C/F)

Press the °C/°F button momentarily to toggle the temperature units.

CO2 Measurement

1. Press button to turn on the meter,

2. The sensor requires a 30 second warm-up before

displaying the CO2 measurement.

3. The meter sensor needs about 10 minutes to

stabilize in still air, after that the readings can be

considered accurate. Moving the meter may

decrease this stabilization time.

4. Primary display shows the CO2 reading. Secondary

display shows temperature reading. Third display shows %RH.

EA80 V2.1H 11/06

Humidity Measurement

1. Press the “ ” button to power on the meter.

2. The display will show the humidity reading value (% RH) directly on the third

display.

3. Hold the probe in the air in the area to be tested. Do NOT immerse in liquid.

4. Allow adequate time for readings to stabilize.

5. Read the measurements on the LCD.

Temperature Measurement

1. Press the “ ” button to power on the meter.

2. Press the °C/°F button momentarily to toggle the temperature units.

3. The display will show the Temperature reading directly on the second display.

4. Allow adequate time for readings to stabilize.

5. Read the measurements on the LCD.

Dew Point Temperature Measurement

1. Press the “ ” button to power on the meter.

2. Press “ DEW ” button

3. The display will show the Dew Point Reading on the second display.

4. Allow adequate time for the readings to stabilize

5. Read the measurements on the LCD.

6. Press “ DEW ” button again to exit dew point temperature reading.

Wet Bulb Temperature Measurement

1. Press the “ ” button to power on the meter.

2. Press “ WET ” button

3. The display will show the Wet Bulb Reading on the second display.

4. Allow adequate time for the readings to stabilize

5. Read the measurements on the LCD.

6. Press “WET” button again to exit the display.

EA80 V2.1H 11/06

MAX

ppm

d-h

m:s

MIN

ppm

d-h

m:s

ppm

d-h

m:s

CO2Maximum and Minimum Recording Measurement

1. Press “MX/MN” button to enter the maximum / minimum

recording mode, the “MAX” icon appears on the display.

The maximum CO2reading will be displayed and will be

updated only when a higher reading occurs.

2. Press “TIME” button to enter time display mode.

Displays 2 and 3 will indicate the time the maximum

reading occurred.

3. Press “MX/MN” button again. The “MIN” icon will

appear with the minimum value and its stamp time.

4. Press “MX/MN” button again. The “△” icon will

appear with the current value and current time.

5. Press “MX/MN” button again cycle through the

recorded MAX, MIN and current readings.

6. Press “↵” button to exit this mode.

7. Press “TIME” button exit the time display mode.

Data Hold

1. Press the Hbutton momentarily to freeze the displayed

reading. The 'H' icon will appear on the upper left-hand

side of the display.

2. Press the Hbutton again to return to normal operation

(the 'H' hold icon will disappear).

Backlight

1. Press the “ “ button to turn the backlight on or off.

2. The backlight will turn off automatically after 30 second.

SET

MAX

MIN

ALM

Err

INTV

Err

ppm

%RH

d-h

DEW

WET

°C°F

ppm

m:s

8888

8888 8888

CAL

EA80 V2.1H 11/06

SET

ALM

ppm

CO2Alarm Operation

Setting the Alarm Limit Values

1. Press “ALARM” button to turn on the alarm function, the “ALM” icon, and current

value are displayed.

2. Press “SET” button to enter High/Low limit value

setting mode, the “SET” icon is displayed and

hundred and thousand digits of the high limit value

will flash.

3. Press “” or “” button to set desired value.

4. Press “” button to move the cursor to set the tens

and ones.

5. Press “” or “” button to enter the desired value.

6. Press “” button to move the cursor to the hundred and thousand digits of the low

limit value.

7. Press “” or “” button to set desired value.

8. Press “” button to move the cursor to move the cursor to set the tens and ones of

the low limit value.

9. Press “” or “” button to set desired value.

10. To change any setting, press “” or “” button to move the cursor to desired high

or low limit value position.

11. Press “↵” button to store these setting and exit this mode.

Turning Alarm On / Off

Press “ALARM” button to turn on the alarm function, “ALM” is displayed.

When the CO2value is below the low limit value, the meter displays “” mark and

beeps.

When the CO2value exceeds the high limit value, the meter displays “” and beeps.

To exit the ALARM function, press “ALARM” button again.

Setting the Real Time Clock

1. Press “SET” button to enter the real-time clock

setting mode, “SET” is displayed and the minutes

are flashing.

2. Press “” or “” button to set the minutes.

3. Press “” button to move the cursor to seconds.

4. Press “” or “” button to set the seconds.

5. Press “” button to move the cursor the days.

6. Press “” or “” button to set the day of the real time date. (Please note that this

is not a calendar. Days are elapsed days up to 99 total)

7. Press “” button to move the cursor to the hours. (Please note that this is a 24

hour clock)

8. Press “” or “” button to set the hours.

9. To change any setting, press “” or “” button to move the cursor to desired

position.

10. Press “↵” button to store the settings and exit this mode.

SET

MAX

MIN

ALM

Err

INTV

Err

ppm

%RH

d-h

DEW

WET

°C°F

ppm

m:s

8888

8888 8888

CAL

EA80 V2.1H 11/06

Manual Dataogging

Storing readings

Press " MEM " button. LCD will display " M" and the

memory address number. Total

memory size is 99 readings.

Viewing readings.

Press " READ " button to enter READ mode. The LCD

will display " R" and the memory address number.

Press " " or " " button to scroll through stored readings

Press " ↵" enter button to exit this mode.

Deleting stored data

Press “ SET ” button three times, the LCD will display “ CLr ” and enter the clear

memory mode.

Press “↵” button to clear the all manually stored readings.

If you wish not to clear the memory press “ SET ” button two times then press “↵” button

to exit the clear memory mode.

Auto Datalogging

Setting interval time

Press “SET” button two times, the “INTV” mark is displayed and enter to the setting

interval time mode.

Press “” or “” button to select desired interval time from 1 second to 255 seconds.

Press “↵” button to store the setting value and exit this mode.

Auto Datalogging mode

Press and hold “MEM” button for two seconds (3 beeps), the LCD will display “ ¯”and

the memory location.

“M” will flash each time a recording is made

The maximum memory capacity is 20,000 recordings and that can be divided into 99

sets.

Press “↵” button to exit this mode and stop recording.

Deleting Logged Data

Press “SET” button four times, the “CLr” and “ ¯” mark will be displayed

Press “↵” button to clear the auto datalogged memorized data and exit this mode.

If you choose not to clear the memory, press “SET” button again then press “↵” button to

exit the clear memory mode.

SET

MAX

MIN

ALM

Err

INTV

Err

CO2

ppm

%RH

d-h

DEW

WET

°C°F

ppm

m:s

8888

8888 8888

CAL

EA80 V2.1H 11/06

Calibration

CO2 Calibration

1. Press “ ” button to turn the meter on.

2. Place the probe in a known CO2reference for 10 minutes.

3. Press the “SET” button 5 times until “C-01” is displayed in the second display.

4. Press “►” or “◄” button to select digits to adjust (flashing).

5. Press “▼” or “▲”button to adjust the display to the reference value.

6. Press “↵” to store the value and exit the calibration mode.

Humidity Calibration

1. Press “ ” button to turn the meter on.

2. Place the probe in a known humidity reference for 60 minutes.

3. Press the “SET” button 6 times until “SET” and “CAL” are displayed on the LCD.

4. Press “▼” or “▲”button to adjust the display to the reference value.

5. Press “↵” to store the value and exit the calibration mode.

Temperature Calibration

1. Press “ ” button to turn the meter on.

2. Place the probe in a known temperature reference for 60 minutes.

3. Press the “SET” button 7 times until “SET” and “CAL” are displayed on the LCD.

4. Press “▼” or “▲”button to adjust the display to the reference value.

5. Press “↵” to store the value and exit the calibration mode.

EA80 V2.1H 11/06

Specifications

Display : LCD triple display.

Display Rate : One time per second.

Low Battery Indication : The “ +” is displayed when the battery voltage drops below

the operating voltage.

Power Supply : Six (6) AAA-size alkaline batteries.

or Regulated AC adapter.

Battery Life : Approx. 8 hours by using alkaline batteries (without

backlight or Alarm function). If datalogging over a long

period of time, use an AC adapter.

Manual Data Memory Capacity : 99 sets.

Auto Datalogging Capacity ; 20,000 sets (maximum 99 blocks)

Operating Temperature Range : 5°C to 50°C (41°F to 122°F)

Storage Temperature Range : -10°C to 60°C (-14°F to 140°F)

Operating Humidity Range : 10%RH to 90%RH, non-condensing.

Storage Humidity Range : 10%RH to 90%RH, non-condensing.

Dimensions : 158 (L)x72(W)x35(H)mm, (6.22”x2.83”x1.38”)

Weight : approx. 255g (including batteries)

Accessories : Instruction Manual, Battery, AC Adaptor, Software CD

ROM & RS232 Cable.

CO2 Specifications :

Sensing Range : 0 to 6000ppm

Sensing Resolution : 1ppm

Accuracy : @ 101.4 kPa (29.92 inHg) and @ 25°C(77°F)

±3% of reading or ±50ppm, whichever is greater.

Sensing Method : Dual wavelength detector with non- dispersive infrared

(NDIR) sensor.

Gas Sampling Mode : Diffusion.

Warm up time : 10 seconds.

Response time : < 10 minutes in still air.

Temperature Coefficient : Add ±0.36% of reading per °C (±0.2% of reading per °F)

away from calibration temperature.

Temperature & Humidity Specifications :

Relative Humidity Temperature

Range 10% ~ 95%RH. -20℃~+60°C/-4℉~+140°F

Resolution 0.1%RH 0.1°C, 0.1°F

Accuracy ±3%RH @ 25°C(77°F), 30~95%RH)

±5%RH @ at 25°C(77°F), 10~30%RH) ±0.5°C, ±0.9°F

Sensor type Precision capacitance sensor. Thermistor

Response

time

45%RH→95%RH≦1min

95%RH→45%RH≦3min 10°C / 2sec

EA80 V2.1H 11/06

Maintenance

Cleaning

Periodically wipe the case with a dry cloth or a damp cloth with mild detergent.

Do not use abrasives or solvents to clean this instrument.

Battery Replacement

When the “ ” symbol appears on the LCD, the six 1.5V ‘AAA’ must be replaced.

1. Turn the meter off.

2. Remove the meter’s battery cover

3. Replace the batteries observing polarity

4. Affix the battery cover and secure the rear screws.

RS-232 Interface, Software Installation and Operation

Software operational instructions are located on the software disc.

Andere Handbücher für EA80

Inhaltsverzeichnis

Andere Extech Instruments Messgerät Handbücher

Extech Instruments

Extech Instruments RH25 Bedienungsanleitung

Extech Instruments

Extech Instruments BR250 Bedienungsanleitung

Extech Instruments

Extech Instruments 480823 Bedienungsanleitung

Extech Instruments

Extech Instruments ExStik PH100 Bedienungsanleitung

Extech Instruments

Extech Instruments 461893 Bedienungsanleitung

Extech Instruments

Extech Instruments 407510 Bedienungsanleitung

Extech Instruments

Extech Instruments MO290-NISTL Bedienungsanleitung

Extech Instruments

Extech Instruments HD755 Bedienungsanleitung

Extech Instruments

Extech Instruments MO500 Bedienungsanleitung

Extech Instruments

Extech Instruments HD350 Bedienungsanleitung

Extech Instruments

Extech Instruments RPM33-NIST Bedienungsanleitung

Extech Instruments

Extech Instruments 381235 Bedienungsanleitung

Extech Instruments

Extech Instruments 461891 Bedienungsanleitung

Extech Instruments

Extech Instruments FM200 Bedienungsanleitung

Extech Instruments

Extech Instruments LT40 Bedienungsanleitung

Extech Instruments

Extech Instruments NON-DISPLAY PORTABLE Bedienungsanleitung

Extech Instruments

Extech Instruments PQ3450 Bedienungsanleitung

Extech Instruments

Extech Instruments RH600 Bedienungsanleitung

Extech Instruments

Extech Instruments MA3110 Bedienungsanleitung

Extech Instruments

Extech Instruments 407355 Bedienungsanleitung

Extech Instruments

Extech Instruments PH90 Bedienungsanleitung

Extech Instruments

Extech Instruments EN150 Bedienungsanleitung

Extech Instruments

Extech Instruments CO200 Bedienungsanleitung

Extech Instruments

Extech Instruments 407355-NIST Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
