FM742C

INSTRUCTION MANUAL

VACUUM CLEANER

FOR HOUSEHOLD OR COMMERCIAL USE

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be

followed, including the following.

READ ALL INSTRUCTIONS

BEFORE USING THIS VACUUM CLEANER

WARNING -To reduce the risk of fire, electric shock or injury:

1. Do not leave the vacuum cleaner when plugged in. Unplug it from the outlet

when not in use and before servicing.

2. Do not use outdoors or on wet surfaces.

3. Do not allow vacuum cleaner to be used as a toy. Close attention is necessary

when used by or near children or infirmed persons.

4. Use only as described in this manual. Use only the manufacturer's

recommended attachments.

6. Do not pull or carry by the cord, use the cord as a handle, close a door on the

cord, or pull the cord around sharp edges or corners. Do not run the vacuum

cleaner over the cord. Keep the cord away from heated surfaces.

7. Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

8. Do not handle the plug or the vacuum cleaner with wet hands.

9. Do not put any objects into the openings. Do not use with any opening

blocked: keep free of dust, lint, hair and anything that may reduce air flow.

10. Keep hair, loose clothing, fingers and all the parts of your body away from

openings and moving parts.

11. Do not pick up anything that is burning or smoking, such as cigarettes,

matches or hot ashes.

12. Do not use without dust compartment and filters in place.

13. Turn off all controls before unplugging.

14. Use extra care when cleaning on stairs.

15. Do not use to pick up flammable or combustible liquids such as gasoline, or

use in areas where they may be present.

111Rev.07/04A

5. Do not use with a damaged cord or plug. If the vacuum cleaner is not working

as it should, or if it has been dropped, damaged, left outdoors or dropped into

water, return to FANTOM at 94 Main Mill Street, Door 16, Plattsburgh, NY 12901.

16.Do not touch the agitator while it is spinning.

17.Do not place any heavy items on top of the vacuum cleaner.

18.Do not step on the hose or pull it too strongly.

19.Do not pick up items such as pieces of waste paper or cloth which looks as though

they may cause the hose to become blocked.

20.Do not clean or store the vacuum cleaner in places where there are high

temperatures.

21.Store the vacuum cleaner away from excessive humidity.

22.When carrying the vacuum cleaner, hold it by the carrying handle.

23.Before servicing the vacuum cleaner, allow all internal metal parts to cool first.

24.Always place foot on handle release when adjusting the handle position of the

vacuum cleaner.

25.If the supply cord of this appliance is damaged, it must only bereplaced by

FANTOM, because special purpose tools are required.

26.Connect to a properly grounded outlet only. See Grounding Instructions.

SAVE THESE INSTRUCTIONS

This vacuum is intended for household or commercial use.

Note to user concerning attachment plug:

This appliance must be grounded. If it should malfunction or breakdown, grounding

provides a path of least resistance for electric current to reduce the risk of electric shock.

This appliance is equipped with a cord having an equipment-grounding confuctor and

grounding plug. The plug must be isnerted into an appropriate outlet that is properly

installed and grounded in accordance with all local codes and ordinances.

WARNING - Improper connection of the equipment-grounding conductor can result in a risk

of electric shock. Check with a qualified electrician or service person if you are in doubt as

to whether the outlet is properly grounded. Do not modify the plug provided with the

appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

This appliance is for use on a nominal 120-volt circuit and has a grounding attachment plug

that looks like the plug illustrated below. Make sure that the appliance is connected to an

outlet having the same configuration as the plug.

Grounding Instructions

Set the ON/OFF switch

to " ON " to light the

headlight.

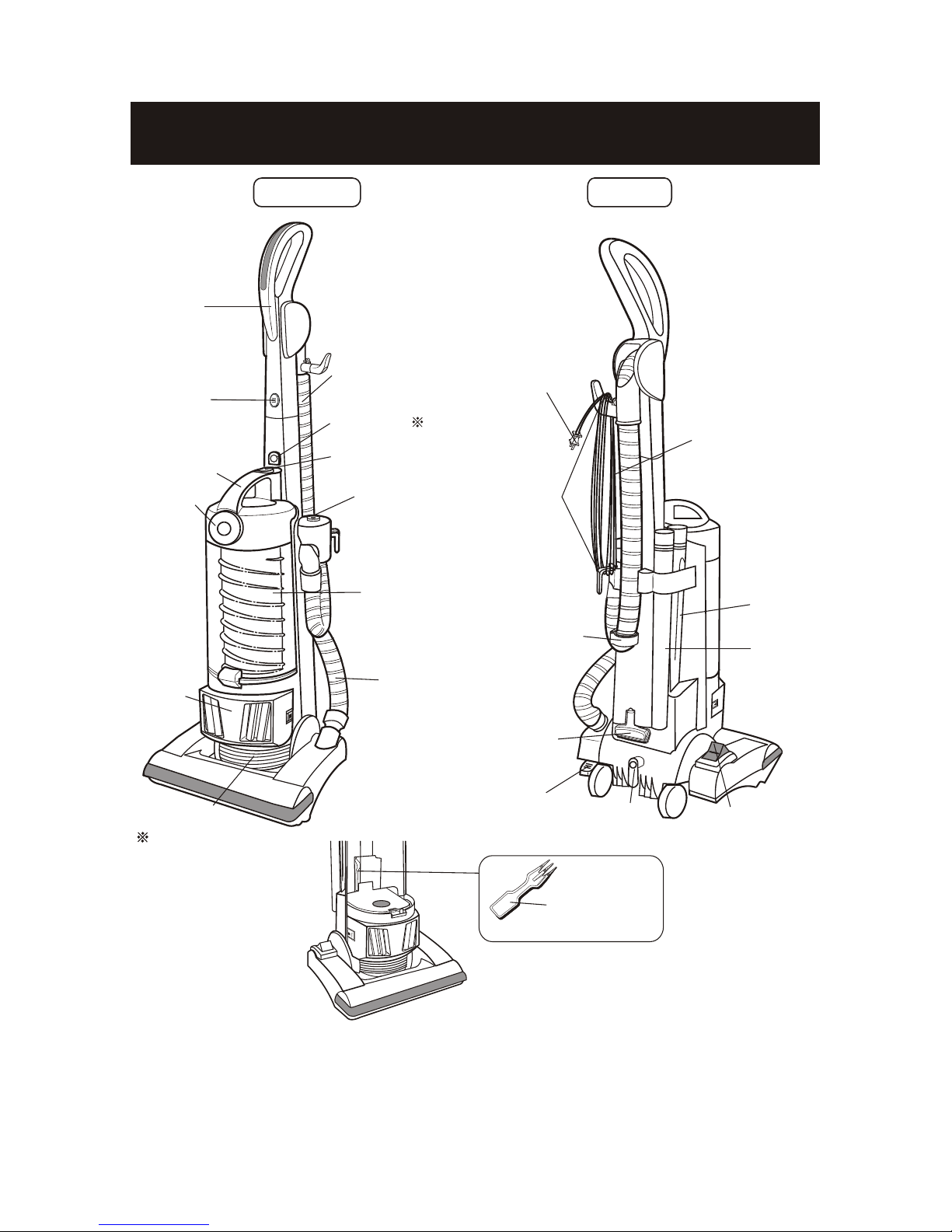

NAMES OF EACH PART

WARNING:

Operate vacuum cleaner only at the voltage specified on name plate.

FRONT REAR

Cleaning Utensil

Headlight

Handle

Suction

Hose A

Dust

Compartment

Carrying Handle

Duster Knob

ON/OFF Switch

Release

Button A

Release

Button B

Release

Button C

Suction

Hose B

Filter

Cover

Wand

Handle Release

Lever

Power Cord

Upholstery Tool &

Dusting Brush

Power Cord

Plug

Crevice Tool

Hose

Holder

Rug/Floor (Tools)

SELECTOR

Holder

Mount

Cord Storage

Hooks

Plug shown in figure

may differ from actual

plug attached to unit

for your area.

Wand

Crevice Tool

Upholstery Tool

& Dusting Brush

Hose Cuff

Suction Inlet

Suction Hose A

Caution: Do not connect the power cord plug to the wall outlet until assembly

is completed.

Attaching the handle

PREPARATIONS BEFORE USE

Attaching the suction hose A & attachments

Set the vacuum cleaner

to the upright position.

lnsert the handle

as shown in the illustration.

Handle

PREPARATIONS BEFORE USE

WINDING THE POWER CORD

Hook the power cord over the clip

which is located on the upper

cord storage hook as shown.

Wind the power cord around

the cord storage hooks.

INSERTING THE POWER CORD PLUG

Plug Side

Clip

Secure the power

cord plug on the

power cord.

Cord Storage

Hooks

THERMAL SAFETY DEVICE IN MAIN BODY

To protect your vacuum cleaner motor from overheating, a thermal safety device has been

built in. If your vacuum cleaner hose or air intake clogs up with dust or dirt, or if your dust

bag becomes full and you continue to run the machine, the vacuum will shut off

automatically to prevent the motor from overheating. If this happens, turn off slide switch

and disconnect your vacuum from power outlet, remove the material clogging the machine

and let your vacuum cool down for approximately 20 minutes. You can then restart your

vacuum cleaner and use it again.

WARNING: This appliance is equipped with a

grounded-type 3-wire cord (3-prong plug). This plug

will only fit into an electrical outlet made for a 3-prong

plug. This is a safety feature. If the plug should fail to

fit the outlet, contact an electrician to replace the outlet.

Do not attempt to defeat the safety purpose of the

grounding pin, part of the 3-prong plug.

Parallel position

This position is used for cleaning under

furniture.

Handle Release Lever

ON/OFF Switch

USING THE VACUUM CLEANER

ON/OFF SWITCH

Start or stop vacuum cleaner by pushing

on the switch.

ADJUSTING THE HANDLE

Upright position

The handle is normally locked in this

The handle of this vacuum cleaner can be set to one of

three positions -Upright, Normal, Parallel. Place your foot

on handle release lever as shown and pull back on the handle

until it releases from its upright position.

position for storage or when using the

attachments.

Push the handle forward

until it locks.

Normal position

This position is used for normal cleaning.

OFF ON

RUG/FLOOR (TOOLS)SELECTOR

The RUG/FLOOR(TOOLS)selector should only be

adjusted while the vacuum cleaner is turned on

and in the upright position.

When cleaning a rug or carpet,first

turn the ON/OFF switch to the ON

position,and then set the RUG/

FLOOR(TOOLS)selector to the

RUG position.

When cleaning a bare floor or when using

one of the attachments,set the RUG/FLOOR

(TOOLS)selector to the FLOOR position.

Caution: Do not change the setting of the RUG/FLOOR(TOOLS)selector while the vacuum

cleaner is turned off.

RUG

FLOOR

Rug/Floor (Tools)

SELECTOR

USING THE VACUUM CLEANER

EDGE CLEANING

This vacuum cleaner is equipped with an "edge cleaning" function for cleaning carpet edges

near baseboards and stationary furniture.

Caution: When using one of the attachments during cleaning,set the vacuum

cleaner to the upright position.

USING THE ATTACHMENTS

Press the release button C to

disconnect the handle from the

vacuum cleaner.

Remove the attachments from the

vacuum cleaner.

Caution:

When removing the attachments, pull

them in the directions shown in the

illustration.Pulling them in the wrong

direction or pulling them forcefully may

cause damage to the attachment clamp.

Attach the attachments as shown below.

Hook the hose holder onto the holder mount.

Caution:

Before using the attachments, please make sure

the hose is hooked on the holder mount.

Holder

Mount

Hose

Holder

When you have finished using the attachments,replace them

in their original positions as shown on page 4.

Tabs

Groove

Upholstery tool & Dusting brush

To detach the dusting brush from the upholstery tool: Press the

tabs on the brush downward to remove it.

To reattach the dusting brush to the upholstery tool: Insert

the front of the upholstery tool under the hook on the front of the

dusting brush. Press down on the back of the upholstery tool to

snap it into place under the dusting brush tabs.

Suction Hose A

Wand Crevice Tool

Upholstery

Tool

Dusting

Brush

Suction Hose B

Attach the attachments on the handle or

the suction hose B.

Handle

Caution: Before using the suction hose B,

please make sure the handle is

reattached on the body.

Attachment Clamp

Wand

Crevice Tool

Release

Button C
